Electric Powered Forklift With ZAPI Controller

Items: 4 Ton Electric Forklift Truck
Power type: electric
Rated capacity: 4000kg
Lifting height: 3000mm
Send Inquiry
Chat Now

Product Introduction

Products detail

This electric powered forklift with ZAPI controller, with a commitment to sustainability, offers exceptional performance while prioritizing user convenience.



Environmentally Friendly and Efficient: This electric fork truck sets the standard for environmental responsibility, boasting zero emissions, low noise levels, and the absence of heavy metals in its design. With a focus on sustainability, it aligns with modern environmental standards.



Long-Lasting Lithium Battery: The battery forklift is equipped with a high-performance lithium battery that can maintain over 75% of its capacity even after an impressive 4000 charge cycles. With an industry-leading 5-year or 10,000-hour extended warranty, our lithium battery sets new benchmarks for longevity and reliability in electric forklift technology.



Adaptability to Extreme Temperatures: Designed to excel in diverse working conditions, this portable electric forklift thrives in high and low-temperature environments, operating seamlessly in temperatures ranging from -25°C to 55°C. The performance of its lithium battery surpasses that of traditional lead-acid batteries in extreme temperature conditions.



Safety First: The eletric power forklift prioritizes safety with a multi-node safety closed-loop protection system. This sophisticated system ensures real-time closed-loop protection in various vehicle states, offering a full-system emergency power-off function. This enables swift disconnection of the vehicle control system and BMS power, ensuring safety and effectiveness.



Efficiency and Energy Conservation: Charging this electric forklift is a breeze, with the ability to reach full charge in just one hour. Its high energy density and low self-discharge rate of less than 1% per month contribute to its excellent charge and discharge performance, making it an efficient and energy-saving choice.



Convenient Charging with Extended Battery Life: The electric powered forklift with ZAPI controller offers the flexibility of on-the-go charging, allowing for easy and convenient operations without compromising the battery's lifespan.

best electric forklift
electric fork lifts
electric lift truck
4 ton electric forklift specifications



Model   FB40
Power type   electric
Rated capacity   4000
Load center   500
Tire type   Solid tire
Quantity of wheels   2 X /2
Tires Size   250-15/23×10-12
Tilting Angles α/β(°) 6/10
Height of mast mm 2185
Max.lift height of mast mm 4170
Free lift height mm 150
Max.lift height of fork mm 3000
Front-wheel Overhead mm 2100
Length(without fork) mm 2985
Front overhang mm 565
Rear overhang mm 420
Wheelbase mm 2000
Min.ground clearance mm 110
Tread(front/rear) mm 1150/1175
Overall width mm 1480
Fork size mm 1070x150x50
Minimum right Angle stacking channel width mm 4630
Min mum urn radius mm 2676
Max driving speed km/h 13/12.5
Max Lifting speed mm/s 260/420
Max lowering speed mm/s 480/430
Maxmum tractive force N 16800
Max.grade ability % 13/14
Drive motor power kw 18
Hoisting motor power kw 25.4
Level voltage/Capacitance V/Ah 80/500
electric control system   Curtis/ZAPI
Total weight KG 675

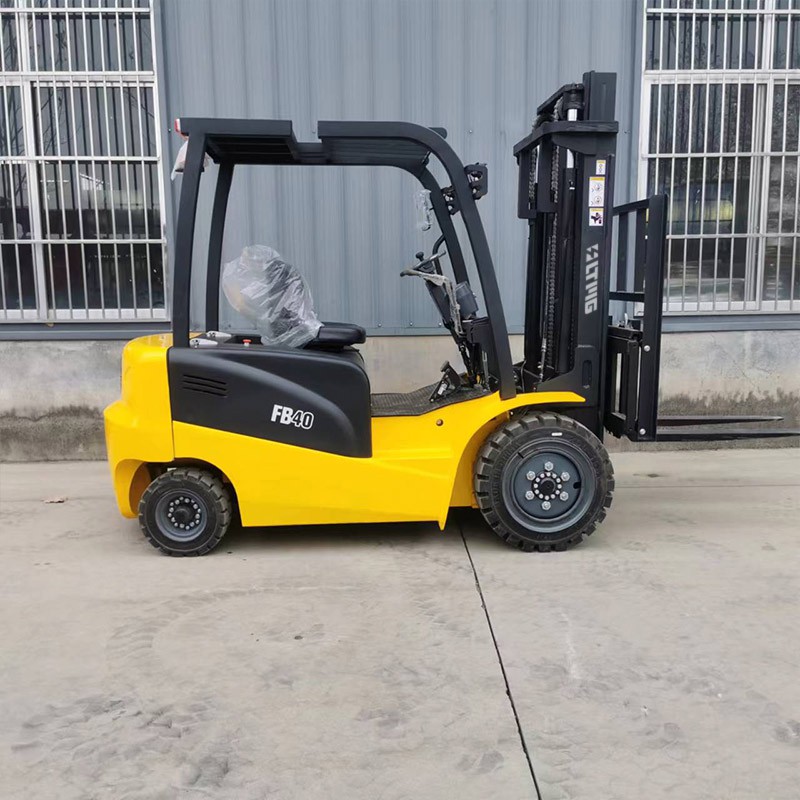

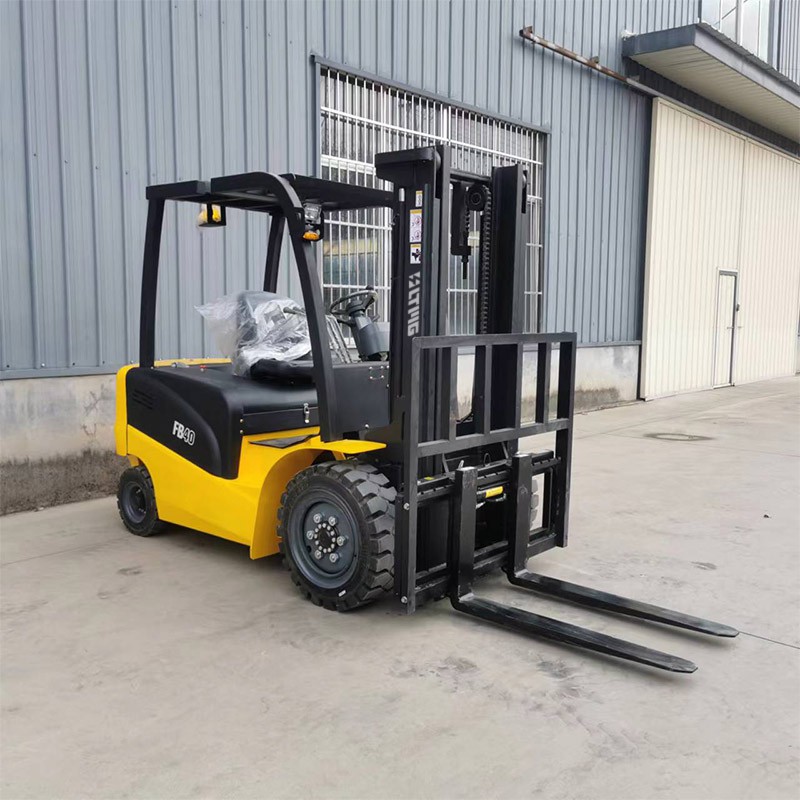

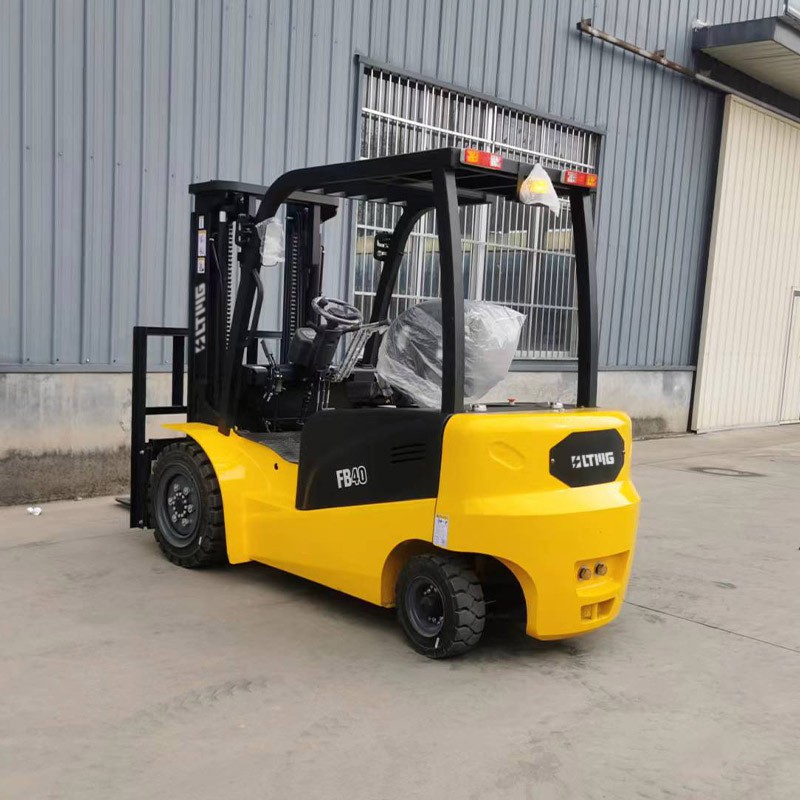

Products image

The 4 ton electric forklift is a highly efficient and energy-saving piece of machinery. With zero emissions and zero pollution, this forklift is eco-friendly but also very reliable and easy to maintain. This forklift embodies the latest technological advancements in the industry and is perfect for those who want a reliable and green option for their business operations. With LTMG's 4 ton electric forklift, you can rest assured that you're making a positive and responsible choice for your company and the environment.

image of electric powered forklift



Safety insurance

LTMG's 4 Ton electric forklift is equipped with fire extinguishers, truly according to the standard for safety and innovation in the material handling industry and providing exceptional equipment that goes above and beyond expectations. In high-risk work environments like warehouses and storage facilities, fire extinguishers play a decisive role, ensuring the safety of the driver and minimizing damage. LTMG is committed to building the highest quality products by prioritizing both product quality and job safety.

security of battery operated forklift



customer service



LTMG's customer service team is truly remarkable for its unwavering commitment to providing 24-hour service to global customers. Regardless of the nature of customers' requests, the team displays the utmost professionalism and swiftness in addressing inquiries, resolving issues, and offering helpful guidance.

service of eletric power forklift



FAQ

Q: How is LTMG's inventory managed, and can I expect prompt availability of the 4-ton Electric Forklift?

A: LTMG maintains a well-managed inventory to meet customer demands promptly. To ensure real-time information on stock availability, we recommend checking with our sales team, as demand may influence inventory levels. We are dedicated to providing timely and efficient solutions for our customers' material handling needs.

Q:  What is your main market?

A:LTMG has sold the products to Europe, North America, South America, Australia, The Middle East, and etc.

Q: 3. What is included in the shipping container?

A:In addition to the product itself, the shipping container will encompass a complimentary toolbox, an export qualification inspection and certificate, a user manual and CD containing operating instructions, and even surplus machine body paint. This comprehensive package is designed to enhance convenience and ensure customer satisfaction.
