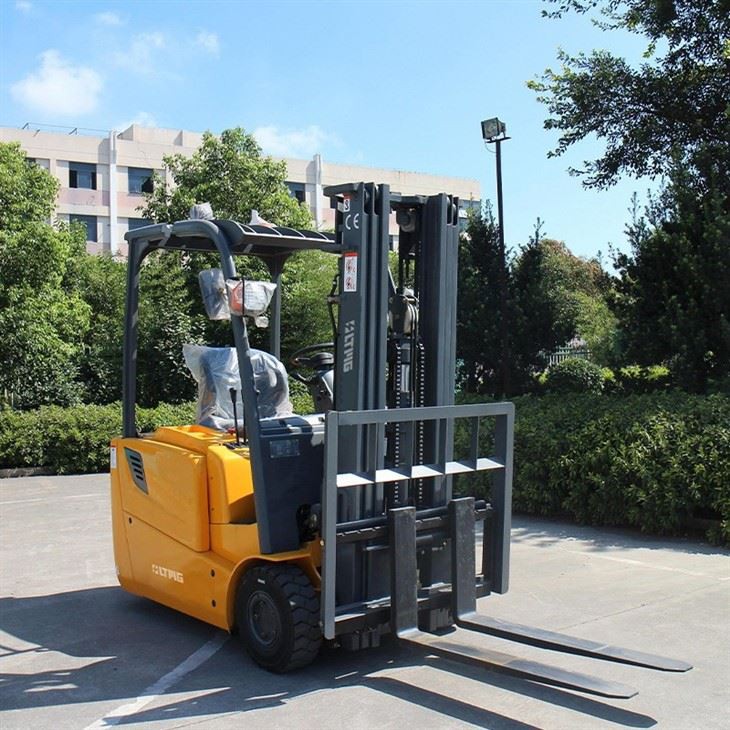

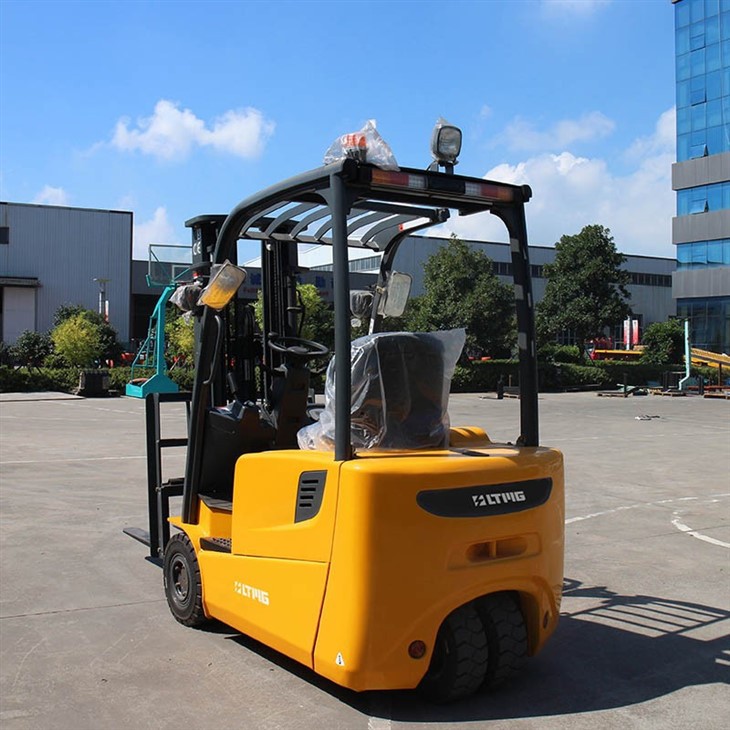

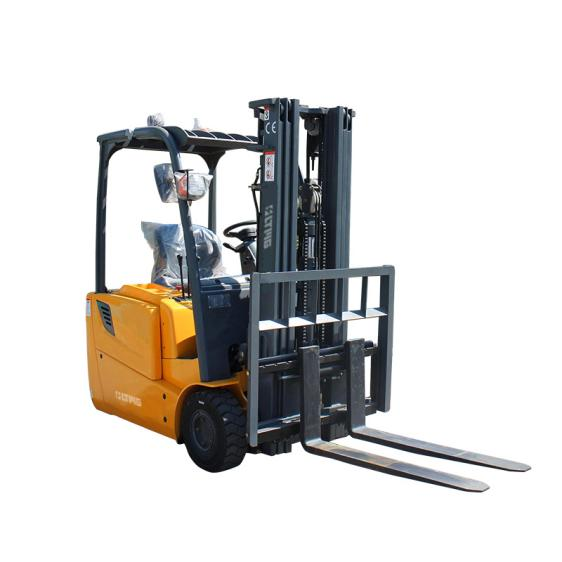

Name: 3 Wheel Ectric Powered Forklift
Brand: LTMG
SKU: 219673576

Products Description

This 3 wheel electric truck's body features an open hood and hinged side doors for quick removal from both sides. Adopting advanced battery replacement programme design concept, maintenance is quick and easy. The dual-motor drive system, together with the compact and small body design, strengthens the vehicle's travelling and climbing performance, with higher torque and stronger output.

electric 3 wheel forklift

Adopting dynamic load-sensing priority steering system, the steering is sensitive and swift. The three-wheeled design gives this 3 wheel electric truck a smaller turning radius, enhancing it's driving manoeuvrability and helping it to operate in tight spaces.

3 Wheel Ectric Powered Forklift

To enhance the consumer experience. LTMG has enhanced the design of the seat and operating space to make its structure and layout more ergonomic, to enhance the driver's experience of actual operation, giving him a good, comfortable and convenient operating experience, which greatly improves the efficiency and safety of this three wheel forklift truck's operation.

Specification

Model			FB16S
Power type			Electric
Rated Capacity		kg	1600
Load Centre		mm	500
Lift Height		mm	3000
Fork Size	L×W×T	mm	920×120×35
Mast Tilt Angle	F/R(α°/β°)	Deg	6°/6°
Front Overhang(Wheel center to fork face)		mm	390
Tread	(F/R)	mm	924/208
Ground Clearance(Bottom of mast)		mm	90
Fork Spread	Min./Max.	mm	240/970
Overall Dimension	Length to face of fork(Without fork)	mm	2100
	Overall Width	mm	1100
	Mast Lowered Height	mm	2010
	Mast Extended Height(With backrest)	mm	3940
	Overhead Guard Height	mm	2055
Turning Radius(outside)		mm	1690
Min. insecting aisle		mm	2300
Speed	Travel (Empty load)	km/h	14
Speed	Lifting (Full load)	mm/s	340
Max. Gradeability		%	15
Tire	Front		18×7-8
Tire	Rear		16×6-8
Wheelbase		mm	1460
Service Weight		kg	3420
Motor	Driven Motor	kw	2×4.5
Motor	Lift Motor	kw	8.6
Battery	Voltage/Capacity	V/Ah	48/490
Controller	Manufacturer		CURTIS
Controller	Type		AC
Operating Pressure for Attachment		Mpa	14.5

The Spare Parts of LTMG forklift

Spare Parts of LTMG Forklift

Feedback on LTMG forklift wordlwide

Feedback on LTMG Forklift from Around the Word

LTMG has formed its own sales network worldwide, and its products have been exported to more than 180 different countries and regions, creating value in the working life of different people in different industries.

FAQ

Q: What are the advantages of LTMG?

A: LTMG is a professional forklift truck manufacturer established in 2001. We have a complete production and sales team, and our products cover all kinds and tonnages. So far, LTMG has formed its own sales network around the world, exporting products to more than 180 countries and developing more than 50 agents, which is highly praised by customers in different countries.

Q: What kind of requirements does your company have for quality control of products?

A: LTMG has a perfect quality and safety inspection system, and all the processes of all products will go through the corresponding quality inspection.

Q: Do you have the intention of looking for agents to cooperate?

A: Yes, we sincerely look forward to cooperating with friends from all over the world. If you are also looking forward to cooperating with us, you are welcome to contact us through email, WA and other channels, and we will contact you in time.

Q: Can I get help from LTMG when I have doubts about the machine or encounter other difficulties?

A: Yes, we have a perfect after-sales service system and an excellent service team, which can provide you with professional help, technical and usage assistance.

Hot Tags: 3 wheel ectric powered forklift, China 3 wheel ectric powered forklift manufacturers, Electric Forklift, 3 Wheel Electric Forklift, 3 Wheel Electric Truck
