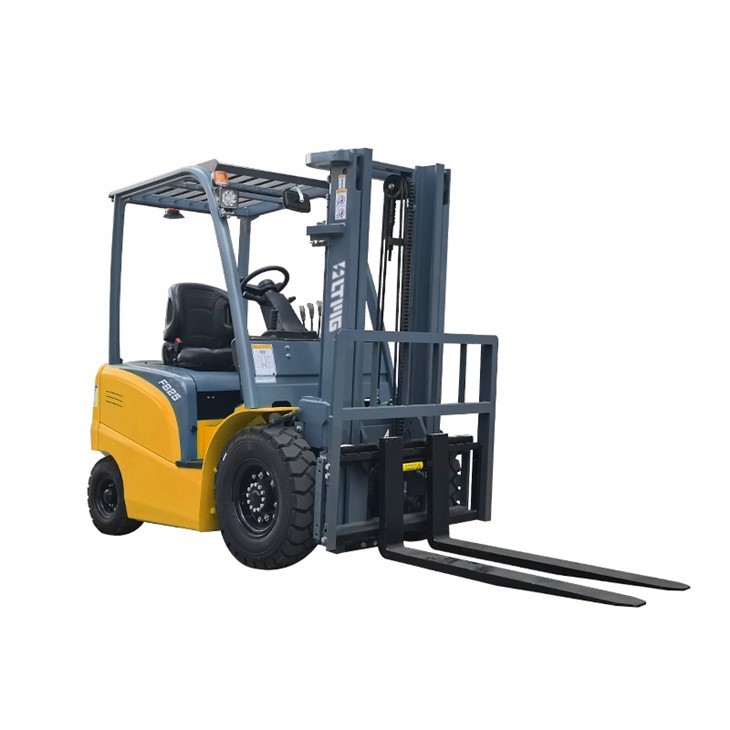

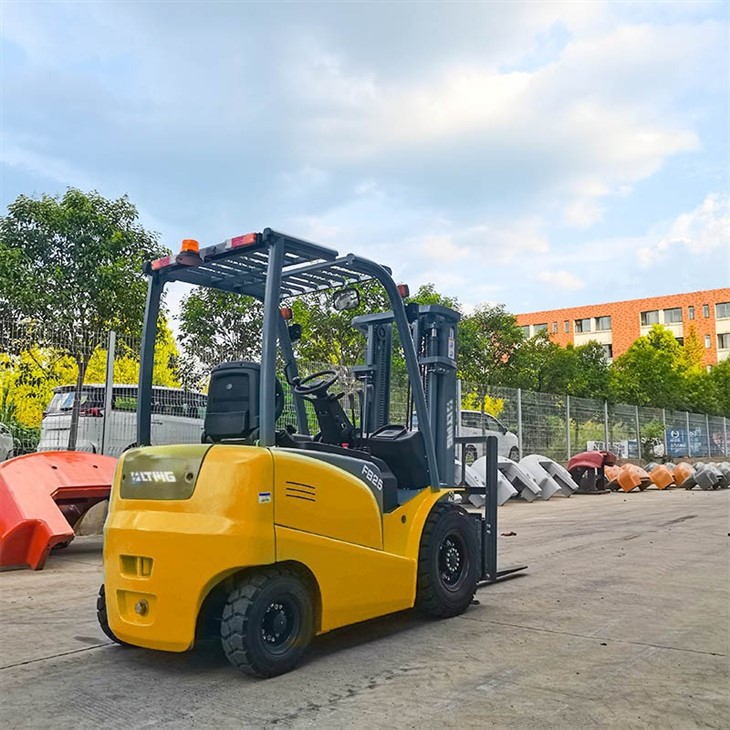

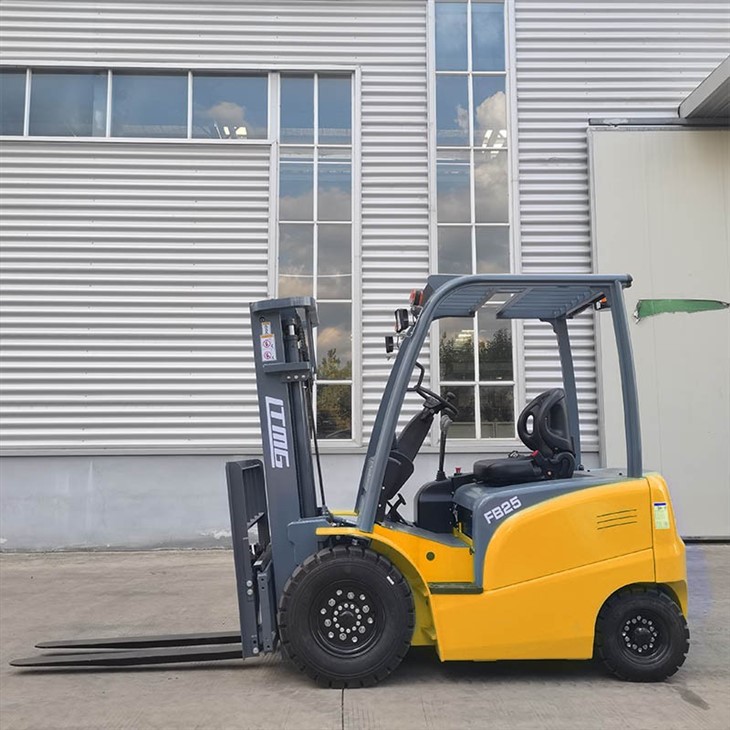

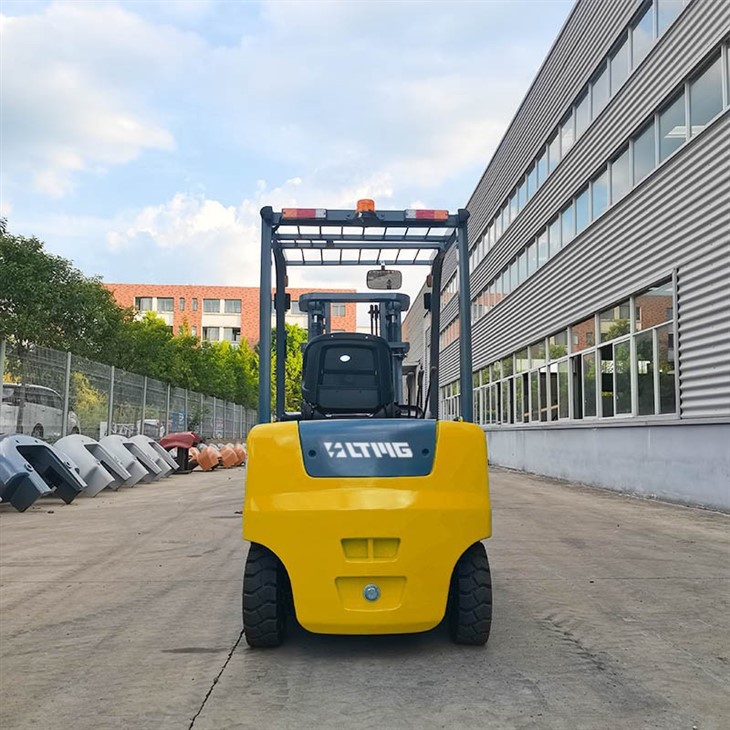

2.5 Ton Electric Forklift

Items: 2.5 ton forklift
Power type: Electric
Rated capacity: 2500 kg
Lift height: 4045 mm
Send Inquiry
Chat Now

Product Introduction

Products Description



electric forklift truck



1. The 2.5 ton electric forklift is Available with either AC or semi-AC options, allowing you to choose the power source that best suits your specific requirements.

2. With inflatable tyres and a high-performance Linde drive axle, this electric forklift truck is built to last and handle tough terrain with ease.

3. Compact design allows for excellent maneuverability in tight spaces, making it the ideal choice for a range of indoor and outdoor applications.

4. The ergonomic design offers exceptional operator comfort, reducing fatigue and increasing productivity during long hours of operation.

5. The advanced hydraulic system provides smooth and precise control, ensuring precise maneuverability even in tight spaces.

6. Versatility: From busy warehouses to manufacturing facilities and large distribution centers, battery operated forklift 2.5 ton is an ideal choice for transporting goods, stacking pallets, and navigating through narrow aisles.

7. Equipped with advanced safety features such as the intelligent braking system, anti-tip stability technology, and enhanced visibility from the operator's cabin, it guarantees a secure working environment for both operators and bystanders.

8. The fast charging time is 4-5 hours, ensuring maximum productivity and continuous work efficiency of the 2.5 ton electric forklift .

With its versatility and reliability, the small electric forklift is a powerful asset for any business seeking to optimize their material handling operations.



specification
Model   FB25
Operation type Drive in seat
Load capacity kg 2500
Load center mm 500
Power type Electric
TIRE/CHASSIS
Tire type,driving wheel/load wheel Pneumatic tyre
Number of wheels X=driving wheel (front/behind) 2X/2
Tire size (front/behind) 6.50-10-12PR/5.00-8-8PR 7.00-12-12PR/18X7-8PR 28x9-15-12PR/18x7-8-14PR
Service brake Hydraumatic pedal
Parking brake Mechanical manual
SIZE
Mast tilt,forward/backward / (°) 6/12
Mast height after mast fall mm 1995
Fork lift maximum height mm 4045
Free lift height mm 150
Standard mast height mm 3000
Overhead guard height mm 2098
Overall length mm 2353
Fork overhang mm 468.5
From the rear mm 384
Wheelbase mm 1500
Minimum distance between the qround mm 110
Tread (front/behind) mm 970/950
Vehicle width mm 1170
Fork size mm 1070X125X45
Channel width mm 4040
Turning radius mm 2172
PERFORMANCE
Walking speed, loaded/withoutload km/h 12/14
lifting speedjoaded/load m/s 320/450
Dropping speed, loaded/without load m/s 476/426
Maximum traction,loaded N 18000
Max grade ability, loaded/without load % 13/15
DRIVE
Drive motor power kw 11
Lifting motor power kw 12
Level voltage/capacitance v/ah 48/630
OTHERS
Drive system DC/AC
Electric control system Curtis/lnmotion
Total weight kg 4270



Electric forklift parts & attachments

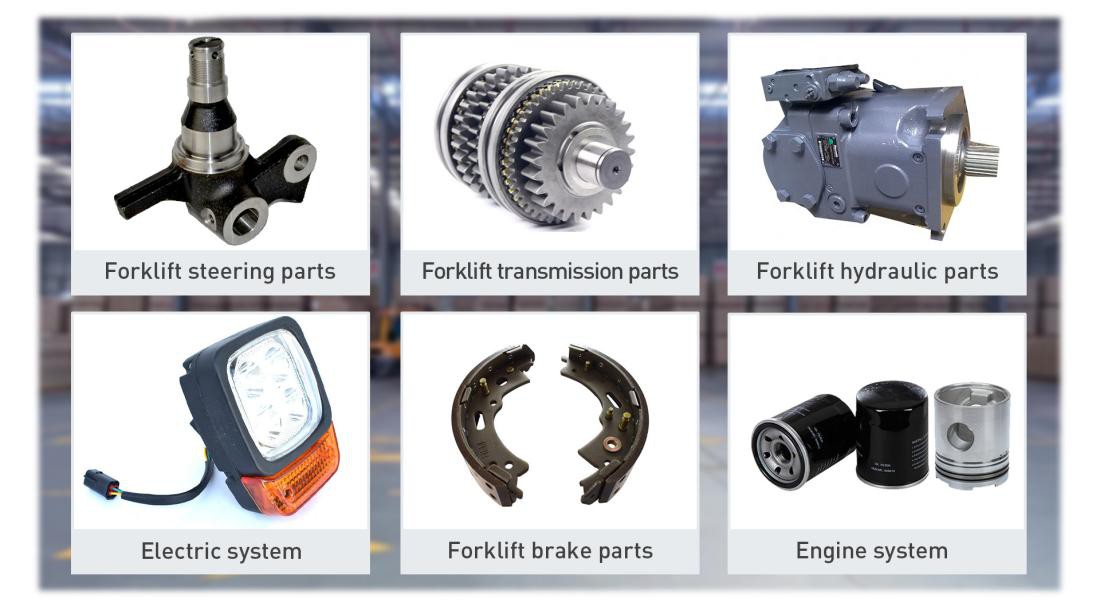

electric forklift parts

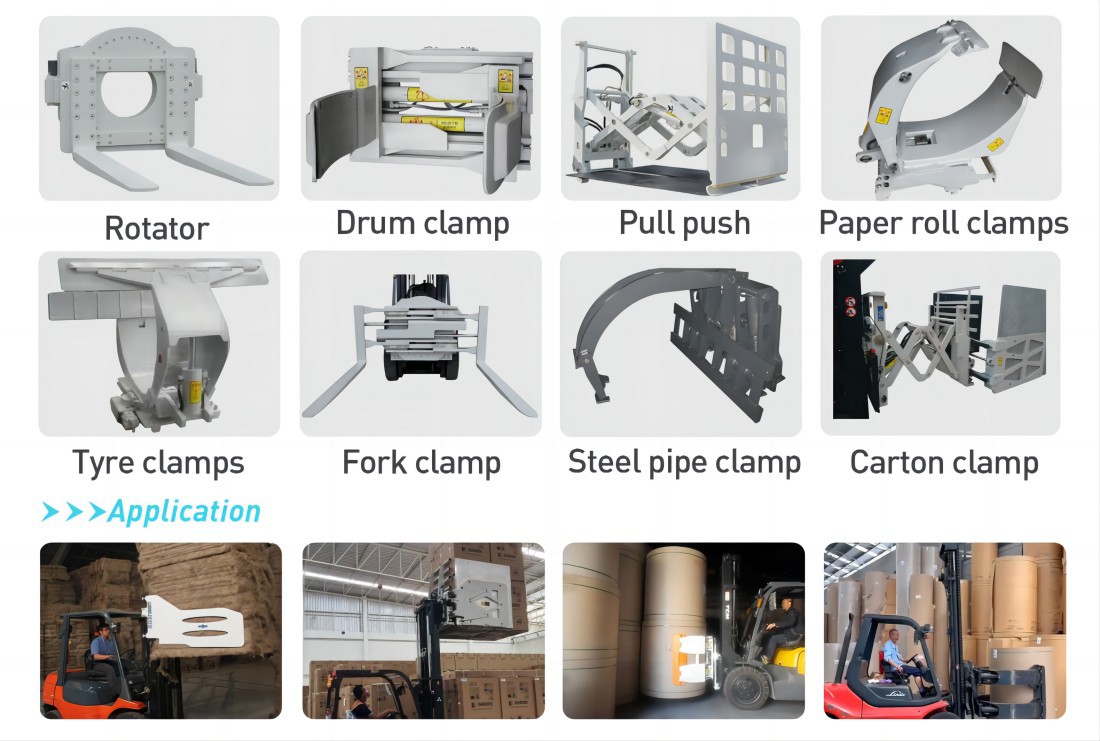

electric forklift attachments



LTMG forklift transportation

forklift transportation





LTMG Forklift around the world

LTMG forklift



We believe that our success is built on strong relationships with our customers. That's why we work hard to understand your business and your specific needs so that we can provide tailored solutions that meet your requirements. Our goal is to help you maximize efficiency, reduce operating costs, and improve safety in your workplace.



FAQ



Q: What is the product range of our factory?

A: LTMG industrial is a large-scale machinery manufacturing enterprise primarily specializes in supplying diverse forklifts and related attachments. We can also customize non-standard products according to customer's requirements.

Q: What is the typical delivery timeframe for your machine orders?

A: Normally, it takes approximately 30 days for us to deliver our standard machines. However, for customized machines, the delivery time will be determined based on individual negotiations with our clients.

Q: Do you have after-sale service?

A: Yes, LTMG provides our customers with good and comprehensive after-sale service, handling the customers complaint and solve problem for customers.

Q: Can I Visit Your Factory On Site?

A: Sure, you can contact us and we can arrange to pick you up at the airport.
