Products detail
One of the key features of the 4 ton electric forklift truck is its flexible configuration. The forklift is equipped with two 3-meter-long gantry beams, a 1070 cargo fork, solid tires, and full vehicle LED lights. The small electric forklift also offers the option of imported high-quality controllers such as Inmotion/ZAPI and domestically-produced batteries such as Qi Wang or Huoju, with a theoretical operating time of 5-6 hours and a charging time of 8-9 hours (the actual charging time may vary). These advanced features make the forklift versatile, efficient and reliable, ensuring optimal performance in any situation.
The portable electric forklift also offers optimal comfort and safety for the operator. It is designed to be more comfortable and user-friendly, with intuitive controls located near the seat edge for convenient operation. The forklift features a brand-new adjustable seat that conforms to ergonomics, providing optimal visibility and a large operating space, thereby reducing the operator's fatigue during long operational hours.
In addition, the 4 ton electric forklift truck comes with a new type of overhead guard to prevent accidental injury. The buffer lifting system reduces the shake of the gantry and enhances the overall stability of the forklift. The forklift also features a combination taillight at the rear that doubles up as a brake light, backup light, and flashing warning light, which provides better visibility and improved safety.



Products parameter
Model | FB40 | |
Power type | electric | |
Rated capacity | 4000 | |
Load center | 500 | |
Tire type | Solid tire | |
Quantity of wheels | 2 X /2 | |
Tires Size | 250-15/23×10-12 | |
Tilting Angles | α/β(°) | 6/10 |
Height of mast | mm | 2185 |
Max.lift height of mast | mm | 4170 |
Free lift height | mm | 150 |
Max.lift height of fork | mm | 3000 |
Front-wheel Overhead | mm | 2100 |
Length(without fork) | mm | 2985 |
Front overhang | mm | 565 |
Rear overhang | mm | 420 |
Wheelbase | mm | 2000 |
Min.ground clearance | mm | 110 |
Tread(front/rear) | mm | 1150/1175 |
Overall width | mm | 1480 |
Fork size | mm | 1070x150x50 |
Minimum right Angle stacking channel width | mm | 4630 |
Min mum urn radius | mm | 2676 |
Max driving speed | km/h | 13/12.5 |
Max Lifting speed | mm/s | 260/420 |
Max lowering speed | mm/s | 480/430 |
Maxmum tractive force | N | 16800 |
Max.grade ability | % | 13/14 |
Drive motor power | kw | 18 |
Hoisting motor power | kw | 25.4 |
Level voltage/Capacitance | V/Ah | 80/500 |
electric control system | Curtis/ZAPI | |
Total weight | KG | 675 |

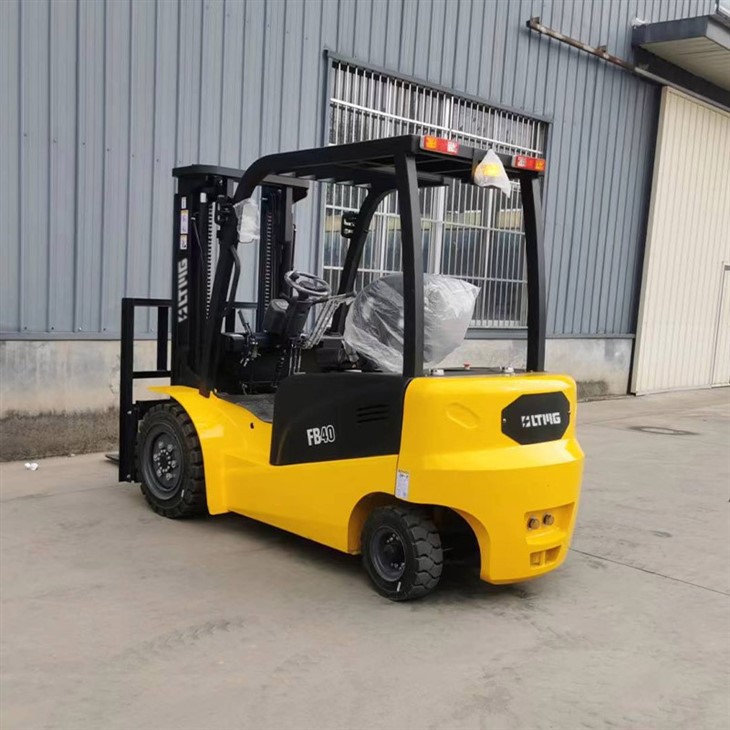

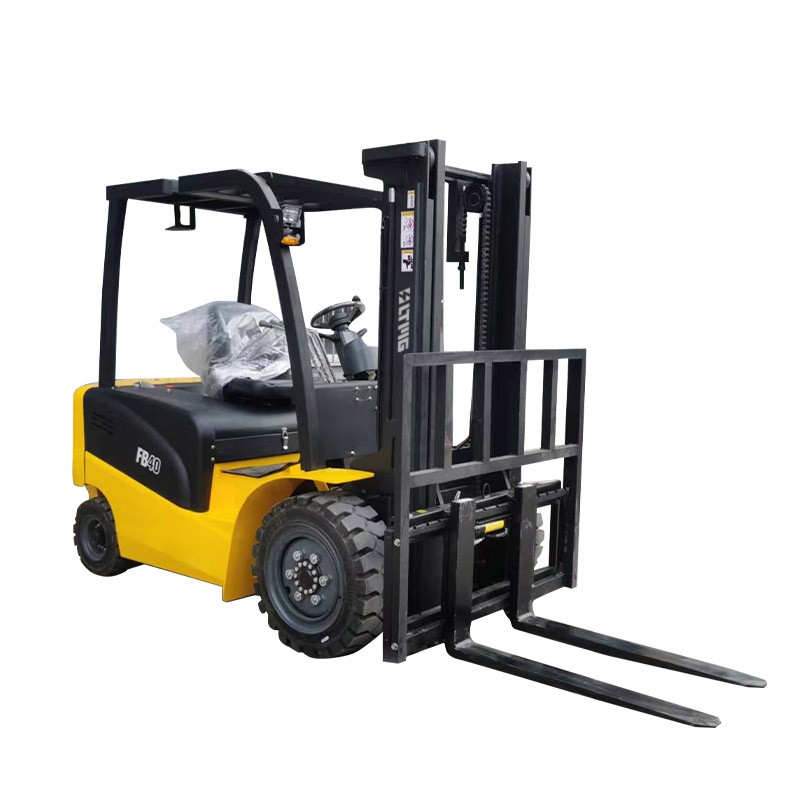

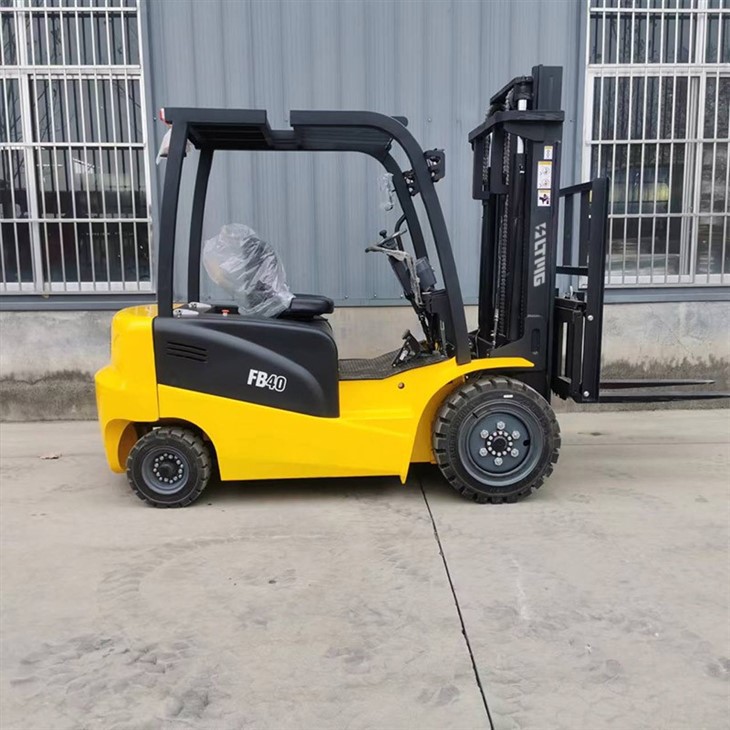

Products image
The 4 ton electric forklift is a highly efficient and energy-saving piece of machinery. With zero emissions and zero pollution, this forklift is eco-friendly but also very reliable and easy to maintain. This forklift embodies the latest technological advancements in the industry and is perfect for those who want a reliable and green option for their business operations. With LTMG's 4 ton electric forklift, you can rest assured that you're making a positive and responsible choice for your company and the environment.
Safety insurance
LTMG's 4 Ton electric forklift is equipped with fire extinguishers, truly according to the standard for safety and innovation in the material handling industry and providing exceptional equipment that goes above and beyond expectations. In high-risk work environments like warehouses and storage facilities, fire extinguishers play a decisive role, ensuring the safety of the driver and minimizing damage. LTMG is committed to building the highest quality products by prioritizing both product quality and job safety.
customer service
LTMG's customer service team is truly remarkable for its unwavering commitment to providing 24-hour service to global customers. Regardless of the nature of customers' requests, the team displays the utmost professionalism and swiftness in addressing inquiries, resolving issues, and offering helpful guidance.
FAQ
Q: Will LTMG provide a customization service?
Q: Is your product of high quality?
Q: Do you have products in stock?
