Products detail

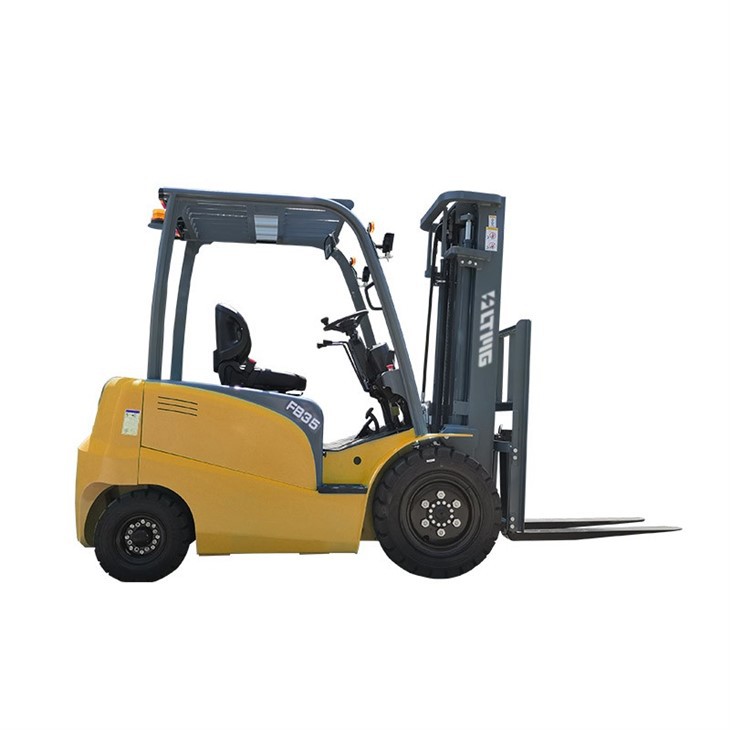

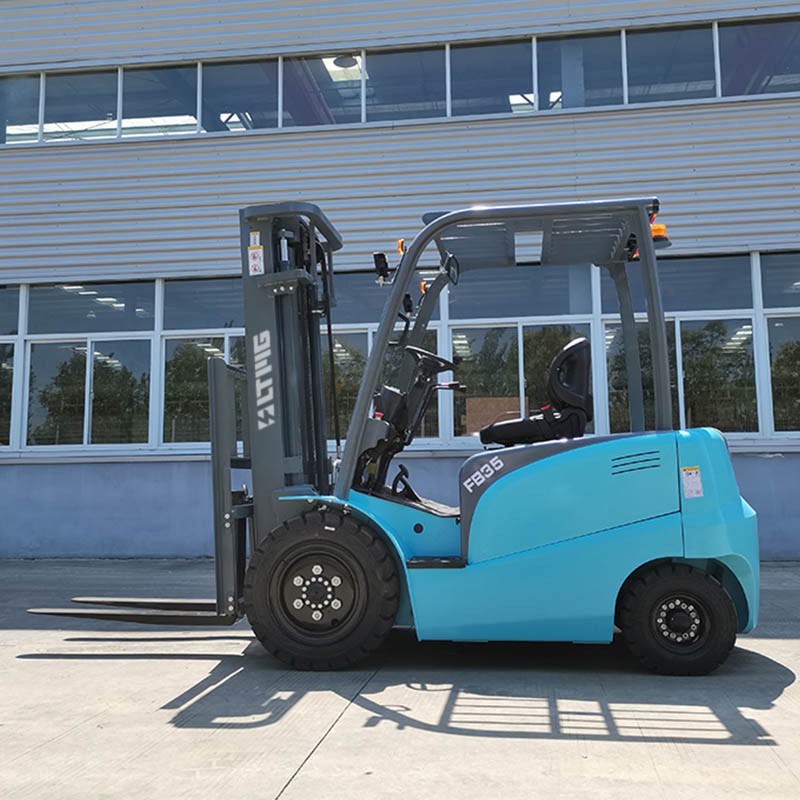

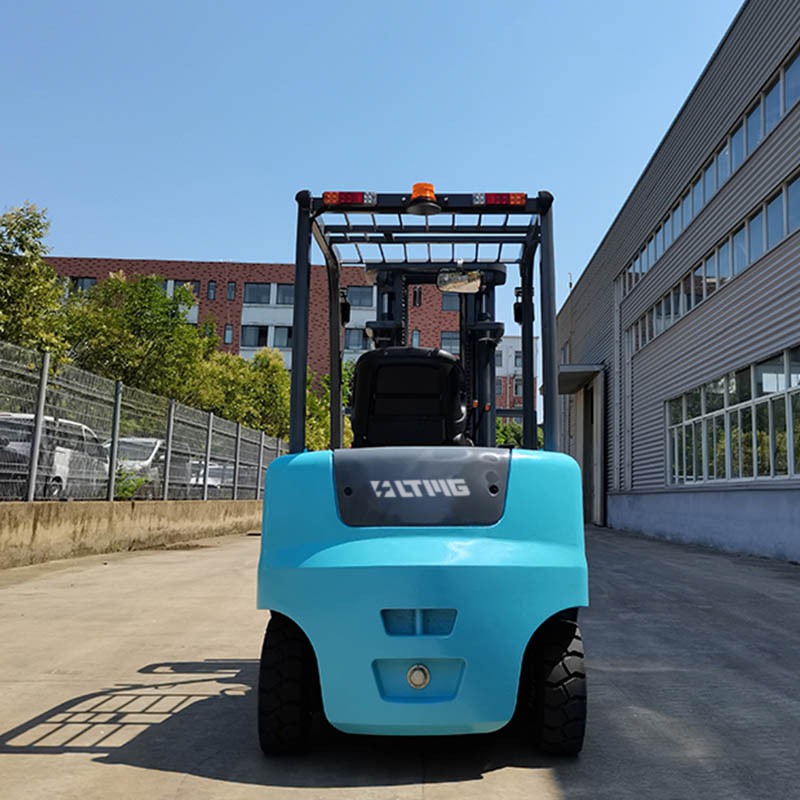

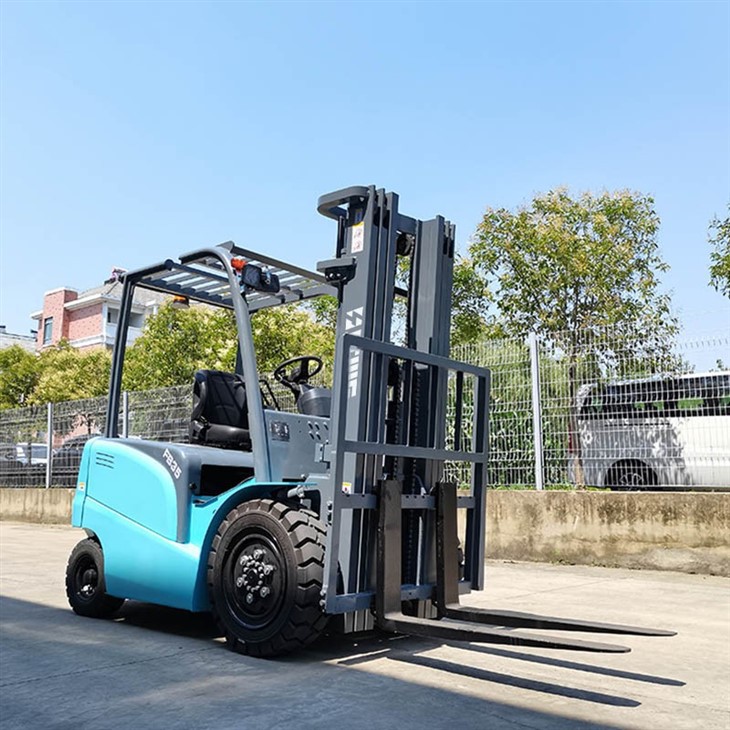

LTMG 3.5 Ton small electric sit down forklift for warehouse offers the option of full AC or semi-AC power, presenting a superior alternative to traditional DC motors. The AC motor, with its elevated maximum speed and enhanced power, ensures a lightweight and compact design. The small electric forklift exhibits rapid startup responses, enabling full-speed operation over short distances and eliminating the need for carbon brush replacement and steering pump, thereby reducing maintenance costs significantly.
The conveniently located charging port, compatible with standard charging guns, facilitates easy and efficient recharging. The roller battery is designed to operate seamlessly in environments with temperatures as high as 55°C. In humid conditions, the optional battery self-heating function ensures the battery maintains excellent discharge performance.
Equipped with a sophisticated deep-seated dynamic load sensing priority steering system, the electric fork truck guarantees rapid steering responses for enhanced maneuverability. The suspended connection between the chassis and steering axle ensures optimal stability, contributing to a smooth and steady operation.
By incorporating load sensing priority steering and AC control energy regeneration technology, this electric lift truck not only demonstrates impressive energy efficiency but also extends battery cycle time by up to 15%, maximizing productivity during single battery operation cycles.
The LTMG 3.5 Ton small electric sit down forklift for warehouse stands as a testament to advanced engineering, providing a reliable, efficient, and cost-effective solution for a wide range of material handling applications.



Products parameter
Model | FB35 | |
Power type | electric | |
Rated capacity | 3500 | |
Load center | 500 | |
Operator Type | seated | |
Tire type | pneumatic | |
Tires Size | 28X9--15-12PR/18X7-8-14PR | |
Driving brake | hydraulic-pedal | |
Paking brake | Mechanical - Manual | |
Tilting Angles | α/β(°) | 6/12 |
Height of mast | mm | 2120 |
Max.lift height of mast | mm | 4160 |
Free lift height | mm | 150 |
Max.lift height of fork | mm | |
Front-wheel Overhead | mm | 2092 |
Length(without fork) | mm | 2507 |
Front overhang | mm | 475 |
Rear overhang | mm | 432 |
Wheelbase | mm | 1600 |
Min.ground clearance | mm | 110 |
Tread(front/rear) | mm | 1000/970 |
Overall width | mm | 1250 |
Fork size | mm | 1070×125×50 |
Minimum right Angle stacking channel width | mm | 4180 |
Min mum urn radius | mm | 2420 |
Max driving speed | km/h | 12~13 |
Max Lifting speed | mm/s | 300-400 |
Max lowering speed | mm/s | 260-390 |
Maxmum tractive force | N | 18000 |
Max.grade ability | % | 14-15 |
Drive motor power | kw | 16.6 |
Hoisting motor power | kw | 13.5 |
Level voltage/Capacitance | V/Ah | 80/500 |
Drive System | full AC | |
Total weight | KG | 5250 |

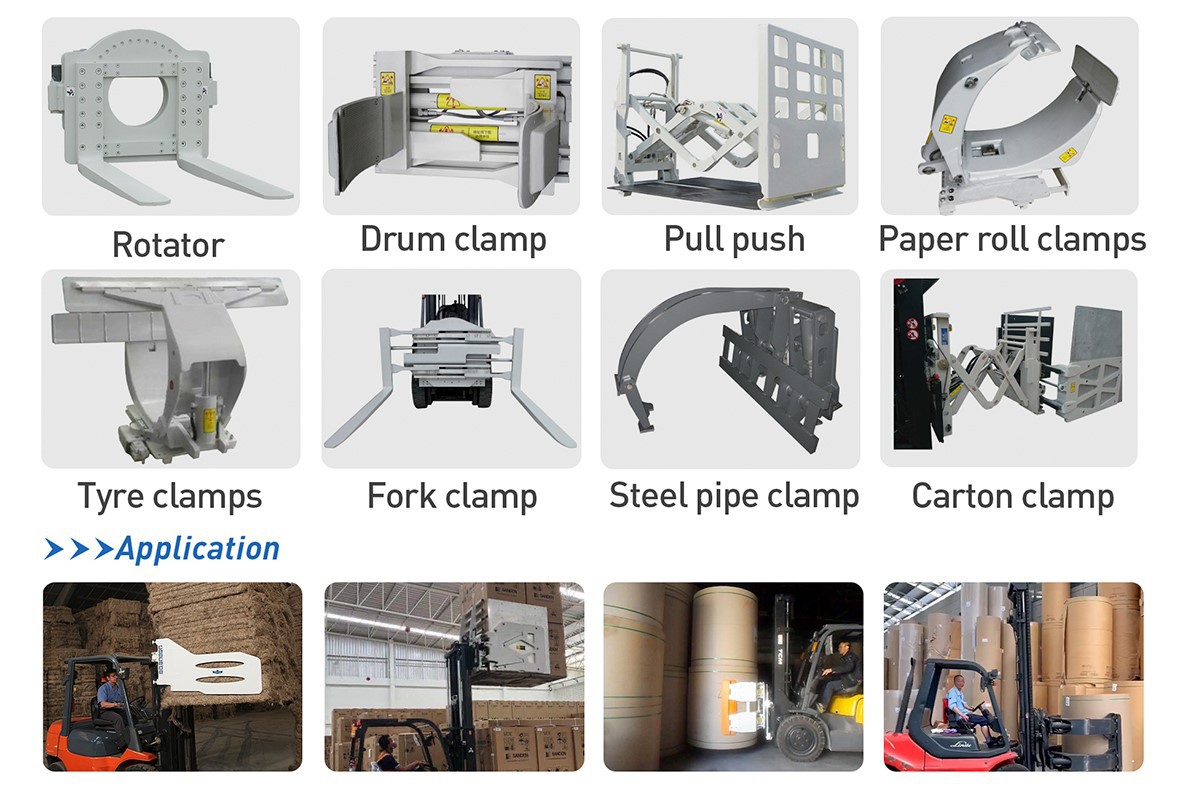

Optional configuration
LTMG offers a wide selection of clamps that can be installed on electric forklifts, providing maximum convenience for completing tasks. These clamps are known for their exceptional quality and functionality, enabling operators to effortlessly handle a variety of tasks, thereby highlighting the forklift's versatility and adaptability. Whether the requirement is for lifting, transporting, stacking, or specialized applications, LTMG offers a diverse range of clamps tailored to meet the specific needs of customers.
shipping plan
LTMG excels in the field of packaging and transportation, placing a strong emphasis on meticulous packing to safeguard machines during container shipment, and employing wire ropes for added protection. We take great care in handling and delivering each item with the highest level of precision. Additionally, LTMG offers a comprehensive suite of services, which encompasses a complimentary toolbox, export qualification inspection and certificate, user manual and CD operating instructions, and even spare machine body paint, ensuring the utmost convenience for our customers.
Certificates
LTMG excels in providing reliable and trustworthy products to clients. Our commitment to excellence is demonstrated through a wide range of certifications, including ISO, CE, EPA, COC, COR, SABER, and CO, showcasing our unwavering dedication as an industry leader. By consistently upholding the highest standards, LTMG instills confidence in our customers, establishing us as the preferred and trusted partner of choice.
FAQ
Q: Have you ever sold your products abroad?
Q: How can I be assured of the quality of electric forklifts?
A: LTMG is dedicated to maintaining high standards of quality. Our forklifts undergo rigorous testing and quality control measures throughout the manufacturing process. Additionally, we proudly utilize advanced technology and source premium components, ensuring that our products meet or exceed industry standards.
Q: What is the availability of stock for LTMG 3.5-ton four-wheel electric forklifts?
