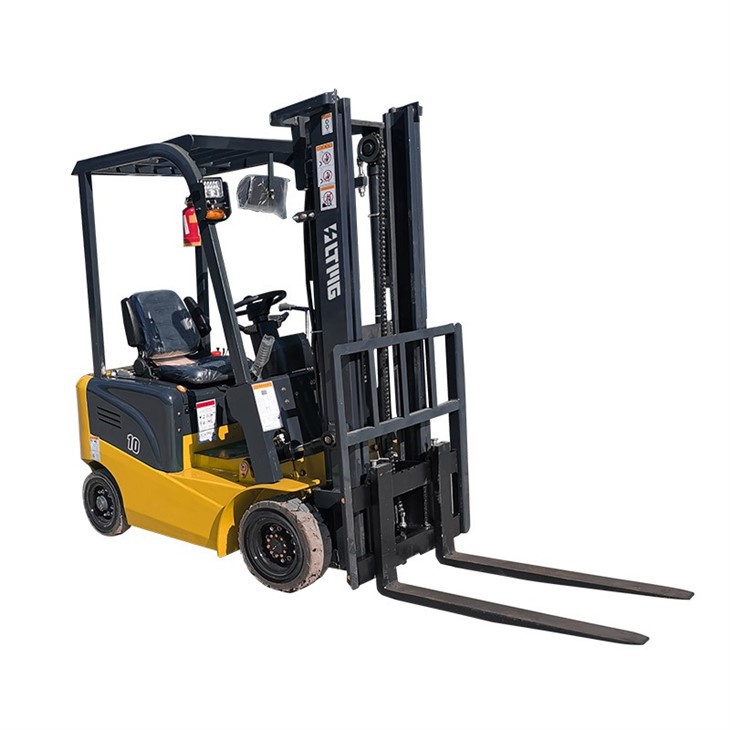

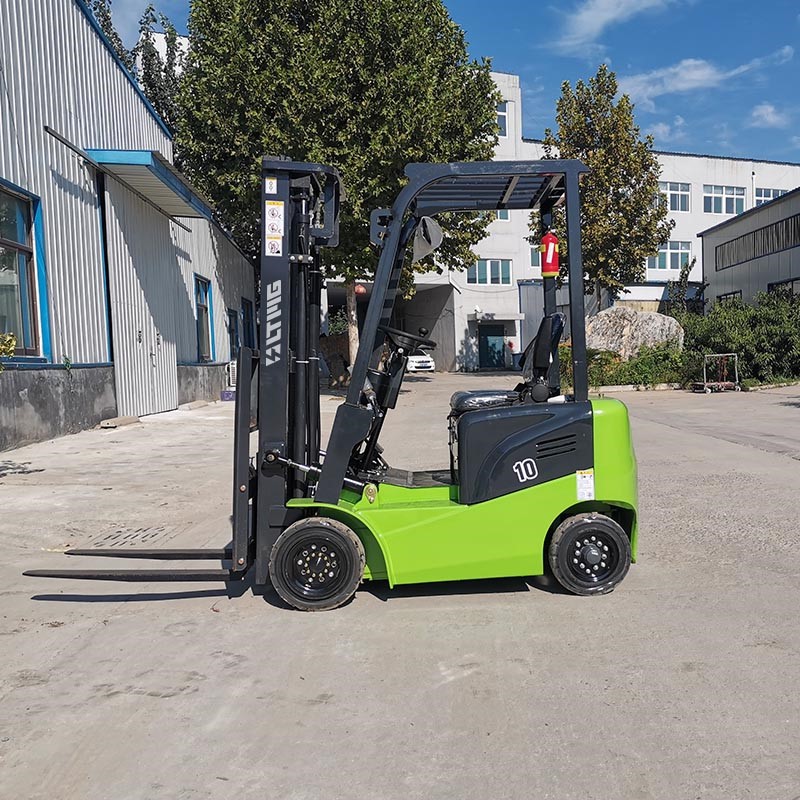

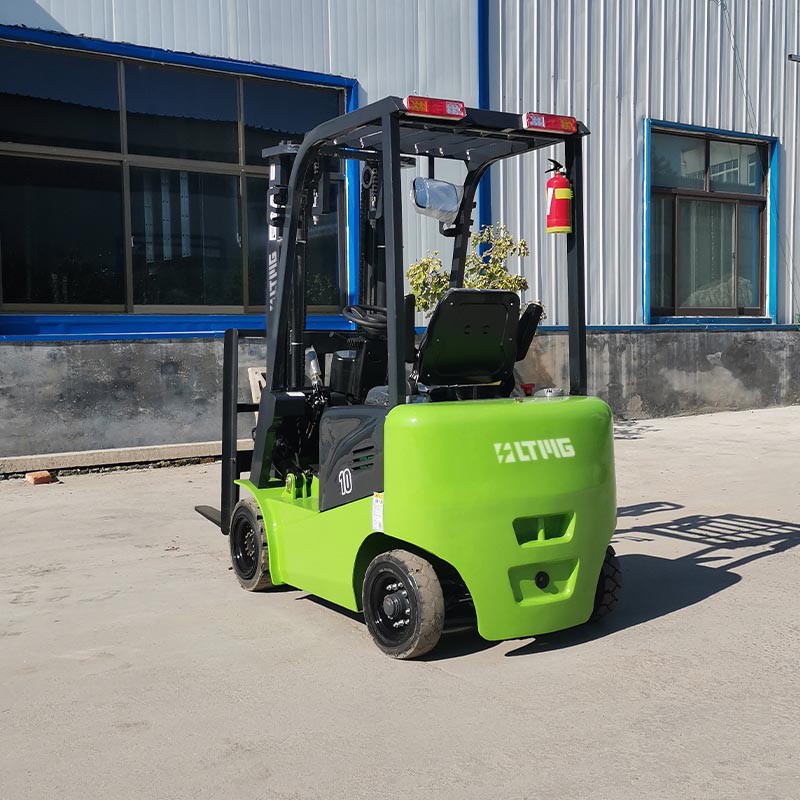

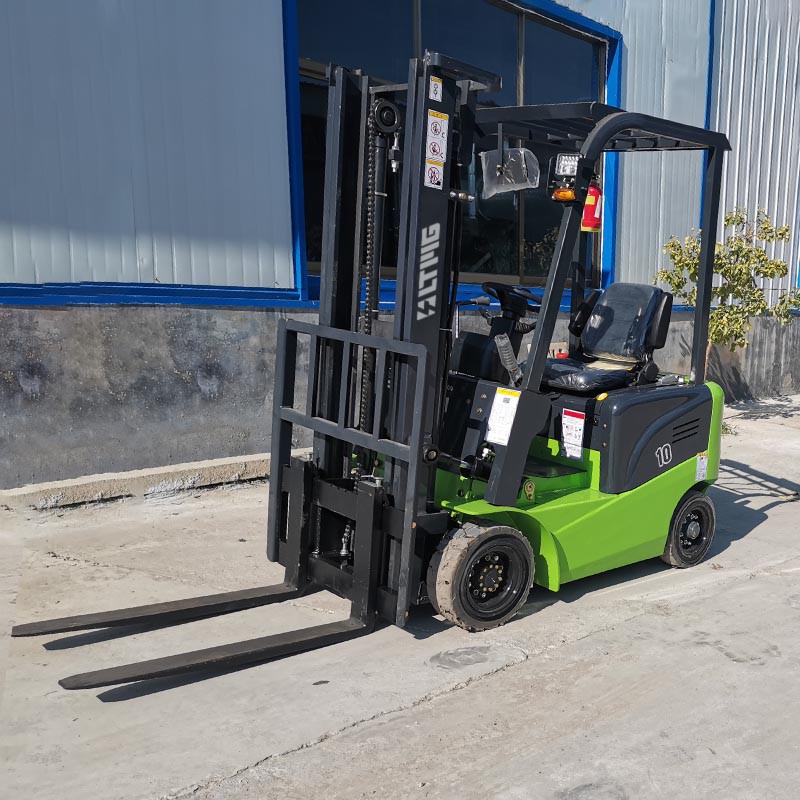

Designed to meet the highest standards of efficiency, safety, and eco-friendliness, the 1 ton mini electric forklift 4 wheel sets a new benchmark in the material handling industry.
Experience a workplace transformed by the remarkably low noise levels and zero emissions of our small electric forklift. With a commitment to environmental sustainability, it operates silently and emits no harmful gases, ensuring a clean and healthy working environment.
The 4 wheel electric forklift is engineered for exceptional energy efficiency, reducing operational costs while minimizing the ecological footprint. The vehicle's power management system optimizes energy consumption, making it a cost-effective and environmentally responsible choice.
With its nimble maneuverability, the product effortlessly performs right-angle turns, making it the ideal choice for navigating tight environments and narrow passages. Whether faced with cramped working conditions or constrained pathways, this forklift ensures seamless and easy operation, showcasing its versatility and adaptability in any setting.
Designed based on ergonomic principles, the battery forklift's seat ensures operators are securely positioned for optimal driving comfort. The outstanding stability of the seat eliminates operator fatigue during prolonged usage, and its waterproof design enhances durability.
Equipped with energy-efficient LED lighting fixtures, 1 Ton mini electric forklift 4 wheel guarantees heightened visibility and extended lifespan. The bright illumination ensures personnel safety, especially in adverse weather conditions, setting a new standard for workplace safety.
Technical Specification
| \ | Model | FB10 | |
| 1.2 | Power type | Electric | |
| 1.3 | Rated capacity | mm | 1000 |
| 1.4 | Load center | mm | 500 |
| Tire | |||
| 3.1 | Tire type | solid tire | |
| 3.2 | Quantity of wheels | 2 X /2 | |
| 3.3 | Tires Size | 16×6-8/15×4.5-8 | |
| 3.4 | Driving brake | Hydraulic-pedal | |
| 3.5 | Paking brake | Mechanical-manual | |
| Dismission | |||
| 4.1 | Tilting Angles | α/β(°) | 6/12 |
| 4.2 | Height of mast | mm | 1875 |
| 4.3 | Max.lift height of mast | mm | 3900 |
| 4.4 | Free lift height | mm | 140 |
| 4.5 | Max.lift height of fork | mm | 3000 |
| 4.6 | Front-wheel Overhead | mm | 2100 |
| 4.8 | Length(without fork) | mm | 1950 |
| 4.9 | Front overhang | mm | 350 |
| 4.10 | Rear overhang | mm | 300 |
| 4.11 | Wheelbase | mm | 1200 |
| 4.12 | Min.ground clearance | mm | 110 |
| 4.13 | Tread(front/rear) | mm | 800/820 |
| 4.14 | Overall width | mm | 1000 |
| 4.15 | Fork size | mm | 920x100x35 |
| 4.16 | Minimum right Angle stacking channel width | mm | 3250 |
| 4.17 | Min mum urn radius | mm | 1800 |
| Capacity | |||
| 5.1 | Max driving speed | km/h | 9·11 |
| 5.2 | Max Lifting speed | mm/s | 240-450 |
| 5.3 | Max lowering speed | mm/s | 480/420 |
| 5.4 | Maxmum tractive force | N | 6300 |
| 5.5 | Max.grade ability | % | 12~15 |
| Drive | |||
| 6.1 | Drive motor power | kw | 4 |
| 6.2 | Hoisting motor power | kw | 5 |
| 6.3 | Level voltage/Capacitance | V/Ah | 48/320 |
| Other | |||
| 7.1 | Drive System | Full AC | |
| 7.2 | electric control system | Curtis | |
| 7.3 | Total weight | kg | 2200 |
Shipping picture
company Profile

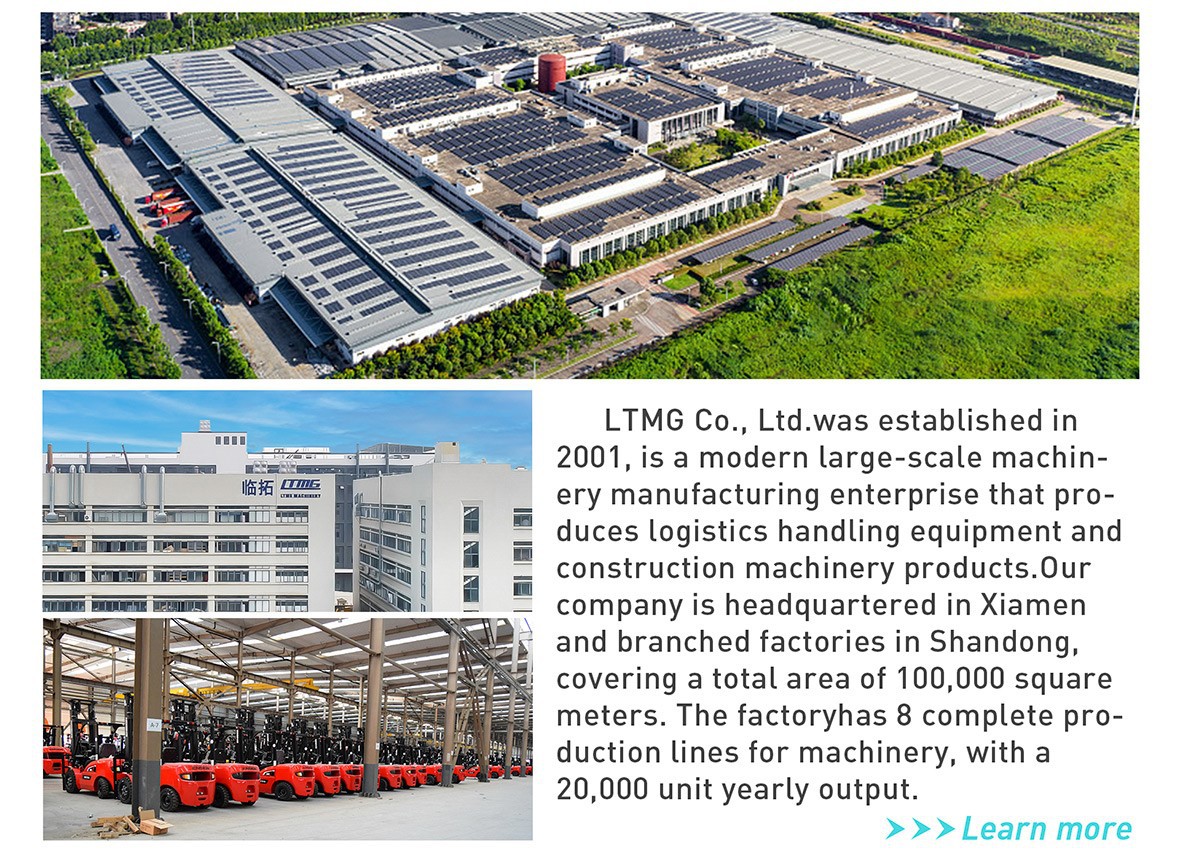

Founded in 2001, LTMG Co., Ltd. is a contemporary and large-scale machinery manufacturer specializing in the production of logistics handling equipment and construction machinery. Our main office is in Xiamen, and we have additional factories in Shandong, spreading across a vast area of 100,000 square meters. With 8 fully operational production lines, our factory produces up to 20,000 units each year.
comprehensive Service
At LTMG, we offer 24-hour online customer service, feel free to contact us any time.
FAQ
Q: How is your price level?
Q: What will the shipping container include?
Q: Can l visit your factory?
A:We feel sincere about your visit and please inform us of your travel plans in advance. Once we receive your itinerary, we will gladly provide directions and, if possible, arrange transportation for your convenience.
Q: What's your warranty term?
