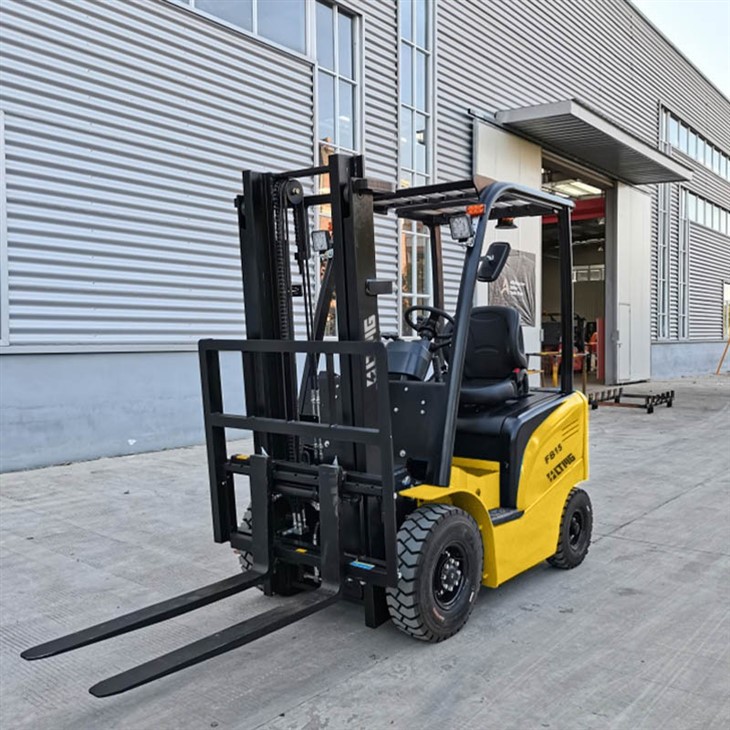

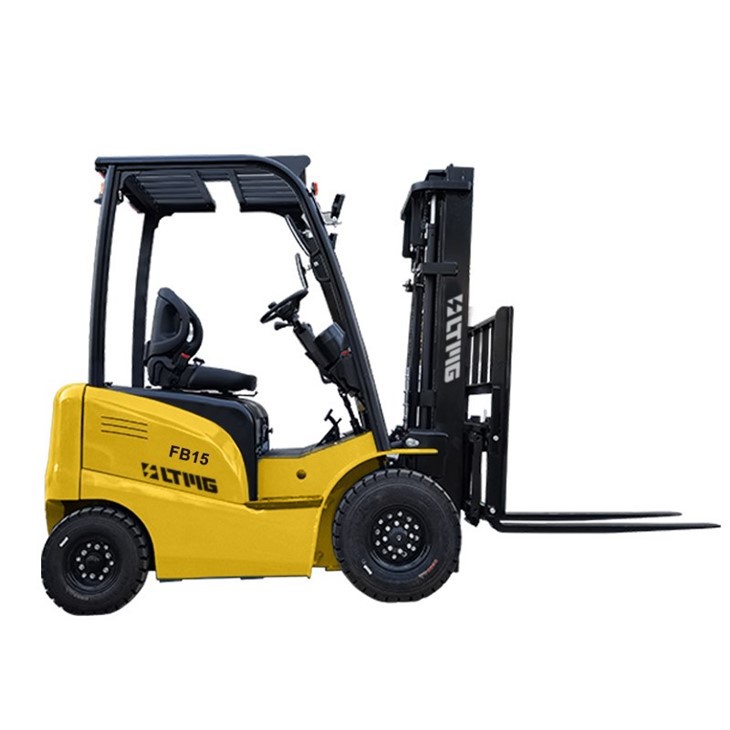

LTMG 1.5 ton electric forklift is an efficient, energy-saving and environmentally friendly logistics equipment. The 4 wheel electricforklift adopts an electric drive system, which has stable performance and large load carrying capacity, and plays an important role in different scenarios.
The 1.5 ton forklift features:
1. Excellent performance: using electric drive system, with high efficiency, stability, low noise and other characteristics;
Intelligent control: adopt intelligent control system, simple operation, safe and reliable;
2. Environmental protection and energy saving: compared with traditional fuel vehicles, no exhaust emissions, low noise, energy saving and environmental protection;
3. Multiple protection: equipped with multiple safety protection design, can effectively improve the safety of use.
4. Multi-functional: can be used for handling, stacking all kinds of items, inspection and cleaning, etc.
The 1.5 ton forklift usage scenarios:
1. Logistics warehousing: In the field of logistics warehousing, it can be used to move and store items and improve logistics efficiency;
Manufacturing industry: in the manufacturing industry, it can be used for handling, stacking and other operations to improve production efficiency;
2. Airport terminal: In airports, terminals and other scenarios, it can be used to transport luggage, goods, etc., and improve logistics efficiency;
3. Industrial park: In the industrial park, it can be used for inspection, maintenance, cleaning and other operations.
The 4 wheel forklift is a high-performance, efficient and environmentally friendly logistics equipment that can play an important role in various scenarios such as logistics warehousing, manufacturing, airport terminals, and industrial parks. The emergence of The small electric forklift has greatly improved logistics efficiency and promoted the development of enterprises.
specification
Model | FB15 | |
Operation type | Drive in seat | |
Load capacity | kg | 1500 |
Load center | mm | 500 |
Power type | Electric | |
TIRE/CHASSIS | ||
Tire type,driving wheel/load wheel | Pneumatic tyre | |
Number of wheels X=driving wheel (front/behind) | 2X/2 | |
Tire size (front/behind) | 6.50-10-12PR/5.00-8-8PR 7.00-12-12PR/18X7-8PR 28x9-15-12PR/18x7-8-14PR | |
Service brake | Hydraumatic pedal | |
Parking brake | Mechanical manual | |
SIZE | ||
Mast tilt,forward/backward | / (°) | 6/12 |
Mast height after mast fall | mm | 1995 |
Fork lift maximum height | mm | 4025 |
Free lift height | mm | 140 |
Standard mast height | mm | 3000 |
Overhead guard height | mm | 2100 |
Overall length | mm | 2035 |
Fork overhang | mm | 400 |
From the rear | mm | 335 |
Wheelbase | mm | 1360 |
Minimum distance between the qround | mm | 110 |
Tread (front/behind) | mm | 912/920 |
Vehicle width | mm | 1090 |
Fork size | mm | 1070X122X45 |
Channel width | mm | 3797 |
Turning radius | mm | 1997 |
PERFORMANCE | ||
Walking speed, loaded/withoutload | km/h | 13/15 |
lifting speedjoaded/load | m/s | 240/450 |
Dropping speed, loaded/without load | m/s | 480/420 |
Maximum traction,loaded | N | 15000 |
Max grade ability, loaded/without load | % | 12/15 |
DRIVE | ||
Drive motor power | kw | 8 |
Lifting motor power | kw | 7.5 |
Level voltage/capacitance | v/ah | 48/450 |
OTHERS | ||
Drive system | DC/AC | |
Electric control system | Curtis/lnmotion | |
Total weight | kg | 3120 |

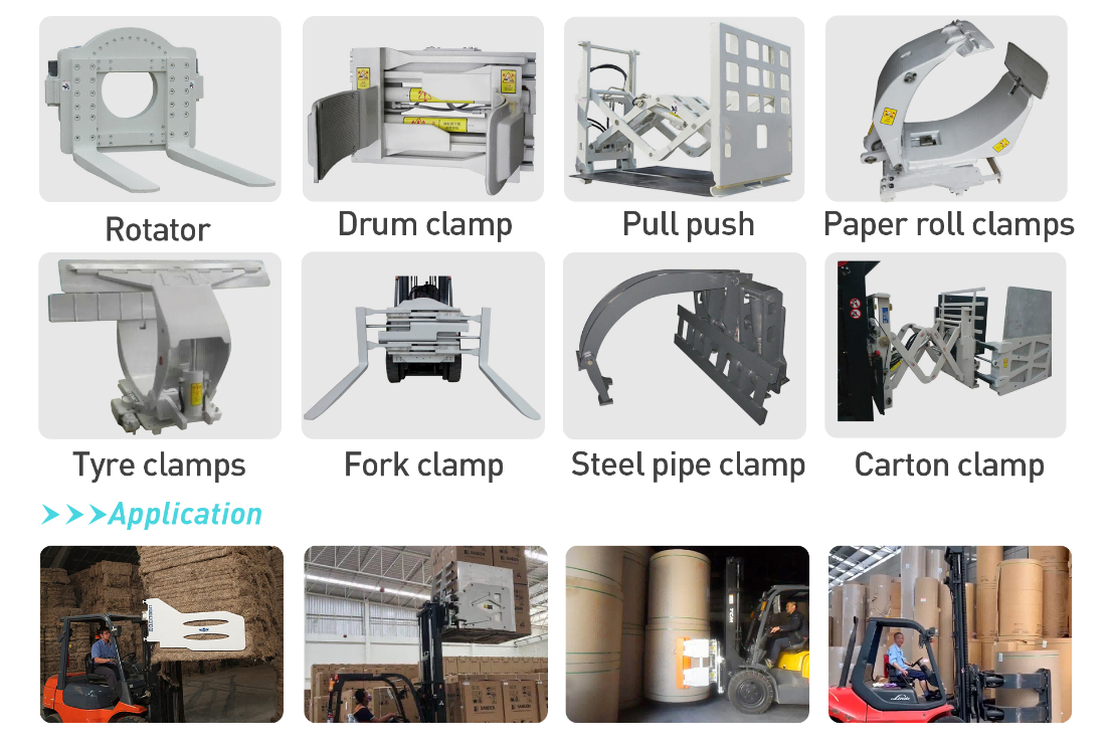

Attachment of LTMG forklift

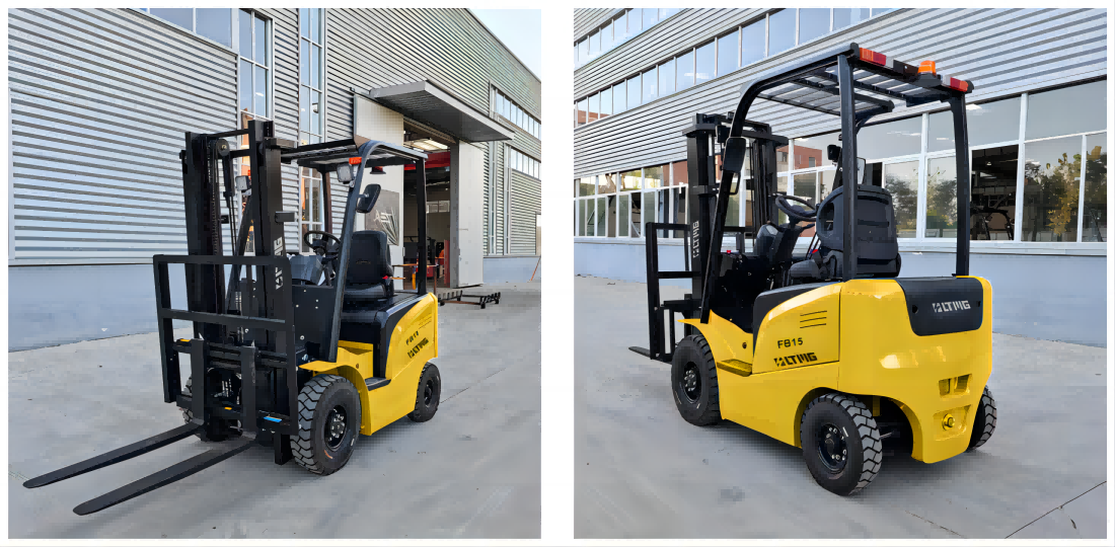

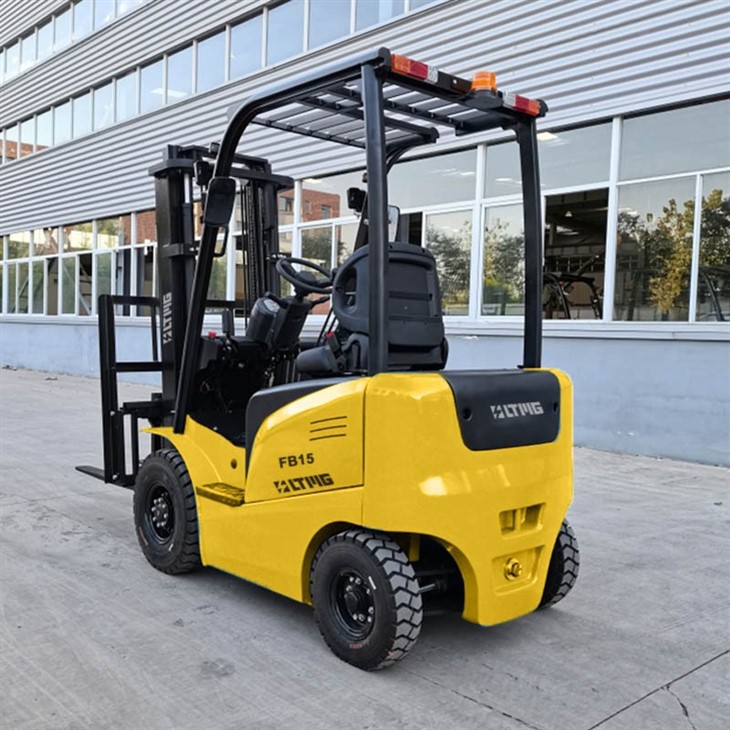

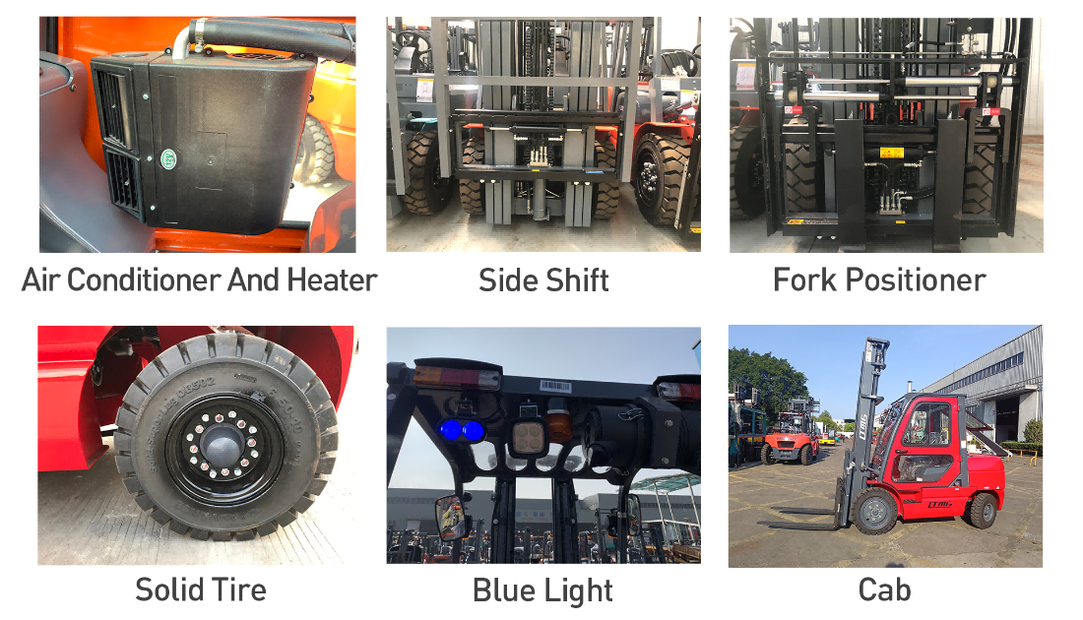

details of LTMG forklift
