Products detail

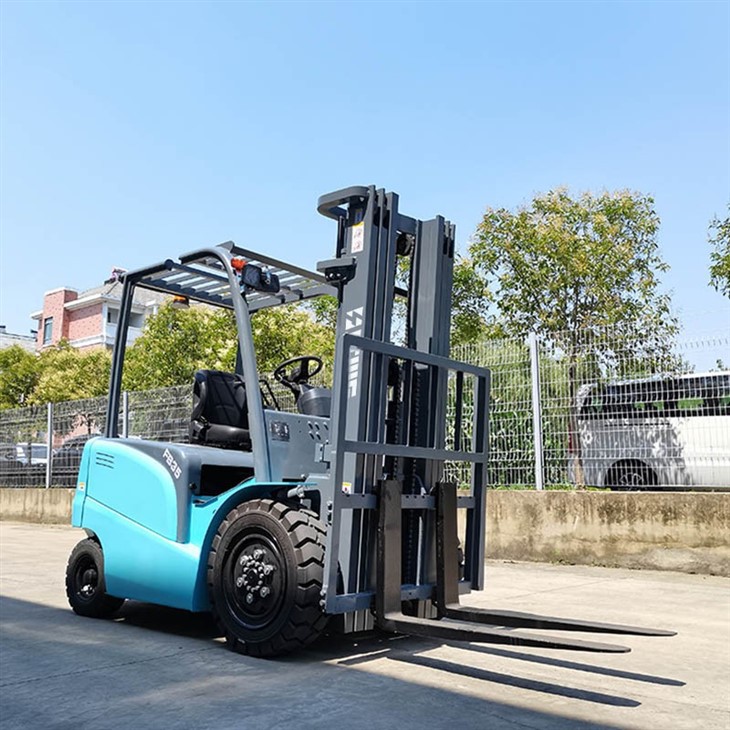

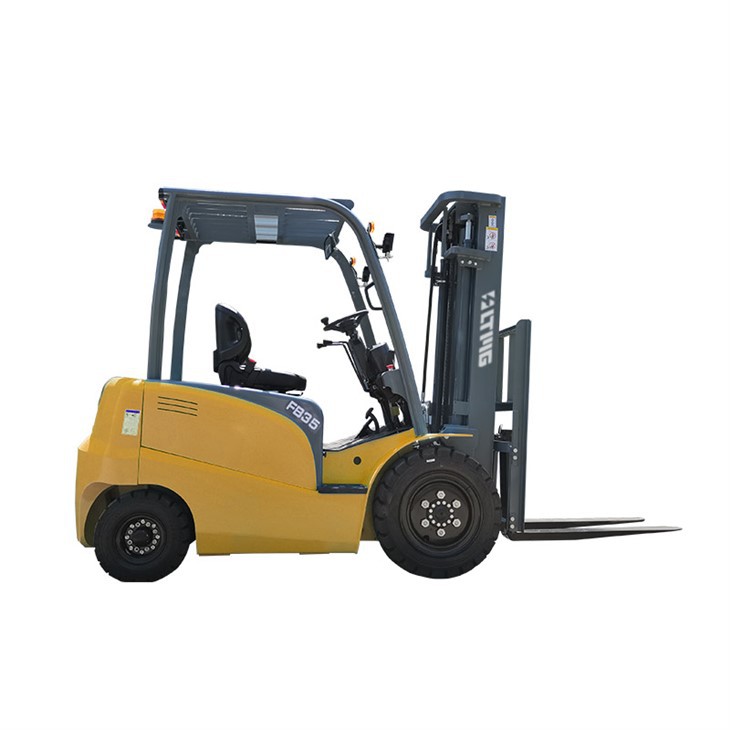

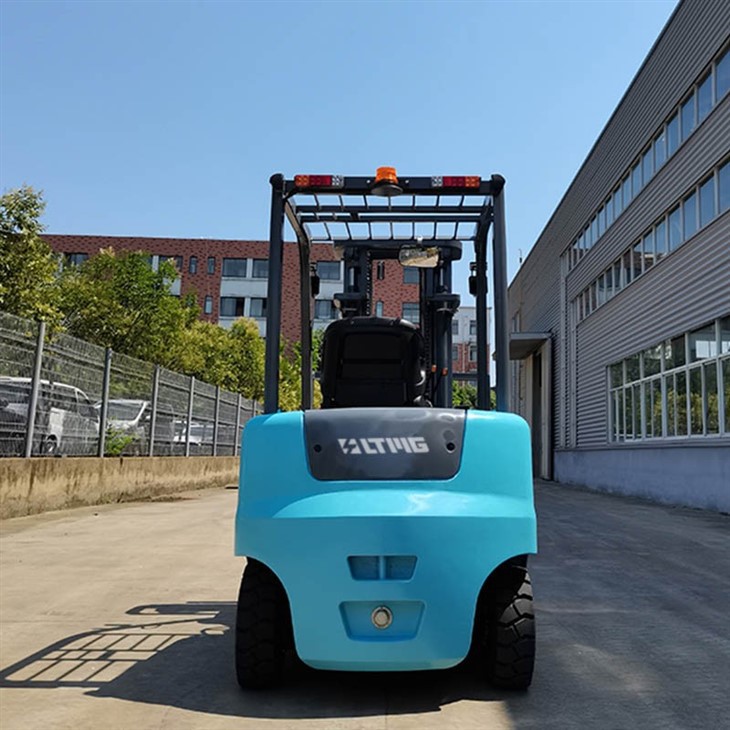

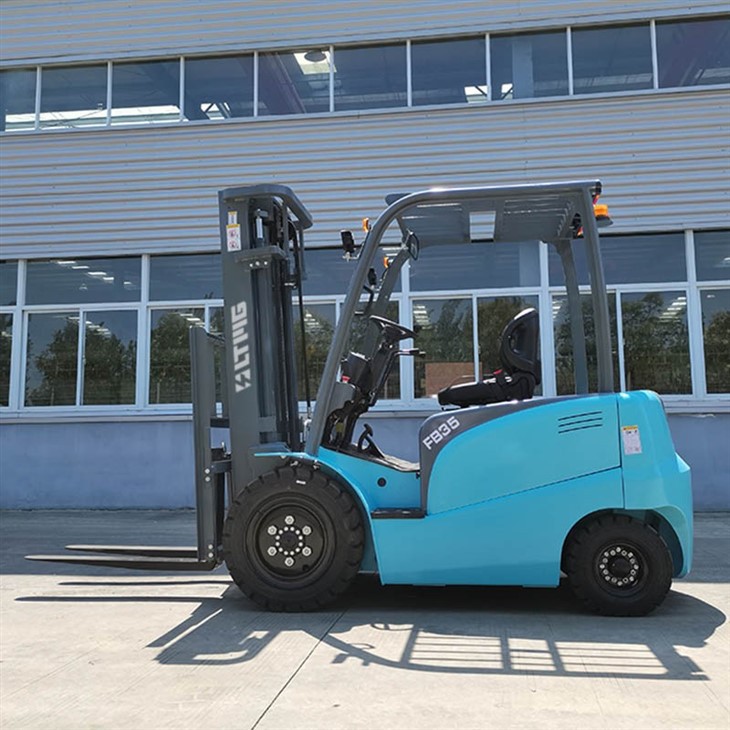

The compact electric lithium forklift is a game-changer for warehouses looking for a more sustainable and efficient solution to their material handling needs. With its lightweight design and lithium-ion battery technology, this forklift is not only environmentally friendly, but it is also cost-effective and reliable.
One of the benefits of the compact electric lithium forklift is that it produces zero emissions, which is great for indoor environments where air quality is a concern. Additionally, the lithium-ion battery technology allows for quick and easy charging, reducing downtime and increasing productivity.
Furthermore, the compact size of this forklift makes it easier to navigate through narrow aisles and tight spaces, increasing operational efficiency and reducing the risk of accidents. Its maneuverability and ease of use make it an ideal choice for warehouse operators of all skill levels.
In addition to its practical benefits, the compact electric lithium forklift is also stylish and modern in design, making it a great addition to any warehouse. Its sleek and compact appearance demonstrates a commitment to sustainability and modern technology, which can help improve the image of any warehouse.
Overall, the compact electric lithium forklift is a fantastic investment for any warehouse looking for a sustainable, efficient, and reliable material handling solution. Its many benefits make it a positive addition to any workplace, and it is sure to be a game-changer for the future of material handling.



Products parameter
Model | FB35 | |
Power type | electric | |
Rated capacity | 3500 | |
Load center | 500 | |
Operator Type | seated | |
Tire type | pneumatic | |
Tires Size | 28X9--15-12PR/18X7-8-14PR | |
Driving brake | hydraulic-pedal | |
Paking brake | Mechanical - Manual | |
Tilting Angles | α/β(°) | 6/12 |
Height of mast | mm | 2120 |
Max.lift height of mast | mm | 4160 |
Free lift height | mm | 150 |
Max.lift height of fork | mm | |
Front-wheel Overhead | mm | 2092 |
Length(without fork) | mm | 2507 |
Front overhang | mm | 475 |
Rear overhang | mm | 432 |
Wheelbase | mm | 1600 |
Min.ground clearance | mm | 110 |
Tread(front/rear) | mm | 1000/970 |
Overall width | mm | 1250 |
Fork size | mm | 1070×125×50 |
Minimum right Angle stacking channel width | mm | 4180 |
Min mum urn radius | mm | 2420 |
Max driving speed | km/h | 12~13 |
Max Lifting speed | mm/s | 300-400 |
Max lowering speed | mm/s | 260-390 |
Maxmum tractive force | N | 18000 |
Max.grade ability | % | 14-15 |
Drive motor power | kw | 16.6 |
Hoisting motor power | kw | 13.5 |
Level voltage/Capacitance | V/Ah | 80/500 |
Drive System | full AC | |
Total weight | KG | 5250 |
Optional configuration
LTMG offers a wide selection of clamps that can be installed on electric forklifts, providing maximum convenience for completing tasks. These clamps are known for their exceptional quality and functionality, enabling operators to effortlessly handle a variety of tasks, thereby highlighting the forklift's versatility and adaptability. Whether the requirement is for lifting, transporting, stacking, or specialized applications, LTMG offers a diverse range of clamps tailored to meet the specific needs of customers.
shipping plan
LTMG excels in the field of packaging and transportation, placing a strong emphasis on meticulous packing to safeguard machines during container shipment, and employing wire ropes for added protection. We take great care in handling and delivering each item with the highest level of precision. Additionally, LTMG offers a comprehensive suite of services, which encompasses a complimentary toolbox, export qualification inspection and certificate, user manual and CD operating instructions, and even spare machine body paint, ensuring the utmost convenience for our customers.
Certificates
LTMG excels in providing reliable and trustworthy products to clients. Our commitment to excellence is demonstrated through a wide range of certifications, including ISO, CE, EPA, COC, COR, SABER, and CO, showcasing our unwavering dedication as an industry leader. By consistently upholding the highest standards, LTMG instills confidence in our customers, establishing us as the preferred and trusted partner of choice.
