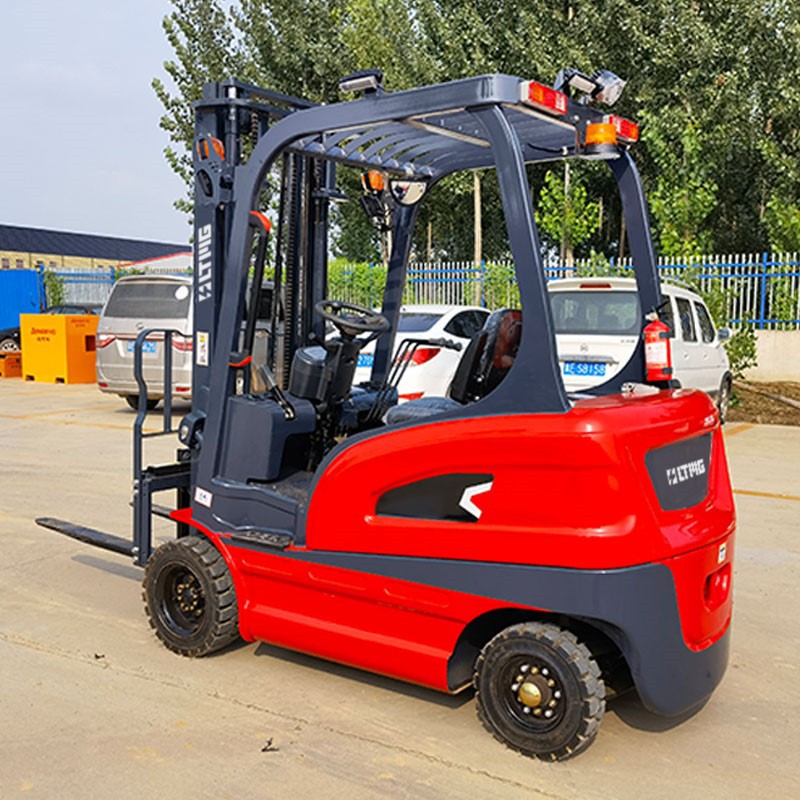

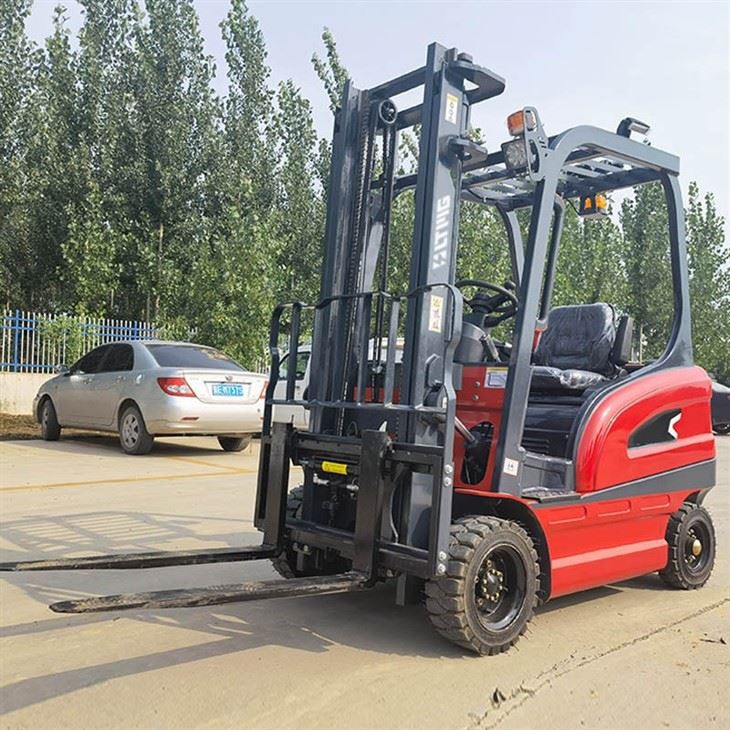

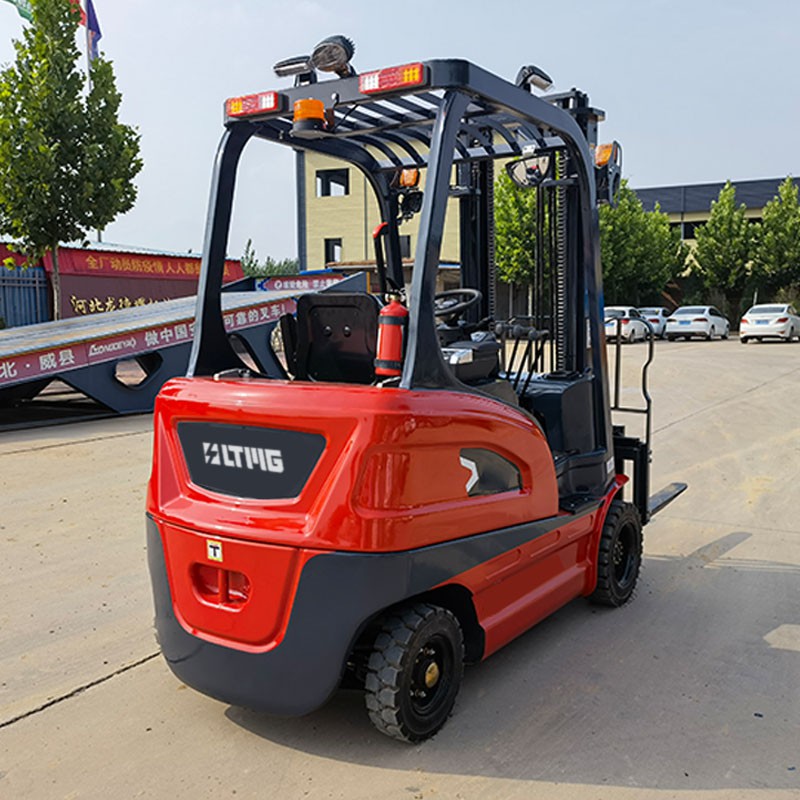

The portable electric lithium battery forklift is also incredibly efficient. It requires minimal maintenance and has a longer lifespan than traditional forklifts. Additionally, its lithium battery technology allows for a faster charging time, which cuts down on downtime and increases productivity. In the long run, this can lead to significant cost savings for businesses.
Furthermore, the portable electric lithium battery forklift is much quieter than traditional forklifts. This makes it an ideal option for operations that require minimal noise, such as indoor warehouses or distribution centers. The reduced noise pollution also creates a safer and more comfortable work environment for employees.
Technical Specification
| Specification | ||||
| 1.1 | Brand | LTMG | ||
| 1.2 | Model | FB16 | ||
| 1.3 | Power Type | Electric | ||
| 1.4 | Rated Capacity | Q | kg | 1600 |
| 1.5 | Load Centre | c | mm | 500 |
| 1.6 | Front Overhang | x | mm | 305 |
| 1.7 | Wheelbase | y | mm | 1500 |
| Weight | ||||
| 2.1 | Service Weight | kg | 2300 | |
| 2.2 | Axle Load, Fully Loaded Drive Wheel/Steering Wheel | kg | 3615/525 | |
| 2.3 | Axle load, No-load Driving Wheel/Steering Wheel | kg | 1190/1450 | |
| Tire,Chassis | ||||
| 3.1 | Tire Type | Solid tire | ||
| 3.2 | Driving Wheel Size(Diameter * width) | mm | 18x7-10 | |
| 3.3 | Steering Wheel Size(Diameter * width) | mm | 400-8 | |
| 3.5 | Number of Driving Wheel(X)/Steering Wheels | mm | 2X/2 | |
| 3.6 | Driving Wheel Wheelbase | b10 | mm | 960 |
| 3.7 | Steering Wheel Wheelbase | b11 | mm | 910 |
| Size | ||||
| 4.1 | Mast Tile Angle F/R | α/ β (°) | 5/ 9 | |
| 4.2 | Mast Lowered Height | h1 | mm | 2150 |
| 4.3 | Free Lifting Height(With backrest) | h2 | mm | 100 |
| 4.4 | Lifting Height | h3 | mm | 3000 |
| 4.5 | Mast Extended Height | h4 | mm | 4100 |
| 4.7 | Overhead Guard Height | h6 | mm | 2150 |
| 4.8 | Seat Face Height | h7 | mm | 1050 |
| 4.12 | Traction Pin Center Height | h10 | mm | 460 |
| 4.19 | Overall Length | l1 | mm | 3370 |
| 4.20 | Length To Face Of Fork(Without Fork) | l2 | mm | 2250 |
| 4.21 | Overall Width | b1/ b2 | mm | 1100 |
| 4.22 | Fork Size | L*W*H | mm | 1070X100X40 |
| 4.23 | Fork Frame Type A, B | 3A | ||
| 4.24 | Outer Width Of Fork Frame | b3 | mm | 1060 |
| 4.31 | Ground Clearance (Bottom of fully loaded mast) | m1 | mm | 100 |
| 4.32 | Min. Ground Clearance | m2 | mm | 110 |
| 4.34.1 | The Tray Is 1200 Wide x 1000 Long Aisle Width | Ast | mm | 3705 |
| 4.34.2 | The Tray Is 800 Wide x 1200 Long Aisle Width | Ast | mm | 3905 |
| 4.35 | Turning Radius | Wa | mm | 2200 |
| Performance Parameter | ||||
| 5.1 | Travel Speed,Fully Loaded/Unloaded | km/ h | 10/12 | |
| 5.2 | Lifting Speed, Fully Loaded/Unloaded | m/ s | 0.24/0.3 | |
| 5.3 | Titling Speed, Fully Loaded/Unloaded | m/ s | 0.4/ 0.36 | |
| 5.5 | Rated Traction, Fully Loaded/Unloaded | N | -- | |
| 5.6 | Max. Traction Force,Fully Loaded/Unloaded(Time) | N | -- | |
| 5.7 | Slope, Fully Loaded/Unloaded | % | -- | |
| 5.8 | Maximum Gradeability, Fully Loaded/Unloaded | % | 14/15 | |
| 5.10 | Service BrakeType | Hydraulic + Machinery | ||
| Parking Brake Type | Machinery | |||
| Motor, Power Source | ||||
| 6.1 | Drive Motor Rated Power S2 60 Minutes | kW | 5 | |
| 6.2 | Lifting Motor Rated Power S3 15% | kW | 5 | |
| 6.3 | Maximum Allowable Battery Size | mm | -- | |
| 6.4 | Battery Voltage/Nominal Capacity K5 | 60V140 48V230 | ||
| 6.5 | Battery Weight | kg | -- | |
| Other Date | ||||
| 8.1 | Drive Control Type | Alternating Current | ||
| 10.5 | Steering Type | -- | ||
| 10.7 | Noise Level | dB (A) | 70 | |

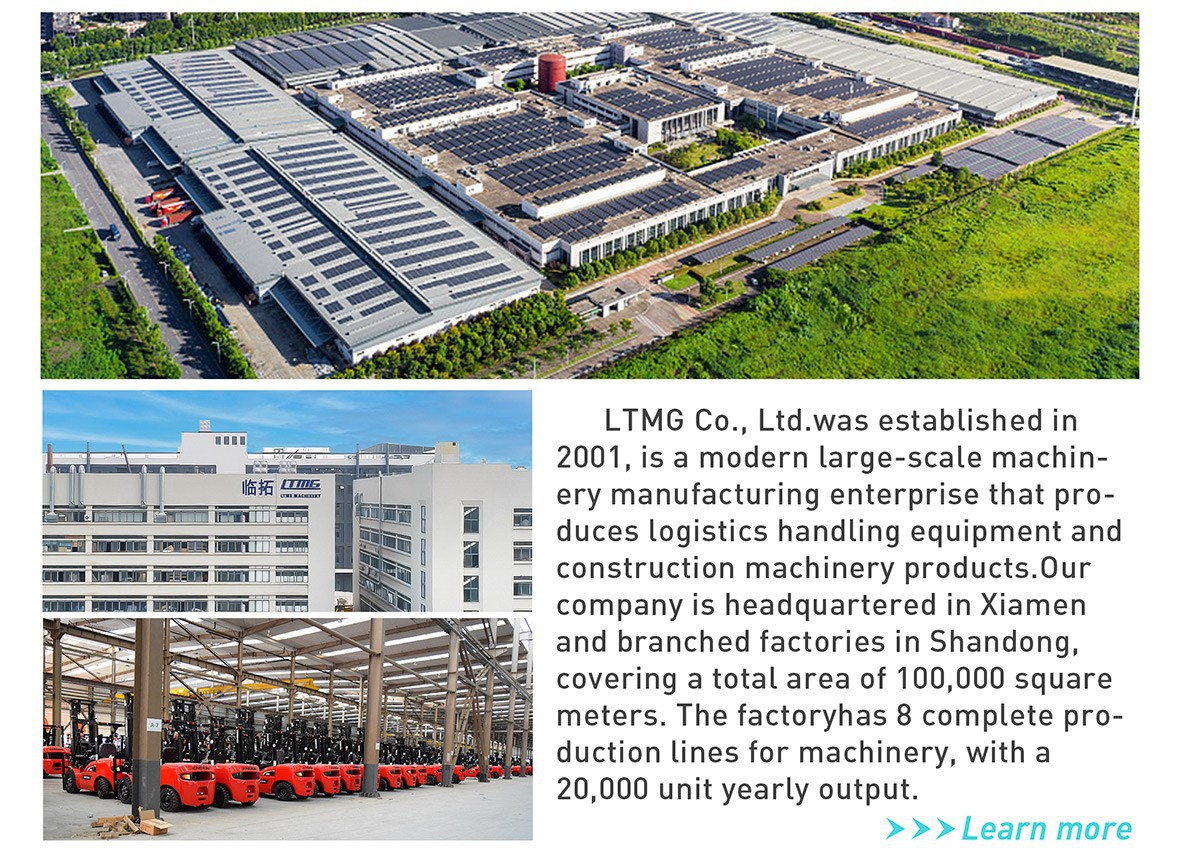

About LTMG
LTMG, with a rich experience of 20 years in machinery manufacturing, possesses unparalleled proficiency and a robust infrastructure that boasts nearly 100 advanced instruments. This state-of-the-art machinery arsenal includes OTC welding robots, TRUMPF laser cutting machines, ZEISS coordinate measuring machines, and specialized test benches, which reflect the exceptional capabilities of LTMG. By leveraging such cutting-edge technology, LTMG has the capacity to oversee the production process and maintain world-class standards.

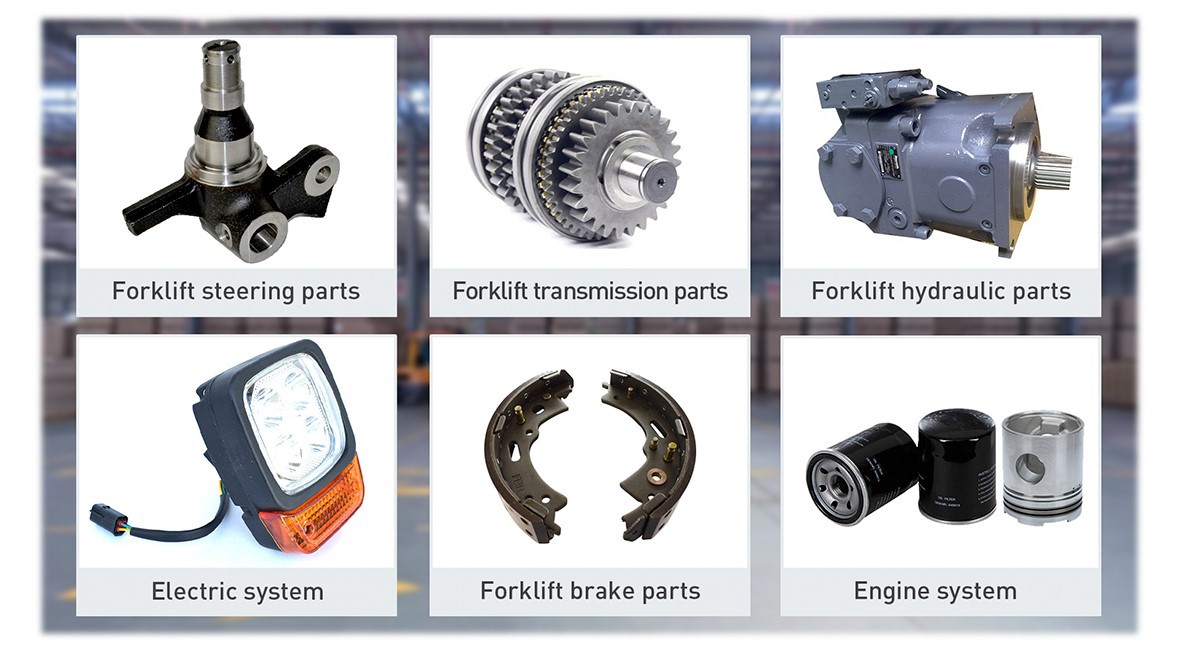

Spare parts
FAQ
Q: Does LTMG offer customized products?
Q: Can customers visit the factory?
Q: What is the product range of our factory?
