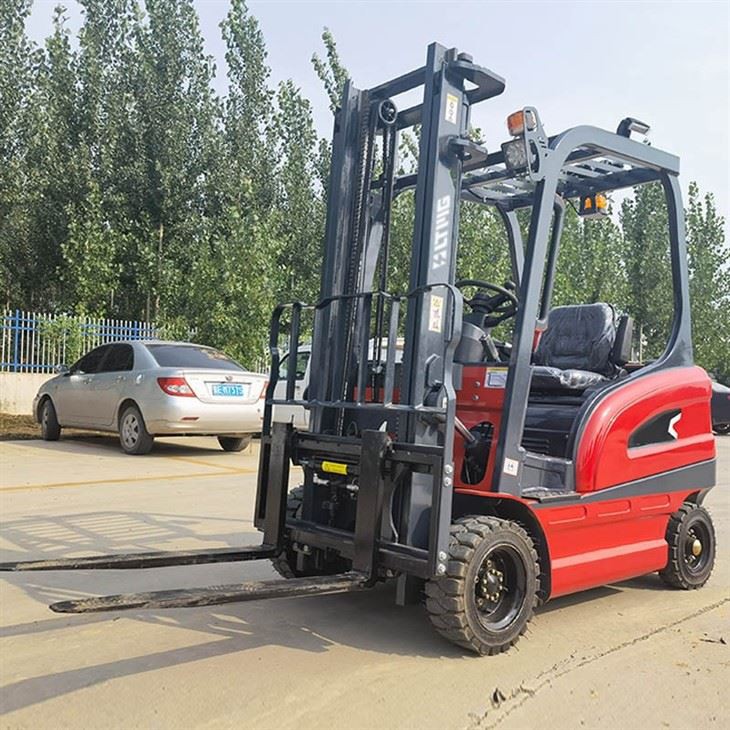

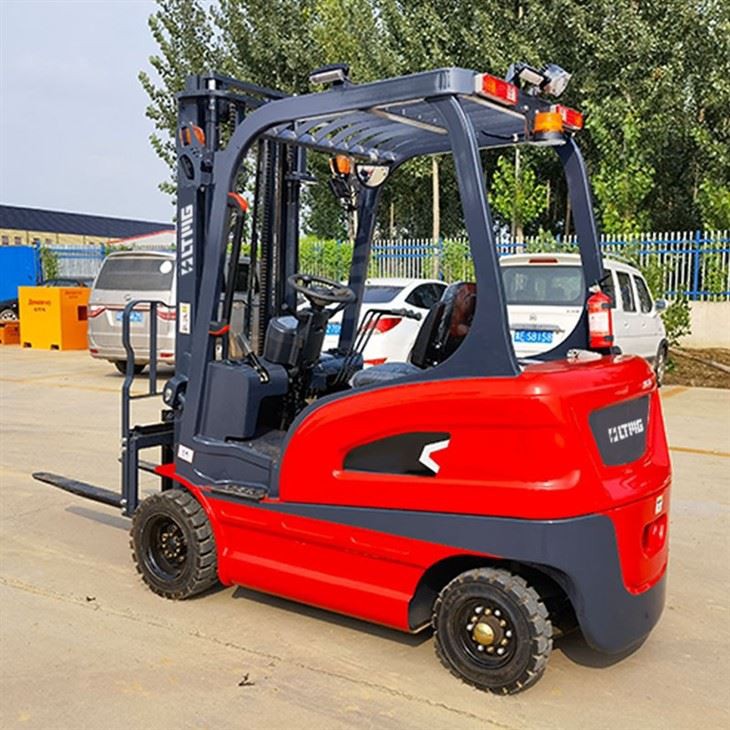

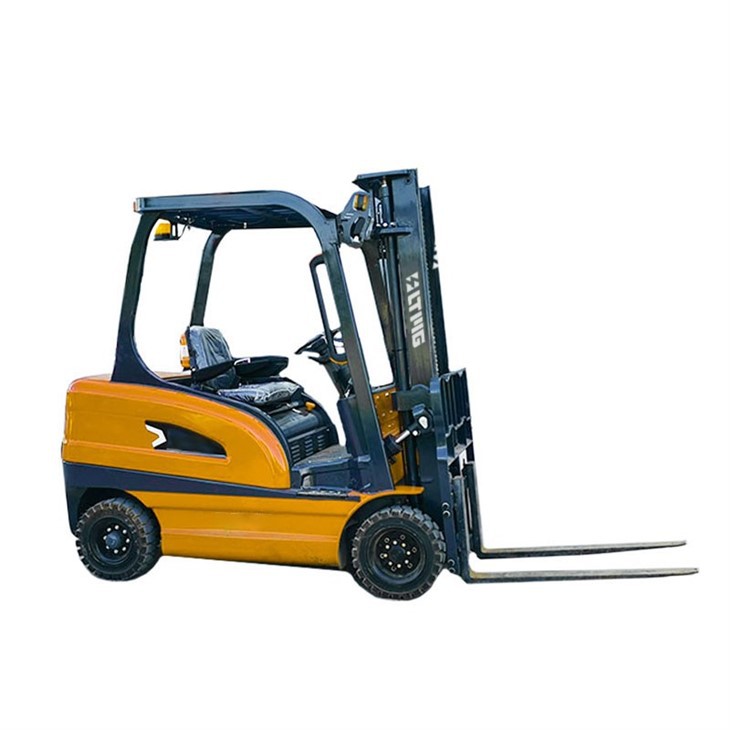

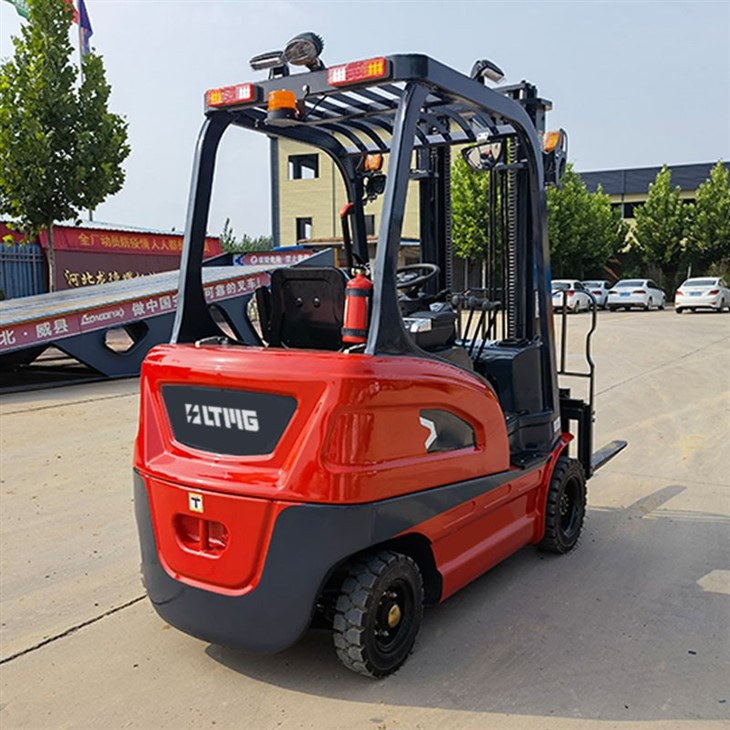

With low noise emission, zero exhaust emissions, and low energy consumption, small 4 wheel electric forklift for warehouse meets stringent environmental standards. Its compact and agile design allows for seamless maneuverability even in tight spaces and narrow aisles, enabling effortless right-angle turns in confined environments.
This electric sit down forklift not only excels in operational efficiency and safety but also delivers reliable performance with added water resistance, enhancing its comfort and versatility. The controls are strategically positioned close to the seat's edge, ensuring ease of operation and a comfortable experience for the operator.
The portable electric forklift's downhill glide feature reduces the descent speed when moving downhill, providing a low-gear deceleration effect similar to internal combustion engines. Simultaneously, releasing the accelerator lever contributes to energy regeneration, converting kinetic energy back into electrical energy.
In warehouse settings where space is at a premium, the small 4 wheel electric forklift stands out as an ideal solution. It offers a winning combination of environmental friendliness, maneuverability, and user-friendly controls, making it a reliable and efficient choice for various warehouse applications. With its ability to gracefully navigate tight spaces and deliver enhanced operator comfort, this battery operated forklift sets a new standard for performance, making it an excellent addition to any warehouse fleet.
Technical Specification
| Specification | ||||
| 1.1 | Brand | LTMG | ||
| 1.2 | Model | FB16 | ||
| 1.3 | Power Type | Electric | ||
| 1.4 | Rated Capacity | Q | kg | 1600 |
| 1.5 | Load Centre | c | mm | 500 |
| 1.6 | Front Overhang | x | mm | 305 |
| 1.7 | Wheelbase | y | mm | 1500 |
| Weight | ||||
| 2.1 | Service Weight | kg | 2300 | |
| 2.2 | Axle Load, Fully Loaded Drive Wheel/Steering Wheel | kg | 3615/525 | |
| 2.3 | Axle load, No-load Driving Wheel/Steering Wheel | kg | 1190/1450 | |
| Tire,Chassis | ||||
| 3.1 | Tire Type | Solid tire | ||
| 3.2 | Driving Wheel Size(Diameter * width) | mm | 18x7-10 | |
| 3.3 | Steering Wheel Size(Diameter * width) | mm | 400-8 | |
| 3.5 | Number of Driving Wheel(X)/Steering Wheels | mm | 2X/2 | |
| 3.6 | Driving Wheel Wheelbase | b10 | mm | 960 |
| 3.7 | Steering Wheel Wheelbase | b11 | mm | 910 |
| Size | ||||
| 4.1 | Mast Tile Angle F/R | α/ β (°) | 5/ 9 | |
| 4.2 | Mast Lowered Height | h1 | mm | 2150 |
| 4.3 | Free Lifting Height(With backrest) | h2 | mm | 100 |
| 4.4 | Lifting Height | h3 | mm | 3000 |
| 4.5 | Mast Extended Height | h4 | mm | 4100 |
| 4.7 | Overhead Guard Height | h6 | mm | 2150 |
| 4.8 | Seat Face Height | h7 | mm | 1050 |
| 4.12 | Traction Pin Center Height | h10 | mm | 460 |
| 4.19 | Overall Length | l1 | mm | 3370 |
| 4.20 | Length To Face Of Fork(Without Fork) | l2 | mm | 2250 |
| 4.21 | Overall Width | b1/ b2 | mm | 1100 |
| 4.22 | Fork Size | L*W*H | mm | 1070X100X40 |
| 4.23 | Fork Frame Type A, B | 3A | ||
| 4.24 | Outer Width Of Fork Frame | b3 | mm | 1060 |
| 4.31 | Ground Clearance (Bottom of fully loaded mast) | m1 | mm | 100 |
| 4.32 | Min. Ground Clearance | m2 | mm | 110 |
| 4.34.1 | The Tray Is 1200 Wide x 1000 Long Aisle Width | Ast | mm | 3705 |
| 4.34.2 | The Tray Is 800 Wide x 1200 Long Aisle Width | Ast | mm | 3905 |
| 4.35 | Turning Radius | Wa | mm | 2200 |
| Performance Parameter | ||||
| 5.1 | Travel Speed,Fully Loaded/Unloaded | km/ h | 10/12 | |
| 5.2 | Lifting Speed, Fully Loaded/Unloaded | m/ s | 0.24/0.3 | |
| 5.3 | Titling Speed, Fully Loaded/Unloaded | m/ s | 0.4/ 0.36 | |
| 5.5 | Rated Traction, Fully Loaded/Unloaded | N | -- | |
| 5.6 | Max. Traction Force,Fully Loaded/Unloaded(Time) | N | -- | |
| 5.7 | Slope, Fully Loaded/Unloaded | % | -- | |
| 5.8 | Maximum Gradeability, Fully Loaded/Unloaded | % | 14/15 | |
| 5.10 | Service BrakeType | Hydraulic + Machinery | ||
| Parking Brake Type | Machinery | |||
| Motor, Power Source | ||||
| 6.1 | Drive Motor Rated Power S2 60 Minutes | kW | 5 | |
| 6.2 | Lifting Motor Rated Power S3 15% | kW | 5 | |
| 6.3 | Maximum Allowable Battery Size | mm | -- | |
| 6.4 | Battery Voltage/Nominal Capacity K5 | 60V140 48V230 | ||
| 6.5 | Battery Weight | kg | -- | |
| Other Date | ||||
| 8.1 | Drive Control Type | Alternating Current | ||
| 10.5 | Steering Type | -- | ||
| 10.7 | Noise Level | dB (A) | 70 | |
About LTMG
With two decades of expertise in machinery manufacturing, LTMG demonstrates unparalleled proficiency and boasts a robust infrastructure equipped with nearly 100 advanced instruments. This state-of-the-art machinery arsenal features OTC welding robots, TRUMPF laser cutting machines, ZEISS coordinate measuring machines, and specialized test benches, showcasing the exceptional capabilities of LTMG. Leveraging such cutting-edge technology, LTMG not only oversees the production process but also upholds world-class standards throughout.

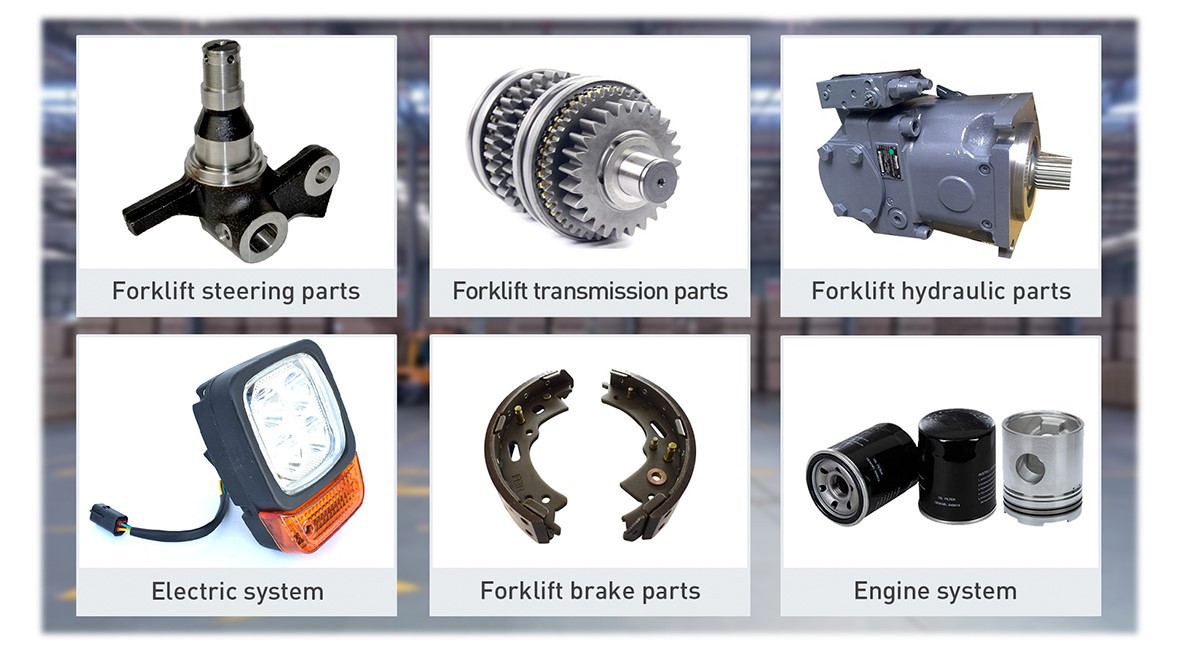

Spare parts
configuration
LTMG's electric forklift sets the standard for safety with its meticulously designed hydraulic, electrical, power, steering, and other systems. Every component is chosen for its high efficiency, contributing to a seamless and secure operational experience. Whether it's the responsive hydraulic system, reliable electrical components, powerful propulsion system, or precise steering mechanism, each element works in harmony to guarantee a safe and efficient performance, reflecting LTMG's commitment to excellence in every aspect of its electric forklift design.
FAQ
Q: What is the typical charging time for the electric forklift, and how long can it operate on a full charge?
A: The charging time for our 1.6-ton electric forklift varies depending on the charging station and voltage used. On average, it takes approximately 6 to 8 hours to achieve a full charge. The operating time on a full charge is influenced by factors such as load capacity, terrain, and usage patterns.
Q: Is there any maintenance required for the electric forklift, and how does it compare to maintenance for traditional forklifts?
A: Electric forklifts generally require less maintenance compared to their traditional counterparts. There are no engine oil changes, and the overall maintenance costs are lower. Regular checks on the battery, hydraulic system, and other components are recommended. The absence of internal combustion engines also means fewer moving parts, resulting in reduced wear and tear.
Q: What kind of warranty and support do you provide for the 1.2-ton electric forklift?
A: We offer a comprehensive warranty package for our electric forklifts, covering both parts and labor. The standard warranty period is typically one year or 2000 working hours, and extended warranty options are available. Our dedicated support team is ready to assist with any inquiries, troubleshooting, or maintenance needs.
