Do you need a powerful, efficient, and durable forklift that can handle heavy and large materials with ease? If so, you should consider the 12 Ton Electric Forklift from LTMG. These are 4 wheel electric forklifts that use lead-acid batteries as their energy sources. They can be used for material handling in various applications, such as warehouses, factories, construction sites, ports, and logistics centers.
1.【simple appearance】
The flowing outline of the truck chassis and the exposed application parts of metal materials make people shine. This forklift is light in weight, small in size, simple and elegant.
2.【reliable stability】
Advanced parallel layout of drive motor and lower located battery up to chassis bottom provide good stability to the truck.
Low center of gravity provides good turning stability,
3.【Secure safety equipment】
Regenerative braking, reverse current braking and anti-slide on slop function guarantee the operation safety.
Equipped a water cooling system with a good heat dissipation effect is used on a new energy forklift for the first time, so that the forklift can carry out long-time and high-intensity operations
4.【Environment protecting】
Low noise, no exhaust emission, and low energy consumption, all meet environment friendly requirement.
5.【Strong service capability】
Fully open the battery cover for easy battery maintenance, easy to open the counterweight cover, easy to protect the controller, contacter, power plug, emergency switch, dashboard and accelerator and other electronic products, avoid water and dust



Products parameter
Model | FB120 | |
Rated Capacity | kg | 12000 |
Load Centre | mm | 600 |
Lift Height | mm | 3000 |
Fork Size (L×W×T) | mm | 1220×175×85 |
Mast Tilt Angle F/R (α°/β°) | Deg | 6/10 |
Length to face of fork (Without fork) | mm | 4415 |
Overall Width | mm | 2250 |
Mast Lowered Height | mm | 2830 |
Mast Extended Height (With backrest) | mm | 4260 |
Overhead Guard Height | mm | 2640 |
Turning Radius (outside) | mm | 3850 |
Front Overhang (Wheel center to fork face) | mm | 845 |
Tread (Front/Rear) | mm | 1736/1754 |
Ground Clearance (Bottom of mast) | mm | 230 |
Wheelbase | mm | 2850 |

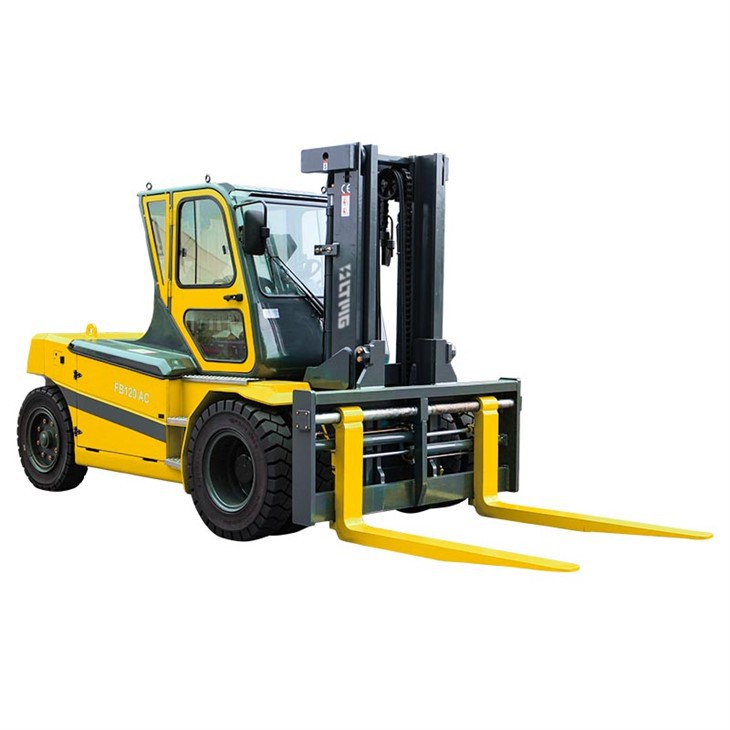

Products image
certificates
Purchase process
FAQ
Q: Will LTMG provide a customization service?
Q: Do you have the products in stock?
Q: What's your warranty term?
