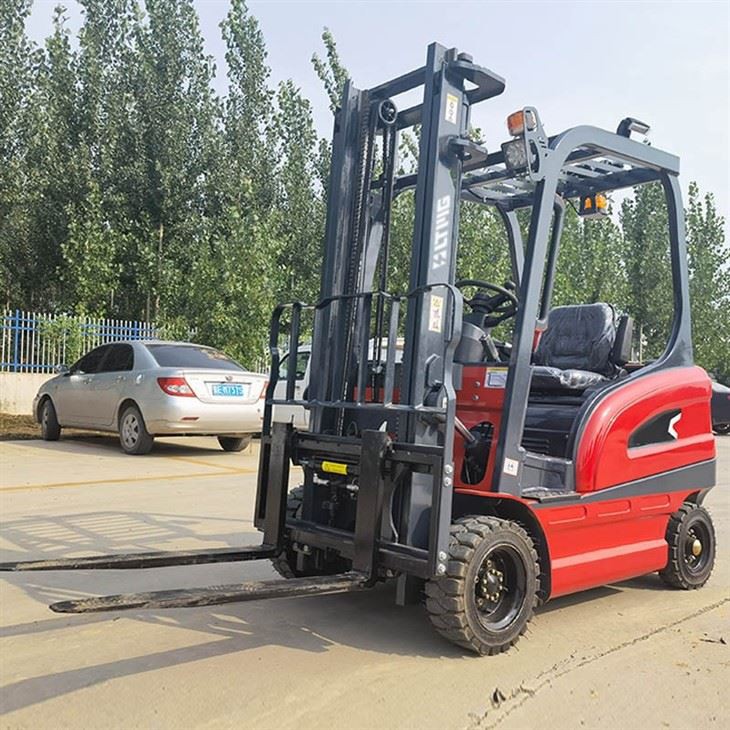

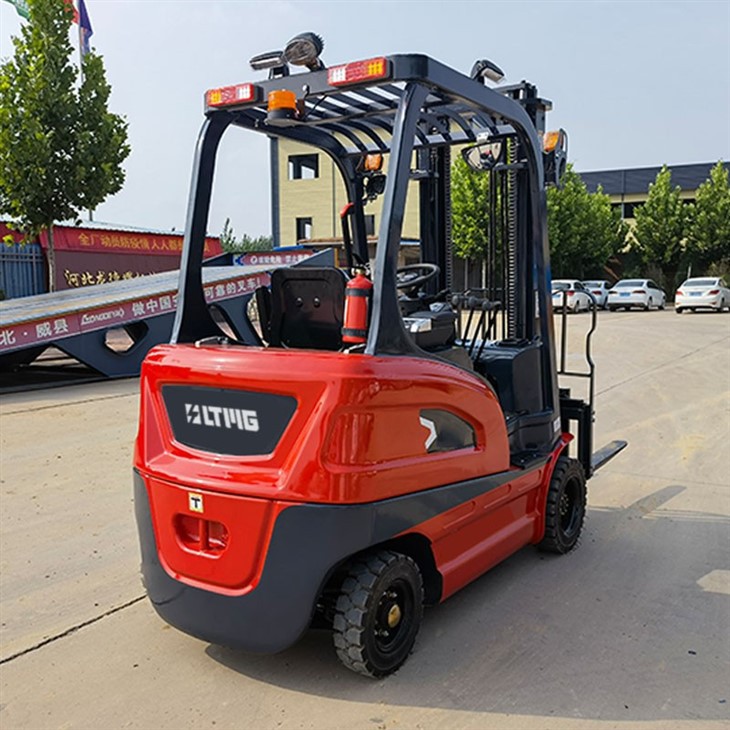

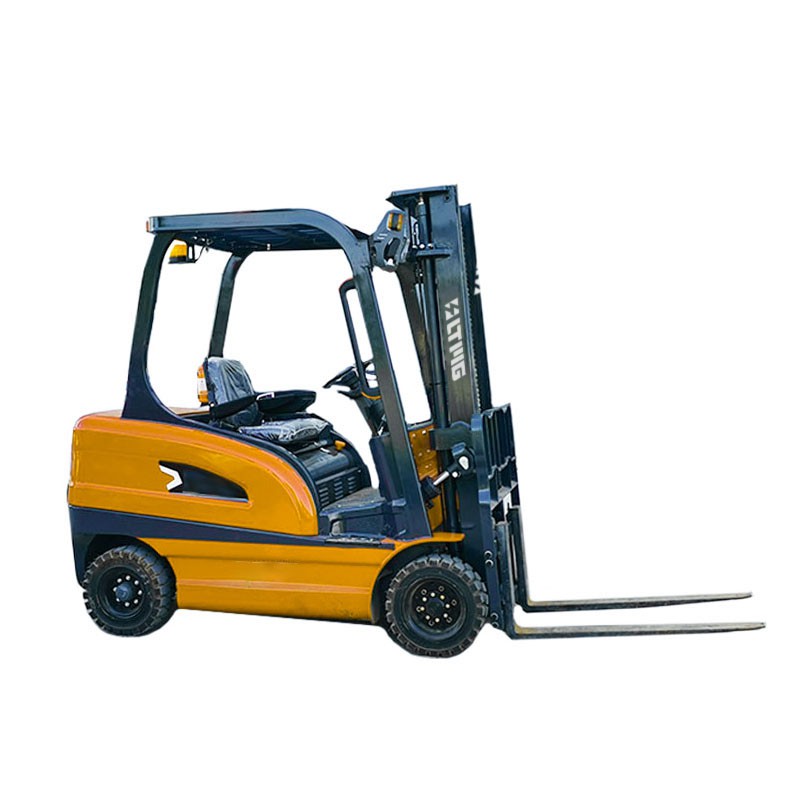

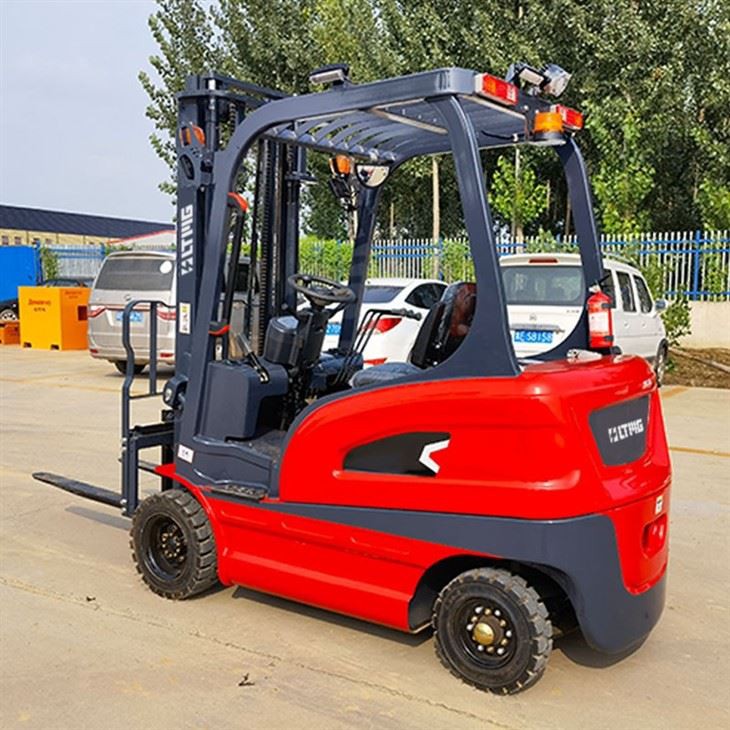

The 1.6 ton compact electric forklift is small and flexible, aiming at delivering outstanding performance and productivity in warehouse and industrial environments. The mini forklift electric comes equipped with a powerful lead-acid battery system that provides long-lasting and reliable power, ensuring propitious operations. The forklift emits zero exhaust emissions and noise without producing any harmful gas such as carbon monoxide, carbon dioxide, nitrogen oxides or other pollutants that result in global warming and air pollution. In addition, the total operating costs of the battery forklift are lower than those of similar diesel models. The longer you use it, the more you will appreciate its exceptional advantages.
Equipped with LED lights, the 1.6 ton compact electric forklift is brighter, ensuring enhanced safety for operators in harsh weather conditions. The seat is ergonomically designed to provide optimal driving posture and keep the operator in place, thereby eliminating fatigue during long working hours to increase work efficiency. Moreover, the seat is waterproof and durable, making it a valuable long-term asset.
Technical Specification
| Specification | ||||
| 1.1 | Brand | LTMG | ||
| 1.2 | Model | FB16 | ||
| 1.3 | Power Type | Electric | ||
| 1.4 | Rated Capacity | Q | kg | 1600 |
| 1.5 | Load Centre | c | mm | 500 |
| 1.6 | Front Overhang | x | mm | 305 |
| 1.7 | Wheelbase | y | mm | 1500 |
| Weight | ||||
| 2.1 | Service Weight | kg | 2300 | |
| 2.2 | Axle Load, Fully Loaded Drive Wheel/Steering Wheel | kg | 3615/525 | |
| 2.3 | Axle load, No-load Driving Wheel/Steering Wheel | kg | 1190/1450 | |
| Tire,Chassis | ||||
| 3.1 | Tire Type | Solid tire | ||
| 3.2 | Driving Wheel Size(Diameter * width) | mm | 18x7-10 | |
| 3.3 | Steering Wheel Size(Diameter * width) | mm | 400-8 | |
| 3.5 | Number of Driving Wheel(X)/Steering Wheels | mm | 2X/2 | |
| 3.6 | Driving Wheel Wheelbase | b10 | mm | 960 |
| 3.7 | Steering Wheel Wheelbase | b11 | mm | 910 |
| Size | ||||
| 4.1 | Mast Tile Angle F/R | α/ β (°) | 5/ 9 | |
| 4.2 | Mast Lowered Height | h1 | mm | 2150 |
| 4.3 | Free Lifting Height(With backrest) | h2 | mm | 100 |
| 4.4 | Lifting Height | h3 | mm | 3000 |
| 4.5 | Mast Extended Height | h4 | mm | 4100 |
| 4.7 | Overhead Guard Height | h6 | mm | 2150 |
| 4.8 | Seat Face Height | h7 | mm | 1050 |
| 4.12 | Traction Pin Center Height | h10 | mm | 460 |
| 4.19 | Overall Length | l1 | mm | 3370 |
| 4.20 | Length To Face Of Fork(Without Fork) | l2 | mm | 2250 |
| 4.21 | Overall Width | b1/ b2 | mm | 1100 |
| 4.22 | Fork Size | L*W*H | mm | 1070X100X40 |
| 4.23 | Fork Frame Type A, B | 3A | ||
| 4.24 | Outer Width Of Fork Frame | b3 | mm | 1060 |
| 4.31 | Ground Clearance (Bottom of fully loaded mast) | m1 | mm | 100 |
| 4.32 | Min. Ground Clearance | m2 | mm | 110 |
| 4.34.1 | The Tray Is 1200 Wide x 1000 Long Aisle Width | Ast | mm | 3705 |
| 4.34.2 | The Tray Is 800 Wide x 1200 Long Aisle Width | Ast | mm | 3905 |
| 4.35 | Turning Radius | Wa | mm | 2200 |
| Performance Parameter | ||||
| 5.1 | Travel Speed,Fully Loaded/Unloaded | km/ h | 10/12 | |
| 5.2 | Lifting Speed, Fully Loaded/Unloaded | m/ s | 0.24/0.3 | |
| 5.3 | Titling Speed, Fully Loaded/Unloaded | m/ s | 0.4/ 0.36 | |
| 5.5 | Rated Traction, Fully Loaded/Unloaded | N | -- | |
| 5.6 | Max. Traction Force,Fully Loaded/Unloaded(Time) | N | -- | |
| 5.7 | Slope, Fully Loaded/Unloaded | % | -- | |
| 5.8 | Maximum Gradeability, Fully Loaded/Unloaded | % | 14/15 | |
| 5.10 | Service BrakeType | Hydraulic + Machinery | ||
| Parking Brake Type | Machinery | |||
| Motor, Power Source | ||||
| 6.1 | Drive Motor Rated Power S2 60 Minutes | kW | 5 | |
| 6.2 | Lifting Motor Rated Power S3 15% | kW | 5 | |
| 6.3 | Maximum Allowable Battery Size | mm | -- | |
| 6.4 | Battery Voltage/Nominal Capacity K5 | 60V140 48V230 | ||
| 6.5 | Battery Weight | kg | -- | |
| Other Date | ||||
| 8.1 | Drive Control Type | Alternating Current | ||
| 10.5 | Steering Type | -- | ||
| 10.7 | Noise Level | dB (A) | 70 | |
About LTMG
LTMG, with a rich experience of 20 years in machinery manufacturing, possesses unparalleled proficiency and a robust infrastructure that boasts nearly 100 advanced instruments. This state-of-the-art machinery arsenal includes OTC welding robots, TRUMPF laser cutting machines, ZEISS coordinate measuring machines, and specialized test benches, which reflect the exceptional capabilities of LTMG. By leveraging such cutting-edge technology, LTMG has the capacity to oversee the production process and maintain world-class standards.
Spare parts
configuration
LTMG's hydraulic, electrical, power, steering, and other systems are equipped with efficient components to ensure the high performance of electric forklifts. Some components can be selectively configured based on customers' work sites and requirements to improve work efficiency.
FAQ
Q: Does LTMG offer customization services?
Q: Are factory visits allowed?
Q: What is the product range of our factory?
