Products detail

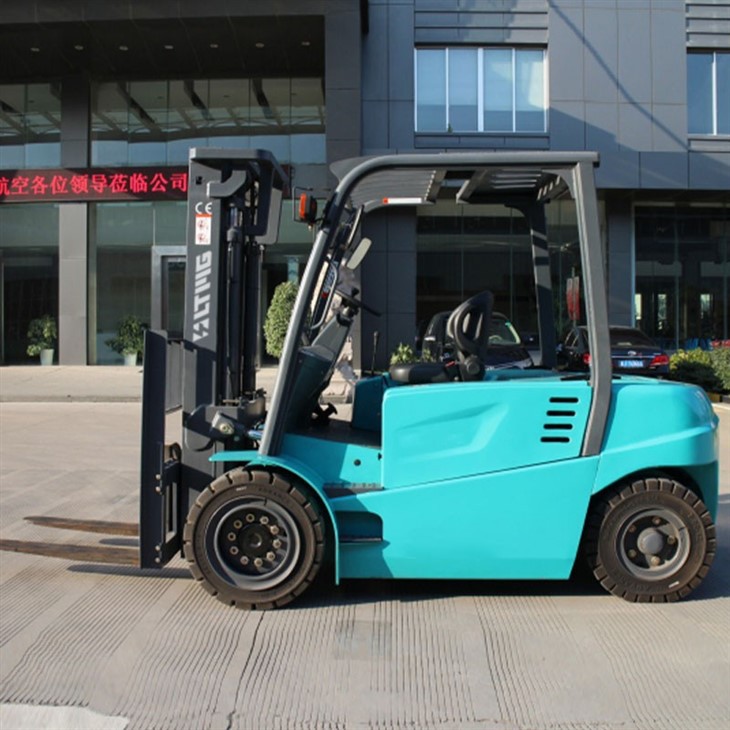

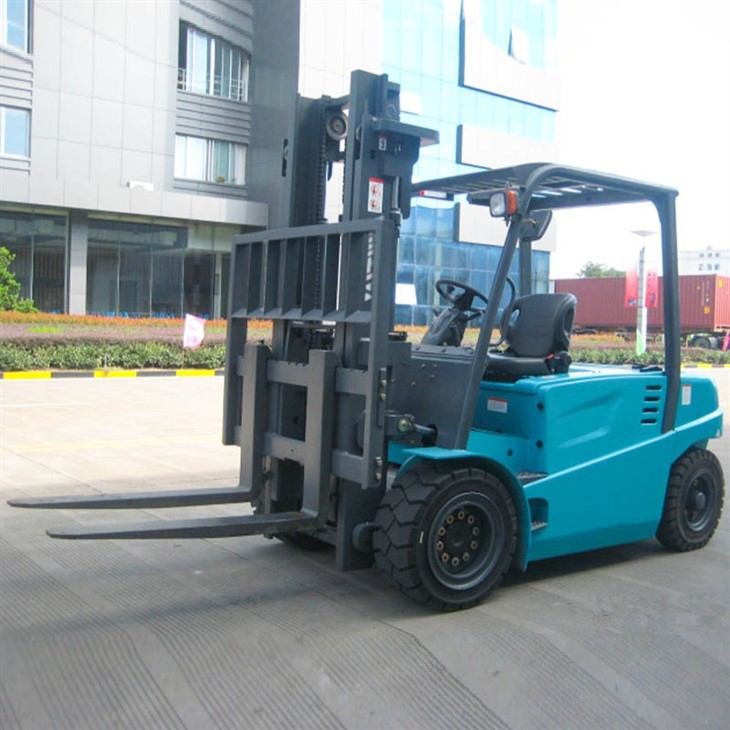

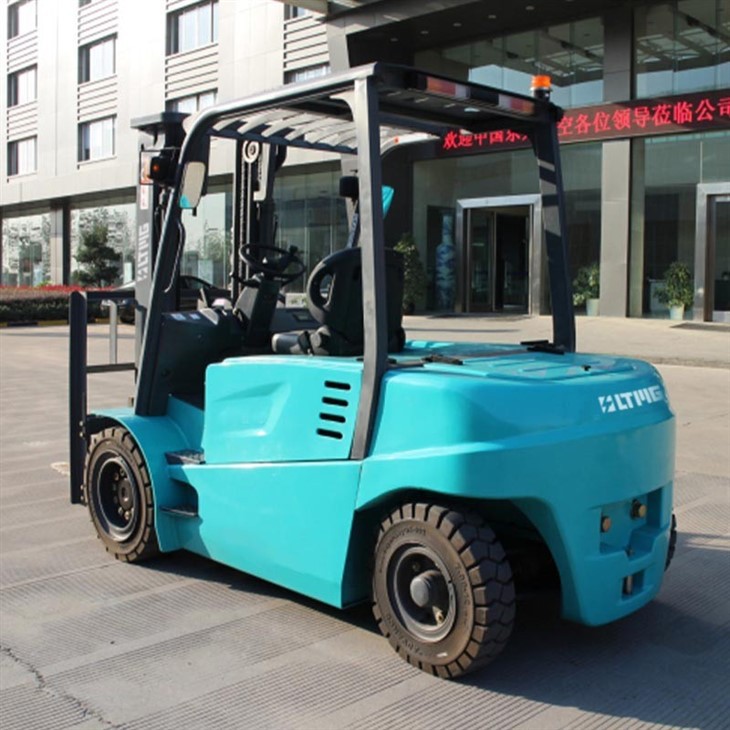

Experience extraordinary power coupled with exceptional performance and precision. The 4 wheel counterbalance electric forklift full AC delivers superior acceleration, making it the top choice for diverse work environments. Its intelligent energy utilization sets it apart, ensuring optimal efficiency in every operation.
Equipped with the original imported Curtis electric control system from the United States, the electric power forklift features high voltage and large capacity. The option of DC or AC motors is available based on customer preferences. This advanced control system enhances the forklift's reliability and efficiency.
Safety takes center stage with a design that simplifies and enhances operator comfort. We've developed an electric sit down forklift that offers a user-friendly and comfortable operation experience, catering to both novices and seasoned professionals. The design of the forklift and its internal components prioritizes the comfort of the operator.
Our 4 wheel counterbalance electric forklift full AC features regenerative braking, a revolutionary technology that recovers energy generated during normal braking processes and channels it back to the battery. This not only reduces brake pad wear but also extends the lifespan of the brake pads, contributing to cost savings and sustainability.
Incorporating cutting-edge technology and ergonomic design, our portable electric forklift is not just a lifting solution; it's a performance powerhouse that redefines efficiency and safety in material handling. Choose innovation, choose reliability, choose our electric forklift for a seamless and productive workplace experience.
Products parameter
| Model | FB60 | |
| Rated Capacity | kg | 6000 |
| Load Centre | mm | 500 |
| Lift Height | mm | 3000 |
| Fork Size (L×W×T) | mm | 1070×150×50 |
| Mast Tilt Angle F/R (α°/β°) | Deg | 6/9 |
| Length to face of fork (Without fork) | mm | 3140 |
| Overall Width | mm | 1600 |
| Mast Lowered Height | mm | 2270 |
| Mast Extended Height (With backrest) | mm | 4165 |
| Overhead Guard Height | mm | 2255 |
| Turning Radius (outside) | mm | 2817 |
| Front Overhang (Wheel center to fork face) | mm | 579 |
| Tread (Front/Rear) | mm | 1280/1190 |
| Ground Clearance (Bottom of mast) | mm | 170 |
| Wheelbase | mm | 2000 |
| Fork Spread (Min./Max) | mm | 300/1380 |
| Travel Speed | km/h | 14 |
| Lifting Speed (Full load) | mm/s | 260 |
| Max. Gradeability | % | 12 |
| Service Weight | kg | 8460 |
| Front Tire | 2.8×12.5-15 | |
| Rear Tire | 7.00-12-12PR | |
| Driven Motor | kw | 11×2 |
| Lift Motor | kw | 12×2 |
| Battery Standard | V/Ah | 80/800 |
| Controller Manufacturer | CURTIS AC | |
| Operating Pressure for Attachment | Mpa | 1 |
customer feedback
LTMG's products are distributed across diverse countries, where we offer premium customized services tailored to accommodate specific national policy mandates and the unique operational needs of our customers. This approach has garnered enthusiastic feedback. Furthermore, we routinely embark on international visits to engage with our customers directly, addressing any inquiries they may have and ensuring a seamless and efficient utilization of our products.
Optional configuration
LTMG provides the option to equip the electric-powered forklift with various clamps to assist you in completing tasks with the utmost convenience. With their exceptional quality and functionality, LTMG's range of clamps empowers operators to tackle diverse tasks effortlessly, further showcasing the forklift's versatility and adaptability. Whether it's for lifting, transporting, stacking, or specialized applications, LTMG provides a wide range of clamps to meet customers' specific needs.
purchase process
LTMG will provide you with all-sided services to ensure a seamless process and a satisfying shopping experience.
FAQ
Q: Do you looking for Agent?
Yes, we're looking for the agent all over the world, please contact us for further discussion.
Q: What maintenance is required for the electric forklift's battery system?
Q: Can the electric forklift operate in extreme temperatures, such as very hot or cold environments?
Q: Can I request to advance the shipment?
A: It should be depends on whether there is sufficient inventory in our warehouse.
