Name: High Capacity Electric Forklift For Material Handling
Brand: LTMG
SKU: 230215466

Products Detail

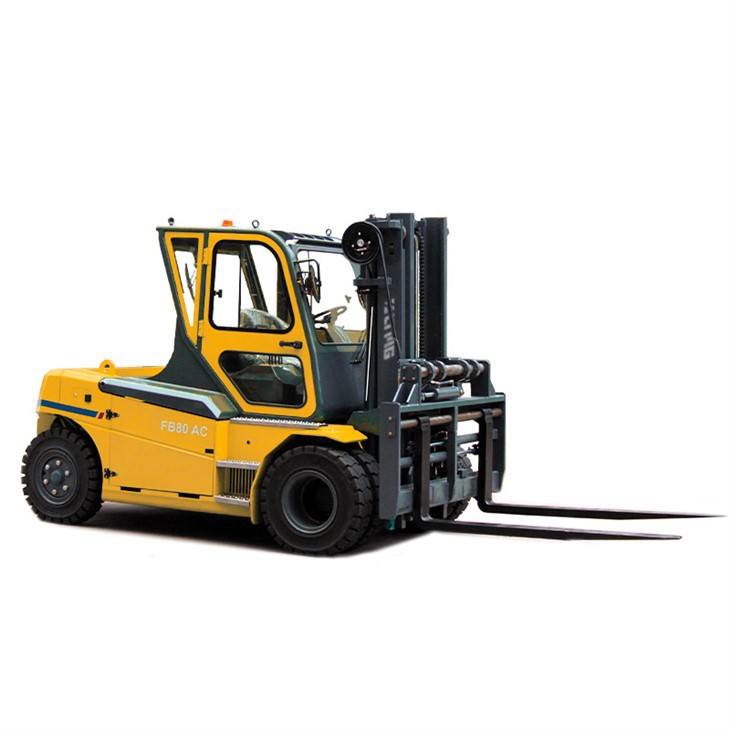

High Capacity Electric Forklift For Material Handling

Are you looking for a powerful, efficient, and eco-friendly forklift that can handle heavy and bulky materials with ease? If so, you should consider the 8 Ton Electric Forklift. This is a 4 wheel electric forklift that uses a lithium battery as its energy source. It can be used for material handling in various applications, such as warehouses, factories, construction sites, ports, and logistics centers.

The 8 Ton Electric Forklift is equipped with advanced features and components that make it stand out from other forklifts. Here are some of them:

INMOTION electric control: The INMOTION electric control system provides a smooth and precise control of the forklift, ensuring a high performance and safety. It also has a smart display that shows the battery status, speed, fault codes, and other information.

Full AC and imported motor: The full AC and imported motor provides a high and stable power output, allowing the forklift to operate at a high speed and torque. It also has a low noise and vibration, and a long service life.

Imported KESSLER dual drive axle: The imported KESSLER dual drive axle is specially designed for heavy-duty applications, providing a strong and reliable traction and braking. It also has a high load capacity and a low maintenance cost.

Zibo battery lead acid 80V/1200Ah: The Zibo battery lead acid 80V/1200Ah provides a large capacity and a long endurance, allowing the forklift to work for 8 hours continuously and be fully charged in 2 hours. It also has a low self-discharge rate and a long service life.

Pneumatic tires: The pneumatic tires provide a good grip and cushioning, making the forklift suitable for both indoor and outdoor applications. They also have a good wear resistance and a low rolling resistance.

Products parameter

Model		FB80
Rated Capacity	kg	8000
Load Centre	mm	600
Lift Height	mm	3000
Fork Size (L×W×T)	mm	1220×150×70
Mast Tilt Angle F/R (α°/β°)	Deg	6/10
Length to face of fork (Without fork)	mm	3780
Overall Width	mm	2200
Mast Lowered Height	mm	2600
Mast Extended Height (With backrest)	mm	4400
Overhead Guard Height	mm	2500
Turning Radius (outside)	mm	3350
Front Overhang (Wheel center to fork face)	mm	685
Tread (Front/Rear)	mm	1650/1718
Ground Clearance (Bottom of mast)	mm	200
Wheelbase	mm	2450
Fork Spread (Min./Max)	mm	300/2000
Travel Speed	km/h	14
Lifting Speed (Full load)	mm/s	300
Max. Gradeability	%	10
Service Weight	kg	12780
Front Tire		9.00-16-14PR
Rear Tire		8.25-15-14PR
Driven Motor	kw	14×2
Lift Motor	kw	25×2
Battery Standard	V/Ah	80/1150
Controller Manufacturer		CURTIS AC
Operating Pressure for Attachment	Mpa	18

shipping plan

LTMG has outstanding skills in packaging and transportation, paying close attention to packing details and quality to safeguard machines in containers by using wire rope. We guarantee that each item is gently handled and delivered with great care. Moreover, we offer a complete set of services, such as a free toolbox, export qualification inspection and certificate, user manual and CD operating instructions, and even extra machine body paint to make it easy for customers.

shipping plan of electric fork truck

ODM

ODM of full electric forklift truck

customer service

service of new electric forklift

FAQ

Q: What is LTMG's history and background?

A: LTMG is a company that specializes in producing and selling various kinds of forklifts and other machinery. LTMG has grown to become one of the leading forklift manufacturers in China, with a production capacity of over 30,000 units per year. LTMG has also expanded its product range to include loaders, excavators, tractors, bulldozers, road machinery, and port machinery.

Q: Lead-acid battery vs. Lithium battery: How to choose?

A:If you are looking for a battery for your electric vehicle, you may wonder which type of battery is better: lead-acid battery or lithium battery. Both types of batteries have their own advantages and disadvantages, and you need to consider your needs and preferences before making a decision. Here are some factors to compare:

Cost: Lead-acid batteries are cheaper than lithium batteries, as they have a lower production cost and a higher recycling value. However, lead-acid batteries have a shorter lifespan and a lower energy density, which means you may need to replace them more often and use more batteries to achieve the same performance as lithium batteries. Therefore, the initial cost saving may not be significant in the long run.

Lifespan: Lithium batteries have a longer lifespan than lead-acid batteries, as they have a higher number of charge and discharge cycles. Generally, lead-acid batteries can last for about 300 to 500 cycles, while lithium batteries can last for about 1000 to 2000 cycles. This means that lithium batteries can maintain their capacity and performance for a longer time, and reduce the frequency of replacement.

Q: How can I access the after-sales service?

A: If you have any difficulties or inquiries, our 24-hour online customer service is here to assist and answer your questions. In the event of significant quality issues that require on-site repairs, our team will dispatch engineers to address the situation promptly.

Q: What is the warranty period for your products?

A: Generally, we aim to ship your order within 30 days upon receipt of your deposit. In cases where the product is a standard item and we have available stock in our warehouse, we can arrange immediate shipment. However, please note that the delivery timeline for customized products will vary based on the specific order requirements and customization process.
