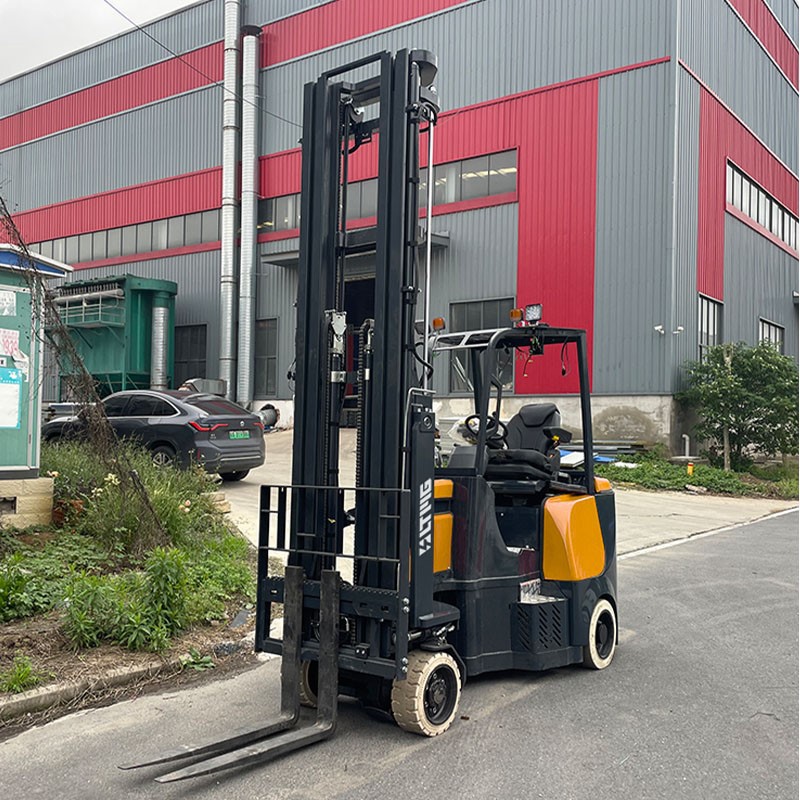

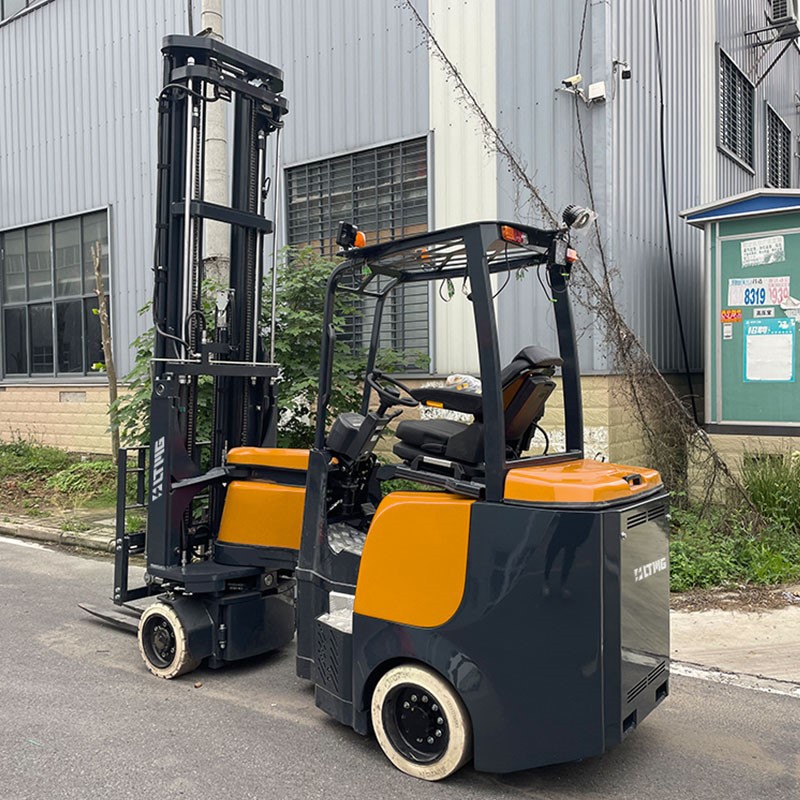

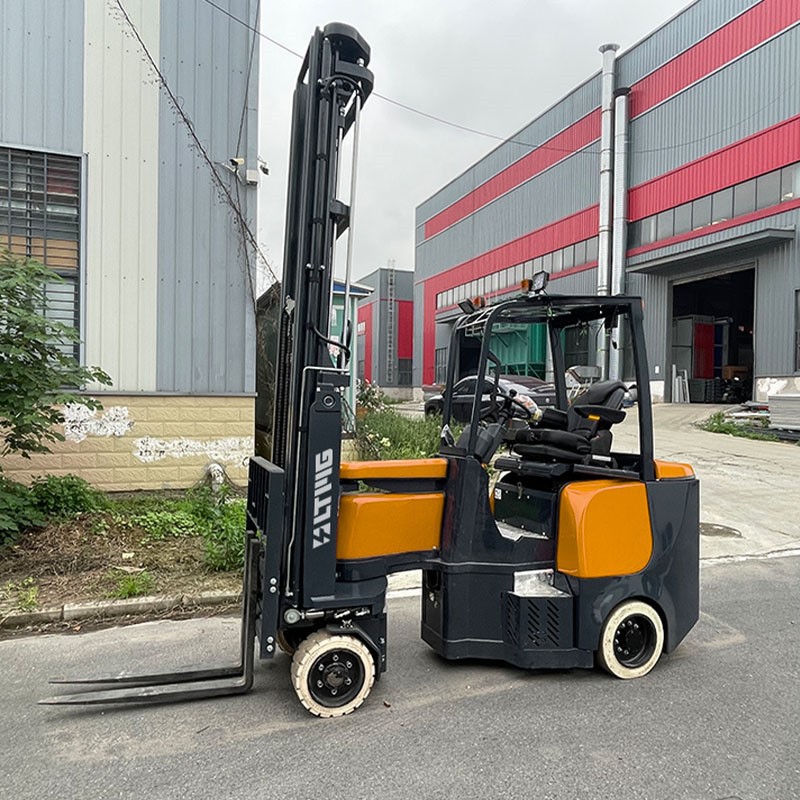

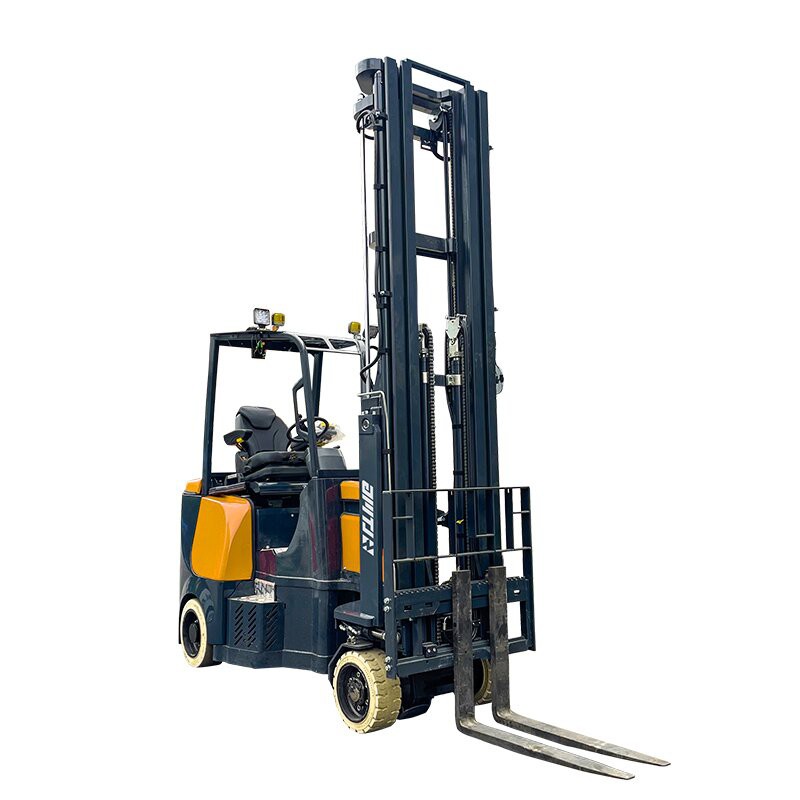

This vna forklift truck fingertip control provides a better control experience with more flexibility and precision. It has better fine-tuning performance and is ideal for high lifting conditions in narrow aisles. Fully proportional electro-hydraulic valve with fingertip handrail can adjust the speed of lifting/ lowering, side shifting and tilting of the gantry, which makes the vehicle easier and more accurate picking up/ unloading in narrow aisles, with better micro-movement performance.

80V full AC, low current, lower heating, lower failure rate, slow aging of accessories. Heavy load continuous work controller does not heat up. 80v/500ah 40kwh high voltage high capacity battery, current is smaller working time is longer, heat is lower on the electrical parts to reduce the damage.

Specification

Model	Unit	FBZ15	FBZ20	FBZ25	FBZ30
Capacity	KG	1500	2000	2500	3000
Mast lift height	MM	4300-7050	4300-10050	4300-12400	4300-12400
Mast free lift height	MM	1365-2435	1365-3635	1365-4686	1365-4686
Mast closed height	MM	2265-3335	2265-4615	2265-5665	2265-5665
Mast full extended height	MM	5561-8311	5561-11313	5561-13739	5561-13739
Overall length(excluding forks)	MM	2780	2780	2780	2780
Ground clearance	MM	50	50	50	50
Overhead guard height	MM	2270	2270	2270	2270
Chassis width rear	MM	1030	1220	1400	1600
Chassis width front	MM	980	980	980	980
Load center	MM	600	600	600	600
Wheelbase	MM	1735	1735	1735	1735
Seat height	MM	1220	1220	1220	1220
Mast tilt angle(back/fwd)	DEGREE	3/1	3/1	3/1	3/1
Front chassis rotate angle(left/right)	DEGREE	220	220	220	220
Ground speed	KM/H	16	16	16	16
Lift speed(load/unload)	M/S	0.44/0.5	0.44/0.5	0.44/0.5	0.44/0.5
Front tyre size	MM	412x174	412x174	412x174	412x174
Rear tyre size	MM	457x150	457x150	457x170	457x170
Grade ability(load/unload)	%	18/20	18/20	18/20	18/20
Battery voltage/capacity	V/AH	80/400	80/500	80/500	80/500
Weight excluding battery	KG	5150	5150	5150	5150
Weight including battery	KG	6400	6900	7400	7900
Traction motor	KW	19.5	19.5	19.5	19.5
Lifting motor	KW	15	15	15	15
Min net working aisle width	MM	1800	1800	1900	2100
Transfer aisle width	MM	2700	2700	2700	2700

Certificate

Advantages

Full AC motor without carbon brushes maintenance-free, external encoder, easy maintenance, suitable for high-intensity work, electronic handbrake, operation is more energy-saving, braking force is stronger than the mechanical handbrake, standard laser navigation, when the laser is pointing to the center of the pallet, it can be steered to pick up the goods, assisting the driver to locate the pallet more easily.

FAQ

1. Are you a manufacturer or a trading company?

We are manufacturer and have factories in Xiamen, Shandong and Jiangsu.

2. Can you produce forklifts according to our requirements?

Yes, we can provide OEM, we have a professional team to meet any of your requirements.

3. Can you provide samples?

We can provide samples, but the samples can not be free, because our products are large products.

4. Are the products tested before shipment?

Of course they have. All of our products are 100% quality tested before shipment. We test every batch of products every day.
