This lpg gas forklift is equipped with a powerful and reliable powertrain that is both powerful and environmentally friendly. It is equipped with a powerful and reliable powertrain, which is powerful and environmentally friendly. Equipped with seat sensor system, when the driver leaves the seat, in order to prevent the driver's improper operation or other factors to the driver's personal safety threat. Equipped with LED lamps, brighter, more able to ensure the safety of personnel in bad weather.

Adopting small diameter steering wheel and electro-hydraulic reversing structure, meanwhile, the sedanized two-way handle arrangement greatly improves driving comfort, and the configuration of lower buffer device reduces the impact and vibration of the gantry and improves the safety of operation at the same time, which is durable and has a long service life. Proven high quality and robust components result in reliable operation and low wear and tear.

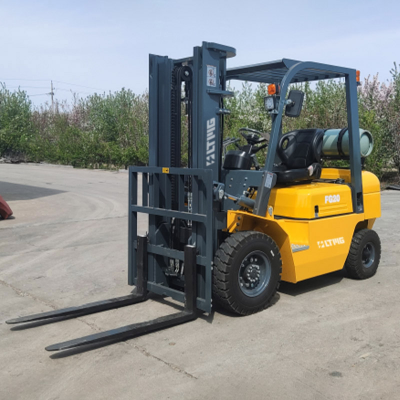

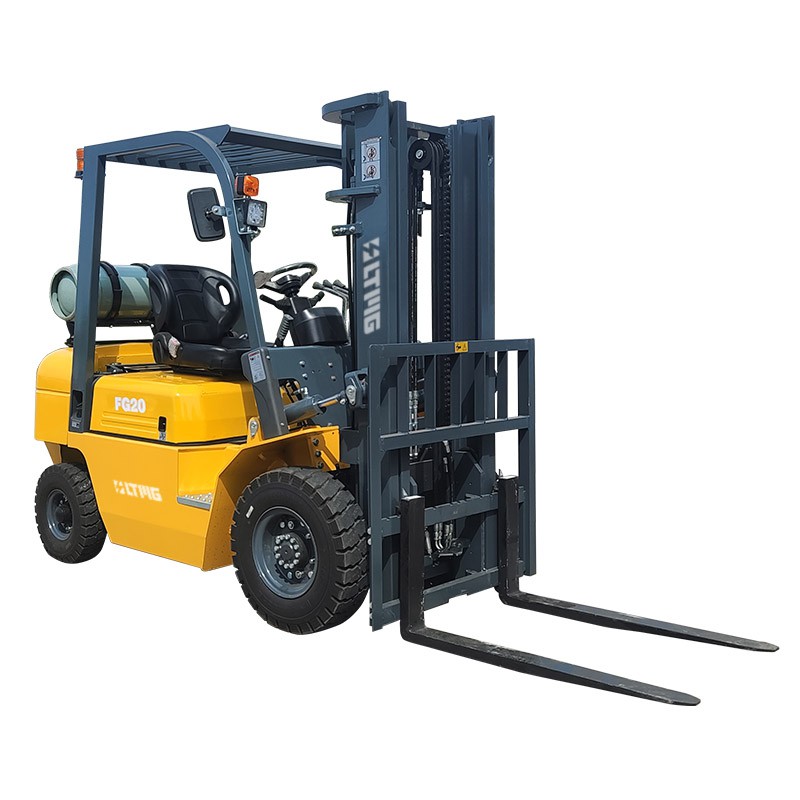

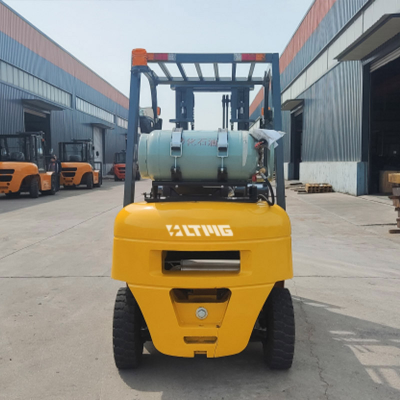

lpg forklift

Specification

Model		FG15	FG20
Rated lifting load	kg	1500	2000
Load center distance	mm	500
Free lifting height	mm	100	150
overall length (With fork/Without fork)	mm	3180/2260	3422/2502
Width	mm	1090	1170
Overhead guard height	mm	2050	2070
Wheelbase	mm	1400	1600
Minimum ground clearance	mm	110
Mast tilt angle (front/rear)	%	6° /12°
Tire no. (before)		6.5-10-10PR	7.00*12-12PR
Tire no. (after)		5.00-8-1OPR	6.00*9-1OPR
Minimum turning radius (outer side)	mm	1950	2170
Minimum right angle aisle width	mm	3630	3900
Fork size	mm	92010035	107010045
maximum working speed(Full-load/No-load)	km/h	14/15	17/19
maximum lifting speed(Full-load/No-load)	mm/s	500/480	530/550
maximum gradeability(Full-load/No-load)	%	20/21
Forklift weight	kg	2920	3340
Engine model		chinese engine	chinese engine

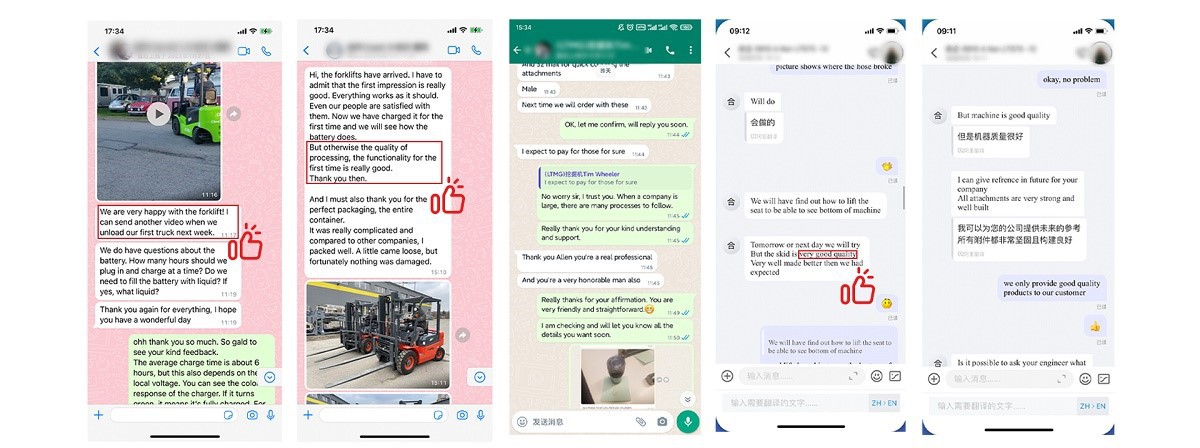

Customer feedback

customer feedback

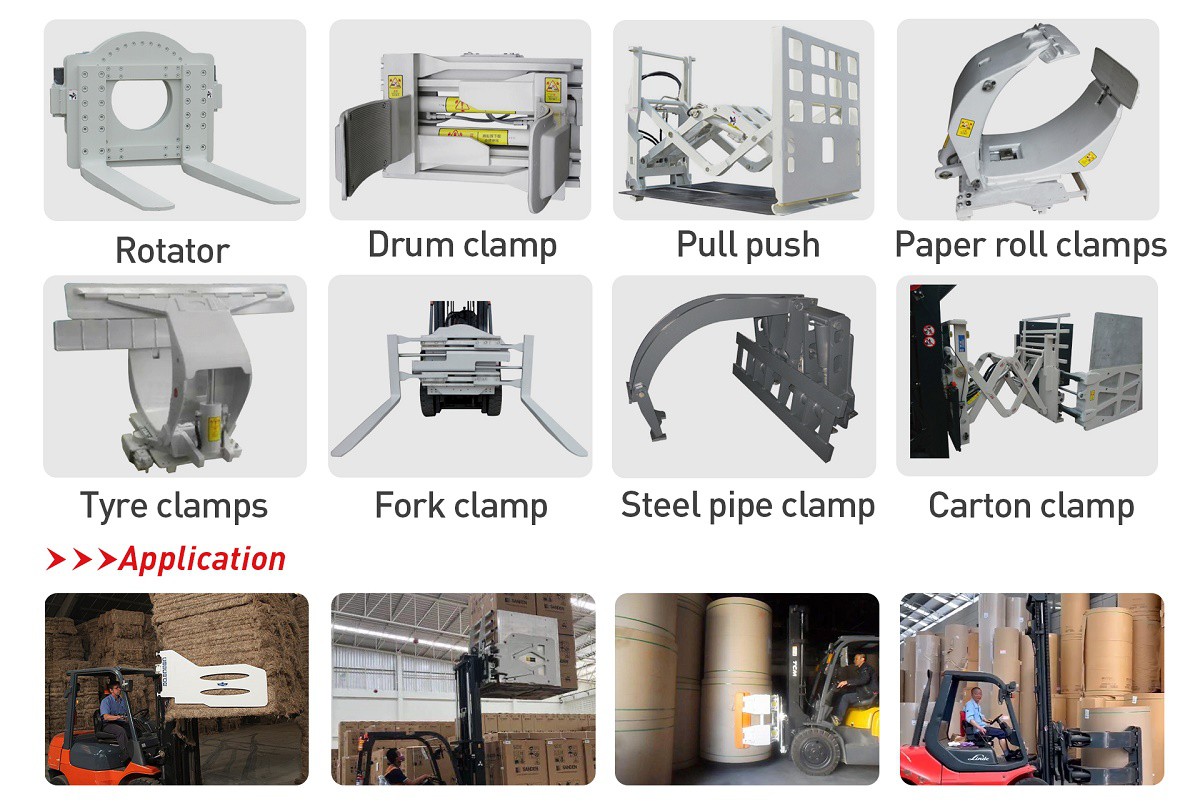

Accessories

Attachment

We not only have a complete range of products, but also a series of complete accessories can meet the needs of different customers, can be adapted to a variety of working conditions.

FAQ

1. Q: Which level of quality are your products?
A: We have got CE, ISO, SGS, COC, CO certificate so far.

2. Q: What is the delivery time of your machine?
A: In general, the delivery time of our machine is about 30 days, customized machine will be delivered as the negotiation with our clients.

3. Q: Can the machine be customized as our need, such as put on our logo?
A: Surely our machine can be customized as your need, Put on your logo is also available.

4. Q: As the shipping period will take long time, how can you make sure the machine won't be broken?
A: Our machine is film wrapped, to make sure the machine can be delivered to our customer smoothly, we will use the steel wire to fix the machine with the container.
