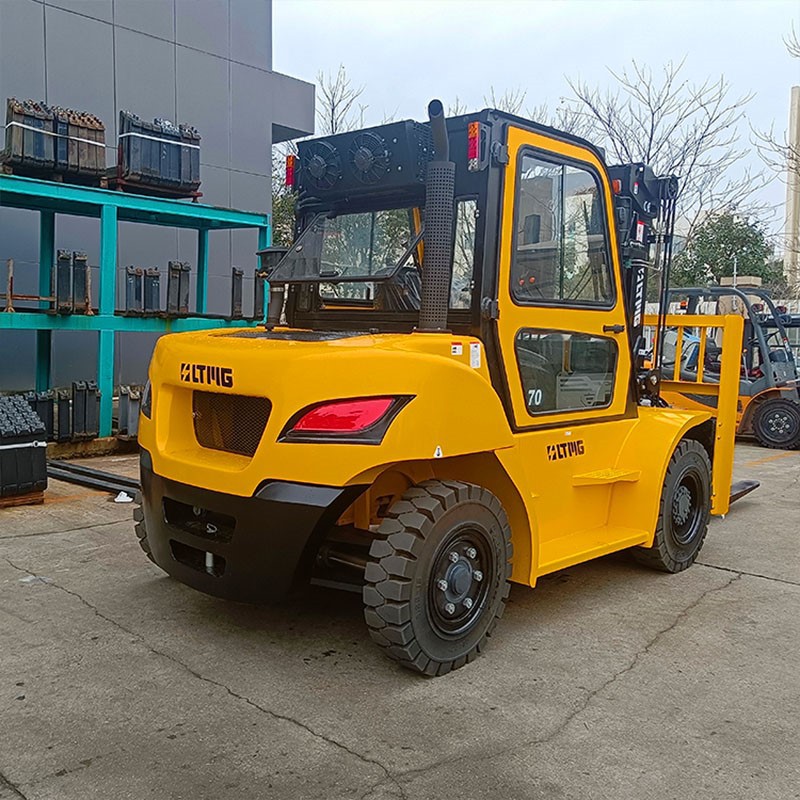

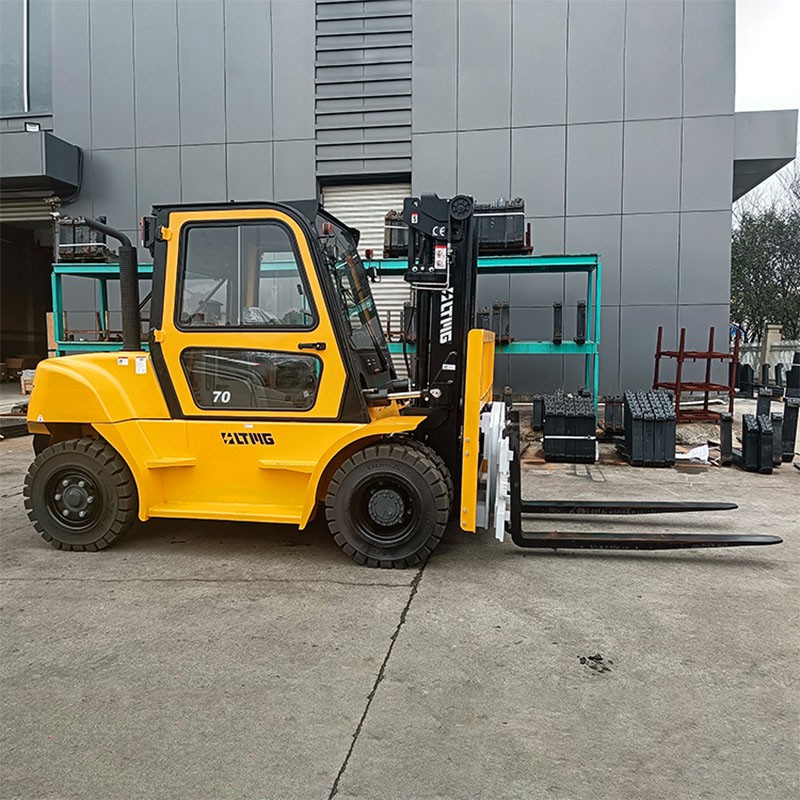

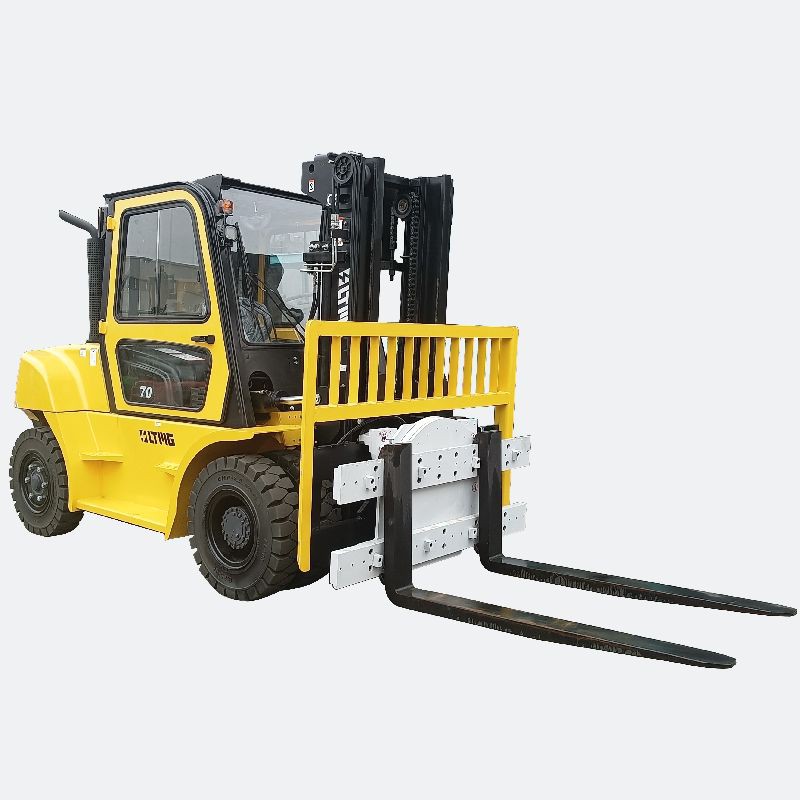

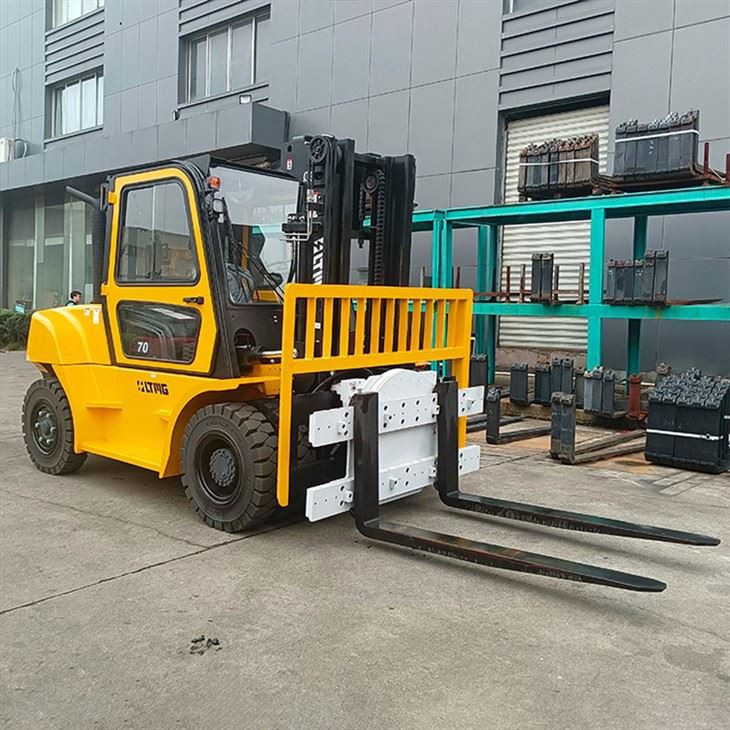

This 7-ton diesel forklift has a large arc and streamline body system; The structure is novel, the layout is reasonable, and the space is maximized for easy maintenance and repair. It adopts a frame structure, which has higher reliability; The cab adopts a tilting structure, greatly increasing maintenance space; The cab expands the operator's field of view and increases the safety of the entire machine.
The driving axle has high load and braking torque, ensuring safety and reliability; The brake is a multi disc fully enclosed wet brake, with good dust and water resistance, maintenance free, and high reliability.The mast is sturdy and durable, with good visibility. The oil cylinder seal is made of imported parts, which has excellent sealing performance.
Specification
|
Model |
|
FD70 |
||
|
Power Type |
|
Diesel |
||
|
Rated Capacity |
kg |
7000 |
||
|
Load Centre |
mm |
600 |
||
|
Lift Height |
mm |
3000 |
||
|
Fork Size |
L×W×T |
mm |
1220×150×70 |
|
|
Mast Tilt Angle |
F/R |
Deg |
6°/12° |
|
|
Fork Overhang (Wheel center to fork face) |
mm |
595 |
||
|
Ground Clearance（Bottom of mast） |
mm |
200 |
||
|
Overall Dimension |
Length to face of fork(Without fork) |
mm |
3565 |
|
|
Overall Width |
mm |
2010 |
||
|
Mast Lowered Height |
mm |
2500 |
||
|
Mast Extended Height(With backrest) |
mm |
4415 |
||
|
Overhead Guard Height |
mm |
2430 |
||
|
Turning Radius (outside) |
mm |
3350 |
||
|
Speed |
Travel (Full load) |
km/h |
30 |
|
|
Lifting (Full load) |
mm/s |
460 |
||
|
Max.Gradeability |
% |
20 |
||
|
Tyre |
Front |
mm |
8.25-15-14PR |
|
|
Rear |
mm |
8.25-15-14PR |
||
|
Wheelbase |
mm |
2250 |
||
|
Self weight |
kg |
9750 |
||
|
Battery |
Voltage/Capacity |
V/Ah |
(12/80) x 2 |
|
|
Engine |
Model |
|
|
|
|
Manufacture |
|
|
||
|
Rated output/r.p.m. |
kw |
|
||
|
Rated torque/r.p.m. |
N·m |
|
||
|
No.of Cylinder |
|
|
||
|
Bore×Stroke |
mm |
|
||
|
Displacement |
cc |
|
||
|
Fuel Tank Capacity |
L |
125 |
||
|
Transmission |
Type |
|
Hydraulic |
|
|
Stage |
FWD/RVS |
|
2/2 |
|
Shipping plan

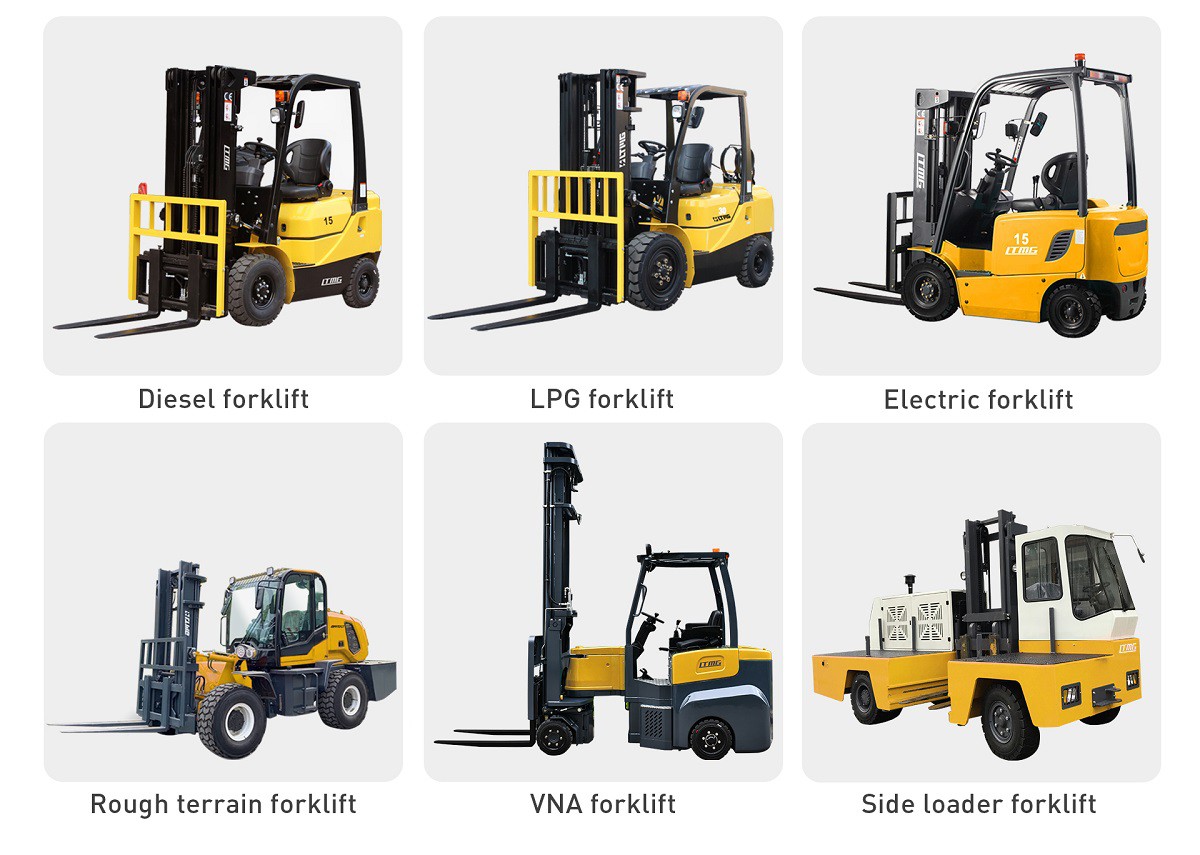

Related Products
We have a range of forklift products, in addition to diesel forklifts there are also rough terrain forklifts, lpg forklifts, electric forklifts and more. We have a wide range of products and a complete product line.
FAQ
1. Q. Are you a manufacturer, a trading company or a third party?
A: We are a manufacturer and our company has been established since 2001
2. Q: Where is your factory located?
A: The address of our factory is: LTMG Machinery Group, Haicang District, Xiamen. 3.
3. Q: How can I get to your factory?
A: Our factory is near Xiamen Gaoqi Airport, we can pick you up at the airport.
4. Q: What is your minimum order quantity?
A: Our minimum order quantity is 1 set, because our products are mechanical equipment, so it is difficult to send you samples, but we can send you a catalog, warmly welcome you to visit our company!
