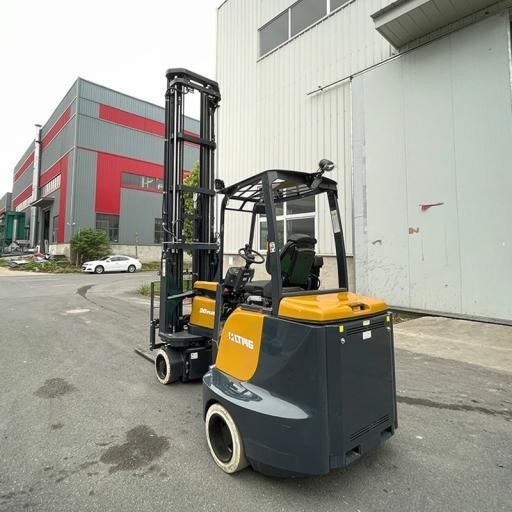

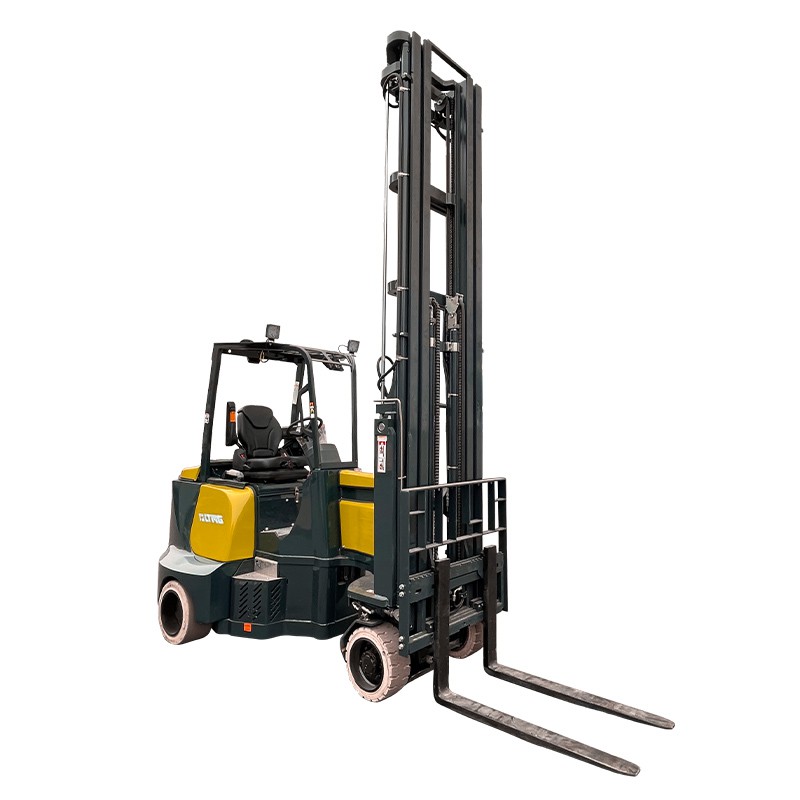

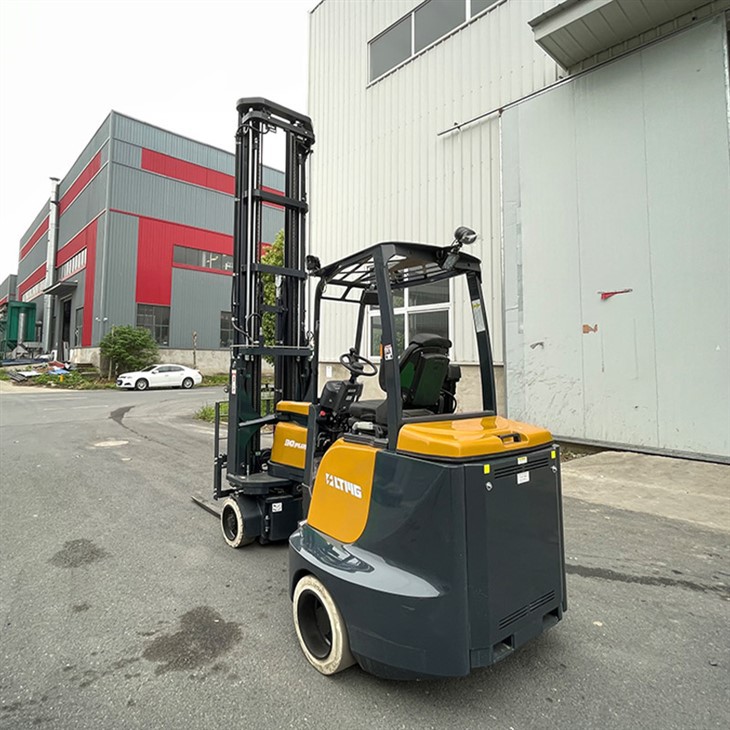

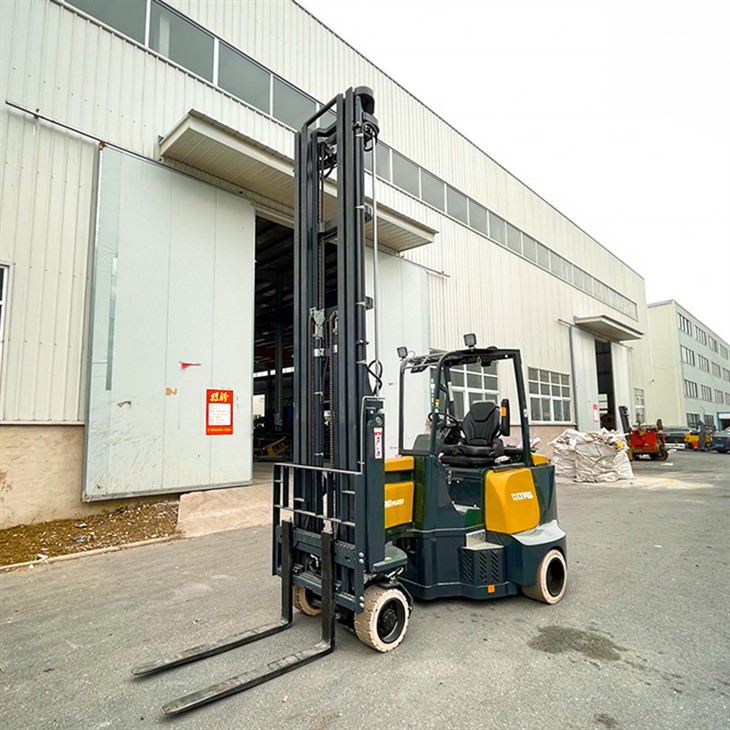

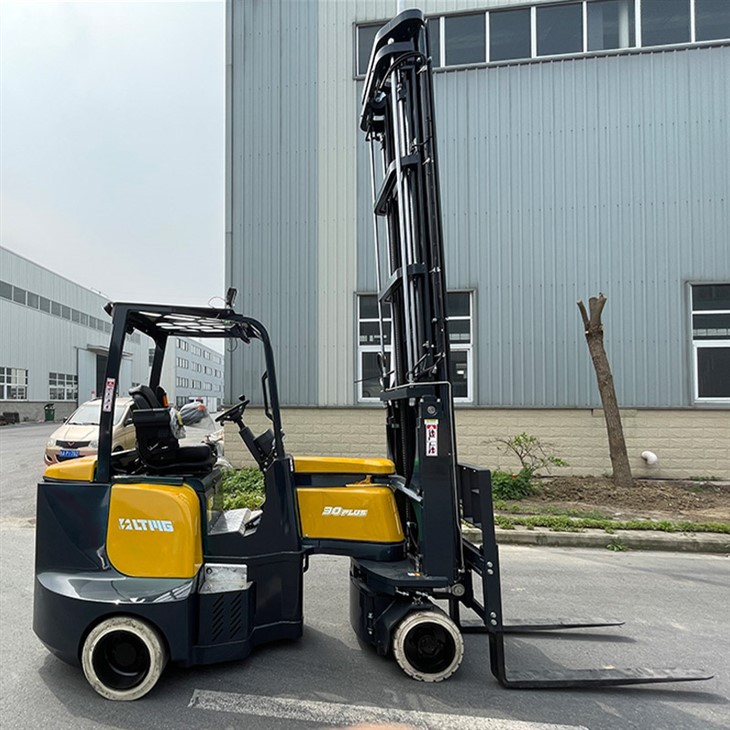

LTMG's VNA lift truck is designed with ergonomic standards to provide a comfortable ride for the operator. Its steering wheel, seat fore and aft and backrest can be adjusted according to the actual needs of the operator to ensure the health and safety of the operator.
In order to improve the visibility and safety of operation, this VNA lift truck is equipped with a high-definition wireless camera system, which enables the operator to fully grasp the situation around the vehicle at any time. The solid rubber tires are not only suitable for various complicated road conditions, but also can realize one-stop handling and stacking inside and outside the warehouse, which greatly improves work efficiency. In addition, it is equipped with text laser and front cross laser for accurate orientation indication, more precise operation and higher work efficiency.
In addition, the maximum swing angle of the VNA forklift mast can reach 210 degrees, while the width of the stacking aisle is only 1.9 meters, which greatly increases the inventory capacity. At the same time, since the VNA fork truck can easily maneuver and stack in narrow aisles, it allows for more flexible planning of warehouse layouts and greatly improves storage efficiency.
Specification
|
Model |
unit |
FBZ30 |
|
Capacity |
kg |
3000 |
|
Mast lift height |
mm |
4300-12400 |
|
Mast free lift height |
mm |
1365-4686 |
|
Mast closed height |
mm |
2265-5665 |
|
Mast full extended height |
mm |
5561-13739 |
|
Overall length(excluding forks) |
mm |
2780 |
|
Ground clearance |
mm |
50 |
|
Overhead guard height |
mm |
2270 |
|
Chassis width rear |
mm |
1600 |
|
Chassis width front |
mm |
980 |
|
Load center |
mm |
600 |
|
Wheelbase |
mm |
1735 |
|
Seat height |
mm |
1220 |
|
Mast tilt angle(back/fwd) |
degree |
3/1 |
|
Front chassis rotate angle(left/right) |
degree |
220 |
|
Ground speed |
km/h |
16 |
|
Lift speed(load/unload) |
m/s |
0.44/0.5 |
|
Front tyre size |
mm |
412x174 |
|
Rear tyre size |
mm |
457x170 |
|
Grade ability(load/unload) |
% |
18/20 |
|
Battery voltage/capacity |
v/ah |
80/500 |
|
Weight excluding battery |
kg |
5150 |
|
Weight including battery |
kg |
7900 |
|
Traction motor |
kw |
19.5 |
|
Lifting motor |
kw |
15 |
|
Min net working aisle width |
mm |
2100 |
|
Transfer aisle width |
mm |
2700 |
Service
LTMG's VNA forklift trucks are simple and attractive, capable of loading, unloading and transporting goods in narrow warehouse aisles, making them an efficient assistant in your warehouse operations.
LTMG has been in the industry for more than 20 years with professional export license. We provide one-stop service from pre-sale, sale to after-sale by focusing on the actual needs of customers.
FAQ
1. Why choose us?
A: LTMG is a professional forklift manufacture with experience of more than 20 years.Our products have exported to more than 200 countries and regions and gain large recognition all over the world.
2. Can the products be manufactured by customer's requirement?
A: Yes, the specifications stated above are the standard ones, we can design and manufacture as requirement.
3. How to solve the problem of the equipment in the process of using?
A: Please send us the problem by email with a picture or small video. Our after-sales service department will provide solutions for you.
4. Do your products have a unified quality inspection process before sale?
A: All machines are professionally tested before leaving the factory, so almost all of them can be used directly. And our machines are very easy to install, if there are questions about the operation process, you can also contact us at any time.
