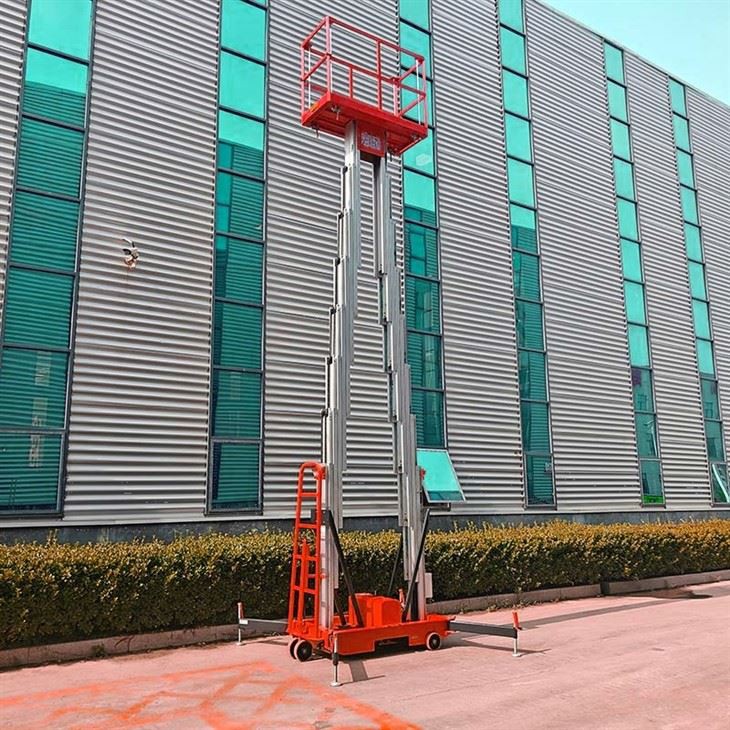

Compared with singe mast lift, LTMG double mast lift has a larger load capacity and a higher lifting height. This man lift features excellent stability, flexible operation and is easy to move. Double mast lifts are widely used in factories, hotels, buildings, shopping malls, stations, airports and stadiums for the installation and maintenance of power lines, lighting appliances, overhead pipelines, as well as cleaning at heights.

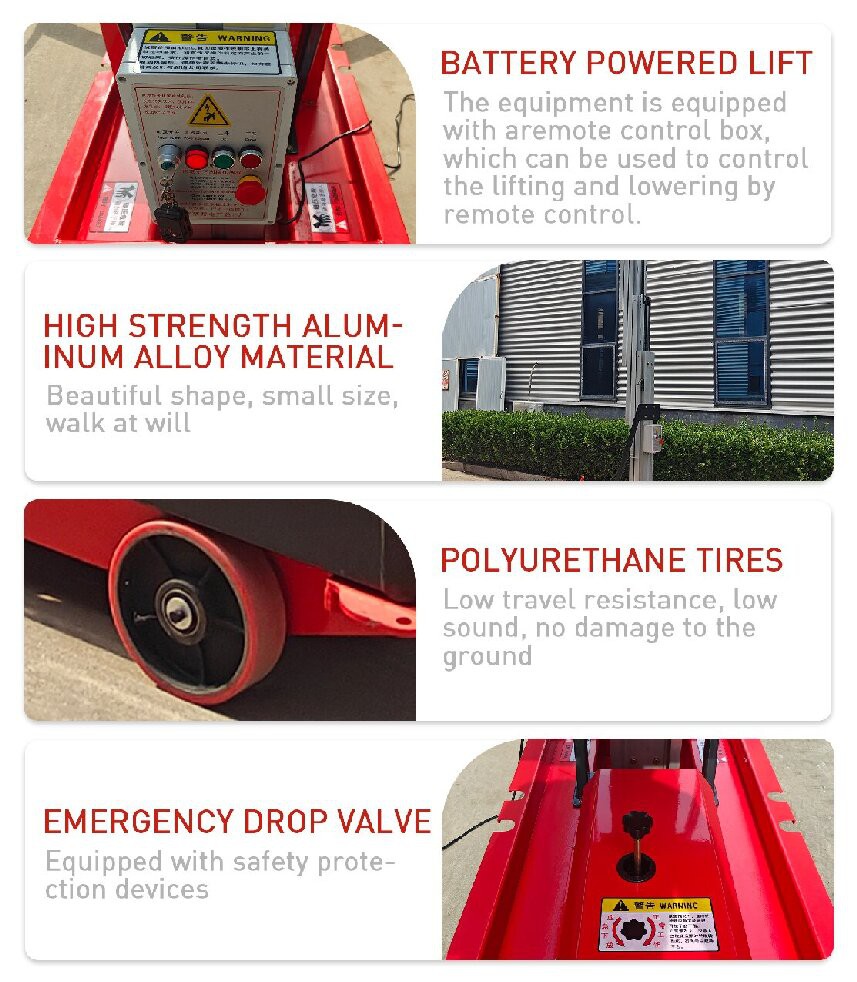

Double mast lift is easy to operate when we stand on the ground. By using Emergency stop button all actions of the device can be stopped in an emergency. The legs are made of aluminum alloy, which is durable and resistant to rust. Fixing the device by inserting the base, the fixing method is more stable. The platform can be lowered by manual down button in case of power failure
Specification
|
Model |
LTAP6-D |
LTAP8-D |
LTAP10-D |
LTAP12-D |
LTAP14-D |
|
Height(m) |
6 |
8 |
10 |
12 |
14 |
|
Rated load(kg) |
300 |
300 |
250 |
200 |
150 |
|
Platform dimensions(m) |
1.2 X 0.63 |
1.2 X 0.63 |
1.5X 0.63 |
1.5X 0.63 |
1.5X 0.63 |
|
Power(kw) |
1.5 |
1.5 |
1.5 |
1.5 |
1.5 |
|
Batteries(V) |
220 |
220 |
220 |
220 |
220 |
|
Capacity(kg) |
510 |
550 |
690 |
730 |
790 |
|
Overall dimensions(m) |
1.55X 0.85 X 2.0 |
1.55X 0.85 X 2.0 |
1.84 X 0.85 X 2.0 |
1.84 x 0.85 x 2.0 |
1.95 x 1.05 x 2.35 |

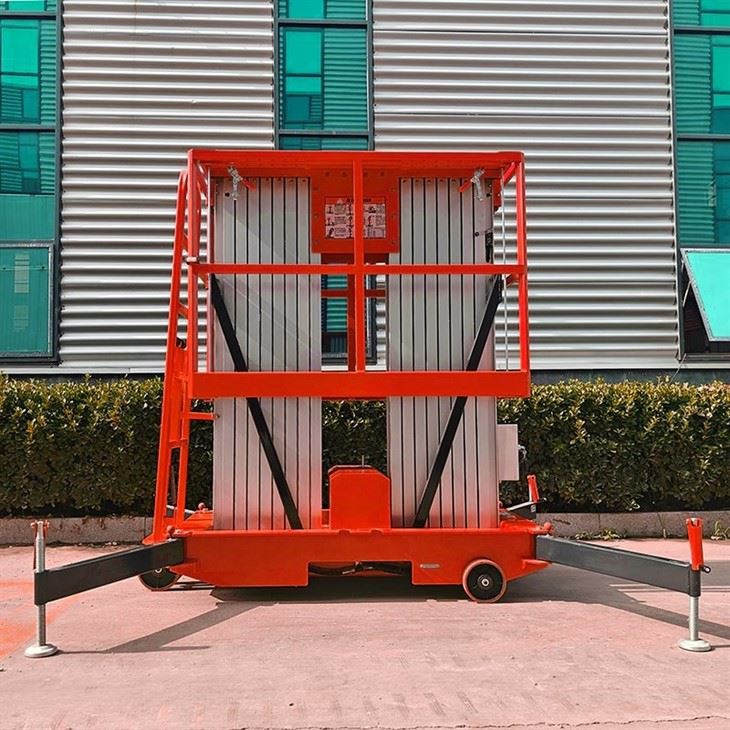

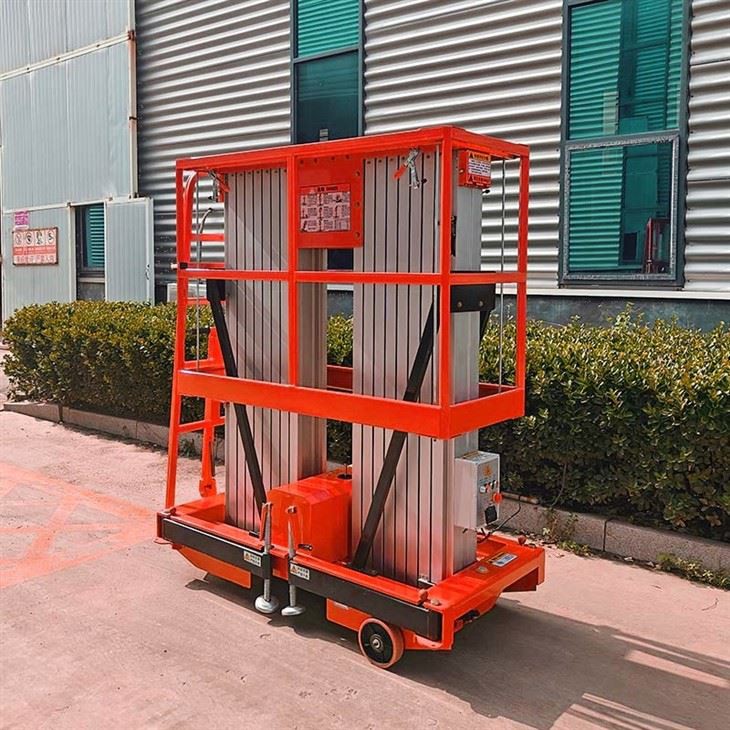

detail drawing
recommend product
FAQ
1. Why choose us?
As a manufacturer, LTMG industrial is committed to offer not only products with high quality and performance and competitive price, but also in-time delivery and comprehensive 7/24 after-sale services.
2. What is the product range of your factory ?
LTMG industrial is a large-scale machinery manufacturing enterprise primarily specializes in supplying wheel loaders, forklift trucks, excavator and related attachments. We can also customize non-standard products according to customer's requirements.
3. What payment terms can you accept?
Normally 30% deposit is required in advance, 70% balance shall be settled before shipment. And 100% irrevocable L/C at sight with the terms we agreed can also be accepted.
4. What Certificates do you have?
All products meet with the ISO9001 Quality System and have acquired CE certificate. EPA approval will be available if needed.
5. How about your delivery time?
Usually it will take 15 to 30 days after receiving your deposit. About standard products, we always have in stock and can deliver immediately. But customized products will take more time, depending on the requirements of your order.
6. Can you provide OEM service?
LTMG industrial can provide customized products according to customers' requirements, both OEM and ODM are acceptable.
Hot Tags: double mast lift, China double mast lift manufacturers, Double Mast Lift, Mast Lift
