Compact Rough Terrain Forklift

Items: 3 ton compact rough terrain forklift
Rated capacity: 3000 kg
Lift height: 4000 mm
Rough terrain forklift is a kind of engineering vehicle that can safely and highly do cargo loading and unloading, stacking and handling operations on slopes and uneven ground. It has high speed, good driving acceleration, and good maneuverability with 25°~30°climbing ability.
Send Inquiry
Chat Now

Product Introduction

Rough terrain forklift is a kind of engineering vehicle that can safely and highly do cargo loading and unloading, stacking and handling operations on slopes and uneven ground. It has high speed, good driving acceleration, and good maneuverability with 25°~30°climbing ability. The large tilt angle of the gantry also enables it to work and drive safely on uneven ground, so it is particularly suitable for field work. Like the counterbalanced forklift. It can be equipped with forks or replaced with a variety of attachments for high operational efficiency. Rough terrain forklift trucks are available in a variety of configurations and are developing rapidly both at home and abroad.

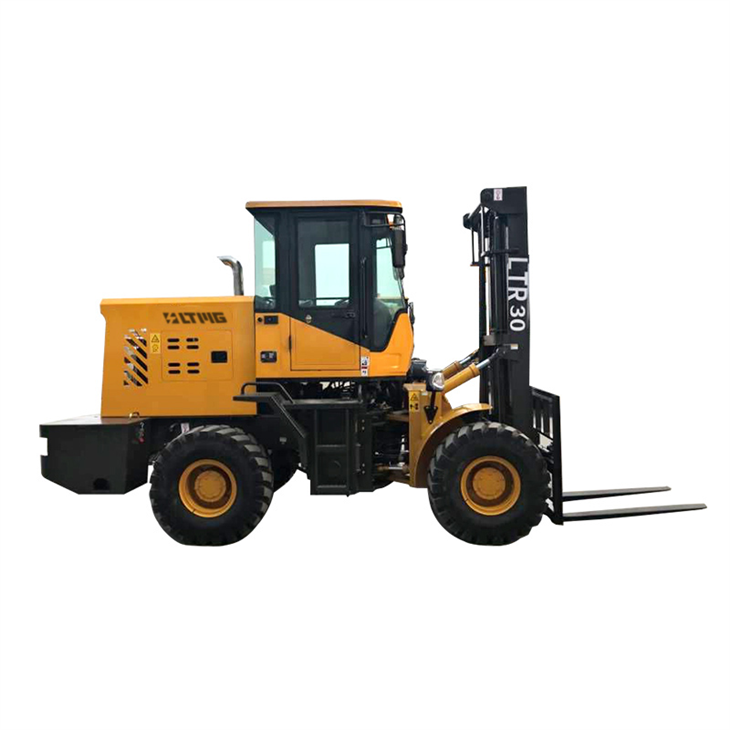

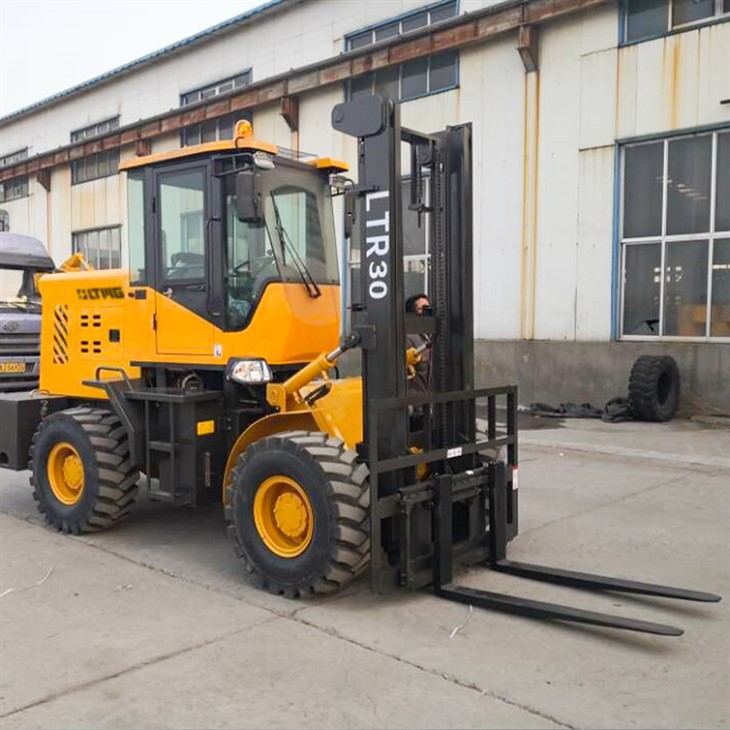

compact rough terrain forklift



LTMG's 3 ton compact rough terrain forklift is equipped with advanced gas engine, powerful power system, stable and efficient power output. With four-wheel steering and hydraulic power assist, the forklift is capable of efficiently and safely loading and unloading and transporting goods in rough terrain. In order to better achieve field work, the tires of this compact rough terrain forklift adopt special anti-skid design with deep tread and large width to enhance its grip and stability, and can work in muddy conditions such as construction sites and farms.In all,this rough terrain fork truck have good maneuverability,it is very suitable for loading and unloading,stacking and transporting goods in the field and other bad road conditions.



Specification



Model

unit

LTR30

Rated load

Kg

3000

Load center distance

mm

500

Lifting height

mm

4000

Gantry tilt angle (forward/backward tilt)

°

(6)(12)

Maximum travel speed

Km/h

30

Full load grade

28

Self weight

Kg

4380

Track (front/rear)

mm

1560

wheelbase

mm

1900

Tire

front



2x20.5/70-16

rear



2x20.5/70-16

Dimensions (length x width x height)

mm

4000x1800x2750

Full load lifting speed

mm/s

372

Minimum turning radius

mm

4500

Minimum ground clearance

mm

270









LTMG LTR30T basic configuration

Engine

model



YN27GB

manufacturer



Yunnei

Rated power/speed

Kw/r/min

55/2400

Battery

Voltage

V

24

Capacity

Ah

80

Transmission

Hydraulic

Frame

Articulated frame

Working system

Pilot operating system

Drive axle

Dedicated wheel side deceleration bridge

four-wheel drive

Pneumatic clamp brake

Cabin

cab with sound system



Certifications



LTMGs certification

LTMG's products are professionally certified and the quality of the products meets international standards.

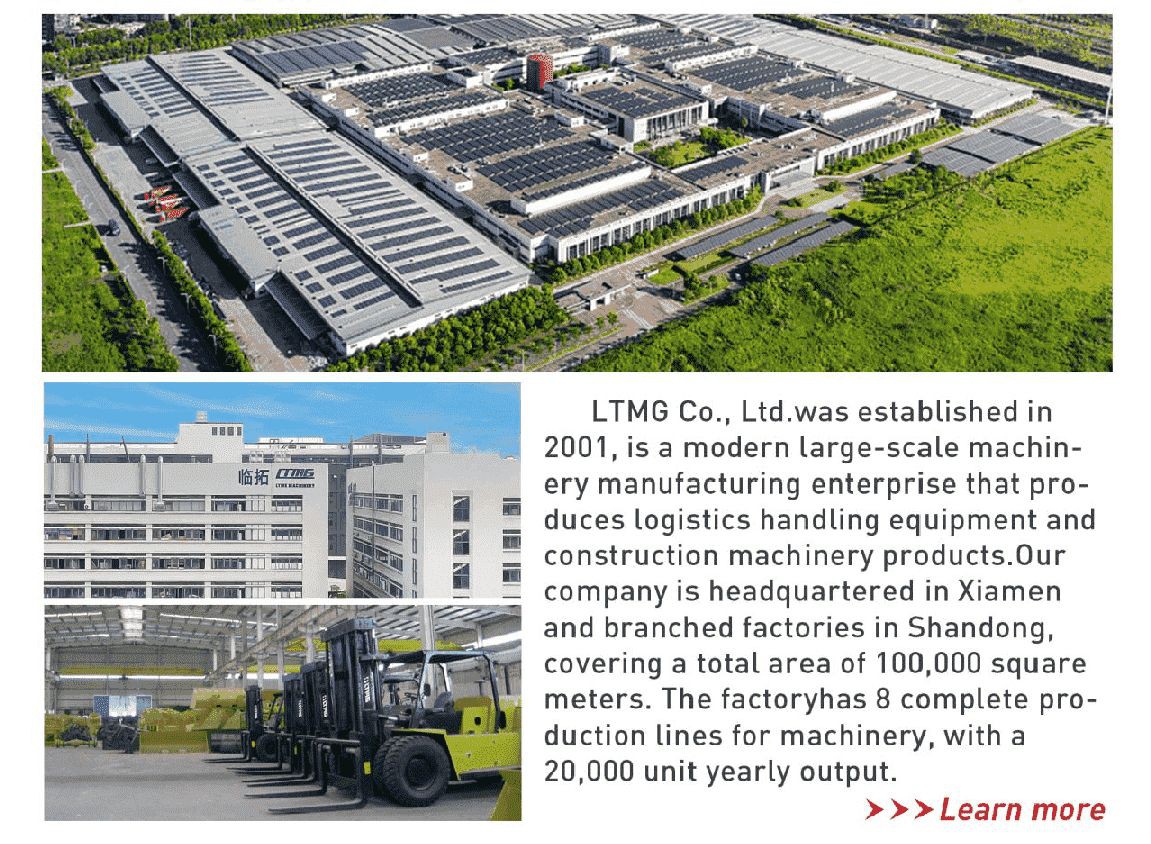

Our company



the factory of TLMG



FAQ



1. Why choose us?

A: LTMG is a professional forklift truck manufacturer and has experience more than 20 years. Our products have been exported to more than 200 countries and regions and are widely recognized all over the world.



2. Do you provide customized service?

A: Yes, the above specifications are standard, we can design and produce according to customers' requirements.



3. Do your products have a unified quality inspection process before sale?

A: LTMG has a complete quality and safety inspection system, and all products will undergo a unified quality inspection before they are shipped out again.



4. What is LTMG's lead time?

A: The lead time varies from product to product. Usually it is around 30 days. If there are products in stock in the warehouse, the delivery time will be shorter.



5. How to solve the problems during the use of the equipment?

A: Please send the problem to us by e-mail with pictures or small videos. Our after-sales service department will provide solutions for you.
