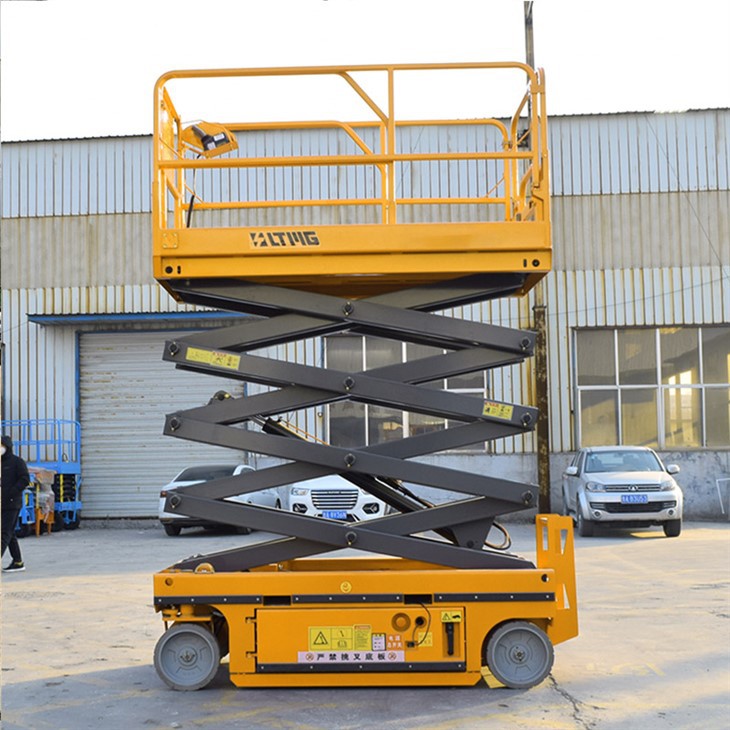

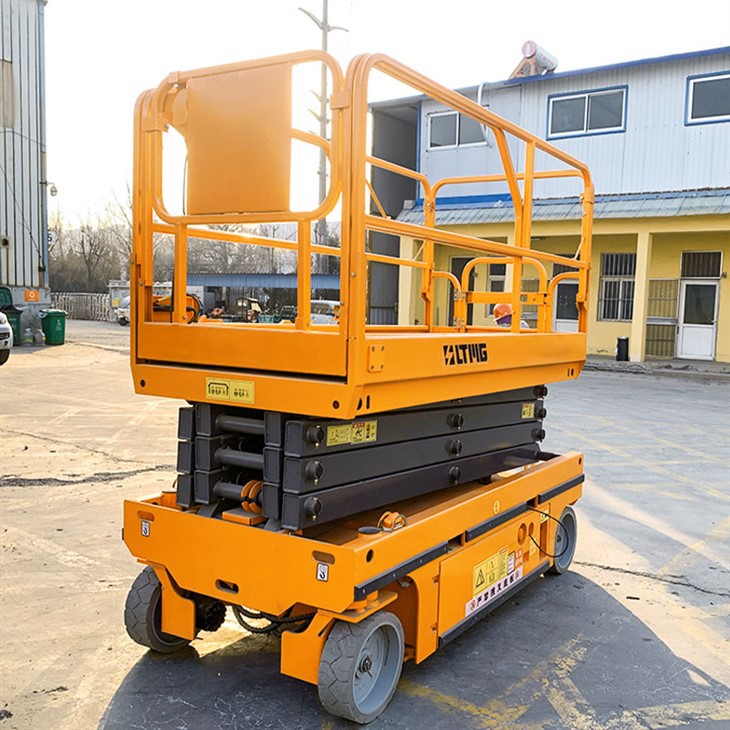

EWP Scissor Lift is suitable for all kinds of aerial work occasions, suitable for all kinds of elevated work occasions: workshop maintenance, indoor building maintenance, high-rise glass cleaning, plumbing inspection and maintenance and so on. It is a product that can greatly reduce the labor intensity of working at height during the construction process.
LTMG's ewp scissor lift adopts a hydraulic support system, which not only ensures smooth and steady lifting and lowering during the work process, improving work safety and efficiency, but also improves the precision of lifting and lowering control, enabling employees to work at the optimal height for their tasks, thus increasing productivity.
In addition, in terms of product appearance, this ewp scissor lift adopts a modern design style with smooth lines and eye-catching aesthetics, which meets the market demand. The detailed crawler design adapts to more application scenarios, broadening the product's operating range and realizing multi-purpose use.
Specification
|
Model |
LTWP0608LD |
LTWP0810LD |
LTWP1012LD |
LTWP1214LD |
|
Safe working load |
240Kg |
320Kg |
300Kg |
300kg |
|
Max number of workers |
2 |
2 |
2 |
2 |
|
Max working height |
8m |
10m |
12m |
14m |
|
max platform height |
6m |
8m |
10m |
12m |
|
overall length |
2470mm |
2470mm |
2470mm |
2731mm |
|
overall width |
2280mm |
2280mm |
2280mm |
1661mm |
|
Overall height (guardrail not folded) |
1390mm |
1390mm |
1390mm |
1390mm |
|
Overall height (guardrail folded) |
2280mm |
2400mm |
2530mm |
2694 |
|
Working platform size |
1745mm |
1865mm |
1995mm |
2271 |
|
Platform extension size |
2270X1120 mm |
2270X1120 mm |
2270X1120 mm |
2270X1120 mm |
|
Min turning radius |
900mm |
900mm |
900mm |
900mm |
|
Min ground clearance |
0m |
0m |
0m |
0m |
|
Lifting motor |
48V/4Kw |
48V/4Kw |
48V/4Kw |
48V/4Kw |
|
Moving motor |
2X48v/4Kw |
2X48v/4Kw |
2X48v/4Kw |
2X48v/4Kw |
|
Machine running speed |
2.4Km/h |
2.4Km/h |
2.4Km/h |
2.4Km/h |
|
Rising / falling speed |
38/30sec |
45/36sec |
70/62sec |
70/62sec |
|
Battery |
8x6v/200Ah |
8x6v200Ah |
8x6v200Ah |
8x6v200Ah |
|
Battery charger |
48V/25A |
48V/25A |
48V/25A |
48V/25A |
|
Climb Capability |
0.3 |
0.3 |
0.3 |
0.3 |
|
Max allowable working angle |
1.5°/2.5° |
1.5°/2.5° |
1.5°/2.5° |
1.5°/2.5° |
|
weight |
2400Kg |
2550Kg |
2840Kg |
3480kg |
Company profile
LTMG Co., Ltd. is a modern large-scale machinery manufacturing enterprise that produces logistics handling equipment and construction machinery products. Established in 2001, our company is headquartered in Xiamen and has branched factories in Shandong. Covering a total area of 100,000 square meters, the factory is equipped with 8 complete production lines for machinery and has a yearly output of 20,000 units.
Over the years, LTMG Machinery Group (LTMG) has established business relationships with more than 100 countries, achieving remarkable success in terms of market share, brand influence, trade volume growth rate, service quality, and customer growth rate. Our products have garnered high praise and recognition from customers both domestically and internationally. Currently, we have over 30 exclusive distributors around the world.
LTMG customization service
FAQ
1. What is your MOQ?
A: Please tell us what products you need first.Like 2 ton diesel forklift.T he MOQ is 1.
2. Can the products be manufactured by customer's requirement?
A: Yes, the specifications stated above are the standard ones, we can design and manufacture as requirement.
3. How to solve the equipment trouble during using ?
A: Please email us about problem with pictures or a small video will be better.We will find the problem and provide a solution.
4. What is your main market?
A: Europe, The North America, South America, Australia, The middle east, and etc.
Hot Tags: ewp scissor lift, China ewp scissor lift manufacturers, Scissor Lift, Ewp Scissor Lift
