Name: Side Loading Forklift Truck For Elongated Goods
Brand: LTMG
SKU: 227949217

The side forklift is mainly used to transport wood, steel and other elongated goods, suitable for transporting goods in narrow channels. These functions are not available in ordinary forklifts.

1. Efficient Time Management: The streamlined design and specialized functionality of the side loader forklift contribute to efficient time management in warehouse operations. Its ability to handle long loads and maneuver in narrow spaces reduces the time required to complete tasks and allows for seamless workflow, ultimately improving overall operational efficiency.

2. Minimal Product Damage Risks: With its precise handling capabilities and enhanced maneuverability, the side loader forklift minimizes the risk of product damage during transportation and placement. The operator can safely position long loads and navigate through confined spaces, ensuring goods remain intact and reducing the need for costly replacements.

3. Ergonomic Design for Operator Comfort: Side loader forklifts are designed with operator comfort in mind. They feature ergonomic controls, adjustable seats, and enhanced operator interfaces to minimize fatigue during long working hours. This promotes productivity and contributes to a safer working environment.

4. Advanced Safety Features: Side loader forklifts are equipped with various safety features to ensure the well-being of operators and mitigate risks. These may include features like load stabilization systems, alarms, and sensors that detect potential obstacles, promoting safe operations and preventing accidents.

Durable and Reliable Construction: Constructed with robust materials and built to withstand demanding warehouse environments, side loader forklifts offer long-lasting durability and reliability. This ensures minimal downtime and allows for continuous, uninterrupted operations, maximizing productivity.

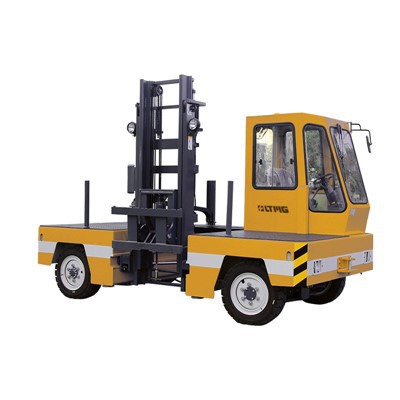

industrial side loader forklifts

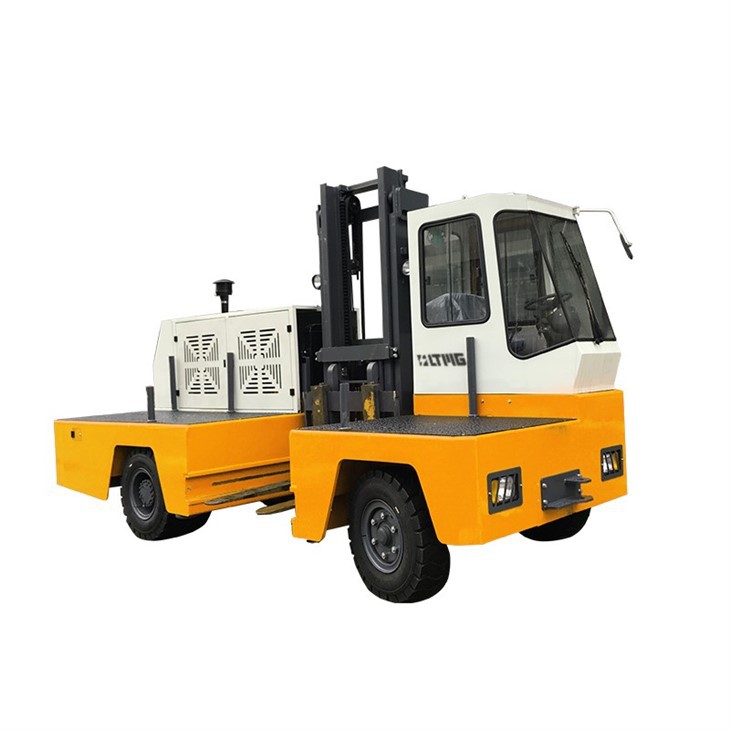

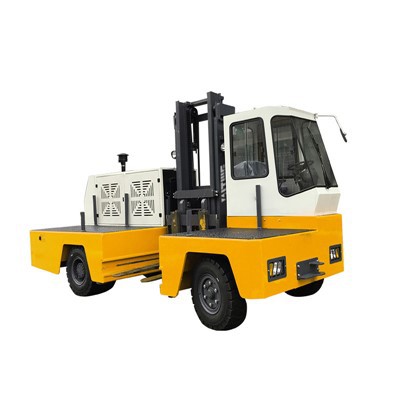

side loading forklift truck

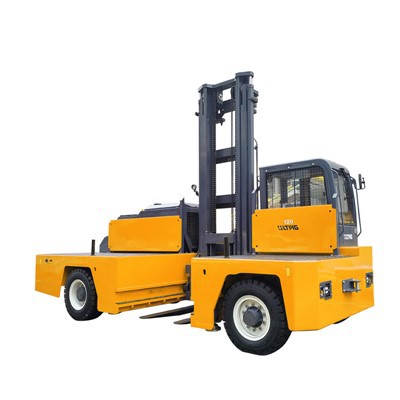

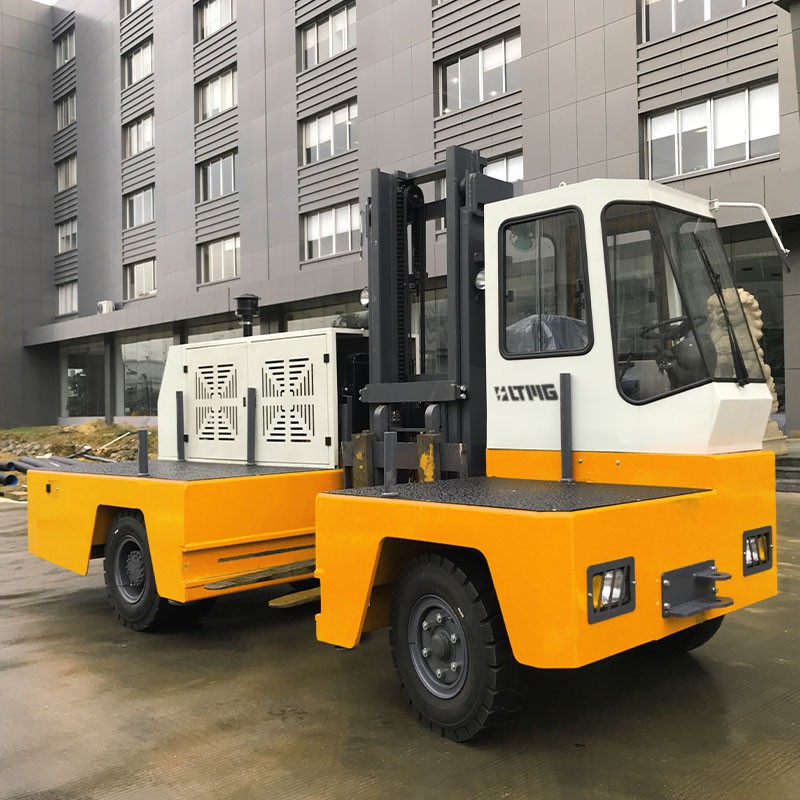

diesel side loader

Specification

Model				FDS30	FDS50	FDS60	FDS100
Power Type				Diesel
Rated Capacity			kg	3000	5000	6000	10000
Load Centre			mm	500	600	600	600
Lift Height		H	mm	3600	3600	3600	3600
Fork Size (LxWxT)		L3	mm	1070x125x45	1220x150x60	1220x150x60	1520x175x85
Mast Tilt Angle(F/R)		a/p	Deg	676°	573°	573°	676°
Front Overhang		L1	mm	700	700	700	700
Ground Clearance(Bottom of mast)		H3	mm	190	205	205	160
Overall Dimension	LxWxH		mm	419020002475	5140x2140x2660	5140x2140*2660	6250x2620x2960
	Platform Width	W	mm	1200	1300	1300	1800
	Platform Length	L	mm	4190	5140	5140	6250
	Overhead Guard Height	H2	mm	2475	2660	2660	2960
Turning Radius(outside)		r	mm	4250	4300	4300	5650
Speed	Travel(Full load)		km/h	17	I7 II18	I7 II18	I7 II15
Speed	Lifting(Fullload)		mm/s	440	250	230	350
Max.Gradeability			%	20	20	20	20
Tire	Front			2x28x9-15-12PR	2*8.25-15-14PR	2x8.25-15-14PR	2x9.00-20-14PR
Tire	Rear			2x28x9-15-12PR	4x8.25-15-14PR	4x8.25-15-14PR	4x9.00-20-14PR
Wheelbase		L2	mm	2580	2800	2800	3700
Service Weight			kg	5670	8300	8700	15600
Battery(Voltage/Capacity)			V/Ah	12/80	(12/80)x2	(12/80)x2	(12/80)x2
Engine	Model			A498BPG-78	6BG1	6BG1	CY6102BZG-B46
	Manufacturer			新柴	ISUZU	ISUZU	朝柴
	Rated output/r.p.m.		kw	45/2500	82.3/2000	82.3/2000	84.6/2500
	Rated torque/r.p.m.		N • m	193/1800	416/1400-1600	416/1400-1600	430/1500-1700
	No.of Cylinder			4	6	6	6
	Bore*Stroke		mm	98x105	105x125	105x125	102x118
	Displacement		cc	3168	6494	6494	5785
	Fuel Tank Capacity		L	75	170	170	260

With technological innovation, our product configuration and parameters will continue to change without notice;

if there is any doubt, the specific confirmation of our international trade sales shall prevail;

Certifications

CE ISO certification of side loader fork truck

forklift certificates

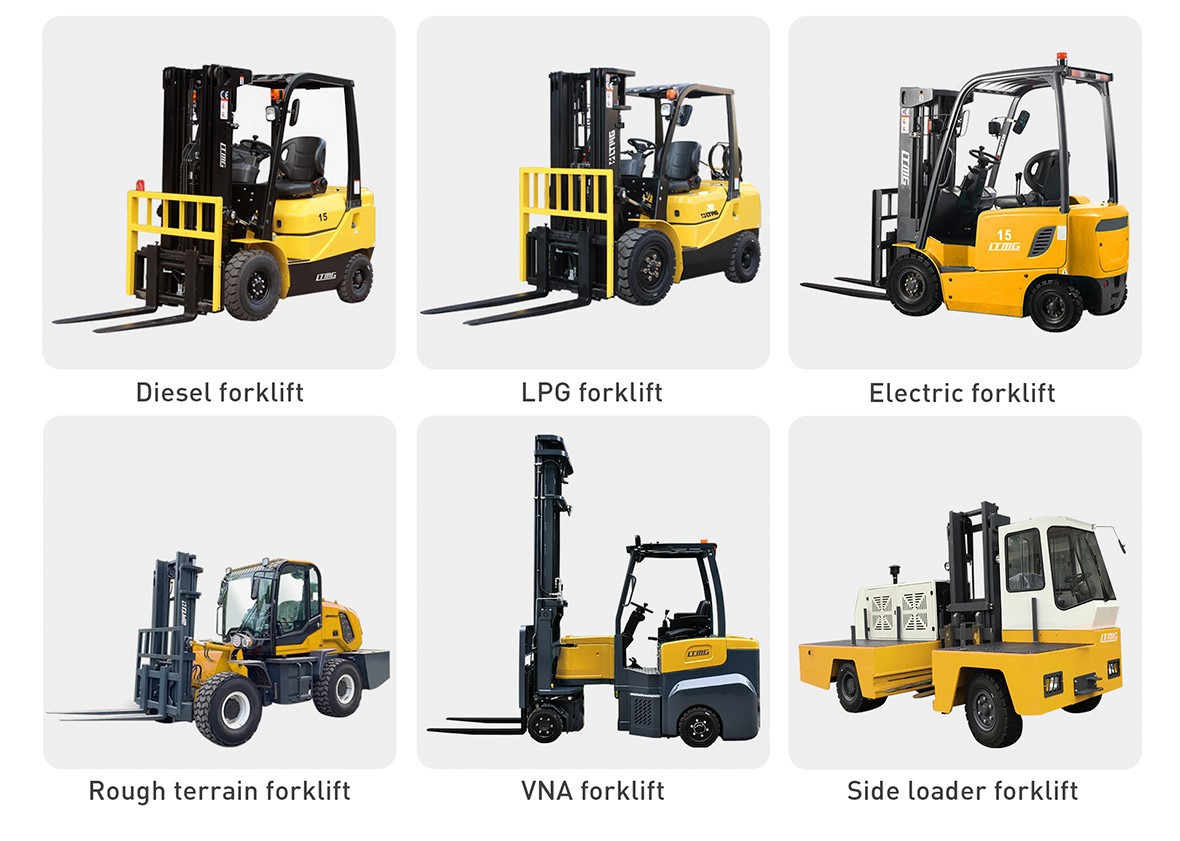

Related products

new model forklift

FAQ

Q: How Can I Solve The Problem If The Machine Is In Use?

A: We have a perfect after-sales service system. The after service department provides you with professional help. For the damage caused by non-man-made causes, we will provide one year warranty service, and we will provide free wearing parts during the warranty period.

Q: Are You Interested In Partnering With Agents?

A: Sure! We are enthusiastic about cooperating with agents from every corner of the world. If you would like to partner with us, please contact us through email, WhatsApp, or other channels that you prefer.

Q: What is LTMG Machinery Group?

A: LTMG Machinery Group is a professional manufacturer of material handling equipment and construction machinery equipment established in 2001.

Q: What Is Your Typical Delivery Time?

A: Our usual delivery time ranges from 20 to 30 days upon receiving your deposit. But for standard products, we keep them in stock and can ship them out immediately. However, for customized products, the timeline may vary based on the complexity and specific requirements of your order.
