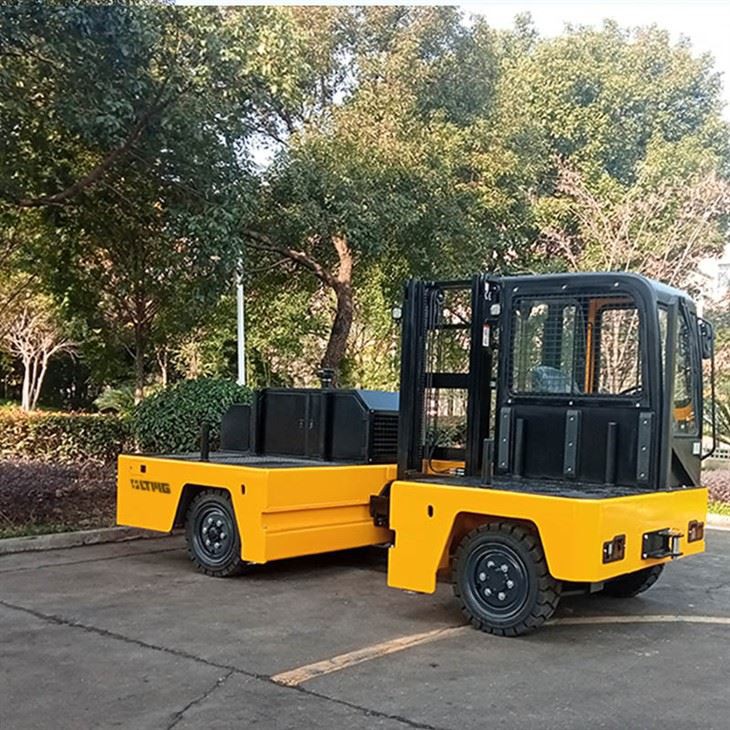

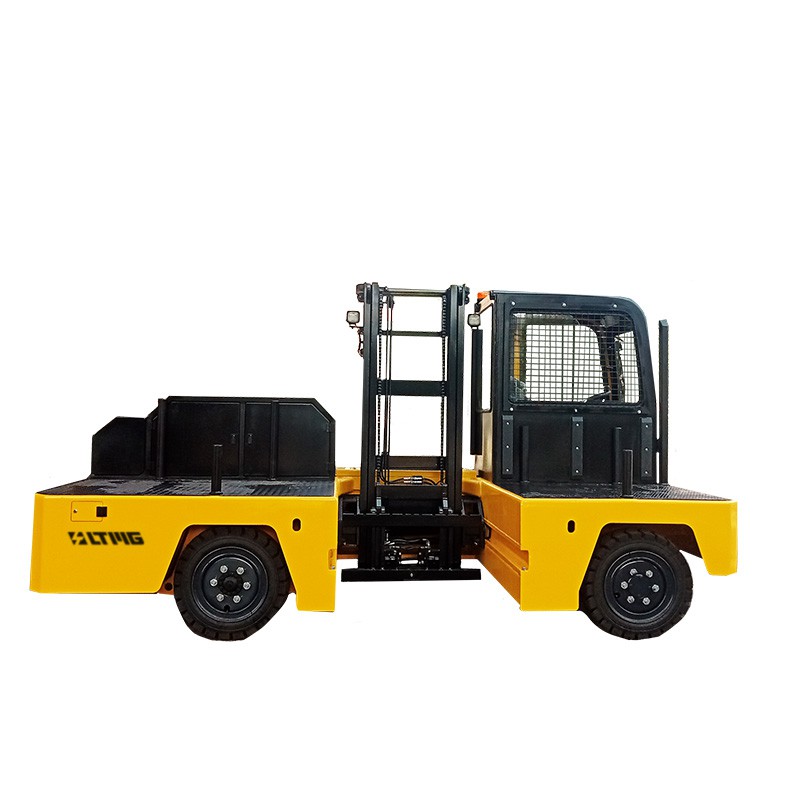

Small Side Loader Forklift

Items: 3 ton diesel side loader forklift
Power type: diesel
Rated capacity: 3000 kg
Lift height: 3600 mm
Side loader forklift are different from general counterbalanced front forklift trucks in that their forks are installed on the side of the body instead of the front. In addition to lifting and tilting, it can also extend and retract along the side of the body, allowing it to load and unload goods sideways in a narrow aisle without being restricted by the width of the aisle, which is especially suitable for loading and unloading and stacking of long goods such as timber, steel, and so on.
Send Inquiry
Chat Now

Product Introduction

Side loader forklift are different from general counterbalanced front forklift trucks in that their forks are installed on the side of the body instead of the front. In addition to lifting and tilting, it can also extend and retract along the side of the body, allowing it to load and unload goods sideways in a narrow aisle without being restricted by the width of the aisle, which is especially suitable for loading and unloading and stacking of long goods such as timber, steel, and so on. Its side loading and unloading ability can be easily operated in container terminals and cargo warehouses, which significantly improves the operational efficiency of warehousing and logistics; its excellent loading capacity also meets the demand for transportation of heavy equipment, especially steel and other strip-shaped goods. Therefore, the side forklift is widely used in port terminals, construction projects, warehouse operations and other environments.

This small side loader forklifts offer outstanding performance and design. First, the wide field of view door frame provides an expansive view of the front for more efficient and safer operation. Second, the sturdy roof rack is designed for added safety. Furthermore, the ergonomic seat provides a more comfortable experience and relieves fatigue after long hours of operation. Finally, our small side loader forklifts are equipped with well-known brand engines to ensure high performance, safety and efficiency.



Specification



Model



FDS30

Power Type



Diesel

Rated Capacity

kg

3000

Load Centre

mm

500

Lift Height

mm

3600

Fork Size ( L x W x T )

mm

1070x125x45

Mast Tilt Angle (F/R)

Deg

676°

Front Overhang

mm

700

Ground Clearance (bottom of mast )

mm

190

Overall Dimension

Length x Width x Height

mm

4190*2000*2475

Platform Width

mm

1200

Platform Length

mm

4190

Overhead Guard Height

mm

2475

Turning Radius (outside )

mm

4250

Speed

Travel ( full load )

km/h

17

Lifting ( full load )

mm/s

440

Max. Gradeability

%

20

Tire

Front



2x28x9-15-12PR

Rear



2x28x9-15-12PR

Wheelbase

mm

2580

Service Weight

kg

5670

Battery ( Voltage/ Capacity )

V/Ah

12/80

Engine

Model



A498BPG-78

Manufacturer



XinChai

Rated output/ r.p.m.

kw

45/2500

Rated torque/ r.p.m.

N • m

193/1800

No.of Cylinder



4

Bore*Stroke

mm

98x105

Displacement

cc

3168

Fuel Tank Capacity

L

75

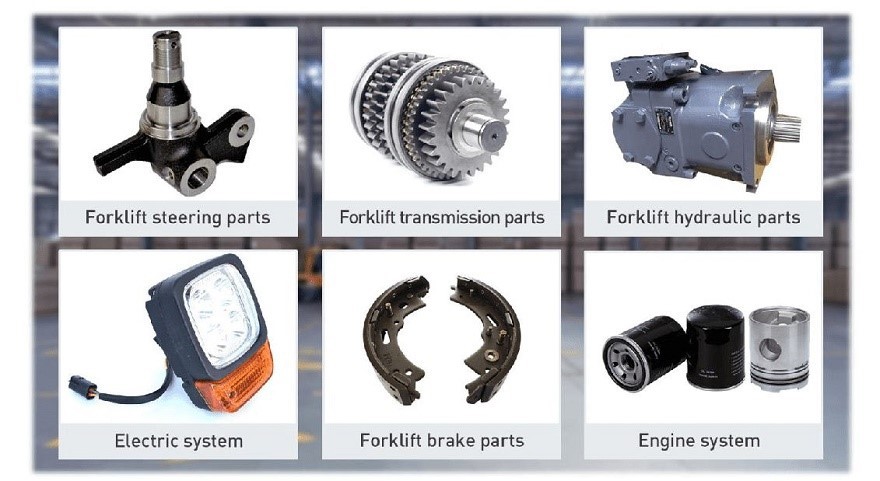

Special part of LTMG forklift



High-quality core components are the foundation of forklift quality, and LTMG's forklift components are all from internationally renowned brands, with guaranteed workmanship and quality.



forkift spare part



Well recognized in the market



Currently, LTMG's products have been sold to more than 100 different countries and have more than 30 exclusive distributors around the world. Excellent quality and service are the basis of our ability to gain market recognition.



LTMG forklift feedback



FAQ



1. Are you a manufacturer,or just a trading company?

A: We are a professional manufacturer and we have our own factory located in Shandong.If necessary, you can also come to our factory to visit us!



2. Can the machine be customized as our need, such as put on our logo?

A: Yes, LTMG can supply tailored products, including both OEM and ODM choices to make your vision a reality.



3. What is the quality level of your products?

A: We have a strict internal quality and safety system, and have unified production standards for product quality. Moreover, our products all comply with the requirements of the ISO9001 quality system and are have CE certification. Product quality in accordance with international standards



4. Are your prices competitive?

A: The core competitiveness of our products lies in their superior cost performance. With the same level of quality, our products are usually priced more competitively than our counterparts.



5. How long is the Warranty for LTMG forklift?

A: LTMG provides 12 months or 2000 working hours, whichever occurs first.
