Name: Side Lift Forklift For Long Loads
Brand: LTMG
SKU: 227810153

The side lift forklift is a new type of carringscrapper. One of the main things that makes it different from a counterbalanced forklift is that the forks are mounted on one side of the body. In addition to lifting and tilting. The forks can also pass through the right side of the truck frame and retract along the well in the center of the truck. Long loads can be loaded through the forks on the deck of the truck or can be transported in a limited space. Since the long goods are stacked along the longitudinal direction, the width of the truck deck, and the required aisle for the forklift, can be significantly reduced.

Driving system: The power is transmitted through a clutch, gearbox, and chain drive to the driving axle, ensuring a compact and reliable construction. Maintenance is convenient for the driving system.

Mast and outfeed structure: The mast traverse mechanism is actuated by a chain drive, ensuring a steady and reliable function.

Cab: The cab has a novel construction that allows for comfortable manipulation.The field of view is clear, and ventilation is good in the cab.

Oil pressure lever: The steering system has a horizontal oil cylinder for easy and agile steering. The axle has sufficient stiffness and strength.

The sideloader forklift is particularly suitable for handling large and extra-long cargoes such as timber, steel sections, wire rods, cement pipes, plastic pipes and so on. It is widely used in forestry departments, railway stations, oil fields, harbor warehouses, factories, construction sites and so on.

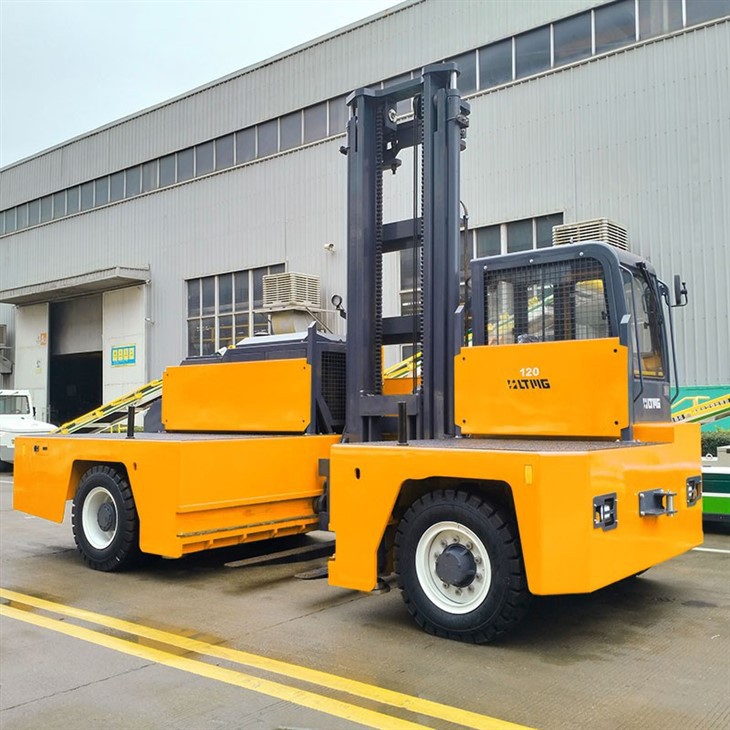

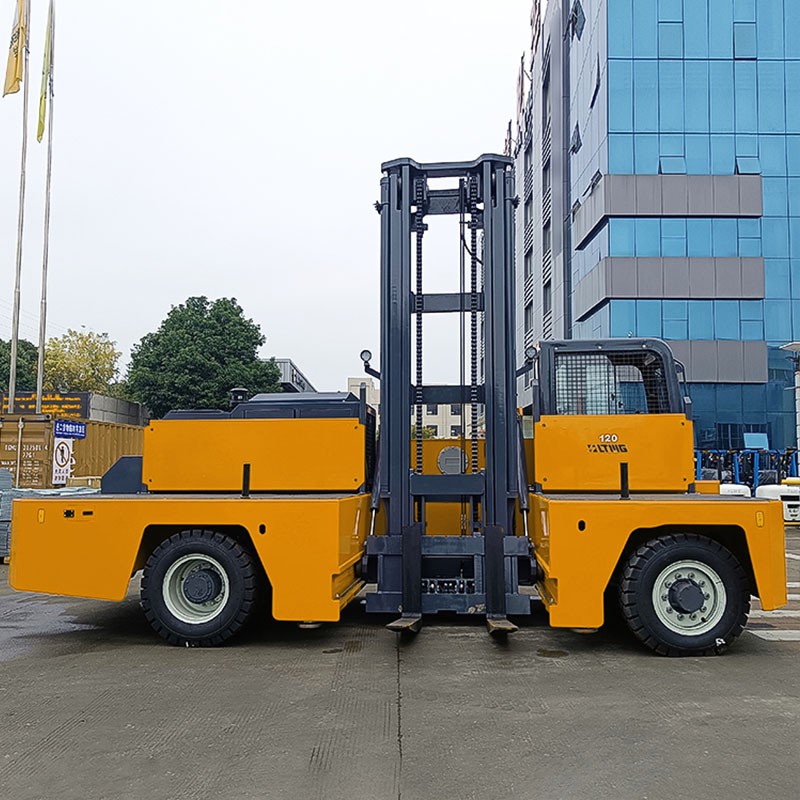

side lifter forklift

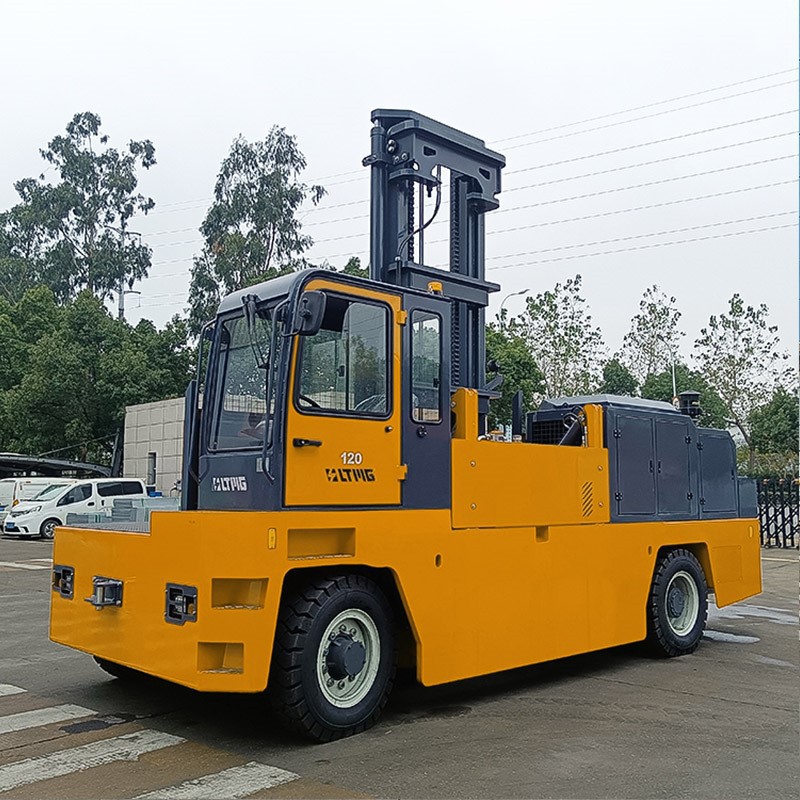

industrial side loader forklifts

technical Specification

Power Type				Diesel
Rated Capacity			kg	12000
Load Centre			mm	600
Lift Height		H	mm	3600
Fork Size (LxWxT)		L3	mm	1520x180x100
Mast Tilt Angle(F/R)		a/p	Deg	6°/6°
Front Overhang		L1	mm	700
Ground Clearance(Bottom of mast)		H3	mm	160
Overall Dimension	LxWxH		mm	6250x2620x2960
	Platform Width	W	mm	1800
	Platform Length	L	mm	6250
	Overhead Guard Height	H2	mm	2960
Turning Radius(outside)		r	mm	5650
	Lifting(Fullload)		mm/s	315
Max.Gradeability			%	20
Tire	Front			2x9.00-20-14PR
Tire	Rear			4x9.00-20-14PR
Wheelbase		L2	mm	3700
Service Weight			kg	15800
Battery(Voltage/Capacity)			V/Ah	(12/80)x2
Engine	Model			CY6102BZG-B46
	Manufacturer			zhaochai
	Rated output/r.p.m.		kw	84.6/2500
	Rated torque/r.p.m.		N • m	430/1500-1700
	No.of Cylinder			6
	Bore*Stroke		mm	102x118
	Displacement		cc	5785
	Fuel Tank Capacity		L	260

Certificates

Certificate

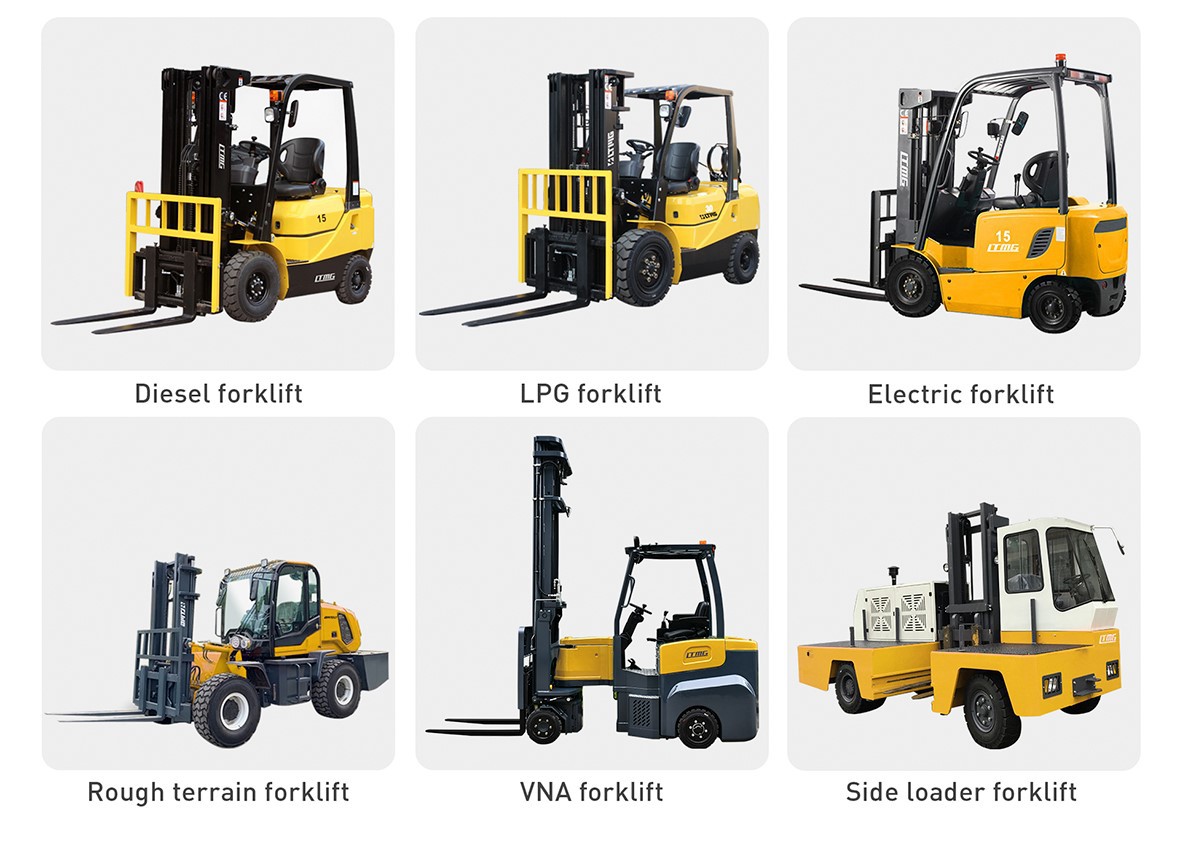

Other type diesel forklift

diesel forklift manufacturer in China

FAQ

Q: Are You Interested In Partnering With Agents?

A: Indeed! We are enthusiastic about cooperating with agents from every corner of the world. If you would like to partner with us, please contact us through email, WhatsApp, or other channels that you prefer.

Q: How Can I Trust Your Company?

A: With more than 20 years of experience, LTMG can offer you the right advice and the most economical price. All equipment is CE, ISO certified through third party evaluation.

Q: What is a Side Loader Forklift?

A: A side loader forklift is a specialized type of forklift that has the ability to lift long and bulky items while operating in confined spaces. It is designed to handle loads from the side, which allows operators to maneuver in tighter spaces without having to rely on a larger traditional forklift.

Q: What are the Benefits of a Side Loader Forklift?

A: One of the main benefits of a side loader forklift is its ability to handle long and heavy loads. It is an ideal solution for lifting items that are too long or bulky for traditional forklifts to handle. Also, with its ability to operate in narrow spaces, it increases storage capacity and improves productivity.
