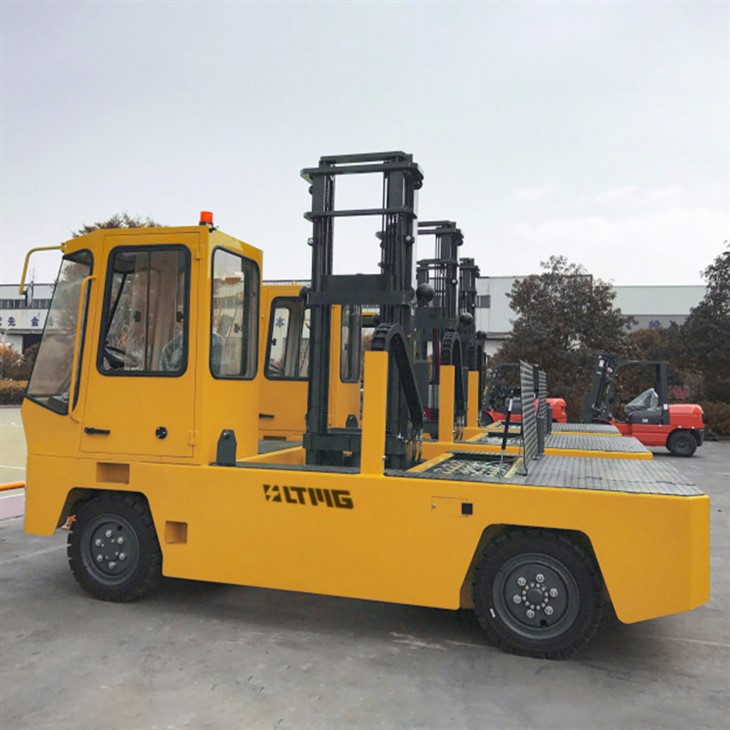

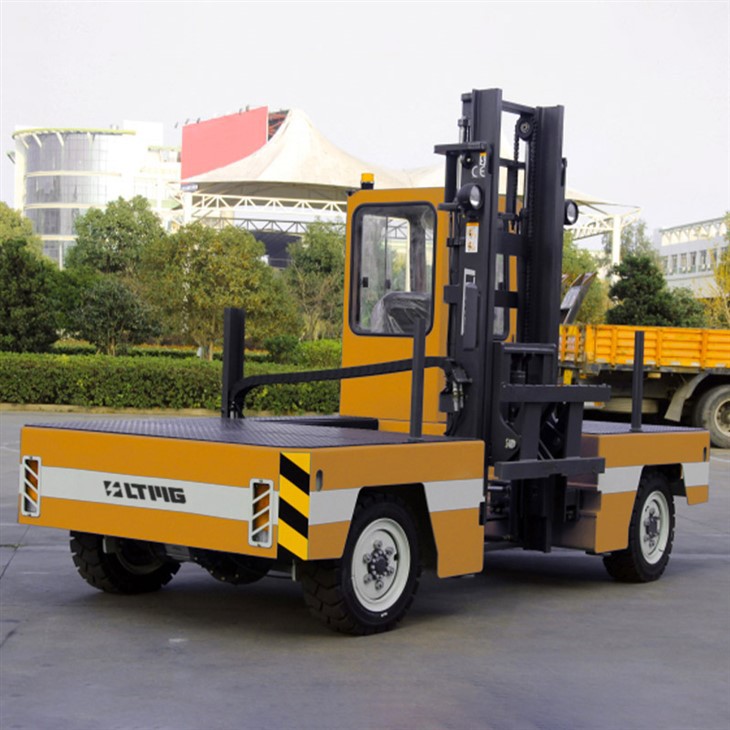

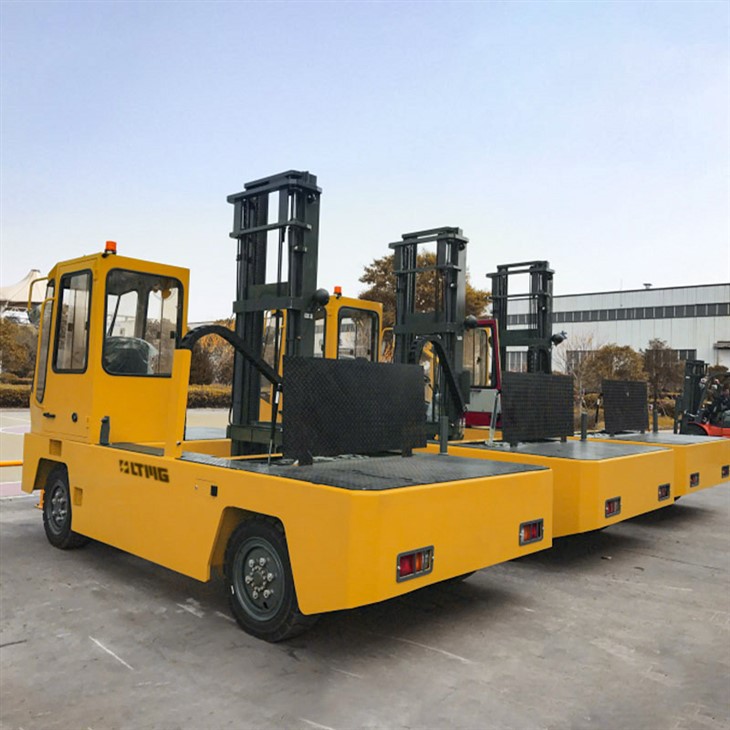

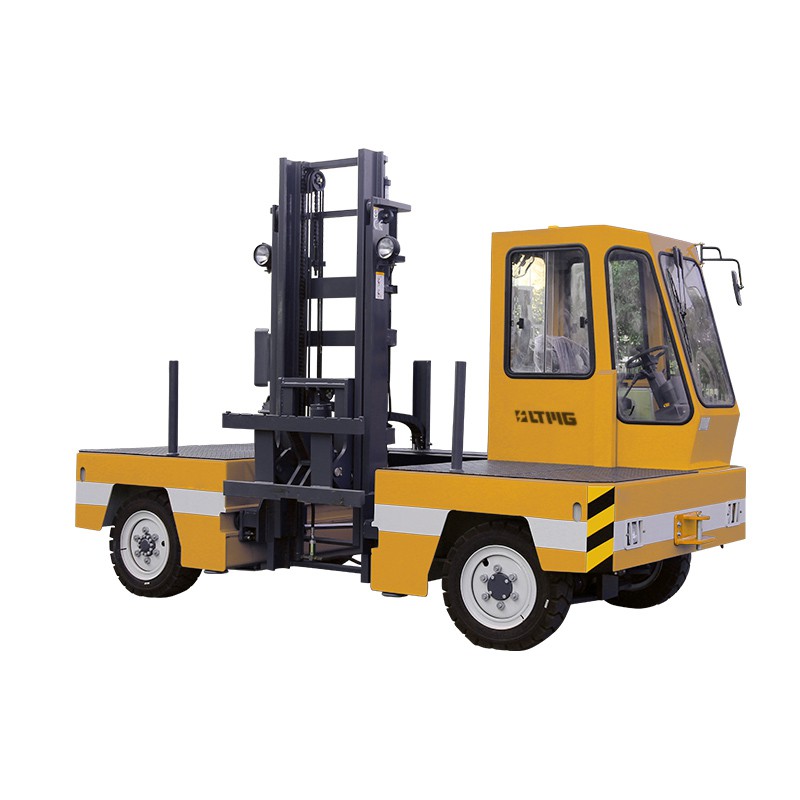

This electric side loader forklift adopts high quality motor and high capacity battery, hydraulic pump independent motor drive, high power utilization, low system noise, greatly improving the reliability of the whole vehicle and the service life of the machine; fast acceleration, strong climbing ability, long continuous working time.
And low noise, good bass ability high maneuverability, use, warranty, easy maintenance, no pollution.
The electrical equipment provides zero emission, lower operation and maintenance cost and better operation environment. Low maintenance cost and simple design of the system with high level of engineering and durability ensures higher safety, smoother control and perfectly synchronized outreach for high precision and efficient load control.
Specification
|
1 |
Model |
|
FBS30 |
|
|
2 |
Power type |
|
Electric |
|
|
3 |
Rated Capacity |
kg |
3000 |
|
|
4 |
Load Centre |
mm |
500 |
|
|
5 |
Lift Height |
mm |
3600 |
|
|
6 |
Fork Size |
L×W×T |
mm |
1070×125×45 |
|
7 |
Mast Tilt Angle |
F/R（α°/β°） |
Deg |
4°/6° |
|
8 |
Front Overhang(Wheel center to fork face) |
mm |
90 |
|
|
9 |
Tread |
(F/R) |
mm |
1660/1660 |
|
10 |
Ground Clearance(Bottom of mast) |
mm |
140 |
|
|
11 |
Fork Spread |
mm |
1000 |
|
|
12 |
Overall Dimension |
Overall Length |
mm |
4400 |
|
13 |
Overall Width |
mm |
3100 |
|
|
14 |
Mast Lowered Height |
mm |
2420 |
|
|
15 |
Mast Extended Height(With backrest) |
mm |
4255 |
|
|
16 |
Overhead Guard Height |
mm |
2520 |
|
|
17 |
Platform Height |
mm |
925 |
|
|
18 |
Turning Radius(outside) |
mm |
4400 |
|
|
19 |
Speed |
Travel (Empty load) |
km/h |
13 |
|
20 |
Lifting (Full load) |
mm/s |
200 |
|
|
21 |
Max. Gradeability |
% |
10 |
|
|
22 |
Tire |
Front |
|
28×9-15-12PR |
|
23 |
Rear |
|
28×9-15-12PR |
|
|
24 |
Wheelbase |
mm |
2680 |
|
|
25 |
Service Weight |
kg |
7235 |
|
|
26 |
Motor |
Driven Motor |
kw |
15 |
|
27 |
Lift Motor |
kw |
12 |
|
|
28 |
Battery |
Voltage/Capacity |
V/Ah |
80/500 |
|
29 |
Controller |
Manufacturer |
|
CURTIS |
|
30 |
Type |
|
AC |
|
|
31 |
Operating Pressure for Attachment |
Mpa |
17.5 |
|
