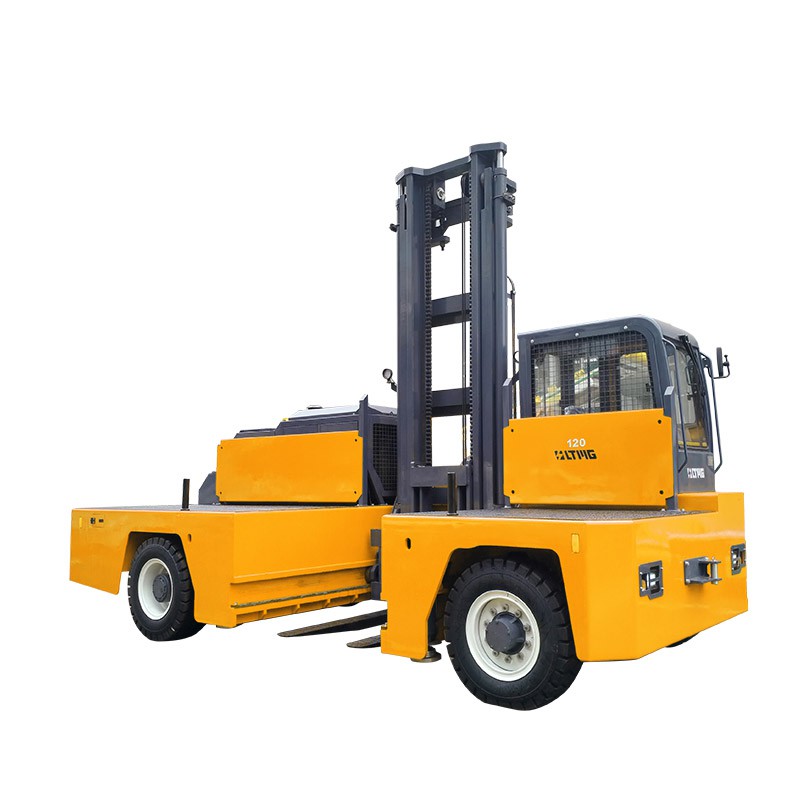

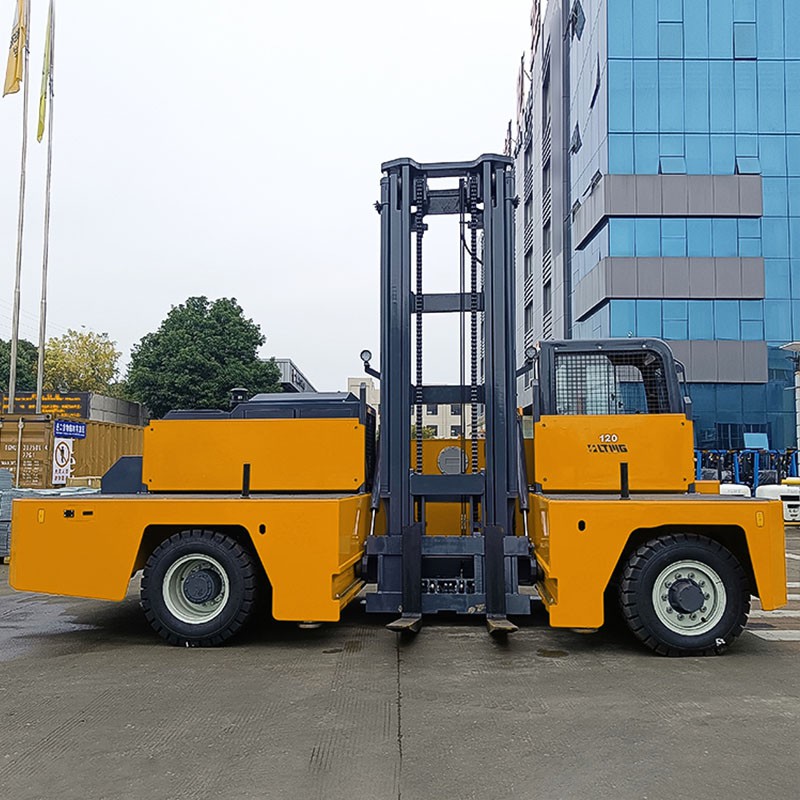

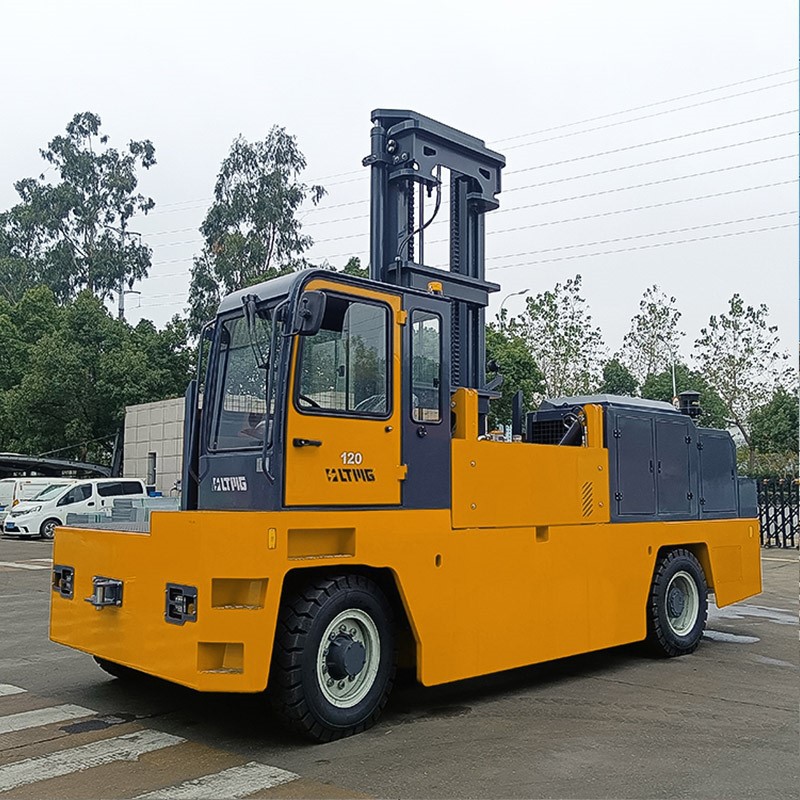

This 12 ton diesel side forklift, hydraulic pump independent motor drive, high power utilization, low system noise, greatly improving the reliability of the whole vehicle and the service life of the machine; fast acceleration, strong climbing ability, long continuous working time. Low noise, good bass ability high maneuverability, use, warranty, easy maintenance, no pollution.
Low system maintenance cost, simple design, high level of engineering and durability, ensures higher safety, smoother control and perfectly synchronized outreach for high precision and efficient load control. The load remains stable even on uneven ground. The pilot joystick allows mis-operation of all gantry and directional functions.
Specification
|
Power Type |
|
|
Diesel |
|
|
Rated Capacity |
|
kg |
12000 |
|
|
Load Centre |
|
mm |
600 |
|
|
Lift Height |
H |
mm |
3600 |
|
|
Fork Size (LxWxT) |
L3 |
mm |
1520x180x100 |
|
|
Mast Tilt Angle(F/R) |
a/p |
Deg |
6°/6° |
|
|
Front Overhang |
L1 |
mm |
700 |
|
|
Ground Clearance(Bottom of mast) |
H3 |
mm |
160 |
|
|
Overall Dimension |
LxWxH |
|
mm |
6250x2620x2960 |
|
Platform Width |
W |
mm |
1800 |
|
|
Platform Length |
L |
mm |
6250 |
|
|
Overhead Guard Height |
H2 |
mm |
2960 |
|
|
Turning Radius(outside) |
r |
mm |
5650 |
|
|
|
Lifting(Fullload) |
|
mm/s |
315 |
|
Max.Gradeability |
|
% |
20 |
|
|
|
Front |
|
|
2x9.00-20-14PR |
|
Rear |
|
|
4x9.00-20-14PR |
|
|
Wheelbase |
L2 |
mm |
3700 |
|
|
Service Weight |
|
kg |
15800 |
|
|
Battery(Voltage/Capacity) |
|
V/Ah |
(12/80)x2 |
|
|
Engine |
Model |
|
|
CY6102BZG-B46 |
|
Manufacturer |
|
|
zhaochai |
|
|
Rated output/r.p.m. |
|
kw |
84.6/2500 |
|
|
Rated torque/r.p.m. |
|
N • m |
430/1500-1700 |
|
|
No.of Cylinder |
|
|
6 |
|
|
Bore*Stroke |
|
mm |
102x118 |
|
|
Displacement |
|
cc |
5785 |
|
|
Fuel Tank Capacity |
|
L |
260 |
|
Certificate

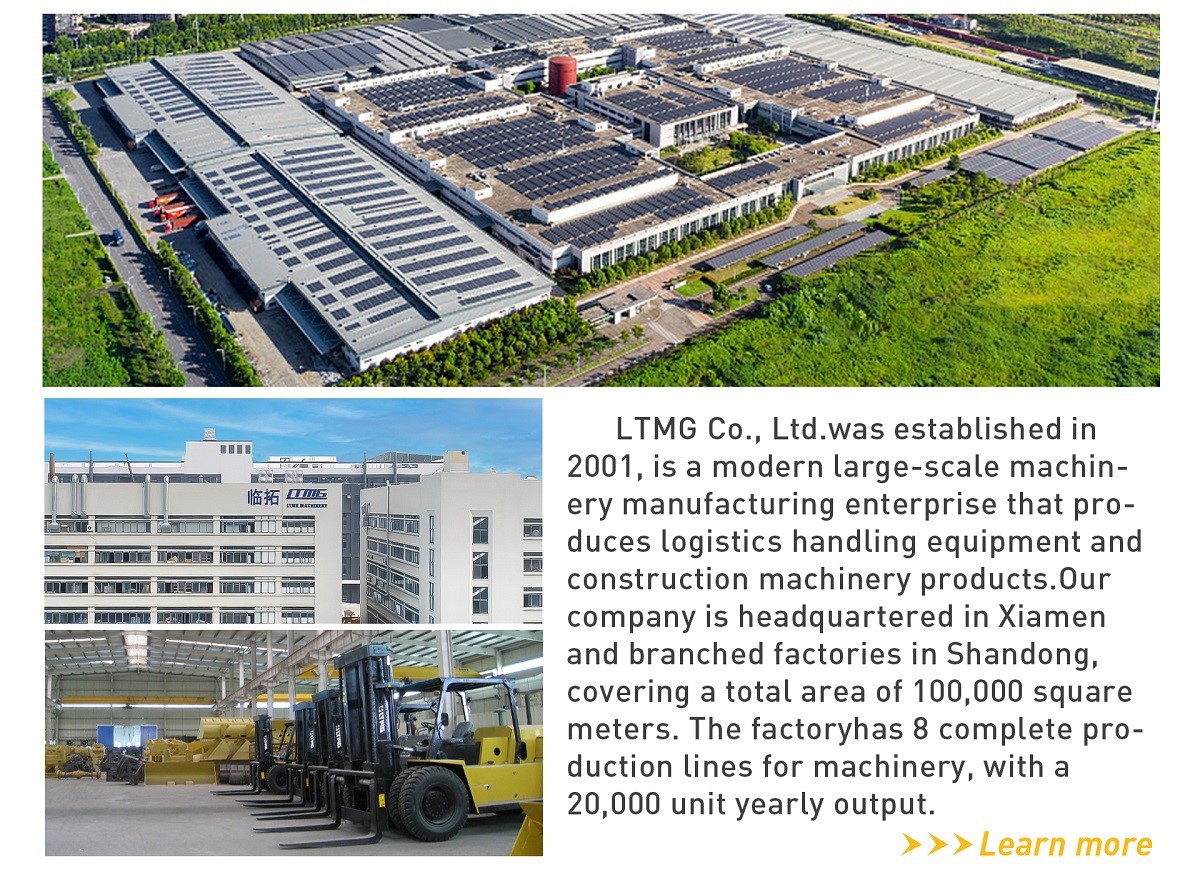

Factory
FAQ
1. Q: What are your product lead times? Can you customize products?
A: Generally speaking, the delivery period of our products is 35 days, and we can customize the products according to customers' requirements.
2. Q: What is the quality of your products?
A: The tires, gearboxes, steering axles, pumps and valves of our forklift trucks are all of famous brands in China, and the quality of our forklift trucks is on par with that of HELI. We will not reduce the configuration for the sake of low price.
3. Q: Are the products in stock?
A: Some of our products are in stock, if you need stock, we need to ask the production department for you first.
4. Q: What is the delivery time?
A: Our delivery time is 35 days, according to the quantity of customer's order to determine the delivery time.
