Name: Semi Electric Walkie Stacker
Brand: LTMG
SKU: 220179738

Products Details

Semi-electric stacker are ideal assistants for work on narrow and busy roads; they can be of great use in scenarios where plant operations move and materials are stacked over short transportation distances. They are easy to handle and maintain, which greatly reduces its cost of use.

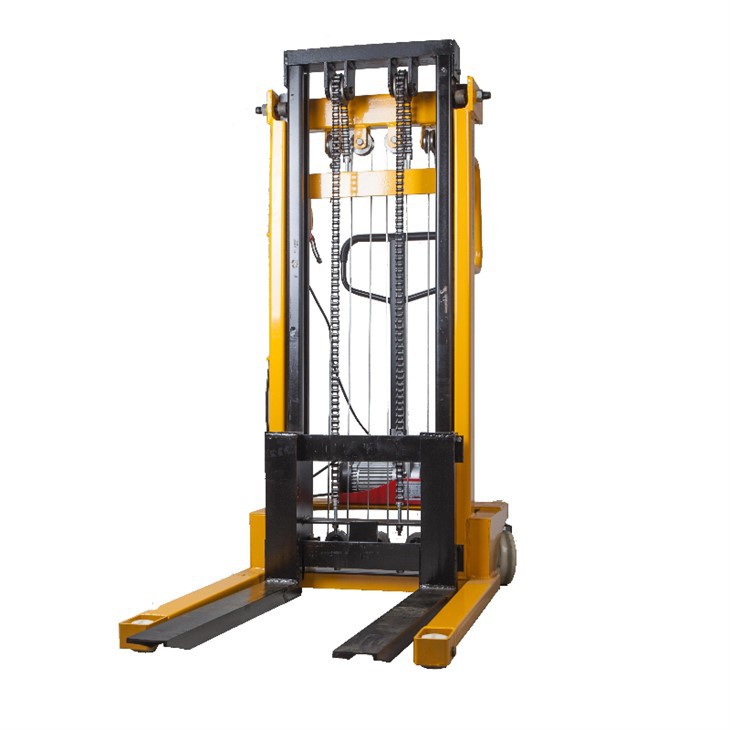

semi electric walkie stacker

LTMG's semi electric walkie stacker provides a powerful solution for material handling needs. Equipped with high power hydraulic pumps, this stacker can achieve both speed and power for optimum efficiency. The body of the stacker is constructed from sturdy manganese steel for durability and long-lasting use. The stacker's piston cylinder boasts a detailed design, and high-quality seals and brakes have been implemented to ensure smooth and comfortable operation. These features enable the user to work more efficiently, which is particularly important in high-pressure environments where time is of the essence.

Customers can choose the wheel material (nylon or PU) and lifting height configuration to suit their individual needs, making this stacker ideal for use in a variety of different scenarios. Whether it's moving heavy objects in a warehouse or transporting goods around a factory floor, this semi electric walkie stacker is up for the job.
With a focus on safety and reliability, LTMG's semi electric walkie stacker is designed to meet the stringent requirements of modern workplaces. Built to last and engineered with precision, this stacker is a dependable and cost-effective solution for businesses of all sizes.

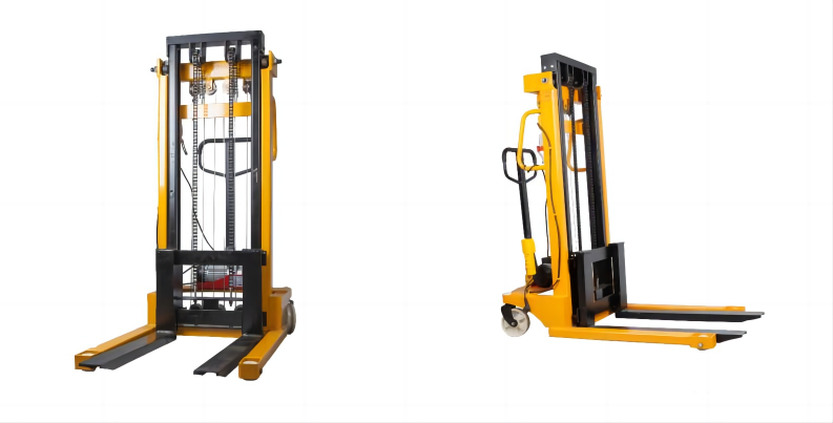

2 ton semi electric walkie stacker

specification

Model	Unit	SERB20
Capacity	Kg	2000
Lifting Height	mm	1600/2000/2500/3000/3500/4000
Load Center	mm	500
Wheel	/	Nylon/PU
Steering Wheel	mm	2x
Load Wheel	mm	2x
Max Height(Fork Highest)	mm	2086/1550/3050/3550/4050/4550
Overall Height(Mask Lowered)	mm	2086/1586/1836/2086/2336/2586
Min. Fork Height	mm	90
Overall Length	mm	1505
Overall Width	mm	800(980)
Fork Length	mm	900/1070/1150
Fork Width	mm	550/660
Ground Clearance	mm	28
Turning radius	mm	1210
Lift Speed with/without Load	mm/s	135/150
Drop speed	mm/s	Manual Control
Motor Power	Kw	1.6
Battery Size	V/Ah	12/110
Service Weight(with Battery)	Kg	380/450/480

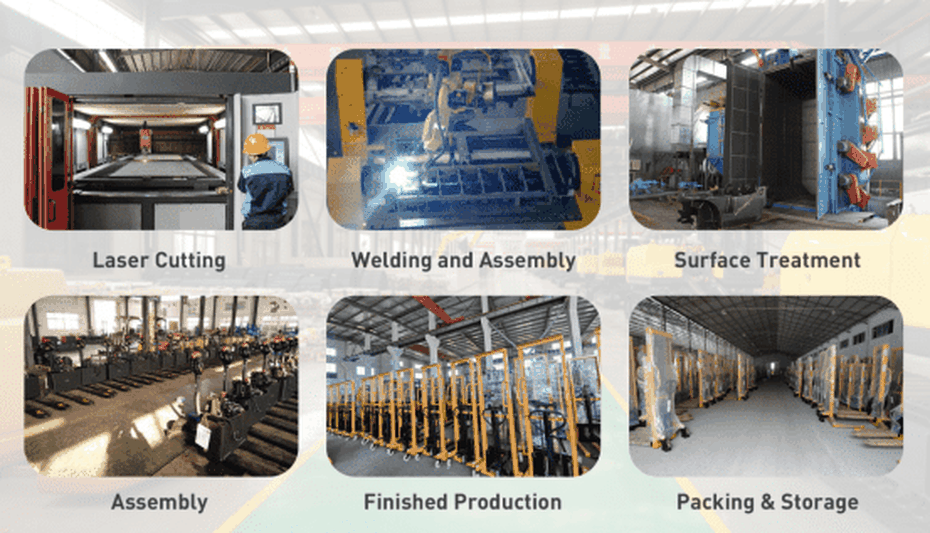

factory process of semi electric stacker

Factory process of semi electric stacker

Customer Feedback

LTMG is highly regarded worldwide for the quality of its products and the quality of its services, places great emphasis on customer satisfication and establishes long-term partnerships with clients.

Customers Feedback

FAQ

Q: Can you give me a brief overview of your company?

A: LTMG, is a Chinese manufacturer established in 2001. We specialize in producing reliable material handling and construction machinery equipment such as forklifts, storage equipment, loaders, excavators and airport ground equipment.

Q: What kind of requirements does your company have for product quality control?

A: LTMG has a complete quality and safety inspection system, and all processes of our products are subject to appropriate quality inspections.

Q: What payment methods do you accept?

A: We generally require a 30% deposit, with the remaining 70% balance due prior to shipment. We also accept 100% irrevocable letters of credit on sight.

Q: How long do you take to deliver?

A: Generally, we will ship within 30 days of receiving your deposit. If your order is for a standard product and we have the corresponding stock in our warehouse, we can arrange for immediate shipment. However, the delivery time for customized products depends on the specific order requirements.
