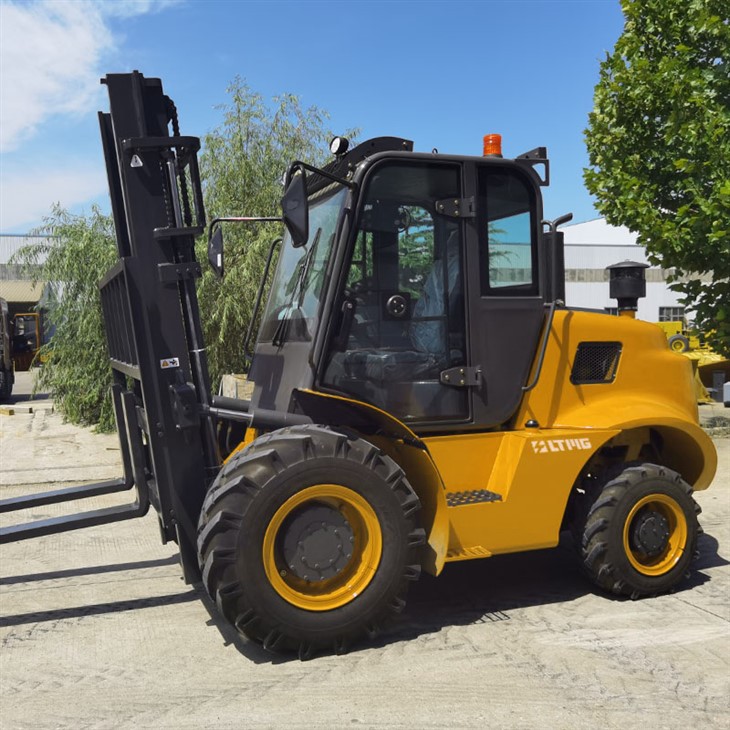

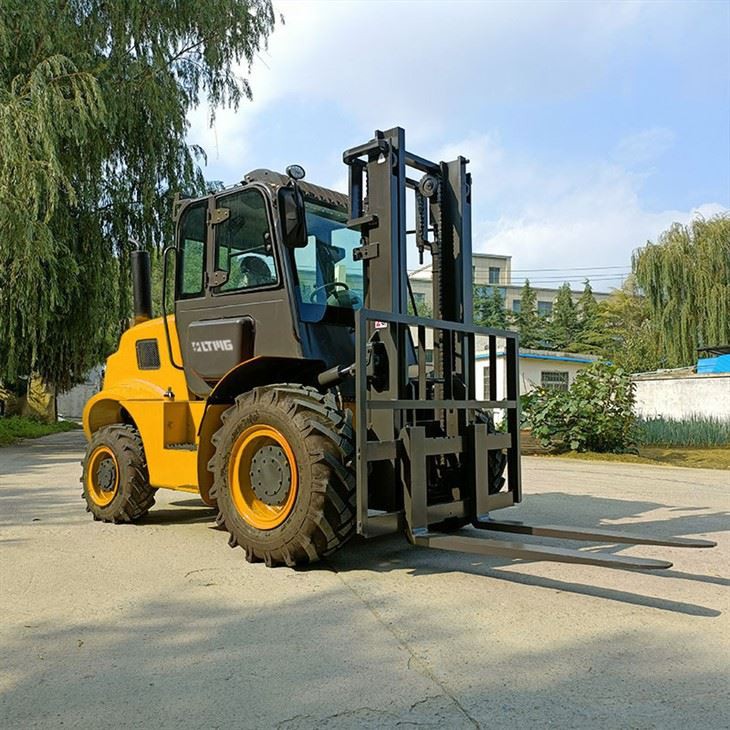

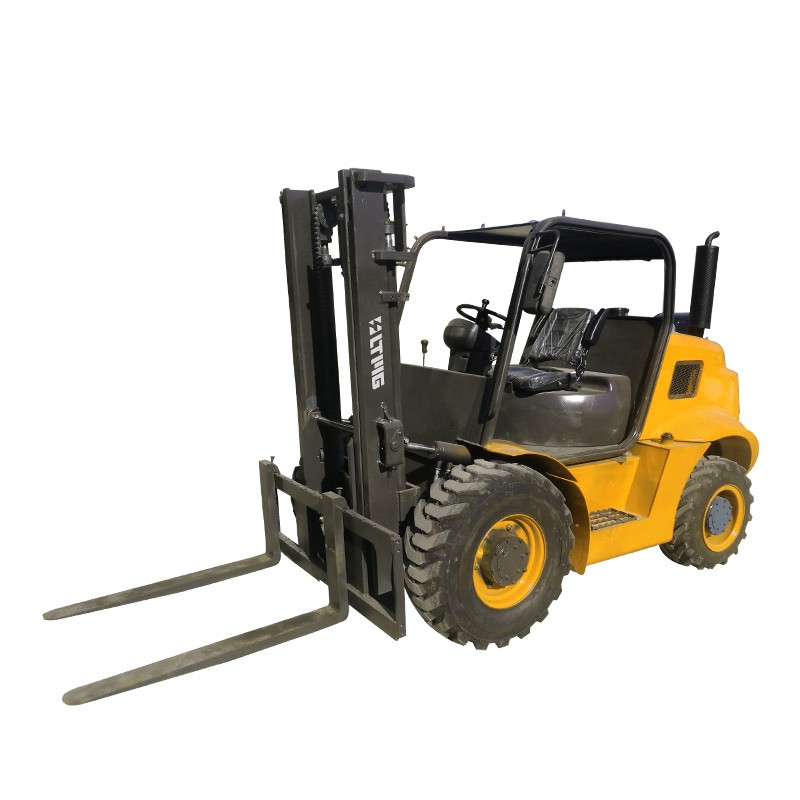

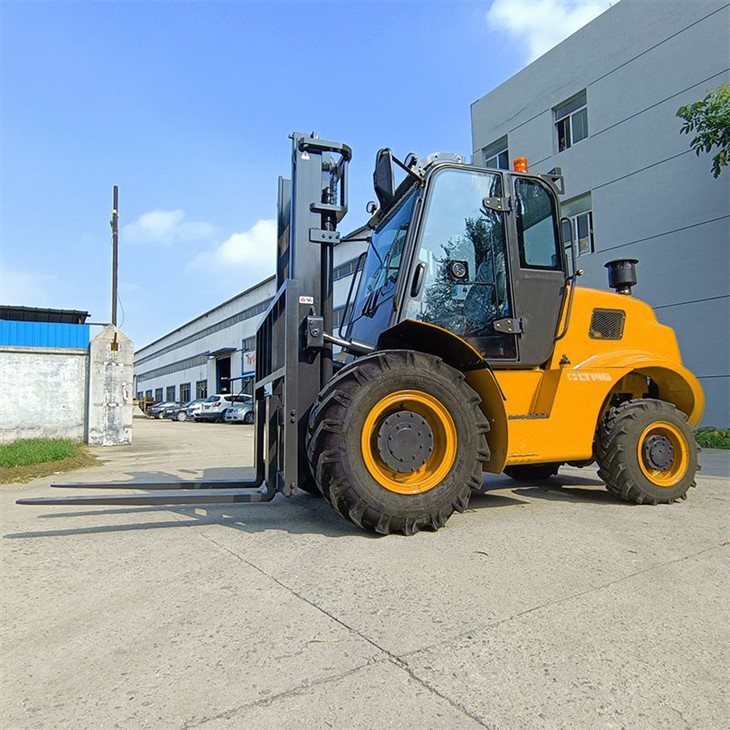

This four wheel drive forklift1 is widely used in mines, farmland, orchards and other field work occasions. Strong power, equipped with domestic and foreign famous brand engine. The whole vehicle is equipped with extra wide cross-country tires, good cross-country performance, high exhaust design, to ensure a good working environment, seat with armrests, seat belt, to ensure the operation of comfortable and safe.

New load-sensing hydraulic steering system, the system is more energy-saving, improve the efficiency of the whole vehicle; new energy-saving lighting system, energy-saving and power-saving, at the same time greatly improve the performance and service life of the lamps and lanterns; environmentally friendly engine, so that the whole vehicle to meet the European Ⅲ and EPA Ⅲ emission standards; the whole vehicle adopts environmentally friendly materials, reduce the harm to the environment. Two-piece front bottom plate design makes maintenance and inspection more convenient; water tank cover can be manually disassembled and installed, which is convenient for quick maintenance and inspection.

Specification

1.1	Model		FDR50
1.2	Power Type		Diesel
1.3	Rated Capacity	kg	5000.0
1.4	Load Center Distance	mm	500.0
1.5	Drive Type		4WD
Dimension Parameter
2.1	Standard Lift Height	mm	3000.0
2.2	Fork Size(LWH)	mm	1370×150×55
2.3	Mast inclination angle (F/R)	Deg	6\12
2.4	Overall Length (without fork)		3450.0
2.5	Overall Width	mm	1860.0
2.6	Mast Height	mm	2420.0
2.8	Head Guard Height	mm	2450.0
2.1	Ground Clearance	mm	310.0
2.1	Maximum Turning Radius	mm	3900.0
2.1	Wheelbase	mm	1950.0
2.1	Front wheel tread	mm	1570.0
2.1	Rear wheel tread	mm	1400.0
2.2	Self Weight	kg	7300.0
Performance Parameter
3.1	Travel Speed	Km\h	30.0
3.2	Lifting Speed	mm\s	430.0
3..3	Lowering Speed	mm\s	460.0
3.4	MaxIimum Gradeability	％	≧35
Tire
4.1	Front Tyre		16/70-20
4.2	Rear Tyre		10-16.5
Engine and Gearbox
5.1	Battery	V\Ah	24\60
5.2	Engine Manufacturer		YunNei
5.3	Engine Model		YN4E088-30CR4
5.4	Rated Power/RPM	kw	65/2400
5.5	Fuel Tank Capacity	L	100.0
5.6	Gearbox Model		280.0
5.7	Transmission Type		Hydrodynamic
5.8	Optional engines	Cummins 4BTA3.9-C100 74KW

Certificate

Shipping plan

Shiping plan

Our machine is film wrapped, to make sure the machine can be delivered to our customer smoothly, we will use the steel wire to fix the machine with the container.

FAQ

1. Q: What payment methods do you accept?

A: We support 30% deposit, 70% final payment before shipment, and irrevocable demand letter of credit.

2. Q: Regarding after-sales service, how do you solve the problems of overseas customers in time?

A: The warranty period of our machines is usually 1 year. During this period, we will immediately arrange international express delivery to ensure that replacement parts are delivered as soon as possible.

3. Q: Will you arrange installation of the machine after we place the order?

A: All machines are tested before they leave the factory so they are almost always ready to use straight away and our machines are easy to install, if the customer requires our assistance we will be happy to arrange installation but all costs will be borne by the customer.

4. Q: How do I get after sales service?

A: If the problem is caused by us, we will provide you with spare parts free of charge. If the problem is caused by human beings, we will also send the spare parts for a fee. If you have any questions, you can call us directly.
