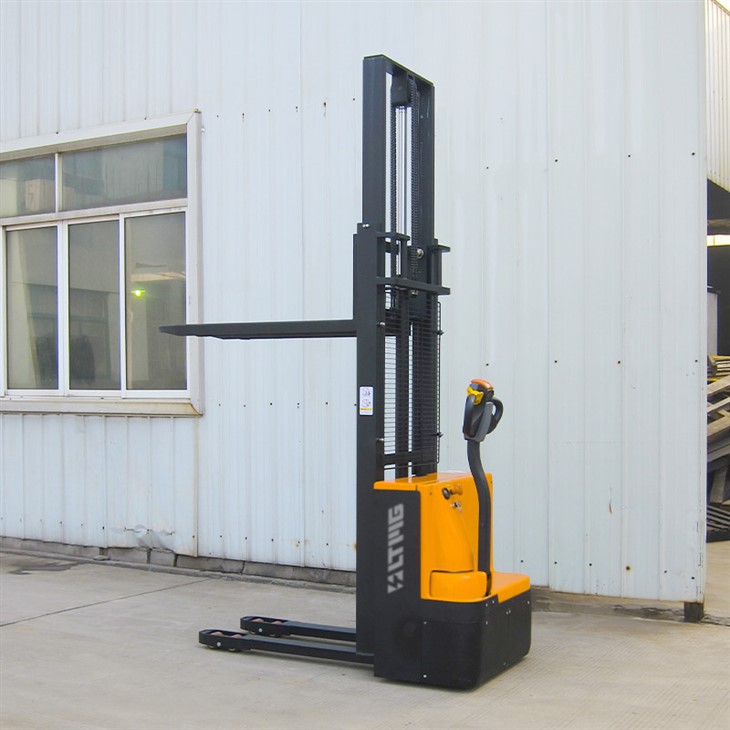

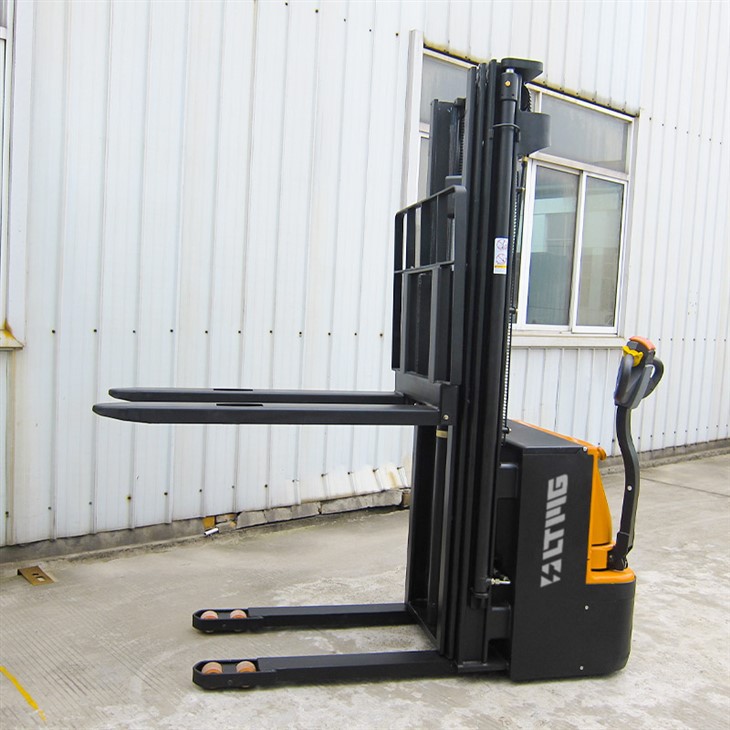

Name: Full Electric Pallet Stacker
Brand: LTMG
SKU: 218608768

The full electric pallet stacker is suitable for narrow space operation with high space utilization, which can effectively reduce handling costs. It is designed with a small battery compartment and 180° range tiller arm steering, which makes it easy and flexible to use even when space is limited. This greatly saves logistics space and costs, and has a good effect on optimizing warehouse operations.

It is reliable and has perfect performance.This full electric pallet stacker has a long service life, low maintenance cost, ergonomic multi-function operating handle, easy to operate. It adopts waterproof and dustproof design, emergency power-off switch and other safety designs to avoid possible accidents during transportation.

This electric stacker adopts many intelligent protection methods to ensure the safety and reliability of the traveling process. Equipped with EPS steering system, it is easier to operate. The high speed limit, turning safety control, active anti-vibration system and other functions greatly optimize the using experience. At the same time, the electronic traveling brake, intelligent charger and other facilities can also better protect the electric circuit and battery of the electric forklift truck.

Specification

Model		ERB-15E/16E
Power type		Battery powered
Driving style		Pedestrian
Load capacity	kg	1500/1600
Load center	mm	600
Overall length	mm	1950							2050
Overall width	mm	840
Min. overall height	mm	2125	1635	1800	2080	2220	2335	2560	2100	2265
Fork dimension L×b×m	mm	1150×160×56
Outside width of forks	mm	540/680
Ground clearance	mm	29
Wheel base	mm	1250							1415
Wheel material		PU
Driving wheel size	mm	φ250×80
Front wheel size	mm	φ78×70
Balance wheel size	mm	φ125×75
Min. steering radius	mm	1550							1600
Min. width of aisle	mm	≥2250							≥2500
Max. lift height	mm	1600	2000	2500	3000	3300	3500	4000	4500	5000
Max. overall height	mm	2110	2480	2980	3480	3780	3980	4480	5150	5650
Min. fork height	mm	90
Travel speed（laden/unladen）	Km/h	3.5/4.0							4.5/5.0
Lift speed（laden/unladen）	mm/s	90/130
Lowering speed（laden/unladen）	mm/s	95/120
Brake type		Electromagnetic
Power of driving motor	Kw	1.2							1.2
Power of lift motor	Kw	2.2							3.0
Battery capacity/voltage	Ah/V	95/24, 165/24							165/24
Weight of battery	kg	51/160							160
Net weight（without battery）	kg	560	600	640	665	675	690	720	920	960

Shipping security

shipping security

Our company

product certificatiom

FAQ

1. What is your advantage?
A: As a manufacturer, LTMG industrial is committed to offer not only products with high quality and performance and competitive price, such as narrow skid steer but also in-time delivery and comprehensive 7/24 after-sale services.

2. What is the product range of our factory ?
A: LTMG industrial is a large-scale machinery manufacturing enterprise primarily specializes in supplying narrow skid steer and related attachments. We can also customize non-standard products according to customer's requirements.

3. What payment terms can we accept?
A: Normally 30% deposit is required in advance, 70% balance shall be settled before shipment. And 100% irrevocable L/C at sight with the terms we agreed can also be accepted.

4. What Certificates do we have?
A: All products meet with the ISO9001 Quality System and have acquired CE certificate. EPA approval will be available if needed.

5. How about our delivery time?
A: Usually it will take 15 to 30 days after receiving your deposit. About standard products, we always
have in stock and can deliver immediately. But customized products will take more time, depending on the requirements of your order.
