Products Description

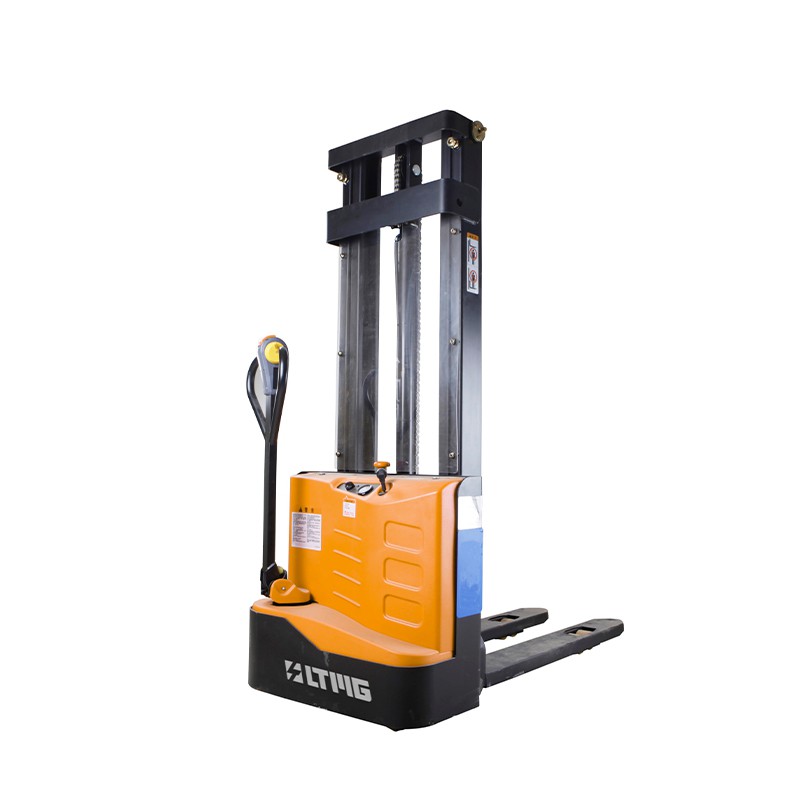

LTMG's 1 Ton Electric Stacker Walking Type is a high-quality and versatile product designed for narrow spaces, primarily serving the retail and manufacturing industries. Its compact design, featuring a small battery compartment and a 180° steering handle, allows for flexible operation even in limited spaces. The electric pallet stacke is reliable, energy-efficient, exhibits optimal performance, and comes with low maintenance costs. The most special feature is that the fork can be adjusted laterally to satisfy various requirements for different goods and scenarios.
The safety features of this powered pallet stacker are noteworthy. Automatic speed reduction during steering prevents the operator and products from ejecting during high-speed maneuvers. In addition, the safety cut-off valve ensures the safety of both the operator and the goods. All circuits of the 1 Ton electric stacker are designed with waterproof and dust proof features to prevent short circuits and unexpected accidents.
Products parameter
| Model | unit | ERB10/ |
| Capacity | kg | 1000/1500/2000 |
| Lifting height | mm | 1600/2000/2500/3000/3500 |
| Self height(fork is lowest) | mm | 2050/1580/1830/2080/2330 |
| Self height(fork is highest) | mm | 2050/2500/3000/3500/4000 |
| Min fork height | mm | 90 |
| Overall length(Pedal opened) | mm | 2330 |
| Overall length(Pedal closed) | mm | 1830 |
| Overall width | mm | 850 |
| Fork length | mm | 1000 |
| Load center | mm | 500 |
| Material of wheel | / | Polyurethane |
| Driving motor | w | 1200 |
| Lifting motor | w | 2200 |
| Maximum adjustable outside width | mm | 680 |
| Turning radius | mm | 1530 |
| Battery capacity(oridinary battery) | v/ah | 24v/120ah*2 |
| Battery capacity(assembled battery) | v/ah | 24v/210ah |
| Driving speed(full load) | km/h | 4 |
| Driving speed(no load) | km/h | 6 |
| Lifitng speed(full load) | mm/s | 80 |
| Lifitng speed(no load) | mm/s | 130 |
| Drop speed(full load) | mm/s | 110 |
| Drop speed(no load) | mm/s | 90 |
| Driving wheel size | mm | 250*80 |
| Load wheel size | mm | 80*70 |
| Steering wheel size | mm | 100*50 |
| Gradability(full load) | % | 5 |
| Gradability(no load) | % | 8 |
| Braking way | / | electromagnetic brake |
| Noise level | fb | 75 |
| Way to adjust the speed | / | MOS |
shipping plan
LTMG consistently prioritizes customer service, with a strong emphasis on meticulous packaging during product transportation. The electric stackers are securely fastened with wire ropes to prevent shaking and potential damage during transportation, ensuring the integrity and outstanding quality of the products even when shipped across oceans and over long distances. As a result, LTMG have received unanimous praise from our satisfied customers.
Products customization
LTMG's 1-ton electric stacker is equipped with adjustable outriggers to meet the diverse needs of customers. During operation, customers can adjust the outriggers according to their requirements. Then, they can securely stabilize the equipment to ensure operational safety.
Products service
LTMG pledges continuous availability of online customer service for 24hours. Should you have any procurement requirements, don't hesitate to get in touch. LTMG commits to offering appropriate product solutions tailored to your needs. In case you confront any operational challenges, feel free to reach out to us without delay. Our team of expert technicians stands prepared to aid you in addressing any issues, guaranteeing the optimal utilization of your products.
