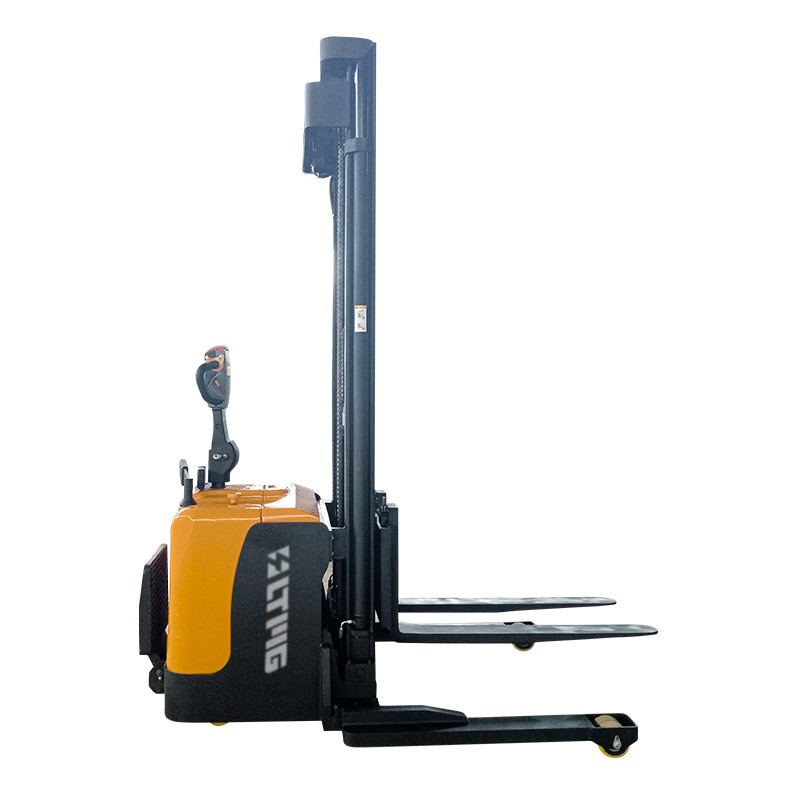

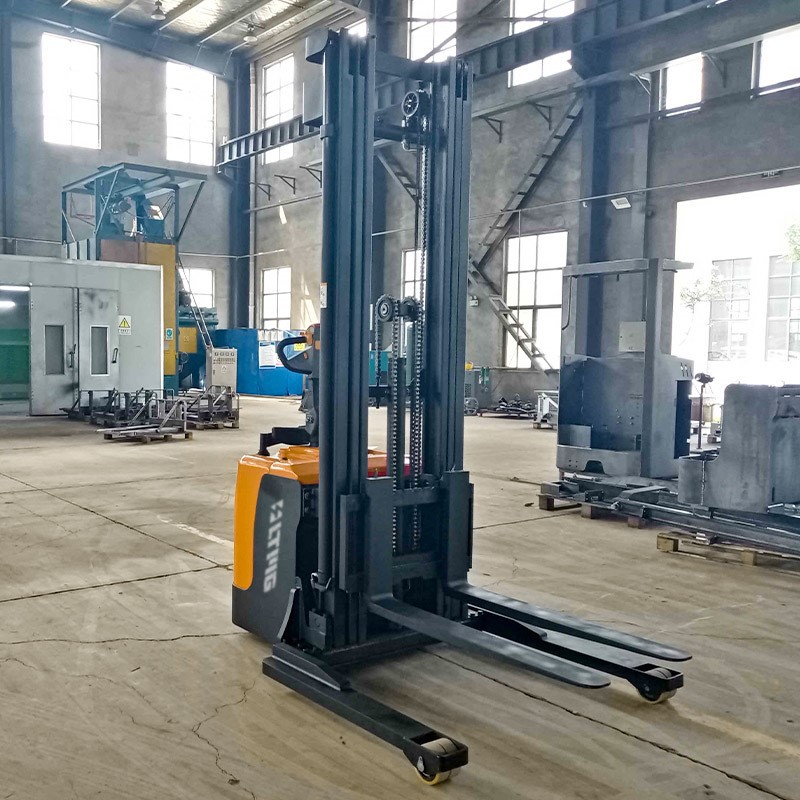

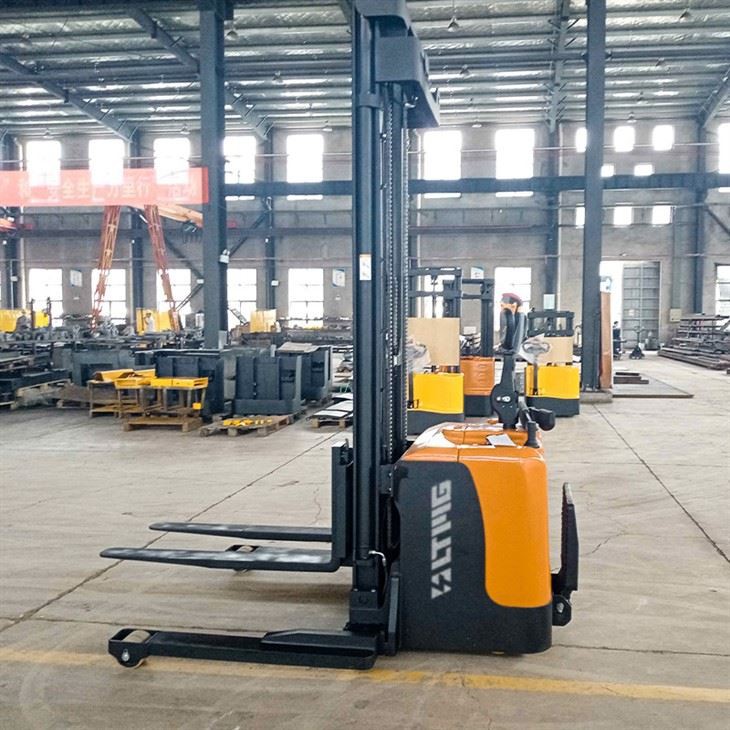

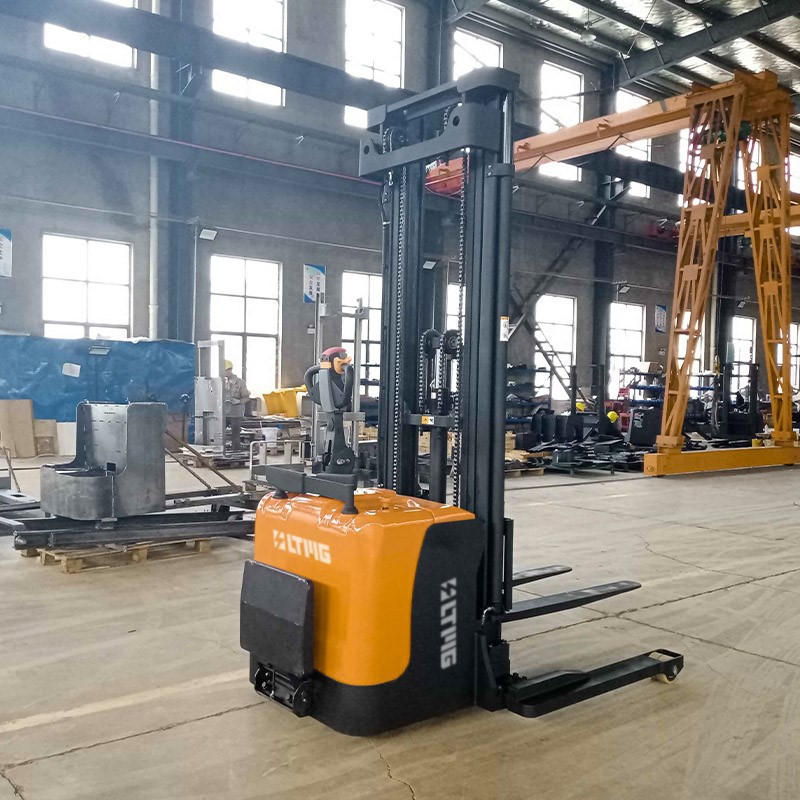

This battery pallet stacker, the portal frame is made of "C" steel with special rolling process, polished inside and outside surface, connected by all-welding technology, which is sturdy and durable, and the whole structure will never be deformed. If the rated load of the forklift truck is exceeded by 20%, the relief valve will work to ensure that the cylinder will not be damaged when overloaded. In the event of an accidental rupture of the hydraulic circuit, the anti-rupture valve will block the hydraulic fluid. The anti-rupture valve will block the hydraulic oil circuit, so that the fork of the forklift truck stays at a fixed height and will not fall rapidly.

Adopting high strength forks, easy to handle any cargo, with steel reinforcement in many places, steel reinforcement at the bottom, and steel reinforcement at the corners.Solid piston cylinder, more solid and sturdy pressure resistance, hand and foot dual-use control, more flexible operation.

Specification

Characteristics
1.1	Manufacturer		LTMG
1.2	Model		ERB20
1.4	Operate Type		stand-on
1.5	Load Capacity	Q(kg)	2000/2500/3000/3500
1.6	Load Center	c(mm)	600
1.9	Wheelbase	y(mm)	1320
Weight
2.1	Service Weight(Incl. Battery)	kg	500/540
Wheels,Chassis
3.1	Tyre Type		PU
3.2	Tyre Size, Drive Wheels	mm	Φ250x80
3.3	Tyre Size, Load Wheels	mm	Φ80x60
3.4	Tyre Size, Balance Wheels	mm	Φ125x50
3.5	Wheels, Numbers(x= drive wheel)		1+2/4
Dimensions
4.4	Lift Height	h3(mm)	120
4.5	Height,fork Extended	h4(mm)	196
4.9	Height of tiller arm,Min/Max	h14(mm)	785/1250
4.15	Fork Height, Lowered	h13(mm)	85
4.19	Overall Length	l1(mm)	1800/2200
4.21	Overall Width	b1/b2(mm)	850
4.22	Fork Dimension	l/e/s(mm)	1150/1200x180x55
4.25	Outside Fork Width	b5(mm)	550/680
4.32	Ground Clearance	m2(mm)	31
4.33	AST,1000X1200 pallet crossways	ast1(mm)	1980/2400
4.34	AST,800X1200 pallet crossways	ast2(mm)	2010/2440
4.35	MiniTurning Radius	wa(mm)	1680
Performance
5.1	Travel Speed, Laden/Unladen	km/h	4.0/5.0
5.2	Lifting Speed, Laden/Unladen	mm/s	40/50
5.3	Lowering Speed, Laden/Unladen	mm/s	50/60
5.8	Max Gradeability, Laden/Unladen	%	3.0/5.0
Drive
6.1	Drive Motor Rating S2 60Min	kw	1.5
6.2	Lifting Motor Rating S3 15%	kw	2.2
6.4	Battery Voltage/Capacity(5h)	V/Ah	24/160, 24/210, 24/280
Others
7.1	Controller		1230
7.2	Service Brake		REGENERATING
7.3	Parking Brake		Electromagnetic

Shipping plan

Certificate

All of our products are CE and ISO certified, in addition to CO, COC and Saber certificates.

FAQ

1. Q. Can I mix different models in one container?

A: Yes, different models can be mixed in one container, and we will also help you to confirm the quantity that the container can hold.

2. Q. How does your facility perform quality control?

A: Quality is given priority, all accessories are made of famous domestic brands, and all products are tested after production.

3. Q: What are your warranty terms?

A: We offer you one year warranty, if the spare parts have any problems within the warranty period, without man-made situation, we will deliver it for you for free

4. Q: What about after-sales service?

A: We offer you one year warranty after shipment, and provide some easy-to-wear spare parts of the machine, we also provide long-term free technical consulting service.
