Products Description

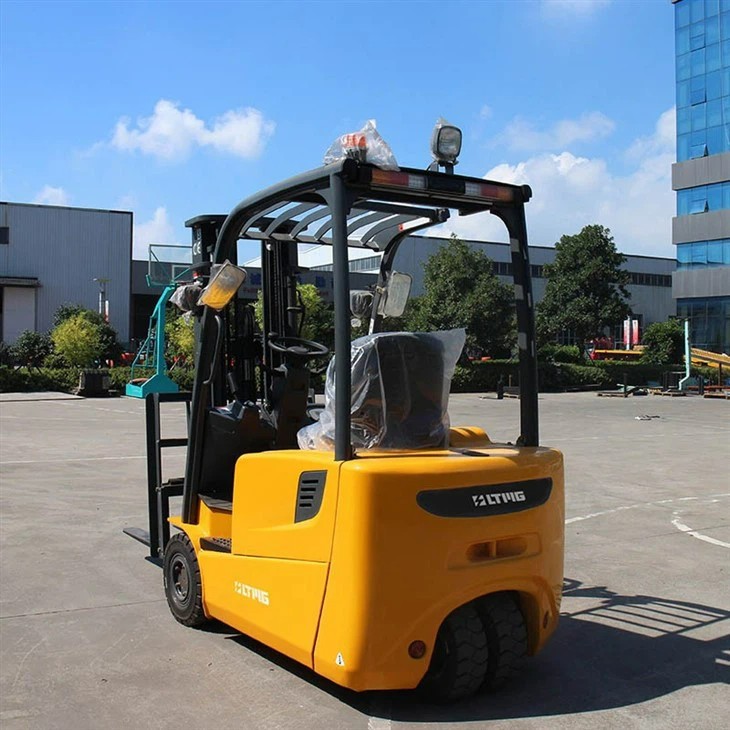

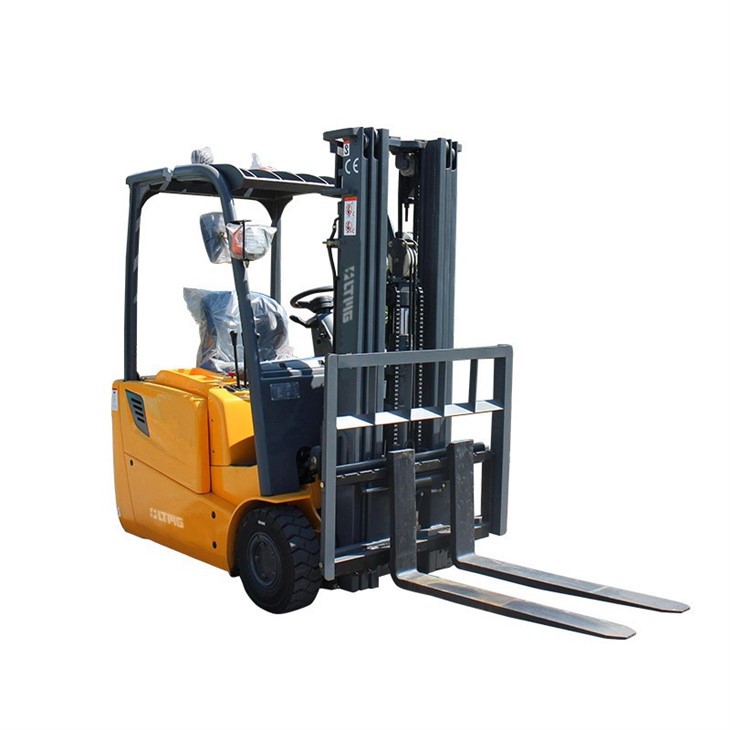

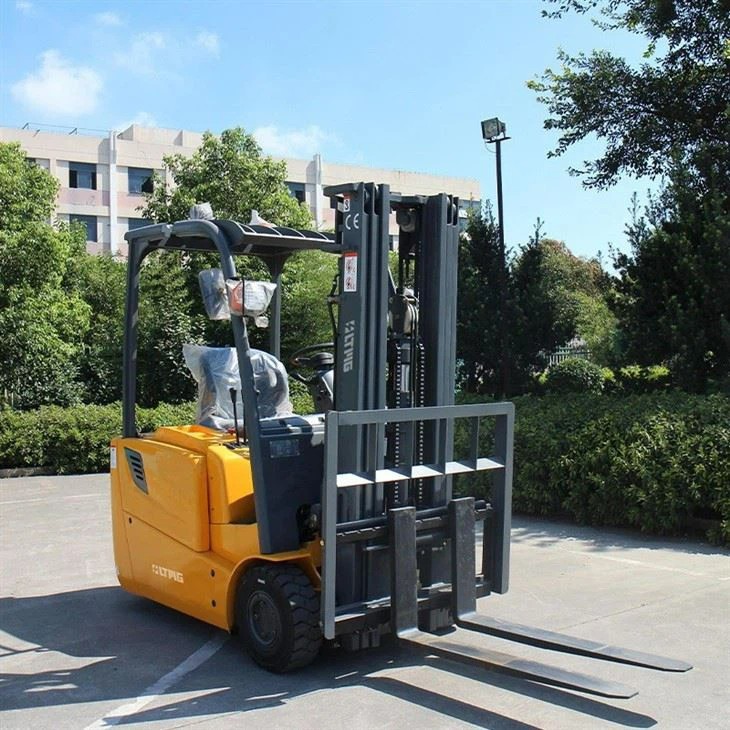

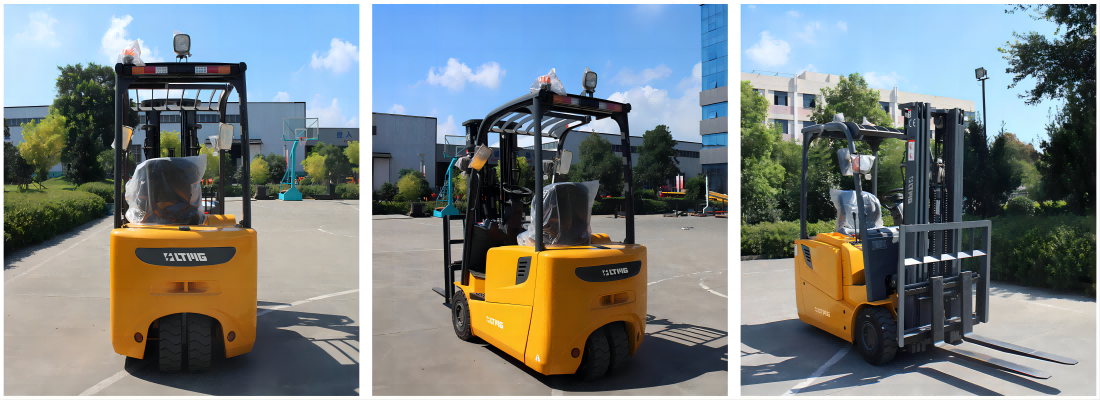

- Compact Design: The small turning radius 3-wheel electric forklift is designed to be compact, allowing for exceptional maneuverability in spaces.
- Tight Turning Circle: The forift features a small turning radius, allowing to make sharp turns and narrow aisles with ease.
- Improved Efficiency: The compact design and tight turning radius contribute to improved efficiency by reducing the time and effort required to maneuver the forklift.
- Enhanced Maneuverability: The 3-wheel configuration of the forklift enables enhanced maneuverability, making it ideal for operating in confined areas and densely packed warehouses.
- Increased Productivity: The combination of compactness and maneuverability allows the forklift to move quickly and efficiently, leading to increased productivity in material handling tasks.
- Versatile Application: The 3 wheeled truck is versatile, suitable for a wide range of indoor applications such as warehouses, manufacturing facilities, and retail stores.
- Easy Operation: The three wheel forklift is designed with user-friendly controls, making it easy to operate for both experienced and novice operators.
- Ergonomic Features: The forklift is equipped with ergonomic features to ensure operator comfort and minimize fatigue during prolonged use, contributing to a safer and more efficient work environment.
- Improved Safety: The enhanced maneuverability and compact design of the forklift improve safety by reducing the risk of collisions and accidents in crowded spaces.
- Electric Power: The small electric forklifts operates on electric power, eliminating exhaust emissions, reducing noise levels, and promoting environmental sustainability.
- Cost-effective Solution: The electric power source and efficient design contribute to lower operating costs compared to traditional combustion engine forklifts, resulting in long-term cost savings.
Specification
|
Model |
|
FB16S |
|
|
Power type |
|
Electric |
|
|
Rated Capacity |
kg |
1600 |
|
|
Load Centre |
mm |
500 |
|
|
Lift Height |
mm |
3000 |
|
|
Fork Size |
L×W×T |
mm |
920×120×35 |
|
Mast Tilt Angle |
F/R(α°/β°) |
Deg |
6°/6° |
|
Front Overhang(Wheel center to fork face) |
mm |
390 |
|
|
Tread |
(F/R) |
mm |
924/208 |
|
Ground Clearance(Bottom of mast) |
mm |
90 |
|
|
Fork Spread |
Min./Max. |
mm |
240/970 |
|
Overall Dimension |
Length to face of fork(Without fork) |
mm |
2100 |
|
Overall Width |
mm |
1100 |
|
|
Mast Lowered Height |
mm |
2010 |
|
|
Mast Extended Height(With backrest) |
mm |
3940 |
|
|
Overhead Guard Height |
mm |
2055 |
|
|
Turning Radius(outside) |
mm |
1690 |
|
|
Min. insecting aisle |
mm |
2300 |
|
|
Speed |
Travel (Empty load) |
km/h |
14 |
|
Lifting (Full load) |
mm/s |
340 |
|
|
Max. Gradeability |
% |
15 |
|
|
Tire |
Front |
|
18×7-8 |
|
Rear |
|
16×6-8 |
|
|
Wheelbase |
mm |
1460 |
|
|
Service Weight |
kg |
3420 |
|
|
Motor |
Driven Motor |
kw |
2×4.5 |
|
Lift Motor |
kw |
8.6 |
|
|
Battery |
Voltage/Capacity |
V/Ah |
48/490 |
|
Controller |
Manufacturer |
|
CURTIS |
|
Type |
|
AC |
|
|
Operating Pressure for Attachment |
Mpa |
14.5 |
|

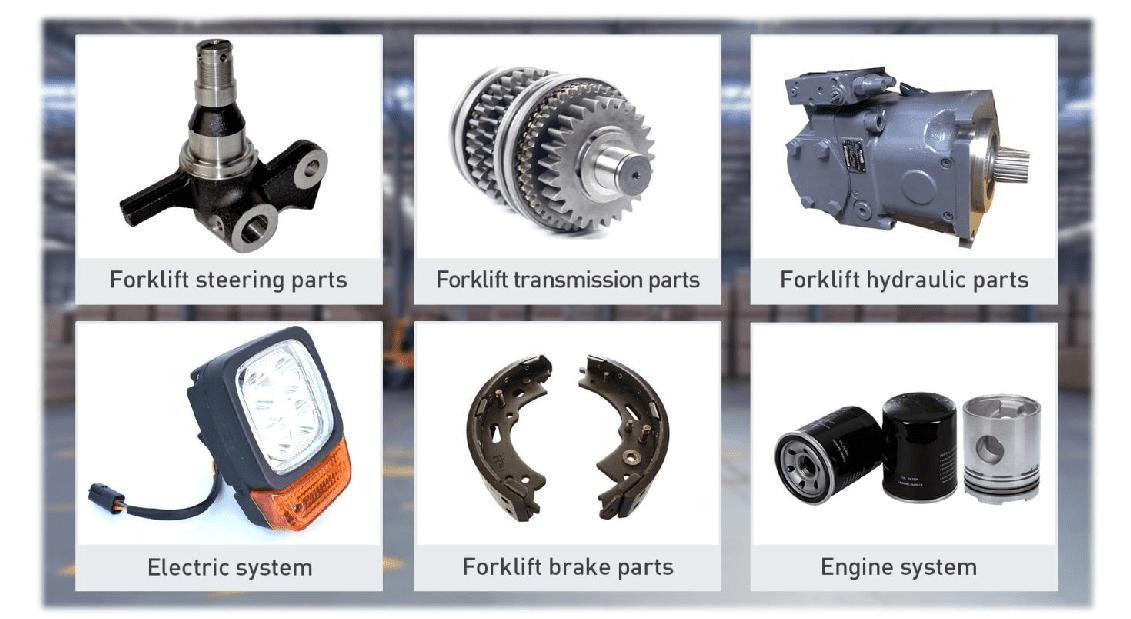

The Spare Parts of LTMG forklift
Feedback on LTMG forklift wordlwide
FAQ
Q: What is a small turning radius 3 wheel electric forklift?
Q: What are the benefits of a 3 wheel electric forklift?
Q: Do you have the intention of looking for agents to cooperate?
Q: Can a 3 wheel electric forklift truck be customized for specific applications?
