Name: Lithium Battery Forklift For Indoor And Outdoor
Brand: LTMG
SKU: 230212846

Products detail

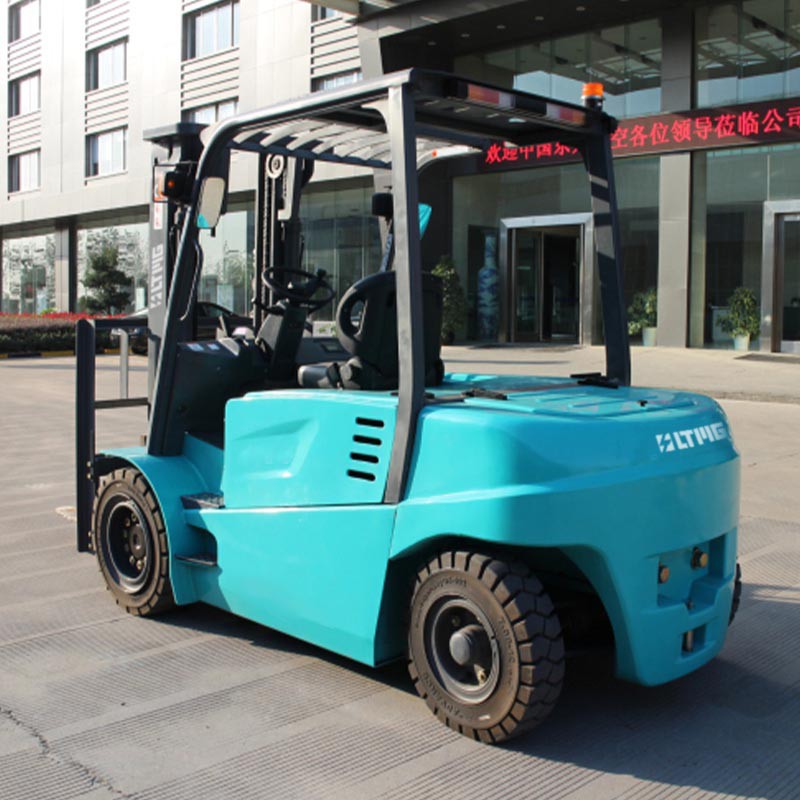

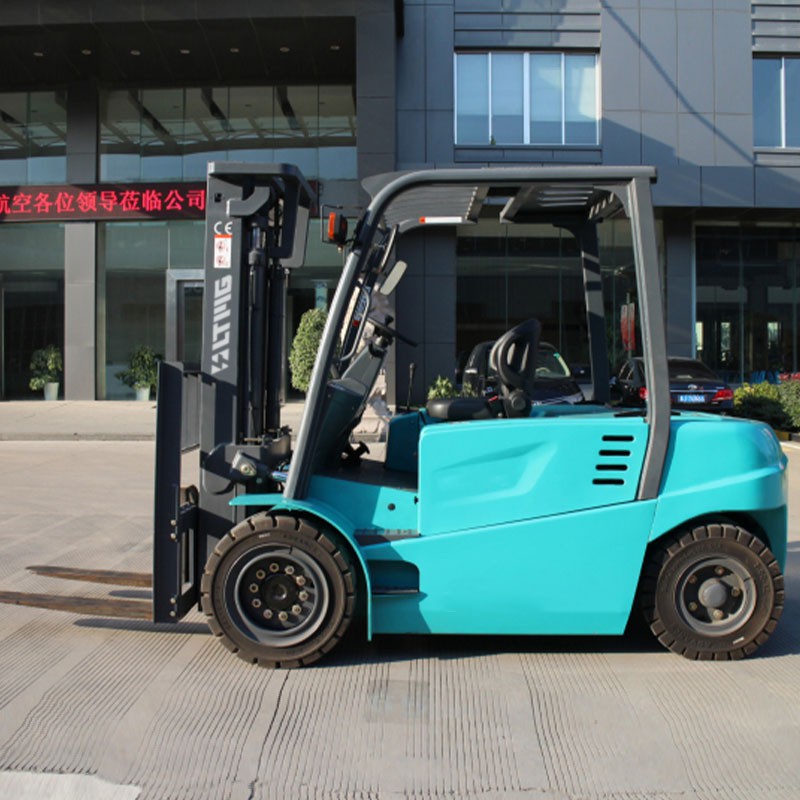

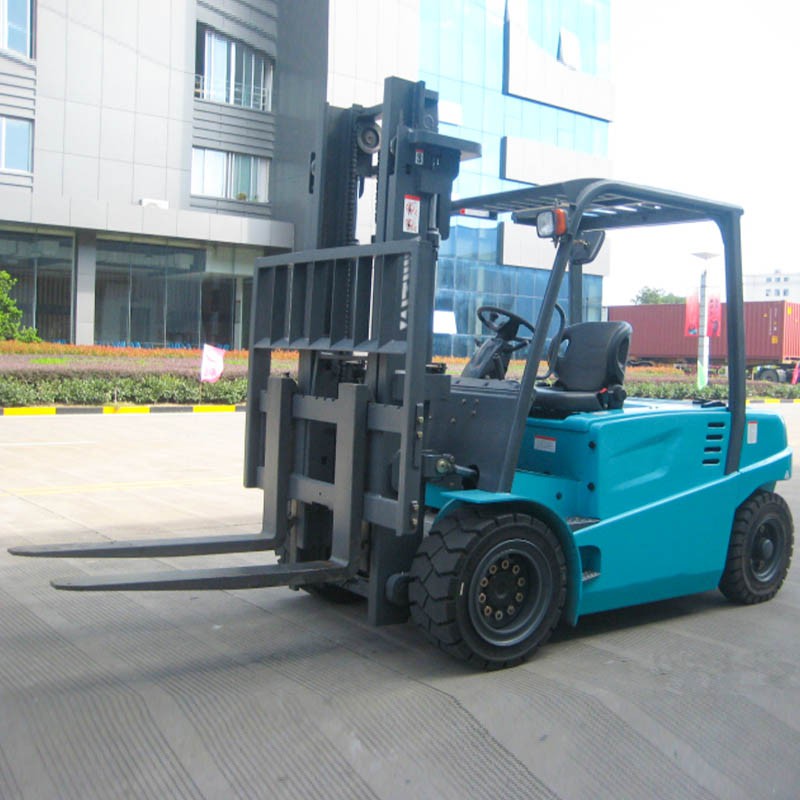

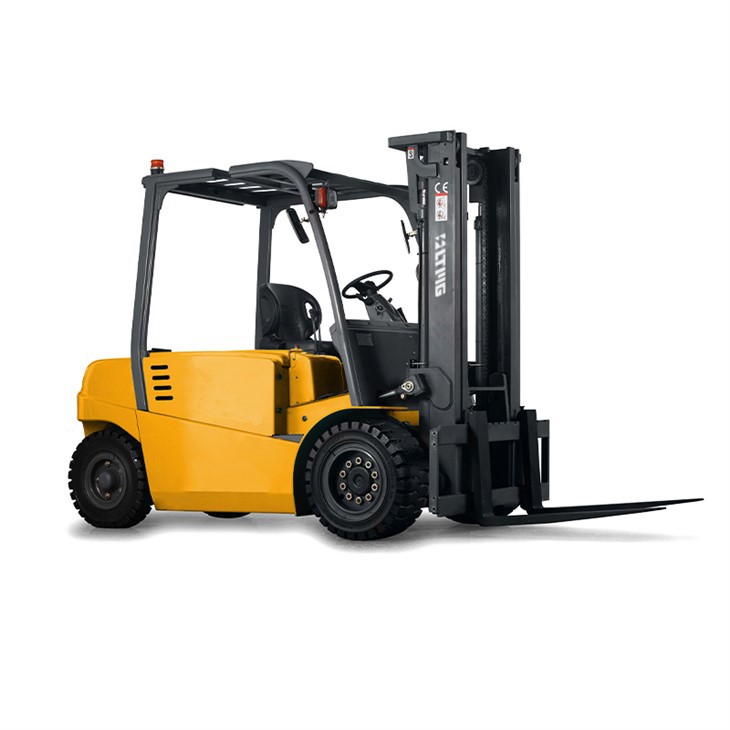

The Lithium Battery Forklift For Indoor and Outdoor is a 4-wheel electric forklift that is designed to be used both indoors and outdoors. It is equipped with a high-voltage lithium battery pack that can be charged quickly and is capable of operating in temperatures ranging from -30°C to 60°C . The battery pack is manufactured by Ningde Times, has a voltage of 309 KV, and can be charged according to both Chinese and European standards . The forklift is also equipped with an OPS function, automatic parking, and remote health diagnosis, making it a smart and safe choice for your business .

High performance: The lithium battery provides a stable and consistent power output, allowing the forklift to operate at a high speed and efficiency. The forklift can lift up to 6 tons of load and reach a maximum height of 6 meters. It also has a strong climbing ability and a smooth driving experience.

Long endurance: The lithium battery has a large capacity and a fast charging speed. It can last for 8 hours of continuous work and be fully charged in 2 hours. This means you can use the forklift for a long time without worrying about running out of power or wasting time on refueling.

Low maintenance: The lithium battery has a long service life and a low self-discharge rate. It does not need regular maintenance or replacement, unlike diesel or gas engines. This can save you a lot of money and trouble in the long run.

Eco-friendly: The lithium battery does not emit any harmful gases or noise, making the forklift environmentally friendly and safe for the operators and the surroundings. It also reduces the carbon footprint and the energy consumption of your business.

Products parameter

Model		FB60
Rated Capacity	kg	6000
Load Centre	mm	500
Lift Height	mm	3000
Fork Size (L×W×T)	mm	1070×150×50
Mast Tilt Angle F/R (α°/β°)	Deg	6/9
Length to face of fork (Without fork)	mm	3140
Overall Width	mm	1600
Mast Lowered Height	mm	2270
Mast Extended Height (With backrest)	mm	4165
Overhead Guard Height	mm	2255
Turning Radius (outside)	mm	2817
Front Overhang (Wheel center to fork face)	mm	579
Tread (Front/Rear)	mm	1280/1190
Ground Clearance (Bottom of mast)	mm	170
Wheelbase	mm	2000
Fork Spread (Min./Max)	mm	300/1380
Travel Speed	km/h	14
Lifting Speed (Full load)	mm/s	260
Max. Gradeability	%	12
Service Weight	kg	8460
Front Tire		2.8×12.5-15
Rear Tire		7.00-12-12PR
Driven Motor	kw	11×2
Lift Motor	kw	12×2
Battery Standard	V/Ah	80/800
Controller Manufacturer		CURTIS AC
Operating Pressure for Attachment	Mpa	1

customer feedback

LTMG's products are sold in various countries, and we provide high-quality customized services based on various national policy requirements and the specific work requirements of our customers, receiving enthusiastic feedback. Additionally, we regularly travel abroad to visit our customers, assisting them with any inquiries they may have to ensure smooth and efficient product usage.

customer feedback of electric fork lifts

Optional configuration

LTMG offers various clamps that can be attached to the electric-powered forklift to help you complete tasks with ease. LTMG's clamps are of high quality and functionality, enabling operators to handle different tasks smoothly, and demonstrating the forklift's flexibility and suitability. No matter what kind of tasks you need to do, such as lifting, transporting, stacking, or specialized ones, LTMG has a wide selection of clamps to suit your needs.

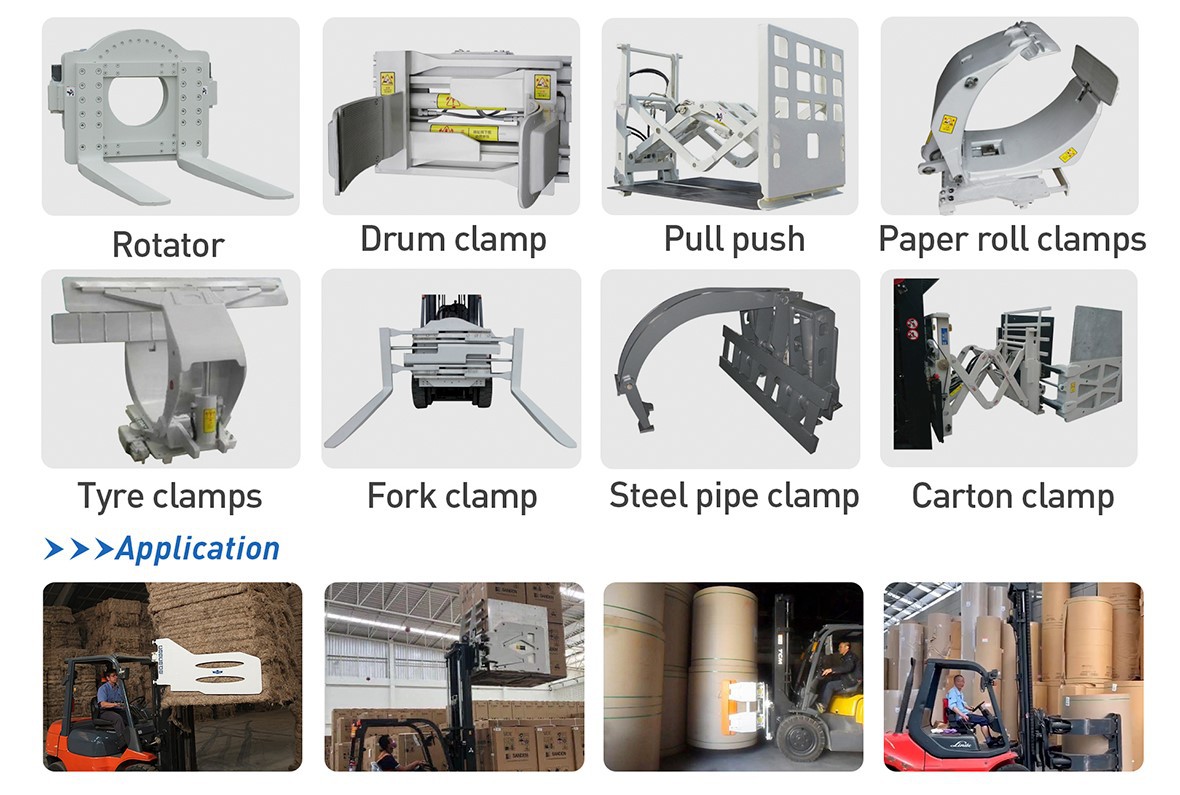

attachment of electric lift truck

purchase process

purchase process of best electric forklift

FAQ

Q: How can I customize my forklift?

A: You can customize your forklift by contacting us and telling us your requirements. We will provide you with a quotation and a design proposal. Once you confirm the order, we will start the production process and deliver your customized forklift as soon as possible.

Q: How much does it cost to customize my forklift?

A:The cost of customizing your forklift depends on the options you choose and the complexity of the design. We will give you a reasonable and competitive price based on your specifications. We also offer discounts for bulk orders and long-term cooperation.

Q: How long does it take to customize my forklift?

A: The time it takes to customize your forklift varies depending on the availability of the materials, the workload of the factory, and the shipping method. Generally, it takes about 30 days to complete the customization and delivery of your forklift. We will keep you updated on the progress and status of your order.

Q: What is the warranty and after-sales service for my customized forklift?

A: We offer a 3-year warranty and a 24/7 after-sales service for your customized forklift. If you encounter any problems or issues with your forklift, you can contact us anytime and we will provide you with professional and timely solutions. We value your feedback and suggestions and we strive to improve our products and services.
