Products Detail

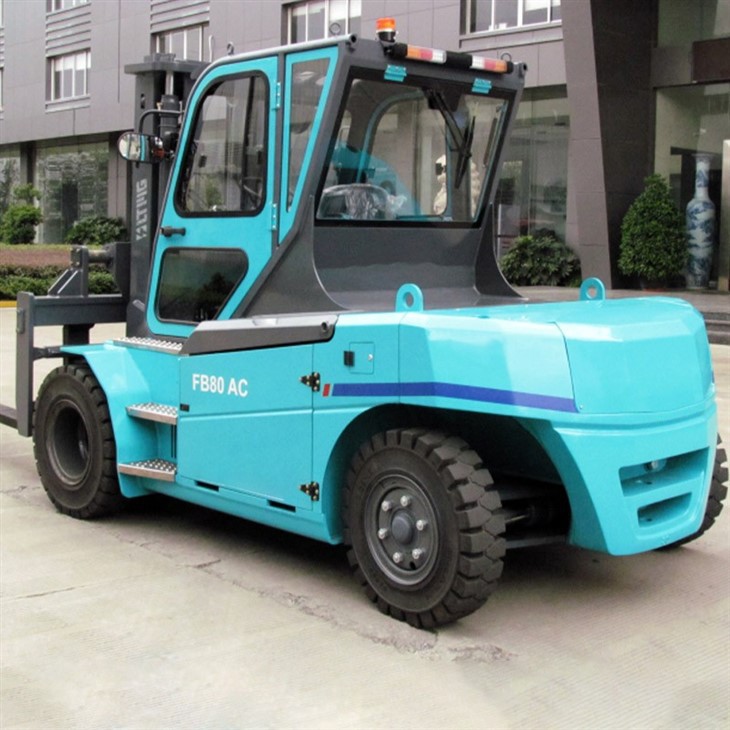

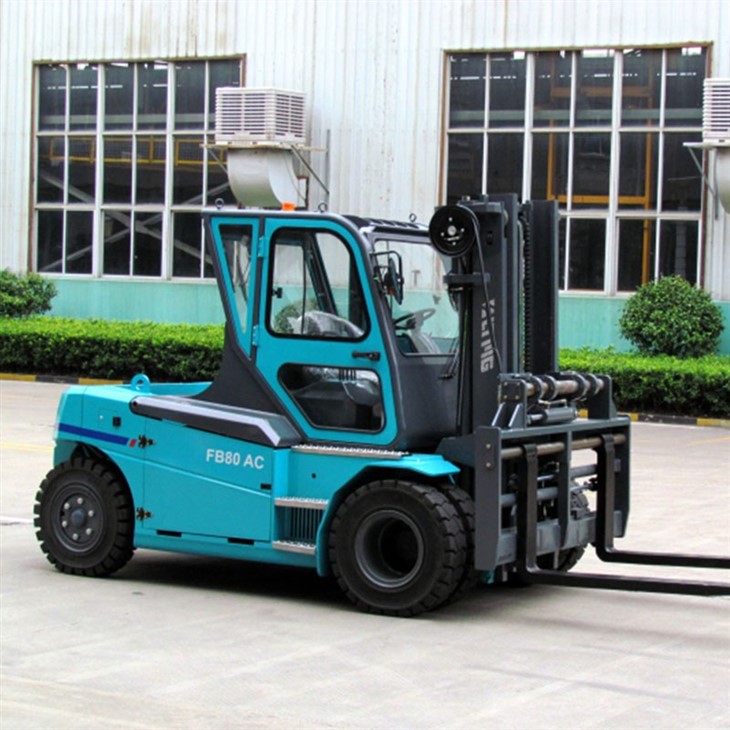

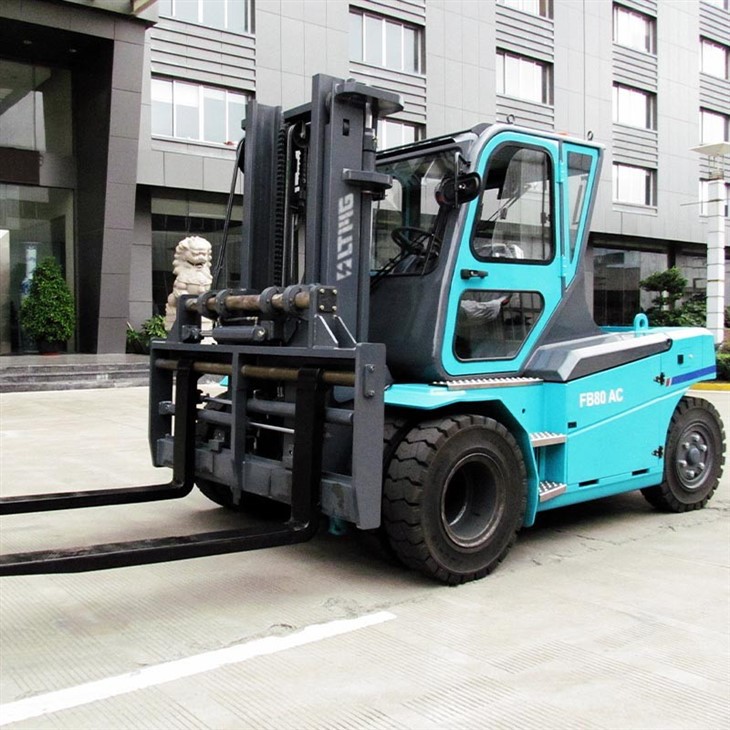

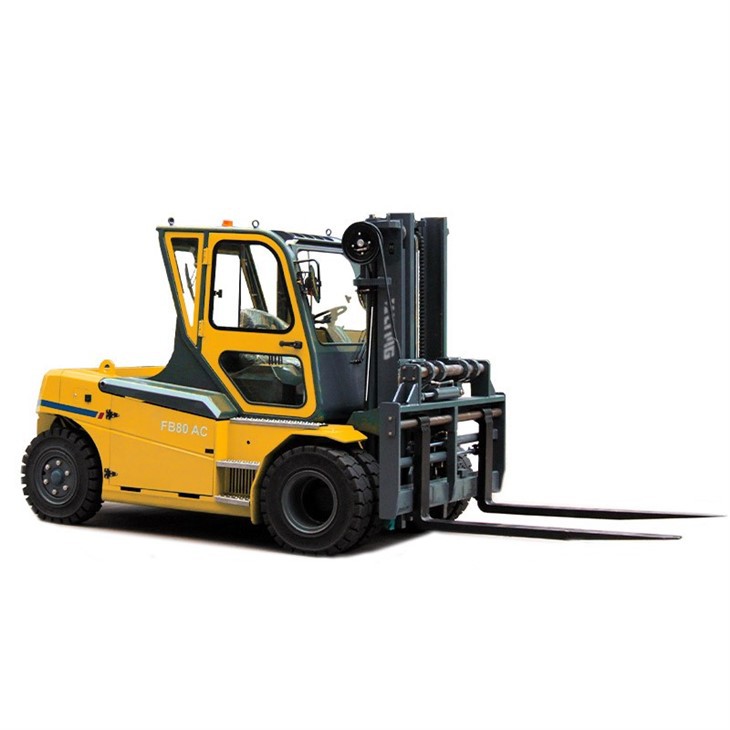

Equipped with two sets of high-capacity batteries, our high capacity Curtis AC electric forklift comes standard with an automatic recharging system, ensuring uninterrupted productivity. The innovative side-mount battery layout simplifies and enhances the battery replacement process, making it a seamless, convenient, and safe operation.
Powered by an original imported controller from a globally renowned brand, our 4 wheel electric forklift undergoes professional calibration for precision and efficiency in control. With outstanding performance attributes such as regenerative braking, slope control, and self-diagnostic capabilities, this forklift stands at the forefront of technological excellence.
A revolutionary double-battery recessed layout in the middle of the chassis provides an unparalleled rear view for the operator. This innovative design not only prioritizes safety but also ensures that operators have clear visibility for improved operational control.
Featuring an advanced dual-motor drive and dual-pump power system, our battery forklift boasts a compact structure, delivering superior driving and climbing performance. The dual-motor setup enhances torque, providing a more potent and efficient output for demanding tasks.
Precision-tuned for optimal performance, our high capacity Curtis AC electric forklift is not just a lifting solution; it's a technological marvel that elevates productivity and safety standards. Experience the future of material handling with a forklift that combines power, innovation, and efficiency.
Products parameter
| Model | FB80 | |
| Rated Capacity | kg | 8000 |
| Load Centre | mm | 600 |
| Lift Height | mm | 3000 |
| Fork Size (L×W×T) | mm | 1220×150×70 |
| Mast Tilt Angle F/R (α°/β°) | Deg | 6/10 |
| Length to face of fork (Without fork) | mm | 3780 |
| Overall Width | mm | 2200 |
| Mast Lowered Height | mm | 2600 |
| Mast Extended Height (With backrest) | mm | 4400 |
| Overhead Guard Height | mm | 2500 |
| Turning Radius (outside) | mm | 3350 |
| Front Overhang (Wheel center to fork face) | mm | 685 |
| Tread (Front/Rear) | mm | 1650/1718 |
| Ground Clearance (Bottom of mast) | mm | 200 |
| Wheelbase | mm | 2450 |
| Fork Spread (Min./Max) | mm | 300/2000 |
| Travel Speed | km/h | 14 |
| Lifting Speed (Full load) | mm/s | 300 |
| Max. Gradeability | % | 10 |
| Service Weight | kg | 12780 |
| Front Tire | 9.00-16-14PR | |
| Rear Tire | 8.25-15-14PR | |
| Driven Motor | kw | 14×2 |
| Lift Motor | kw | 25×2 |
| Battery Standard | V/Ah | 80/1150 |
| Controller Manufacturer | CURTIS AC | |
| Operating Pressure for Attachment | Mpa | 18 |
shipping plan
LTMG demonstrates exceptional expertise in packaging and transportation, especially focusing on packing detail and thoroughness to protect machines in containers by using wire rope. We ensure that each item is carefully handled and delivered with utmost care. Besides, we provide a comprehensive range of services, including a free toolbox, export qualification inspection and certificate, user manual and CD operating instructions, and even excess machine body paint to make it convenient for customers.
ODM
LTMG offers customization services that allow customers to customize the color, engine, and logo of their forklifts, making each forklift unique and tailored to meet specific requirements. If you want any other customization service, please contact our salesman to have a detailed discussion.
customer service
LTMG's 24-hour online customer service is commendable for delivering exceptional support to customers worldwide. Whether it's addressing inquiries, resolving issues, or providing guidance, the customer service team exhibits professionalism and promptness.
FAQ
Q: How can I be assured of the quality of LTMG's electric forklifts?
A: LTMG is dedicated to maintaining high standards of quality. Our forklifts undergo rigorous testing and quality control measures throughout the manufacturing process. Additionally, we proudly utilize advanced technology and source premium components, ensuring that our products meet or exceed industry standards.
Q: Are factory visits allowed?
LTMG warmly welcomes your visit to our factory. Please kindly inform us about your intended visit and provide us with your travel details, letting us have enough time to arrange your schedule.
Q: How can I access the after-sales service?
Q: How does LTMG handle product delivery, and what is the typical lead time for orders?
A: LTMG places a strong emphasis on timely delivery. We have a well-established logistics network to ensure efficient and secure shipping of our products. Lead times may vary based on order specifics and destination, but our team is committed to providing clear communication and meeting agreed-upon delivery timelines.
