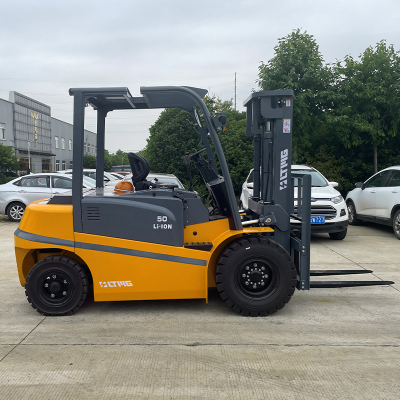

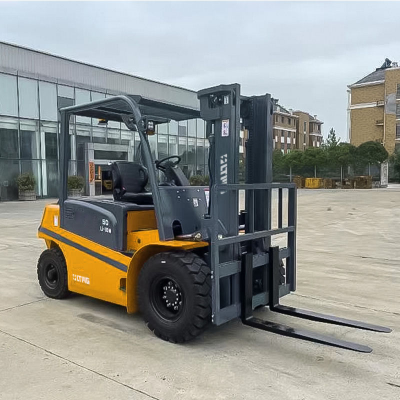

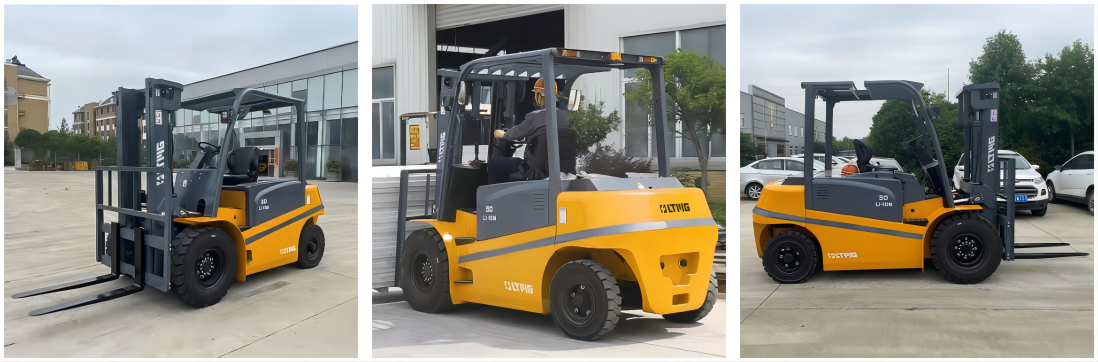

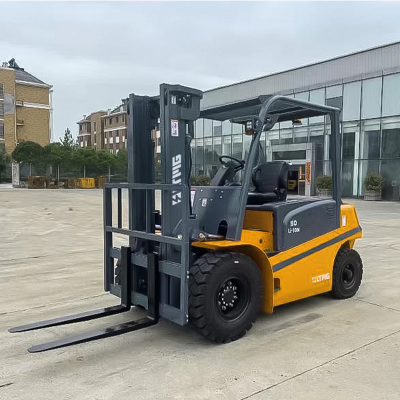

Our 5 ton electric forklift trucks are equipped with the ZAPI electronic control system, which provides precise and efficient control. Starting, driving and loading are all managed by a high precision computerized system. This advanced control system also includes regenerative braking, ramp braking and self-diagnostic faults to ensure optimum performance and safety. The smooth contours of this electric forklift chassis and the exposed metal material of the application section are eye-catching. The forklift is lightweight, compact and easy to operate. Sophisticated electronic control system:
The full-opening battery cover facilitates battery maintenance, and the counterweight cover facilitates the protection of controllers, contactors, power plugs, emergency switches, instrument panels, throttles, and other electronic products against water and dust.The drive motors of the 5-ton electric forklift are in an advanced parallel-connected layout, and the batteries are positioned low on the bottom of the chassis, which provides the forklift trucks with good stability.
Specification
|
Model |
|
|
FB50 |
|
Configuration model |
|
|
HI2/HI2LI |
|
Rated capacity |
Q |
Kg |
5000 |
|
Load center distance |
C |
mm |
500 |
|
Power type |
|
|
Lead acid Battery |
|
Driving type |
|
|
Seated |
|
Wheel base |
L1 |
mm |
2100 |
|
Tyres |
|
|
|
|
Tyre type |
|
|
Pneumatic |
|
Wheel number (front/rear) |
|
|
2/2 |
|
Front tread |
W3 |
mm |
1280 |
|
Rear tread |
W2 |
mm |
1190 |
|
Tyre (front) |
|
|
300-15-14PR |
|
Tyre (rear) |
|
|
7.00-12SE |
|
Size |
|
|
|
|
Front overhang |
L2 |
mm |
565 |
|
Mast tilting angle, front/rear |
α/β |
° |
6/12 |
|
Height with mast retraction |
H1 |
mm |
2230 |
|
Free lifting height |
H3 |
mm |
150 |
|
Max. lifting height |
H |
mm |
3000 |
|
Max. height after lifting |
H2 |
mm |
4280 |
|
Overall guard height |
H4 |
mm |
2255 |
|
Fork size: length×width×thickness |
L x W x T |
mm |
1070×150×50 |
|
Fork carriage, DIN standard |
|
|
3A |
|
Overall length(fork excluded) |
L' |
mm |
3185 |
|
Overall width |
W1 |
mm |
1600 |
|
Turning radius |
r |
mm |
2930 |
|
Ground clearance of mast |
H5 |
mm |
170 |
|
Ground clearance of wheel base center (loaded) |
H6 |
mm |
200 |
|
Right angle stacking aisle width |
Ast |
mm |
4895 |
|
(pallet 1000×1000mm，clearance 200mm) |
|||
|
Right angle stacking aisle width |
Ast |
mm |
5095 |
|
(pallet 1200×1200mm，clearance 200mm) |
|||
|
Lateral fork adjustment |
W5 |
mm |
1380/300 |
|
Max./Min. |
|||
|
Performance |
|
|
|
|
Travelling speed (loaded/unloaded) |
|
km/h |
14/15 |
|
Lifting speed (loaded/unloaded) |
|
mm/s |
300/400 |
|
Lowering speed |
|
mm/s |
400 |
|
Gradeability (loaded) |
|
% |
14 |
|
Weight |
|
|
|
|
Total weight (with/without battery) |
|
Kg |
7300/6720 |
|
Axle load (unloaded), front/rear |
|
Kg |
3239/4045 |
|
Axle load (loaded), front/rear |
|
Kg |
10775/1509 |
|
Battery |
|
|
|
|
Battery voltage /capacity K5 |
|
V/Ah |
80/630 |
|
Battery weight |
|
Kg |
1565 |
|
Motor and controller |
|
|
|
|
Driving motor power-60 minutes |
|
Kw |
18 |
|
Lifting motor power(S3 15%) |
|
Kw |
26 |
|
Driving motor control mode |
|
|
MOSFET/AC |
|
Lifting motor control mode |
|
|
MOSFET/AC |
|
Service brake/parking brake |
|
|
Hydraulic/Mechanical |
|
Hydraulic system working pressure |
|
Mpa |
20 |
Certifications
shipping picture
FAQ
1. Why choose us?
As a manufacturer, LTMG industrial is committed to offer not only products with high quality and performance and competitive price, but also in-time delivery and comprehensive 7/24 after-sale services.
2. What is the product range of your factory ?
LTMG industrial is a large-scale machinery manufacturing enterprise primarily specializes in supplying wheel loaders, forklift trucks, excavator and related attachments. We can also customize non-standard products according to customer's requirements.
3. What payment terms can you accept?
Normally 30% deposit is required in advance, 70% balance shall be settled before shipment. And 100% irrevocable L/C at sight with the terms we agreed can also be accepted.
4. What Certificates do you have?
All products meet with the ISO9001 Quality System and have acquired CE certificate. EPA approval will be available if needed.
5. How about your delivery time?
Usually it will take 15 to 30 days after receiving your deposit. About standard products, we always have in stock and can deliver immediately. But customized products will take more time, depending on the requirements of your order.
6. Can you provide OEM service?
LTMG industrial can provide customized products according to customers' requirements, both OEM and ODM are acceptable.
