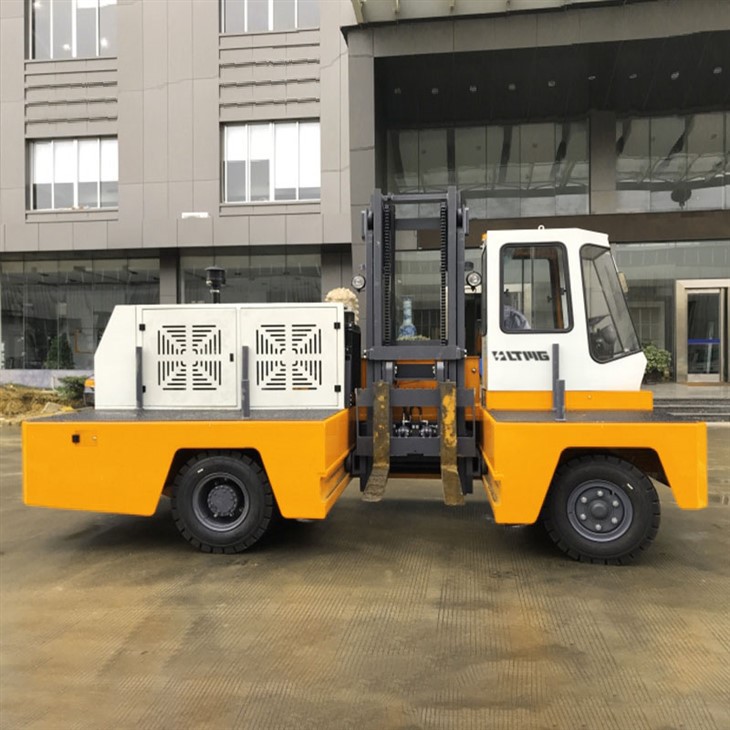

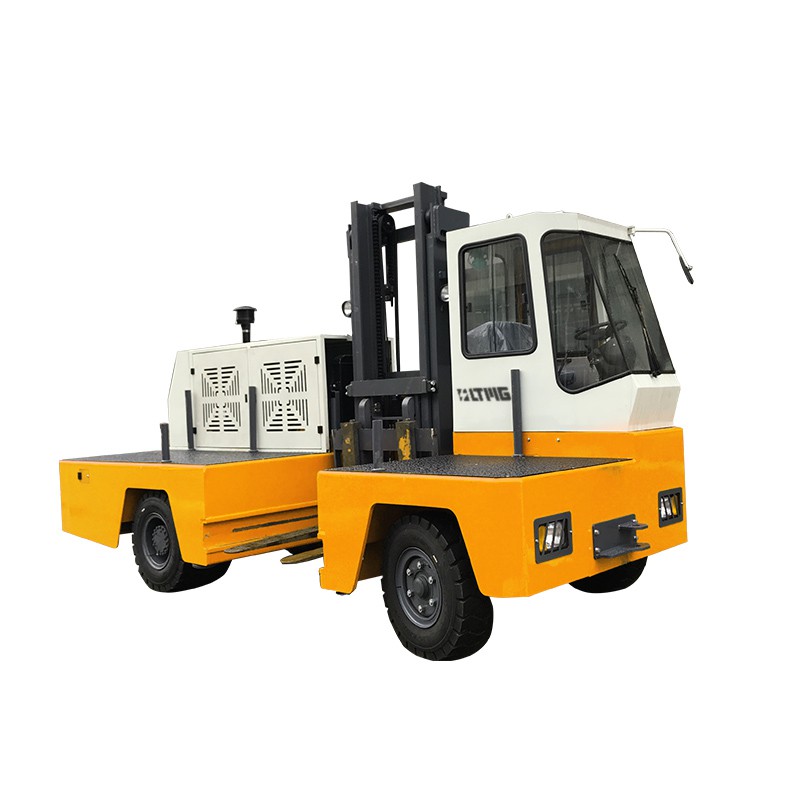

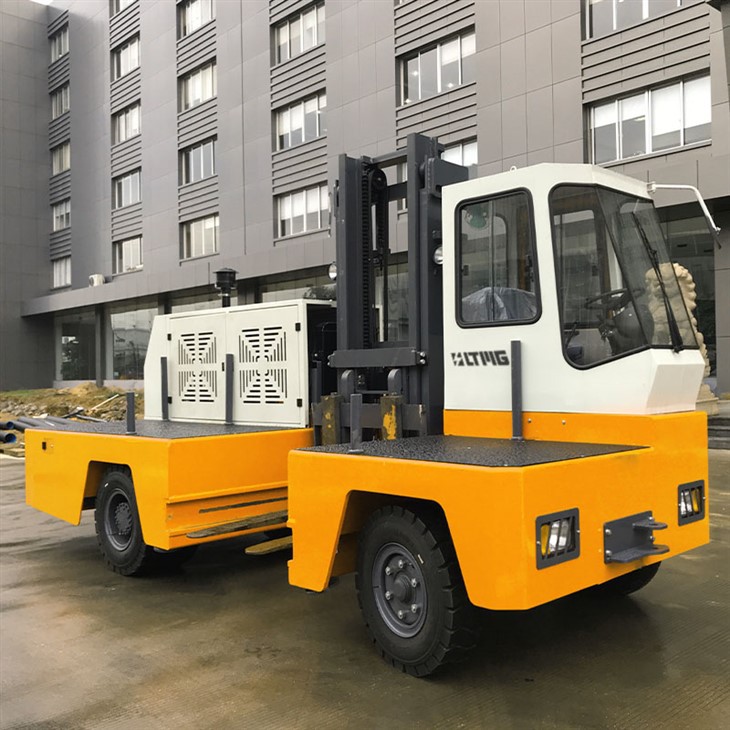

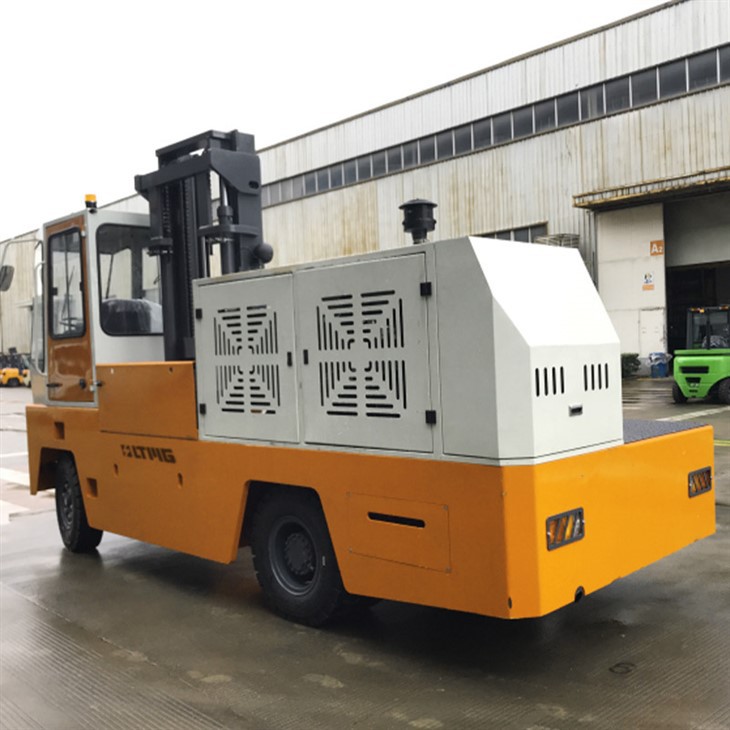

Side loader fork truck has new structural design, high body strength, strong bearing capacity, low vibration, low noise, and comfortable driving experience. It also has streamlined and large-space cab in line with ergonomics, with wide field of vision and comfortable operation Digital special instrument, the driver can accurately grasp the running status of the vehicle in time. The tire has good stability and excellent passability.The reliable protection function of the outrigger cylinder can effectively ensure the safe operation.
Side loader fork truck and counterbalance lift truck in one, this revolutionary design eliminates costly double handling of materials and increases productivity. The cab is on the side of the mast, improving visibility, clearly seeing the fork and load, improving safety and reducing the risk of product damage. It adopt a flexible support for driving system, capable of reducing the vibration of whole machine and increasing the operation comfort.
Specification
|
Model |
|
|
FDS50 |
|
|
Power Type |
|
|
diesel |
|
|
Rated Capacity |
|
kg |
5000 |
|
|
Load Centre |
|
mm |
600 |
|
|
Lift Height |
H |
mm |
3600 |
|
|
Fork Size (LxWxT) |
L3 |
mm |
1220x150x60 |
|
|
Mast Tilt Angle(F/R) |
a/p |
Deg |
573° |
|
|
Front Overhang |
L1 |
mm |
700 |
|
|
Ground Clearance(Bottom of mast) |
H3 |
mm |
205 |
|
|
|
LxWxH |
|
mm |
5140x2140x2660 |
|
Platform Width |
W |
mm |
1300 |
|
|
Platform Length |
L |
mm |
5140 |
|
|
Overhead Guard Height |
H2 |
mm |
2660 |
|
|
Turning Radius(outside) |
r |
mm |
4300 |
|
|
|
Travel(Full load) |
|
km/h |
7，18 |
|
Lifting(Fullload) |
|
mm/s |
250 |
|
|
Max.Gradeability |
|
% |
20 |
|
|
|
Front |
|
|
2*8.25-15-14PR |
|
Rear |
|
|
4x8.25-15-14PR |
|
|
Wheelbase |
L2 |
mm |
2800 |
|
|
Service Weight |
|
kg |
8300 |
|
|
Battery(Voltage/Capacity) |
|
V/Ah |
(12/80)x2 |
|
|
|
Model |
|
|
6BG1 |
|
Manufacturer |
|
|
ISUZU |
|
|
Rated output/r.p.m. |
|
kw |
82.3/2000 |
|
|
Rated torque/r.p.m. |
|
N • m |
416/1400-1600 |
|
|
No.of Cylinder |
|
|
6 |
|
|
Bore*Stroke |
|
mm |
105x125 |
|
|
Displacement |
|
cc |
6494 |
|
|
Fuel Tank Capacity |
|
L |
170 |
|
Certifications
Our company
Xiamen LTMG Co., Ltd., a thriving machinery manufacturing enterprise established in 2001, spearheads the industry in producing logistics handling equipment and construction machinery products. Placed in Xiamen, the company's headquarters is complemented by a branch factory positioned in Shandong, spanning an impressive territory of 100,000 square meters. Bolstered by 8 fully operational machinery production lines, it successfully produces an annual output of 20,000 units.
LTMG Machinery Group (LTMG) currently operates in more than 180 countries, delivering outstanding results concerning market share, brand influence, trade volume growth rate, service quality, and customer base growth. Additionally, LTMG has established a strong partnership with over 50 exclusive distributors worldwide, earning high praise and recognition for its products from both domestic and international markets.
FAQ
1. As a consumer, I'm curious about the products offered by your company. Could you provide some details about LTMG Industries' inventory?
As a first-class manufacturer of material handling and construction machinery and equipment (including forklifts, warehousing equipment, loaders, etc.), LTMG has always adhered to the mission of focusing on the needs of the customer, and is committed to creating more value for the customer.
2. Are you open to partnering with agents?
Most definitely! We are eager to work alongside agents worldwide. If you are interested in collaborating with us, please don't hesitate to contact us via email, WhatsApp, and other communication channels.
3. How can I pay for my order and when will it get delivered?
We accept T/T, L/C, and D/P payments and the delivery time is usually 20-30 days after the deposit has been made.
4. What about the certification of you product?
Product quality has always been the most important issue for LTMG. Our products meet the high standards set by the ISO9001 Quality System and carry a CE certificate. EPA approval can be arranged if required.
