Products Description

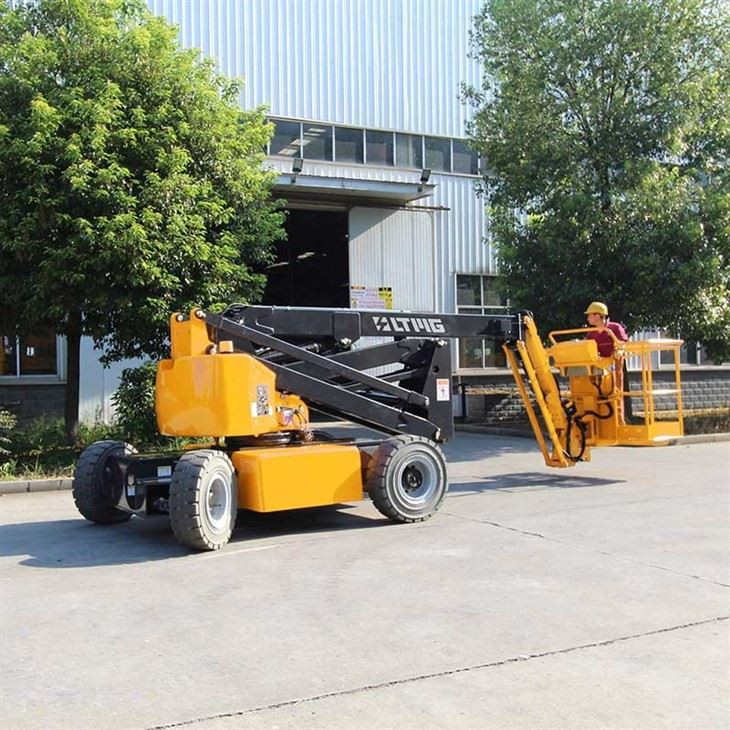

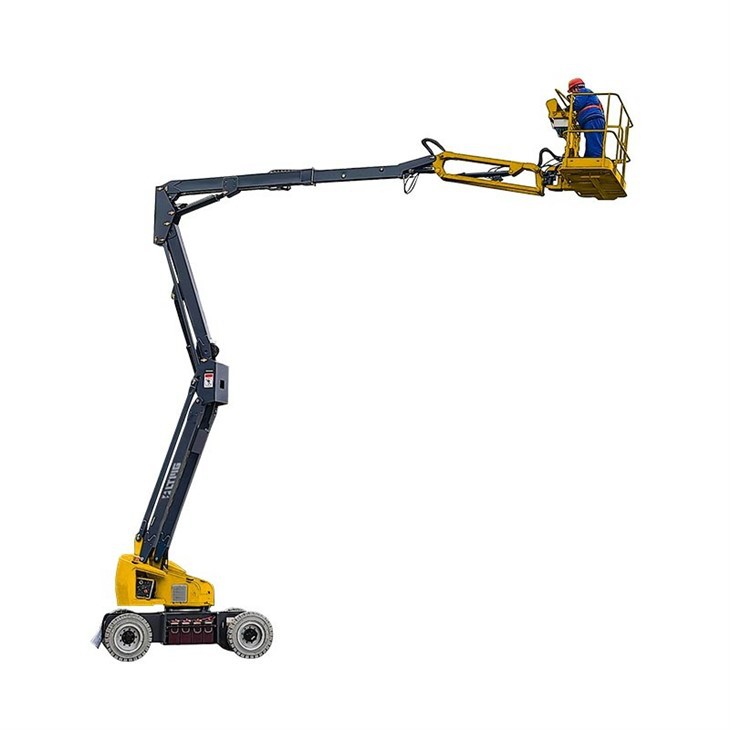

An electric articulating boom lift is a type of aerial work platform that is designed to provide elevated access to worksites or job sites. It is powered by an electric motor and features a articulated boom that can be extended and maneuvered to reach elevated areas. The lift can move both vertically and horizontally, making it ideal for accessing hard-to-reach areas or maneuvering around obstacles. This type of lift is commonly used in construction, manufacturing, and maintenance industries to perform tasks such as installation, repair, and cleaning.
LTMG's electric articulating booms has several remarkable features:
1. With a wide range of specifications and sizes available, our electric articulating booms can be tailored to meet the specific needs of your site or project.
2. Equipped with the innovative hinge design, which enables them to bend and twist in ways that traditional booms cannot. This flexibility makes them ideal for use in small, indoor spaces where maneuverability is at a premium.
3. Equipped with a range of sophisticated safety features to ensure the safety of your crew and anyone in the immediate vicinity. From automatic tilt alarms to emergency shut-off switches, our machines are built to protect the operator.
4. Quiet Operation: Electric boom lifts operate quietly, which makes them an ideal choice in sensitive areas such as hospitals, schools, and residential areas.
LTMG's electric articulating booms are the perfect solution for anyone looking for a versatile and compact aerial work platform, and it can be used in a variety of applications including construction, maintenance, and repair work.
specification
|
Model |
LTQE1012 |
LTQE1214 |
LTQE1416 |
LTQE1618 |
LTQE1820 |
LTQE2022 |
|
|
Measurements |
|||||||
|
Working height maximum |
m |
12 |
14 |
16 |
18 |
20 |
22 |
|
Platform height maximum |
m |
10 |
12 |
14 |
16 |
18 |
20 |
|
Horizontal reach maximum |
m |
5.8 |
8 |
8.1 |
10 |
10.8 |
12.3 |
|
Up Stover clearance maximum |
m |
4.78 |
5 |
7.6 |
7.6 |
9.2 |
9.2 |
|
(LxW ) Platform dimensions(LxW) |
m |
1.1x0.65 |
1.53x0.76 |
||||
|
Length(stowed) |
m |
4.35 |
5.3 |
6.24 |
7.9 |
8.1 |
9.2 |
|
Width(stowed) |
m |
1.5 |
2 |
1.75 |
2 |
2.38 |
2.38 |
|
Height(stowed) |
m |
1.99 |
2.05 |
2 | 2 |
2.38 |
2.34 |
|
Wheelbase |
m |
1.65 |
2 | 2 | 2.2 |
2.6 |
2.6 |
|
Ground clearance(center) |
m |
0.15 |
0.2 |
0.2 |
0.2 |
0.3 |
0.3 |
|
Productivity |
|||||||
|
Lift capacity maximum |
kg |
200 |
230 |
230 |
|||
|
Platform occupancy maximum |
2 |
||||||
| Platform rotation | ±80° | ||||||
| Vertical jib rotation | 140° | ||||||
| Turntable rotation | 355° | ||||||
|
Turntable tailswing |
m |
0.25 |
0.13 |
0 |
0 |
0.33 |
0.33 |
|
Drive speed (stowed) |
km/h |
3 |
3 |
5 |
5 |
5 |
5 |
|
Drive speed (raised) |
km/h |
0.8 |
0.8 |
0.8 |
0.8 |
0.8 |
0.8 |
|
Gradeability |
25% |
30% |
25% |
||||
| Working slope maximum | 3°/3° | ||||||
|
Turning radius(inside) |
m |
2.16 |
2.2 |
2.68 |
2.98 |
2.66 |
2.66 |
|
Turning radius(outside) |
m |
3.44 |
4.73 |
4.24 |
4.62 |
5.66 |
5.66 |
|
Drive & steer mode |
4x2x2 |
||||||
|
Tire type |
0.59x0.19 |
28x9-15 |
33x12-20 |
||||
|
Power |
|||||||
|
Battery |
48V/320Ah |
48V/390Ah |
|||||
|
Pump electric motor power |
7.5 |
5 |
|||||
|
Drive electric motor power |
kW |
/ |
6.5x2 |
||||
|
Control voltage |
24V DC |
||||||
|
Charger |
48V/50A |
48V/62A |
|||||
|
Weight |
kg |
4800 |
5500 |
6270 |
6720 |
8080 |
8200 |
|
Standards Compliance |
EN280：2013 + A1:2015 GB25849-2010 |
||||||

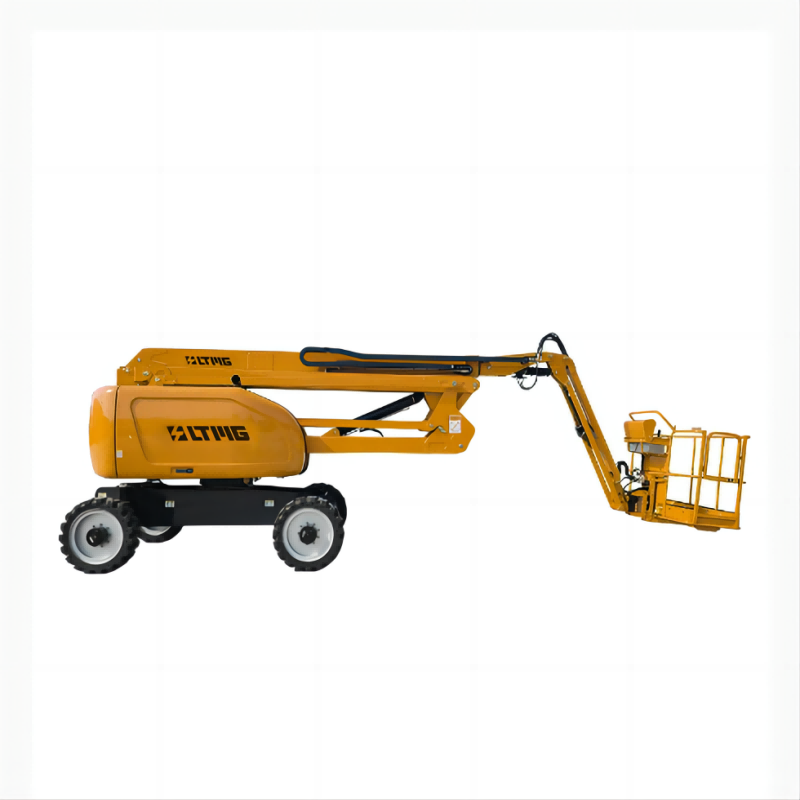

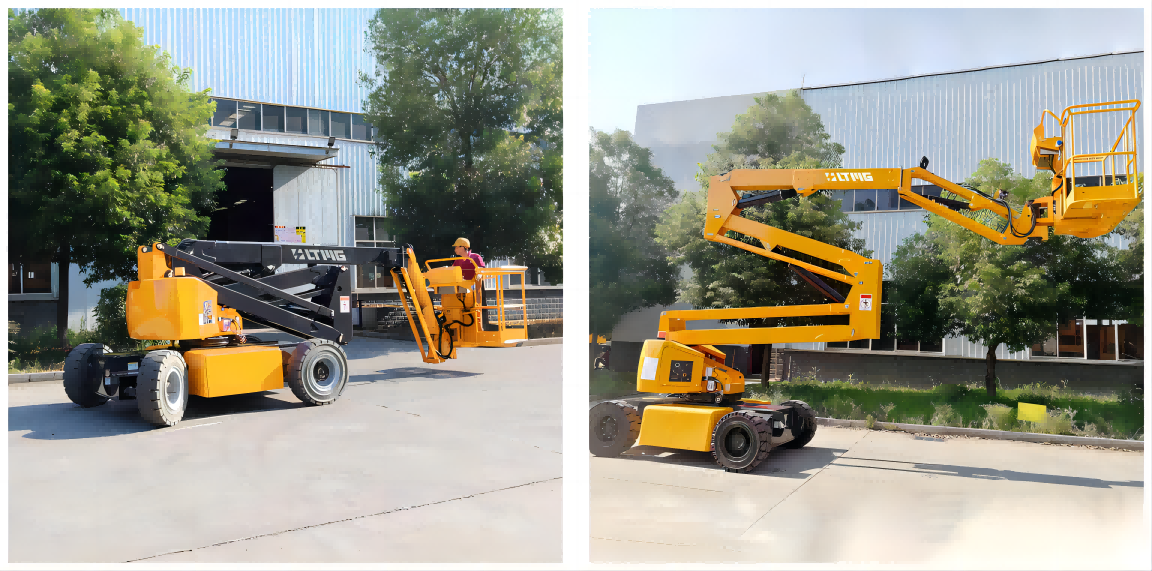

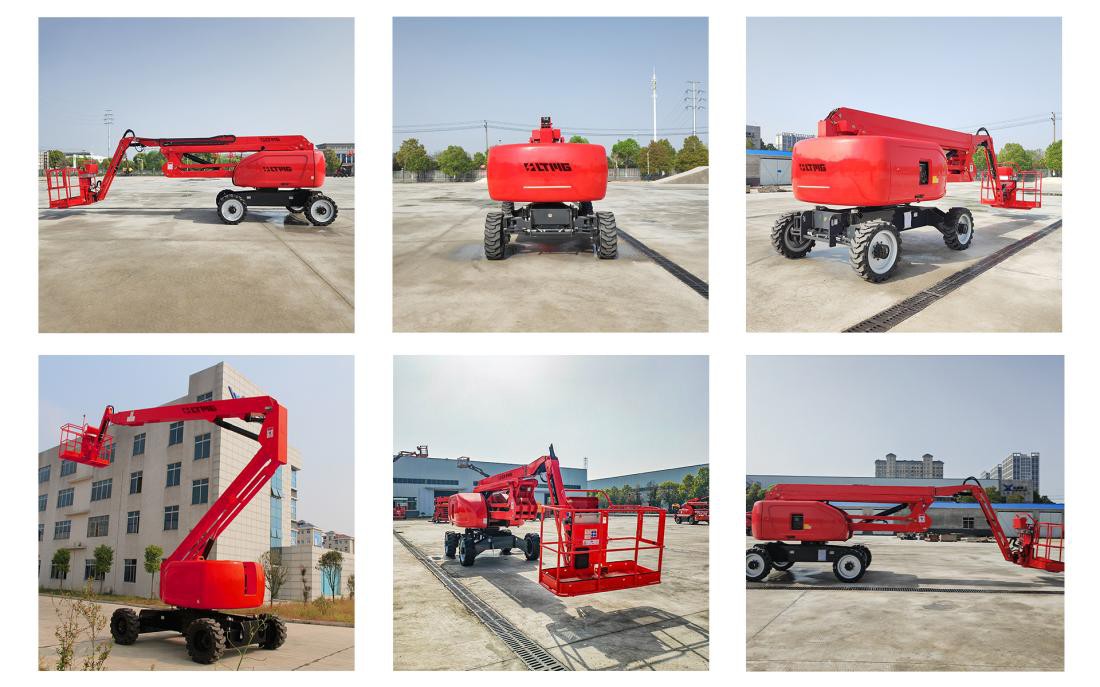

Detail of the electric articulating booms

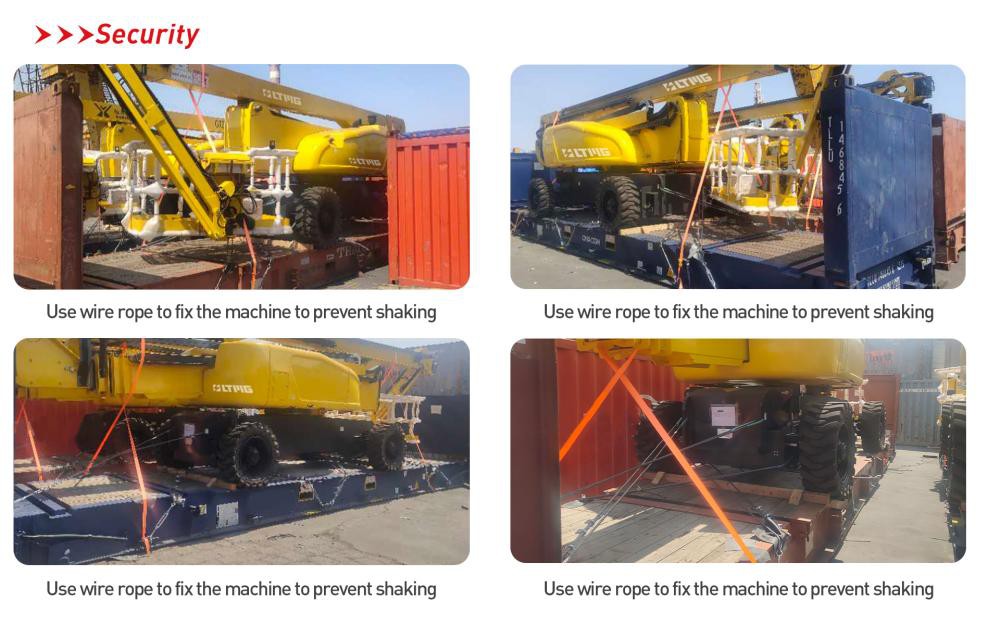

Shipping package picture
related Products

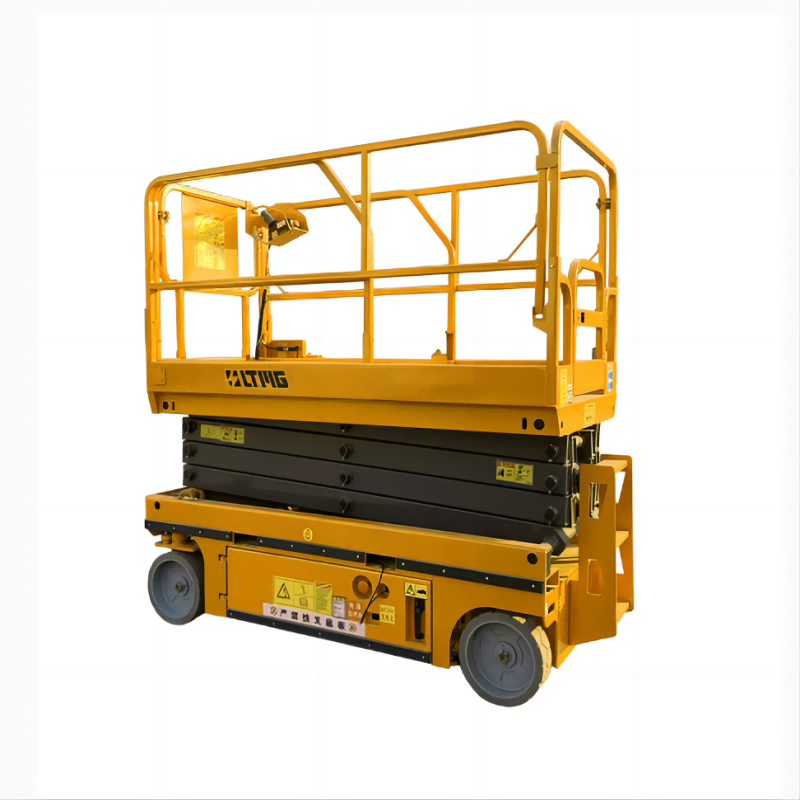

LTMG provides a diverse line of Mobile Elevating Work Platforms that are designed to provide exceptional safety, reliable performance, and efficiency to the users. They are versatile and easy to use, which makes them ideal for painting, maintenance work, cleaning, and even rescue operations.
