This 2 ton small diesel forklift is simple and durable, with smooth and beautiful lines. Equipped with a mast with a wide field of vision to ensure that the driver has a good view. The top guard is made of high-strength steel plate pressed to protect against wind and rain, providing more sophisticated safety protection for the driver and ensuring a safe and comfortable loading and unloading process. Load-sensing priority steering hydraulic system design, flexible steering, mast lifting speed increased by 20%.
The low centre of gravity design of this small diesel forklift improves tyres grip and cornering stability, high driving safety, easy to cope with a variety of working conditions! The engine, gearbox and other core equipment are from ISUZU, CUMMIS and other domestic and international famous brands, excellent quality and long service life.
specification
|
General |
Model |
|
FD20 |
||
|
Power Type |
|
Diesel |
|||
|
Rated Capacity |
kg |
2000 |
|||
|
Load Centre |
mm |
500 |
|||
|
Characteristic |
Lift Height |
mm |
3000 |
||
|
Fork Size |
L×W×T |
mm |
1070×120×40 |
||
|
Mast Tilt Angle |
F/R |
Deg |
6°/12° |
||
|
Front Overhang (Wheel center to fork face) |
mm |
465 |
|||
|
Ground Clearance（Bottom of mast） |
mm |
110 |
|||
|
Overall Dimension |
Length to face of fork(Without fork) |
mm |
2595 |
||
|
Overall Width |
mm |
1150 |
|||
|
Mast Lowered Height |
mm |
2070 |
|||
|
Mast Extended Height(With backrest) |
mm |
4070 |
|||
|
Overhead Guard Height |
mm |
2070 |
|||
|
Turning Radius (outside) |
mm |
2310 |
|||
|
Performance |
Speed |
Travel (Full load) |
km/h |
19 |
|
|
Lifting (Full load) |
mm/s |
530 |
|||
|
Max.Gradeability (No load/Full load) |
% |
20 |
|||
|
Chassis |
Tire |
Front |
mm |
7.00-12-12PR |
|
|
Rear |
mm |
6.00-9-10PR |
|||
|
Wheelbase |
mm |
1600 |
|||
|
Service weight |
kg |
3590 |
|||
|
Power&Transmission |
Battery |
Voltage/Capacity |
V/Ah |
12/80 |
|
|
Engine |
Model |
|
C240 |
||
|
Manufacture |
|
ISUZU |
|||
|
Rated output/r.p.m. |
kw |
35.4/2500 |
|||
|
Rated torque/r.p.m. |
N·m |
137.7/1800 |
|||
|
No.of Cylinder |
|
4 |
|||
|
Bore×Stroke |
mm |
86×102 |
|||
|
Displacement |
cc |
2369 |
|||
|
Fuel Tank Capacity |
L |
60 |
|||
|
Transmission |
Type |
|
Hydraulic |
||
|
Stage |
FWD/RVS |
|
1/1 |
||

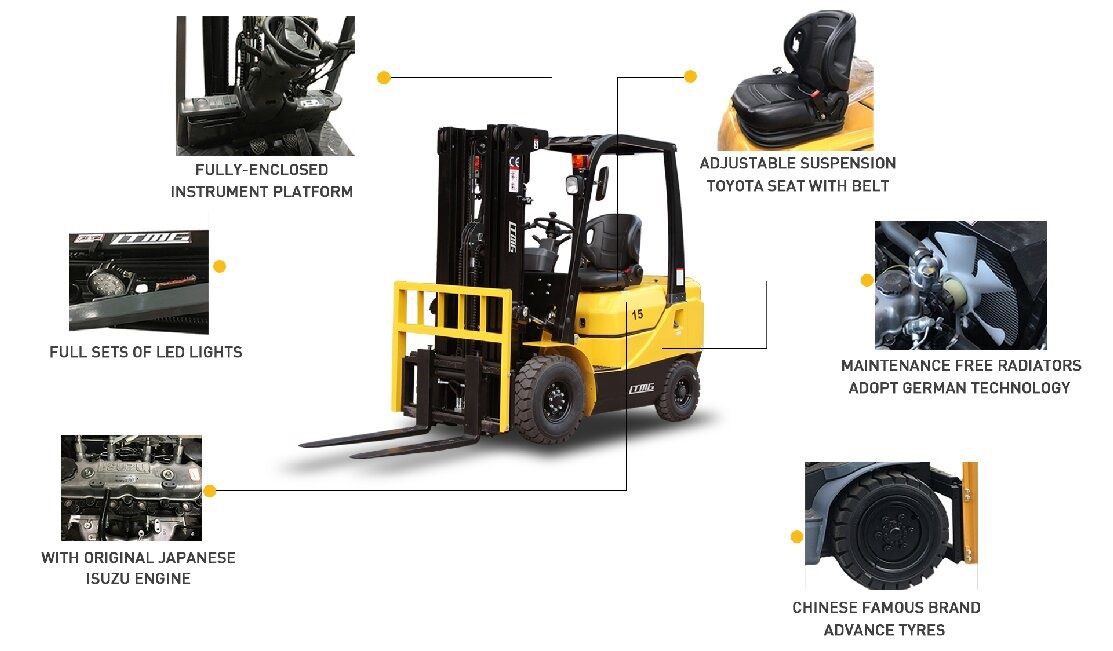

Details of LTMG diesel forklift
Our company
LTMG Co.,Ltd.was established in2001,is a modern large-scale machinery manufacturing enterprise that produces logistics handling equipment and construction machinery products. Our company is headquartered in Xiamen and branched factories in Shandong covering a total area of 100,000 squaremeters.The factory has 8 complete production lines for machinery,with a20,000 unit yearly output.
At present, LTMG Machinery Group（LTMG）has conducted businesses with more than 100 countries and have made outstanding achievement in terms of market share, brand influence, growth rate of trade volume, service quality and rate of customer growth. LTMG so far has over 30 exclusive distributors in the world. The products got the high praise and recognition of customers at home and abroad.
FAQ
1. Are you a manufacturer ?
A. We are manufacturer and At present, Forklift production base owns 120,000 square meters production base and 15000 units forklifts annual production capacity.
2. Can l visit your factory?
A: By all means, we warmly welcome your arrival, Before you take off from your country, please let us know. We will show you the way and arrange time to pick you up if possible.
3. Can you give me a discount?
A: Discount is available, but we have to see the real quantity,we have different price based on different quantity,how much discounts is determined by the quantity, moreover, our price is very competitive in the field
4. Do you looking for Agent?
Yes, we're looking for the agent all over the world, please contact us for further discussion.
