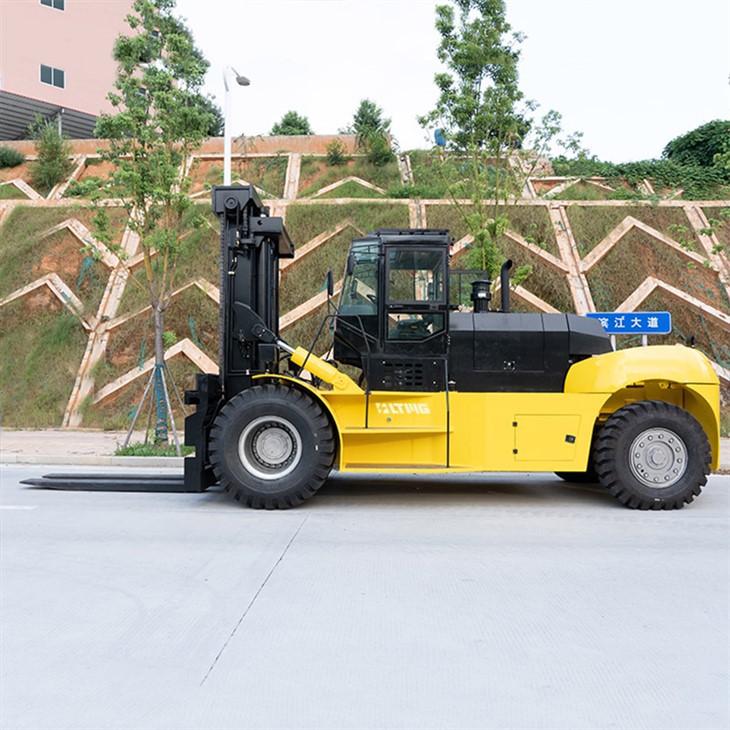

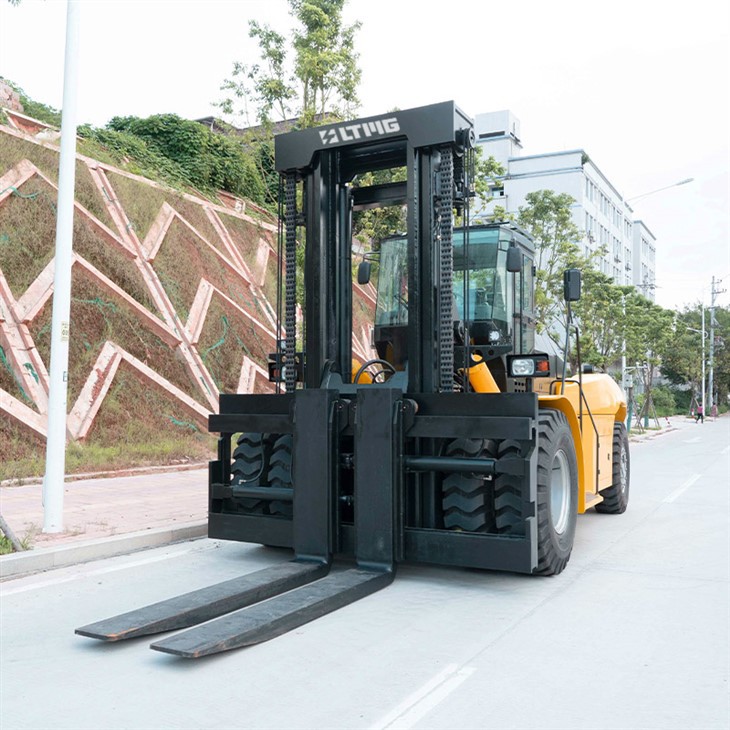

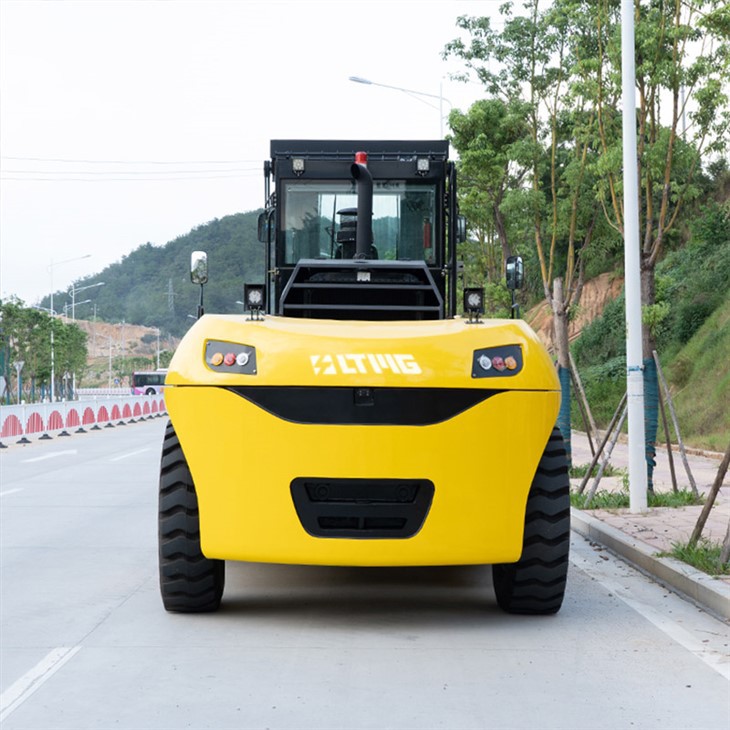

The 30 ton forklift is one of the heavy duty diesel forklift with excellent performance in the current market, which is widely used in various fields, such as ports, logistics and warehousing, steel mills and other industries. This kind of forklift truck can carry a large amount of goods, and can transport large items quickly and safely, which improves the working efficiency and saves time and energy.
Besides, the heavy duty diesel forklift has the features of good stability, simple operation and high reliability, which ensures the safety and efficiency of the work. It can reduce the physical labour intensity of workers, improve work efficiency and quality, and substantially reduce labour costs and related risks.
To sum up, the application range of 30 tonne large forklift truck is very wide, effectively solving the transport needs in different scenarios.
Specification
|
|
|
FD300 |
|
Rated Load |
Kg |
30000 |
|
Load Center |
mm |
1220 |
|
Wheelbase |
mm |
4400 |
|
Weight |
kg |
38000 |
|
Tire Specs:Front |
|
14.00-24 |
|
Tire Specs:Rear |
|
14.00-24 |
|
Tires Qty,front/rear(X-dreve wheels) |
|
4/2 |
|
Wheel tread:Front |
mm |
2220 |
|
Wheel tread:Rear |
mm |
2300 |
|
Mast/carriage tilt angle(front/rear) |
Degree(°) |
6/12 |
|
Mast height(fork lowering) |
mm |
3970 |
|
Mast lifting height |
mm |
4000 |
|
Max.height |
mm |
5940 |
|
height to head guard(height to cab) |
mm |
3440 |
|
Overall height（with forks) |
mm |
8950 |
|
Fork front verticaal sueface to the rear end of the vehicle |
mm |
6550 |
|
Overall width |
mm |
3060 |
|
Fork dimension |
mm |
2400*320*110 |
|
Fork carriage width |
mm |
3000 |
|
Mast min ground(with load) |
mm |
350 |
|
Wheelbase center min ground(with load) |
mm |
420 |
|
Min.turning Radius |
mm |
6160 |
|
Travel speed(with load/without load) |
km/h |
24/28 |
|
.lifting speed(with load/without load) |
mm/s |
260/280 |
|
tractionn |
KN |
180 |
|
Gradeability(with load/without load) |
% |
20/22 |
|
Driving brake |
|
Hydraulic clamp disvc |
|
Engine brand |
|
Dongfeng cummins |
|
Engine model |
|
6CTA8.3-C260 |
|
Rated Output |
(Kw) |
194 |
|
Cylinder No |
|
6 |
|
Transmission gears(Front/rear) |
|
2/1 |
Certifications
Exhibition
LTMG actively participates in construction machinery exhibitions, so that it can understand the market demand and the actual situation of customers through in-depth communication with them. It can also deepen its understanding of the industry and broaden its horizons through in-depth exchanges and discussions with professionals.
FAQ
1. Can I mix different models in one container?
Yes, different kinds of machines can be mixed in one container, but the quantity of each model should not be less than MOQ.
2. Would you have a discount if l place a large order?
Yes, we could offer different discount according to your order quantity.
3. Could you print our company LOGO on the nameplate and package?
Yes, we can do that.
4. Can you provide drawings and technical data?
Yes, our professional technical department can design and provide drawings and technical data.
