32 Ton Heavy Load Forklift

Items: 32 ton diesel forklift
Power type: diesel
Rated capacity: 32000 kg
Engine type: WeiChai Engine
Lifting height: 4000 mm
Send Inquiry
Chat Now

Product Introduction

Products Description



LTMG heavy duty diesel forklifts are powerful and stable in operation, providing a rugged and dependable solution for any business looking to move heavy goods quickly and safely. With their advanced technology and exceptional build quality, these forklifts are designed to withstand even the harshest environments, making them the ideal choice for businesses that demand the highest levels of performance and reliability.



Whether you need to unload containers, stack heavy steel, or handle large volumes of stone or concrete, our heavy load forklifts have the strength and durability to get the job done. With their advanced technology and intuitive controls, our forklifts are designed to give you maximum control and precision, allowing you to move heavy loads with ease and confidence.

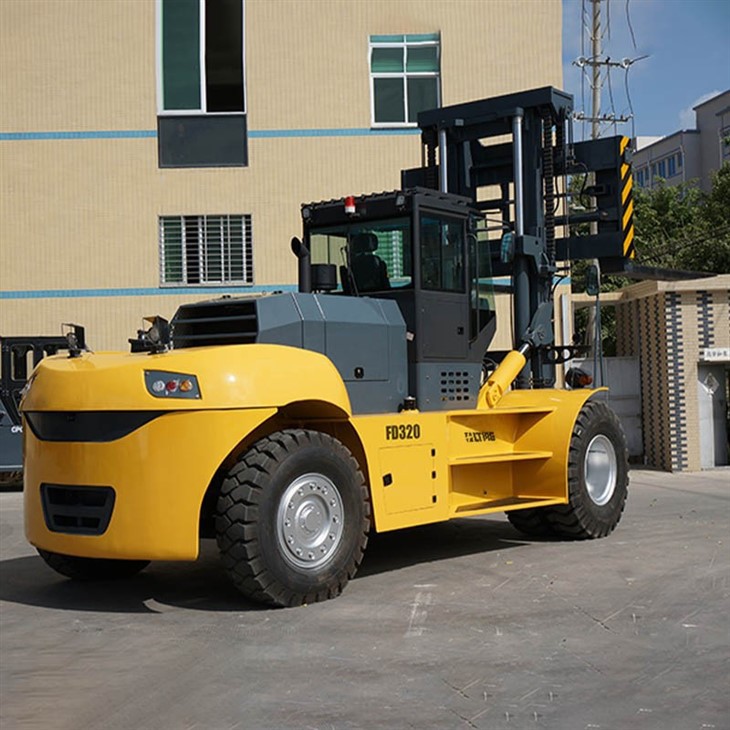

32 ton heavy load forklift

The configuration and performance of the large tonnage forklift truck has been upgraded and modified through an ongoing product development program.LTMG's 32-ton heavy-duty forklift trucks are made of high-strength steel plate material, capable of carrying high-intensity porter work and providing sophisticated protection for the operator. The vehicle's engine and transmission are all of internationally recognized brands, powerful, responsive and of high quality, making it an excellent choice for large tonnage forklifts.

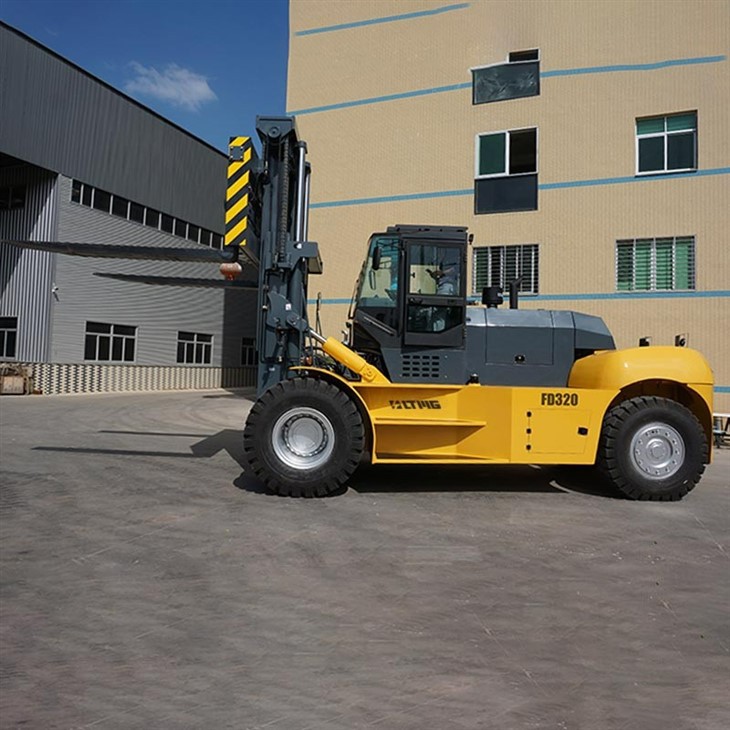

32ton forklift truck



specification

Item



FD320



Features



Rated Load

Kg

32000

Load Center

mm

1220

Wheelbase

mm

4800

Weight

Weight

Kg

42000







Chassis



Tire Specs:Front



16.00-25

Tire Specs:Rear



16.00-25

Tires Qty,front/rear(X-dreve wheels)



4/2

Wheel tread:Front

mm

2430

Wheel tread:Rear

mm

2230

























Dimensions



Mast/carriage tilt angle(front/rear)

Degree(°)

6/12

Mast height(fork lowering)

mm

4150

Mast lifting height

mm

4000

Max.height

mm

6120

height to head guard(height to cab)

mm

3460

Overall height(with forks)

mm

9460

Fork front verticaal sueface to the rear end of the vehicle

mm

7060

Overall width

mm

3360

Fork dimension

mm

2400*320*120

Fork carriage width

mm

3000

Mast min ground(with load)

mm

400

Wheelbase center min ground(with load)

mm

460

Min.turning Radius

mm

6600

Travel speed(with load/without load)

km/h

25/28











Performance



Llifting speed(with load/without load)

mm/s

260/280

Tractionn

KN

200

gradeability(with load/without load)

%

20/20

Driving brake



Hydraulic clamp disvc





Engine



Engine brand

Dongfeng cummins

Engine model

6CTA8.3-C260

Rated Output

194(Kw)

Cylinder No

6

Others

Transmission gears(Front/rear)



2/1

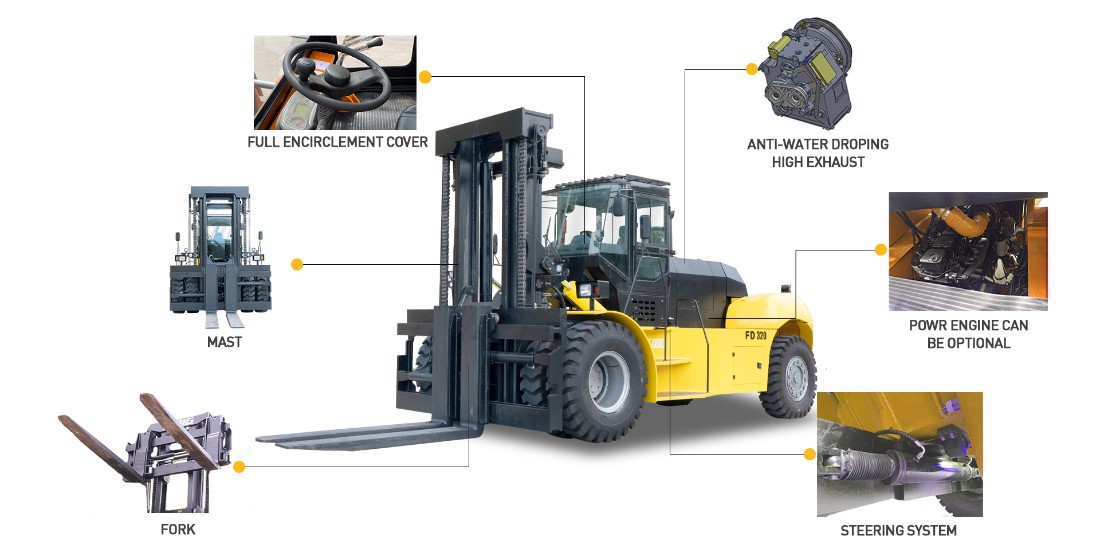

Details of 32ton diesel forklift



Heavy load forklifts are designed to take on the toughest work areas with ease. With their exceptional load capacity, these forklifts can handle heavy loads with ease, making them the perfect solution for many industries and applications. Whether you are working in a lumber mill, port, shipyard, concrete plant, or steel mill, a heavy load forklift will greatly improve your operational efficiency.

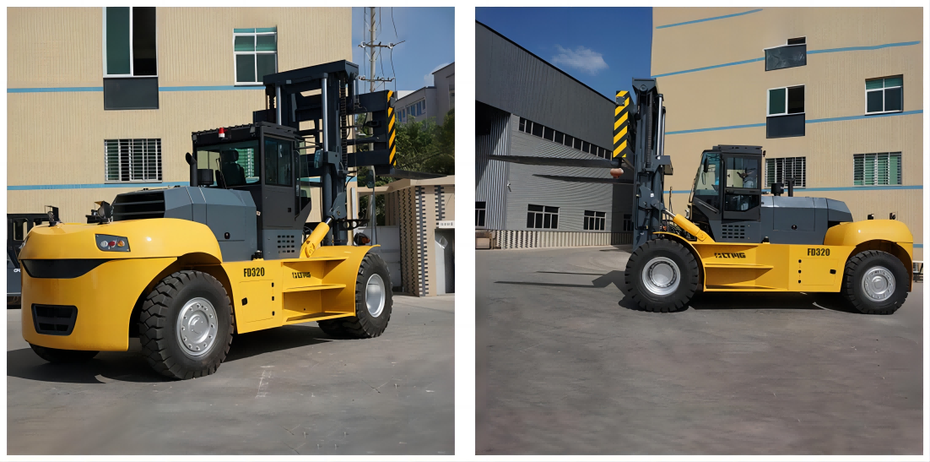

Detail of 32ton Diesel Forklift

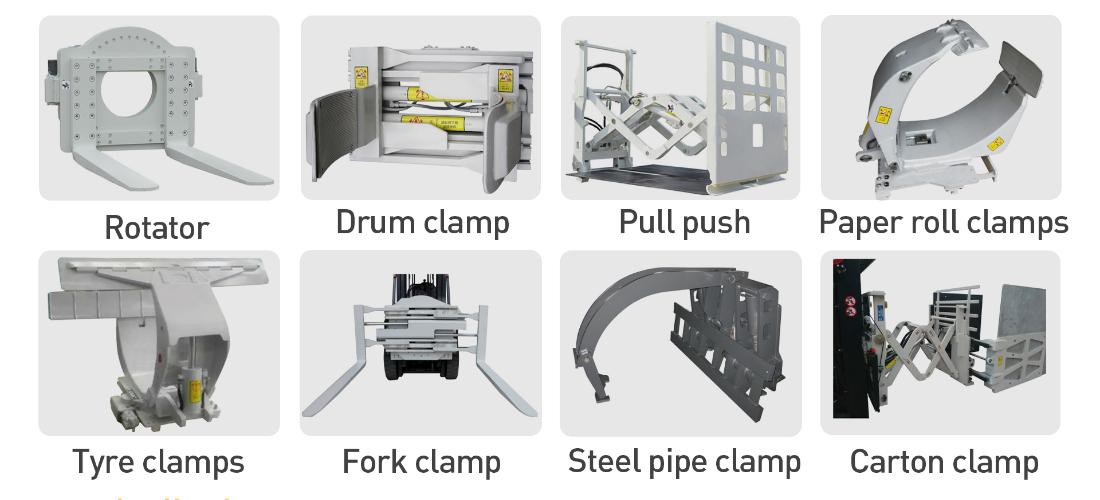

Attachment of LTMG forklift Truck

Attachment of LTMG Forklift Truck



Same as other forklifts, this 32-ton diesel forklift is also suitable for various attachments. You can choose the right category according to your actual scene needs. If you have any concerns, please feel free to contact our staff, they will provide you with professional answers.



FAQ

Q: How does your factory perform quality control?

A: We have a complete quality control system and all our products have corresponding certificates. Besides, we provide one year warranty and lifetime technical guidance.

Q: What is the specific delivery time of the products?

A: Usually it is about 30 days. The specific delivery time may be different for different orders or at different times.

Q: Does the product support ODM/OEM service?

A: We support ODM/OEM service to provide customers with private customized products that best meet their needs.

Q: Can I visit your factory?

A: Of course you can, please contact our staff in advance, they will assist you to arrange the specific trip.
