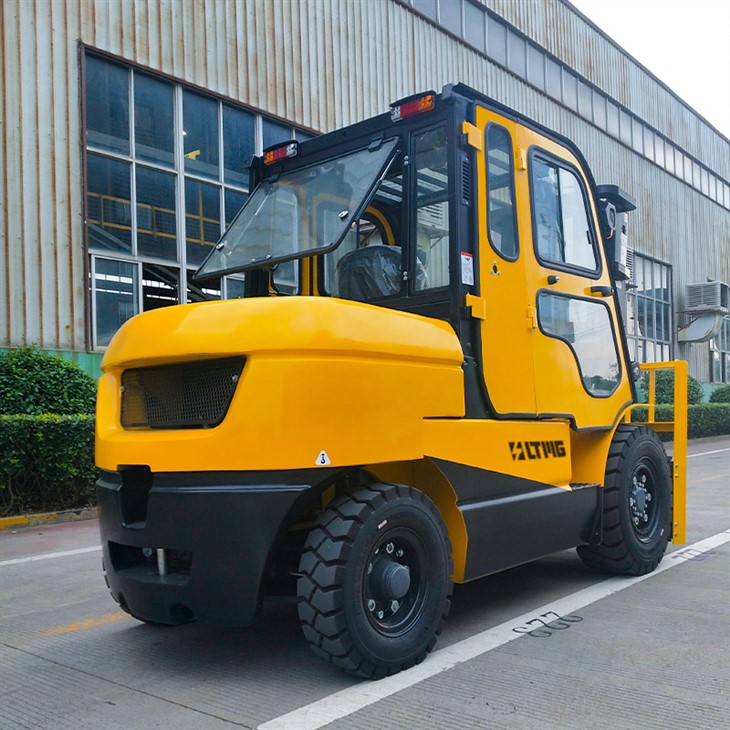

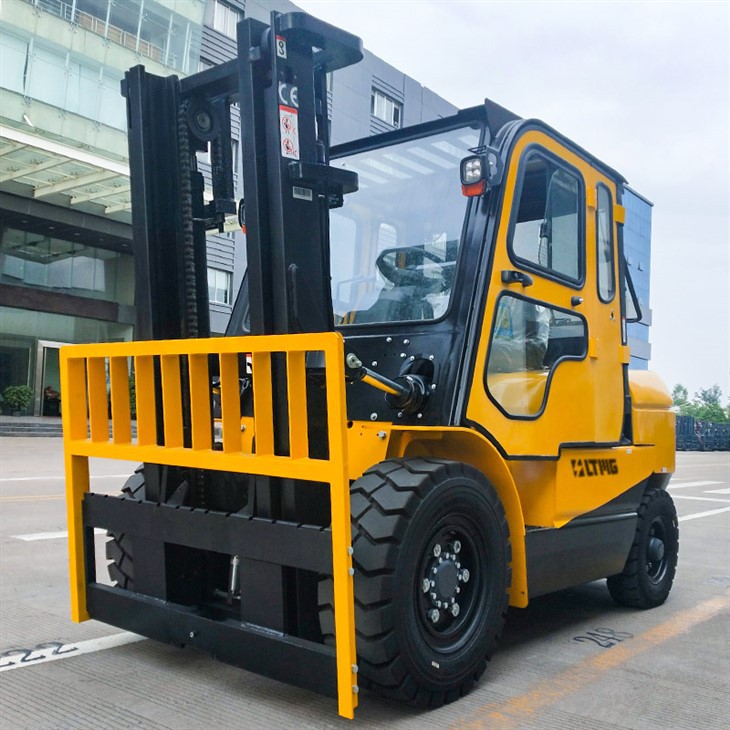

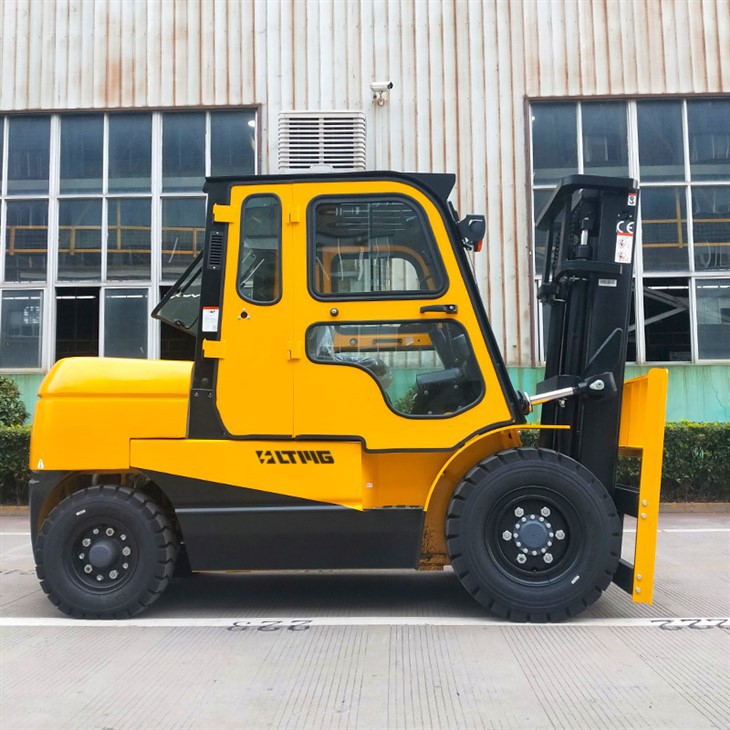

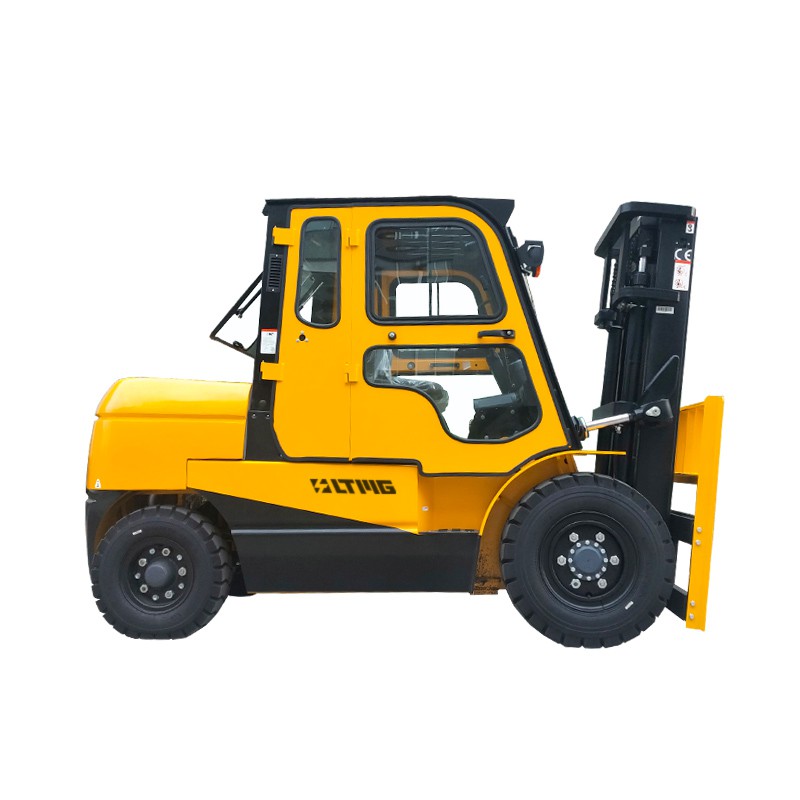

This kind of 5 ton diesel forklift is a tool widely used for transporting different items in different scenarios, which is convenient and flexible to operate. Among them, the design of each part and the application of accessories are also important. The unique design of the mast can provide the driver with an open view and ensure safe operation. The engine gearbox and other accessories of this forklift adopt famous brands at home and abroad, which largely guarantee the reliability and service life of the forklift. In addition, this kind of 5 ton diesel forklift can also adapt to different environments for work and is little affected by weather conditions. Overall, diesel forklift is an efficient, safe and reliable logistics and transport tool, which also improves productivity and quality.

Specification

Model				FD50
Power Type				Diesel
Rated Capacity			kg	5000
Load Centre			mm	600
Lift Height			mm	3000
Fork Size		L×W×T	mm	1220×150×60
Mast Tilt Angle		F/R	Deg	6°/12°
Fork Overhang (Wheel center to fork face)			mm	590
Ground Clearance（Bottom of mast）			mm	200
Overall Dimension		Length to face of fork(Without fork)	mm	3440
		Overall Width	mm	2010
		Mast Lowered Height	mm	2500
		Mast Extended Height(With backrest)	mm	4415
		Overhead Guard Height	mm	2430
Turning Radius (outside)			mm	3250
Speed		Travel (Full load)	km/h	30
Speed		Lifting (Full load)	mm/s	500
Max.Gradeability			%	20
Tyre		Front	mm	8.25-15-14PR
Tyre		Rear	mm	8.25-15-14PR
Wheelbase			mm	2250
Self weight			kg	8150
Battery	Voltage/Capacity		V/Ah	(12/80) x 2
Engine	Model			6BG1-02
	Manufacture			ISUZU
	Rated output/r.p.m.		kw	82.4/2000
	Rated torque/r.p.m.		N·m	416/1600
	No.of Cylinder			6
	Bore×Stroke		mm	105×125
	Displacement		cc	6494
	Fuel Tank Capacity		L	125
Transmission	Type			Hydraulic
Transmission	Stage	FWD/RVS		2/2

attachments

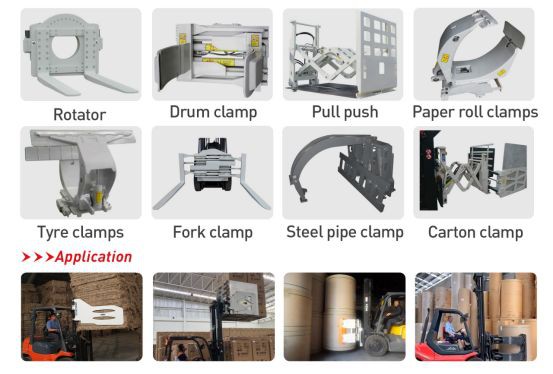

attachment of 5 ton diesel forklift

Certification

certification of 5 ton diesel forklift

Shipping plan of 5 ton diesel forklift

Before shipping, in order to ensure that the diesel forklifts are transported safely to the destination, the shipment should be prepared before shipping. Prepare the relevant certificates, pictures and videos and other materials and do a good job of product packaging reinforcement and protection to prevent damage in the transport process.

FAQ

1. What is your minimum order quantity, can I get a sample?

Our minimum quantity is 1 set, as our product is machinery equipment, it's difficult to send you samples, however,we can send you catalog, warmly welcome you to come visit our company.

2. What's your payment terms?

30% deposit paid by T/T, balance paid by L/C are available, 100%T/T before shipment.

3. How does your company ensure quality control?

We have CE certificates. One Year Warranty and Life-time Technical Support.

4. Do you stock products?

Most of the products are not in stock, the machine will be produced according to your order. However, there are some standardized products in stock, please contact our sales staff for details.
