Products Detail
Equipped with an INMOTION controller and imported motor, the 12 ton electric fork truck is designed with two sets of high-capacity batteries and comes with an automatic charging system. Through a side-pull design of the large electric forklift, the batteries can be replaced easily and safely. In addition, the advanced dual motor driving and dual pump power system ensure compact structure, improving driving and climbing performance with greater torque and higher power output. With fully AC lead-acid batteries, its average lifespan is approximately three years. With proper maintenance, it has the potential to exceed this time frame .
For the construction of the electric forklift, the control lever is installed near the edge of the seat and the seat armrest is installed on the battery cover to make easy and comfortable operations. The non-slip surface of the interior plastic mat guarantees operator security during entry and exit and prevents overheating or excessive cold in extreme weather conditions. Additionally, the electric lift truck features LED light tubes, providing brighter illumination and ensuring personnel security in unfavorable weather.
Compared to those with smaller opening angles, the cover of the 12 ton electric fork truck has a wide opening angle of 90°, convenient for maintenance. The detachable side cover and the tilt cabin further simplify inspection and basic repairs.



Products parameter
Model | FB120 | |
Rated Capacity | kg | 12000 |
Load Centre | mm | 600 |
Lift Height | mm | 3000 |
Fork Size (L×W×T) | mm | 1220×175×85 |
Mast Tilt Angle F/R (α°/β°) | Deg | 6/10 |
Length to face of fork (Without fork) | mm | 4415 |
Overall Width | mm | 2250 |
Mast Lowered Height | mm | 2830 |
Mast Extended Height (With backrest) | mm | 4260 |
Overhead Guard Height | mm | 2640 |
Turning Radius (outside) | mm | 3850 |
Front Overhang (Wheel center to fork face) | mm | 845 |
Tread (Front/Rear) | mm | 1736/1754 |
Ground Clearance (Bottom of mast) | mm | 230 |
Wheelbase | mm | 2850 |
Fork Spread (Min./Max) | mm | 515/2055 |
Travel Speed | km/h | 14 |
Lifting Speed (Full load) | mm/s | 280 |
Max. Gradeability | % | 10 |
Service Weight | kg | 15800 |
Front Tire | 9.00-20 | |
Rear Tire | 8.25-20 | |
Driven Motor | kw | 14×2 |
Lift Motor | kw | 25×2 |
Battery Standard | V/Ah | 96/1250 |
Controller Manufacturer | CURTIS AC | |
Operating Pressure for Attachment | Mpa | 18 |

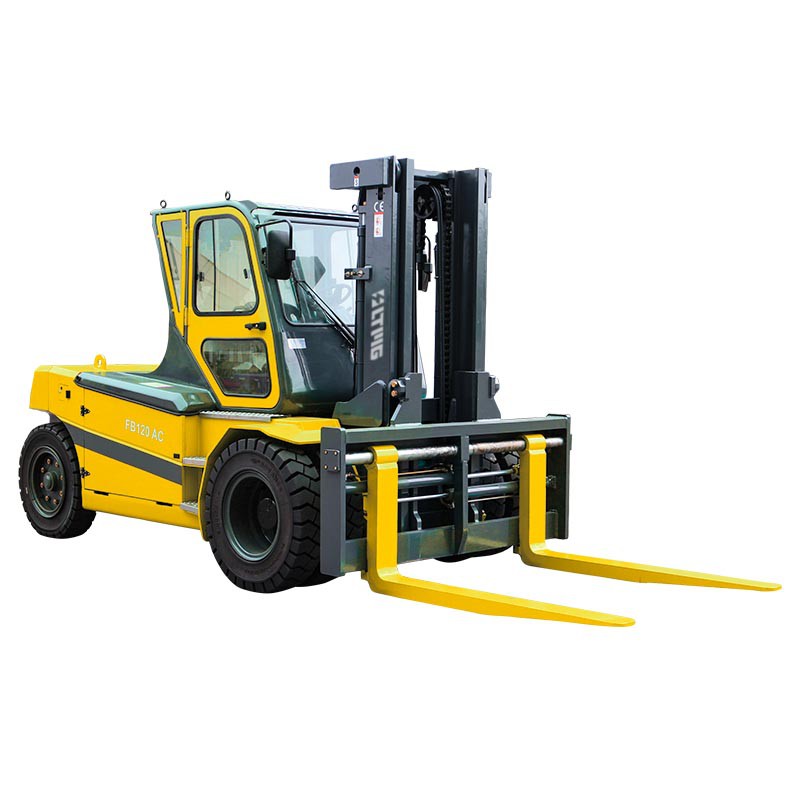

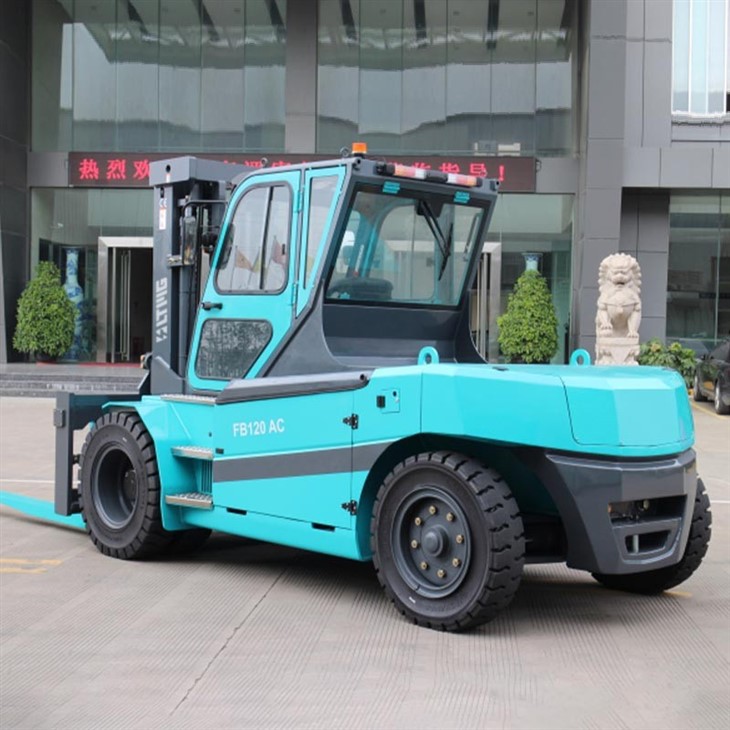

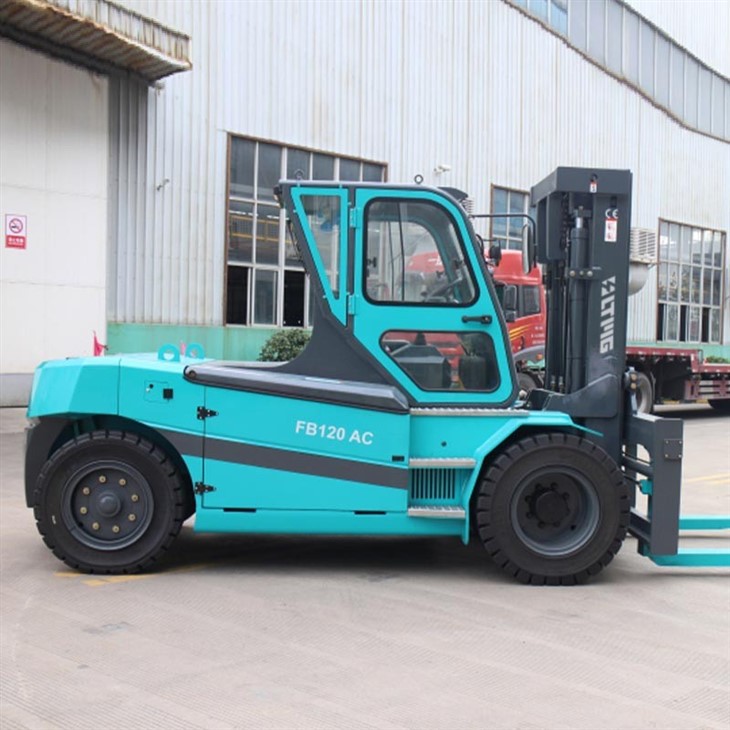

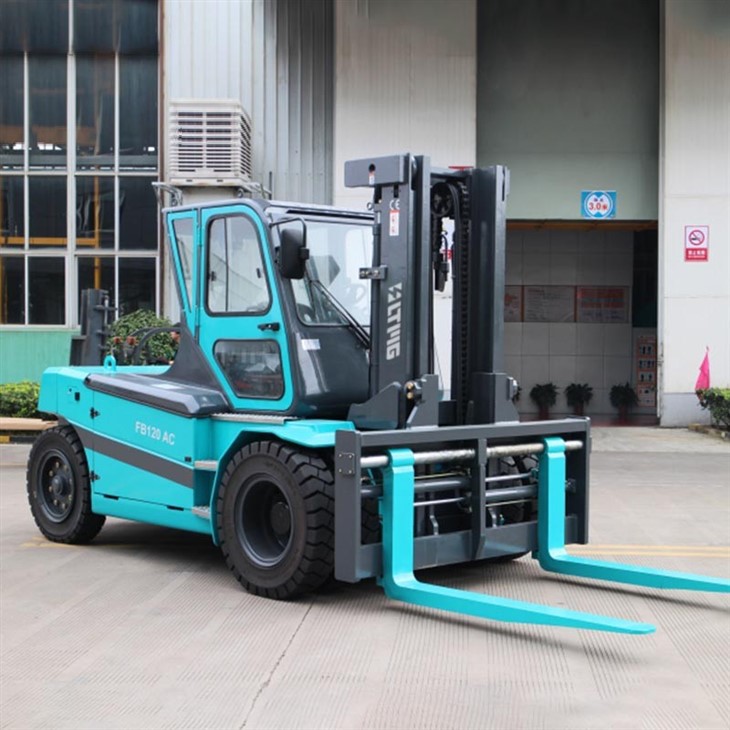

Products image
LTMG's 12-ton electric forklift is known for its low noise, zero emissions and low energy consumption, meeting environmental requirements. Equipped with a large-capacity battery and designed for heavy-duty operations, it ensures efficient performance. The stable four-point support further enhances its operation, making it an exceptional choice for environmentally conscious and productive manufacture.
certificates
LTMG concentrates on delivering top-notch, dependable products to our valued customers. With an impressive array of certifications such as ISO, CE, EPA, COC, COR, SABER, and CO, we showcase our dedication to being a trusted and conscientious leader in the industry. By upholding the highest standards of excellence, LTMG instills confidence in our customers, making us their preferred choice and trusted partner.
Purchase process
LTMG ensures that your shopping process is efficient and comprehensive. Our professional and dedicated team guides you through every step, ensuring a seamless shopping experience for you.
