Products Description
2 Ton Three Wheel electric warehouse forklift of LTMG is equipped with a high-performance battery made in China, boasting a fully AC-powered system, and featuring renowned brand batteries to ensure exceptional quality with a competitive price point.
The three wheel forklift is illuminated with energy-efficient LED lights, offering superior brightness and an extended lifespan. In addition, it is equipped with self-protective and self-diagnostic functions, showcasing mature technology and high reliability. These features contribute to efficient and trouble-free operations, reflecting our commitment to cutting-edge innovation.
For enhanced safety, the robust top protection device provides excellent operator protection and exceptional all-around visibility. It not only safeguards the operator but also reinforces the truck's structure, minimizing the risk of accidents. The incorporation of a cushioned lifting system reduces mast vibrations, further preventing unexpected injuries and ensuring smooth material handling operations.
The maintenance-free AC motors play a pivotal role in keeping the electric power forklift cool, ensuring higher operational efficiency. With a simple structure and minimal maintenance requirements, the battery forklift reduces overall maintenance costs. The detachable maintenance cover facilitates easy access to the controller, streamlining maintenance procedures and ensuring the longevity of the equipment.
Our 2 Ton Three Wheel electric warehouse forklift represents a perfect blend of advanced technology, robust safety features, and cost-effective operation. It is not only a reliable workhorse for material handling tasks but also an economically sound choice for businesses seeking quality and efficiency in their operations.
Products parameter
|
Model |
FB20S |
||
|
Power type |
Electric |
||
|
Rated Capacity |
kg |
2000 |
|
|
Load Centre |
mm |
500 |
|
|
Lift Height |
mm |
3000 |
|
|
Fork Size |
L×W×T |
mm |
1070×120×40 |
|
Mast Tilt Angle |
F/R(α°/β°) |
Deg |
6°/6° |
|
Front Overhang(Wheel center to fork face) |
mm |
395 |
|
|
Tread |
(F/R) |
mm |
924/208 |
|
Ground Clearance(Bottom of mast) |
mm |
90 |
|
|
Fork Spread |
Min./Max. |
mm |
240/970 |
|
Overall Dimension |
Length to face of fork(Without fork) |
mm |
2105 |
|
Overall Width |
mm |
1100 |
|
|
Mast Lowered Height |
mm |
2010 |
|
|
Mast Extended Height(With backrest) |
mm |
3940 |
|
|
Overhead Guard Height |
mm |
2055 |
|
|
Turning Radius(outside) |
mm |
1690 |
|
|
Min. insecting aisle |
mm |
2300 |
|
|
Speed |
Travel (Empty load) |
km/h |
14 |
|
Lifting (Full load) |
mm/s |
300 |
|
|
Max. Gradeability |
% |
15 |
|
|
Tire |
Front |
18×7-8 |
|
|
Rear |
16×6-8 |
||
|
Wheelbase |
mm |
1460 |
|
|
Service Weight |
kg |
3760 |
|
|
Motor |
Driven Motor |
kw |
2×4.5 |
|
Lift Motor |
kw |
8.6 |
|
|
Battery |
Voltage/Capacity |
V/Ah |
48/560 |
|
Controller |
Manufacturer |
CURTIS |
|
|
Type |
AC |
||
|
Operating Pressure for Attachment |
Mpa |
14.5 |
|

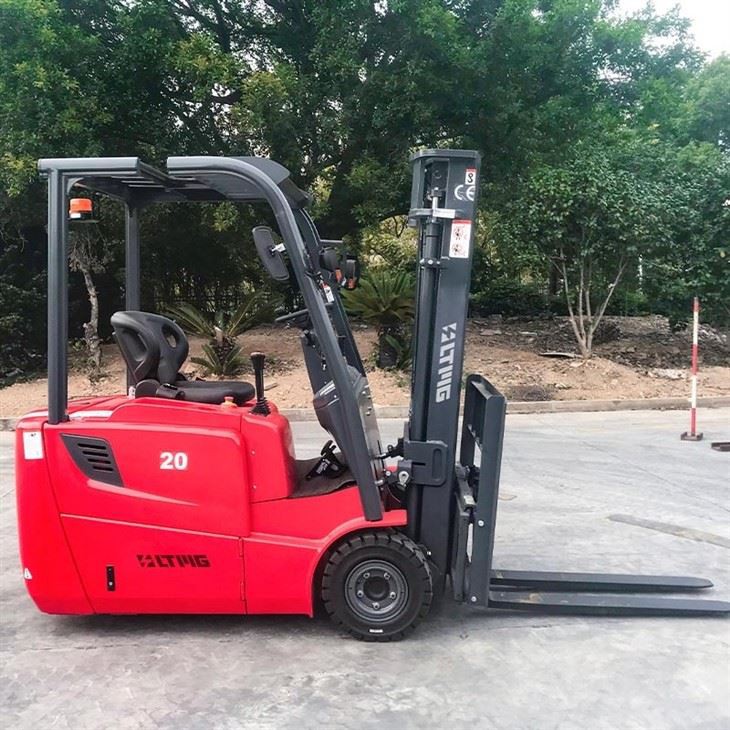

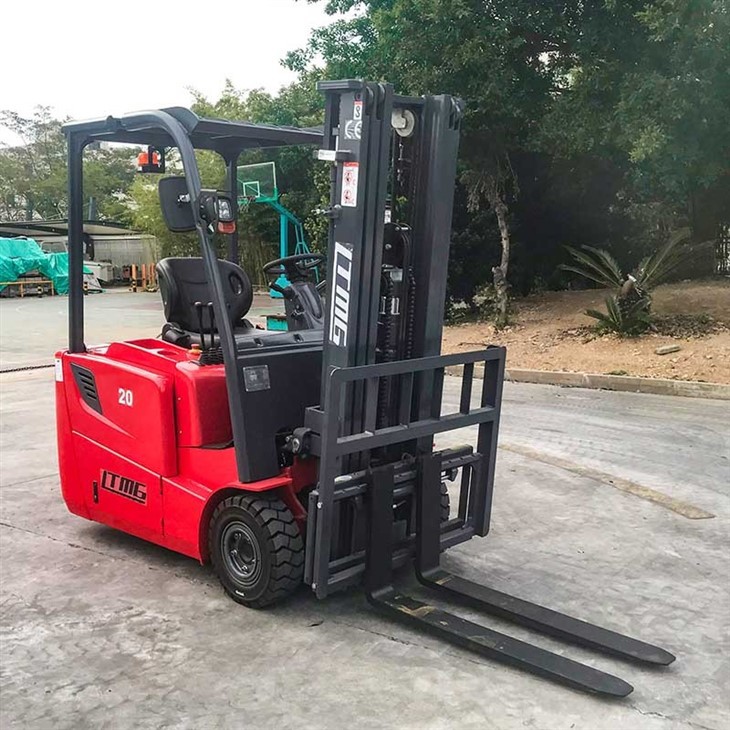

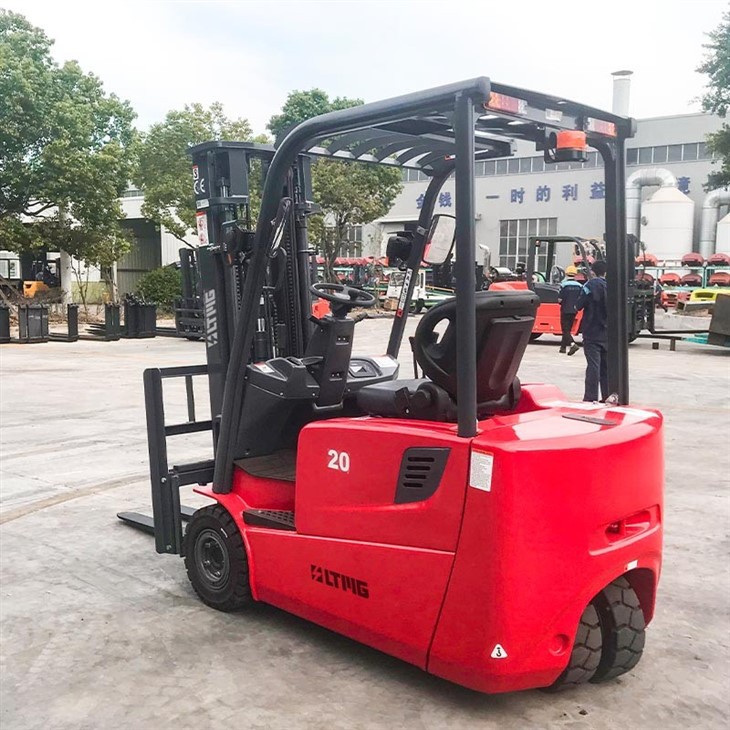

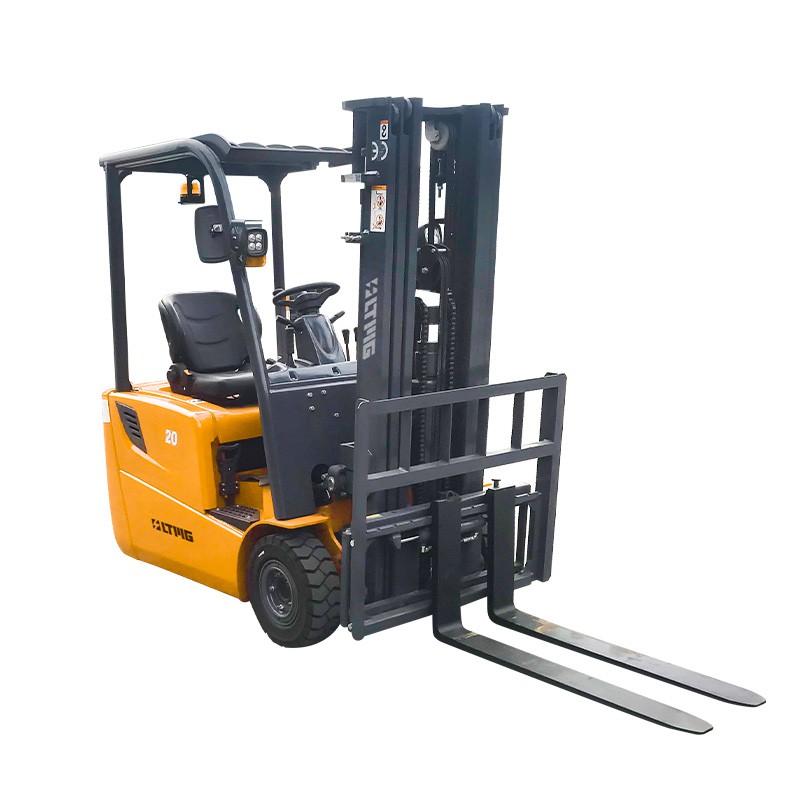

Products images
Products attachments
shipping plan
FAQ
Q: How can I be assured of the quality of LTMG's 2-ton electric forklifts?
Q: What is LTMG's reputation in the market, and how can I trust the company's credibility?
Q: How does LTMG handle product delivery, and what is the typical lead time for orders?
