Products Description
Introducing our 3 Wheel Small Electric Powered Forklift - a reliable and efficient solution for your material handling needs. This forklift is designed to work in tight spaces and narrow aisles, making it perfect for warehouses, distribution centers, and factories where space is limited.
With its compact size, this forklift is easy to maneuver and steer around corners. The 3-wheel design also provides a tighter turning radius, allowing for improved control and precision when moving goods in and out of tight spaces. The powerful electric motor provides smooth acceleration and excellent torque, making it ideal for heavy-duty applications.
One of the key features of this forklift is its ergonomic design. The comfortable operator's seat, adjustable steering column, and intuitive controls make it easy and comfortable for the operator to work long hours. The overhead guard and backrest provide additional protection and support for the operator. Additionally, with its low noise emissions, this forklift is perfect for working in noise-sensitive environments.
The forklift also comes with a variety of safety features, including an emergency stop switch, a horn, and a backup alarm. The hydraulic controls are precise and easy to use, while the brake system ensures the forklift comes to a complete stop quickly. The forklift comes with a range of attachments, including side shifters and fork positioners, to make loading and unloading even easier.
In summary, our 3 Wheel Small Electric Powered Forklift is a versatile and durable solution for your material handling needs. Its compact design, ergonomic features, and extensive safety features make it ideal for use in a variety of settings. Contact us today to learn more about our products.
Products parameter
|
Model |
FB20S |
||
|
Power type |
Electric |
||
|
Rated Capacity |
kg |
2000 |
|
|
Load Centre |
mm |
500 |
|
|
Lift Height |
mm |
3000 |
|
|
Fork Size |
L×W×T |
mm |
1070×120×40 |
|
Mast Tilt Angle |
F/R(α°/β°) |
Deg |
6°/6° |
|
Front Overhang(Wheel center to fork face) |
mm |
395 |
|
|
Tread |
(F/R) |
mm |
924/208 |
|
Ground Clearance(Bottom of mast) |
mm |
90 |
|
|
Fork Spread |
Min./Max. |
mm |
240/970 |
|
Overall Dimension |
Length to face of fork(Without fork) |
mm |
2105 |
|
Overall Width |
mm |
1100 |
|
|
Mast Lowered Height |
mm |
2010 |
|
|
Mast Extended Height(With backrest) |
mm |
3940 |
|
|
Overhead Guard Height |
mm |
2055 |
|

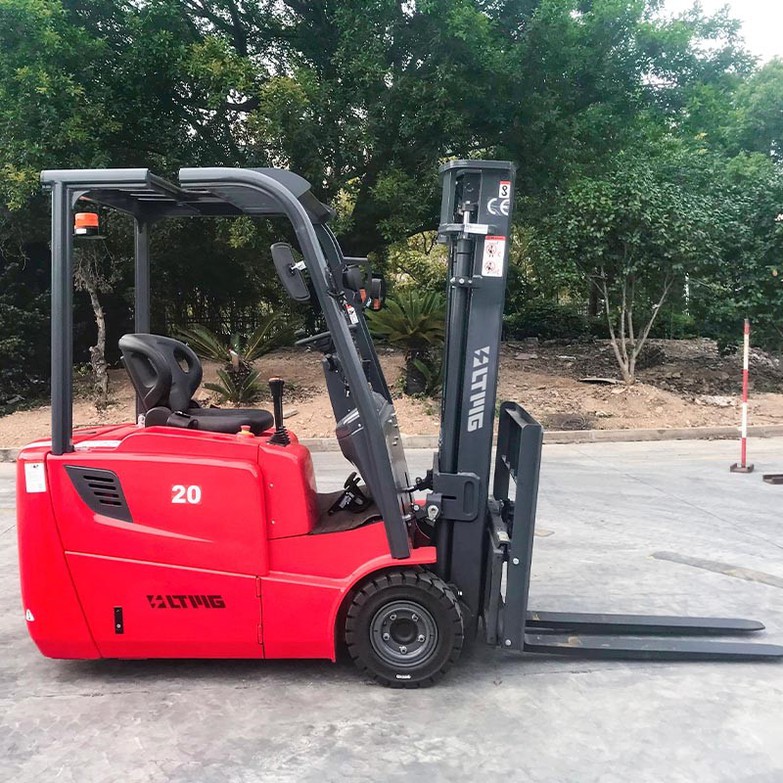

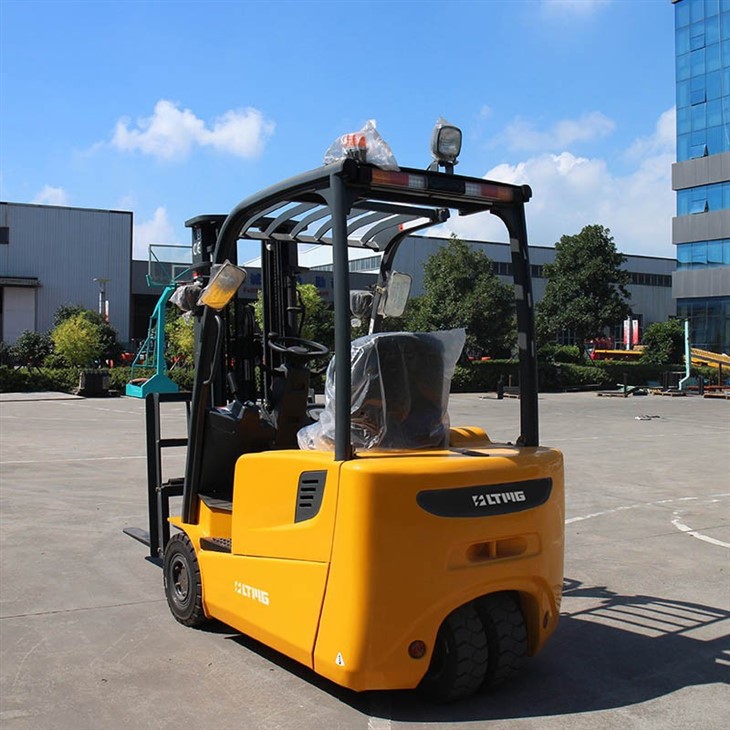

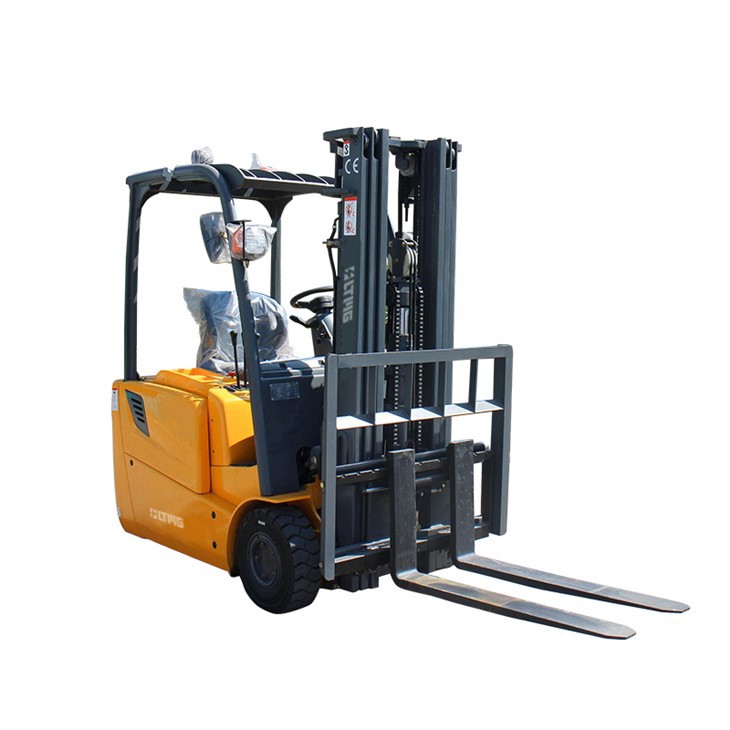

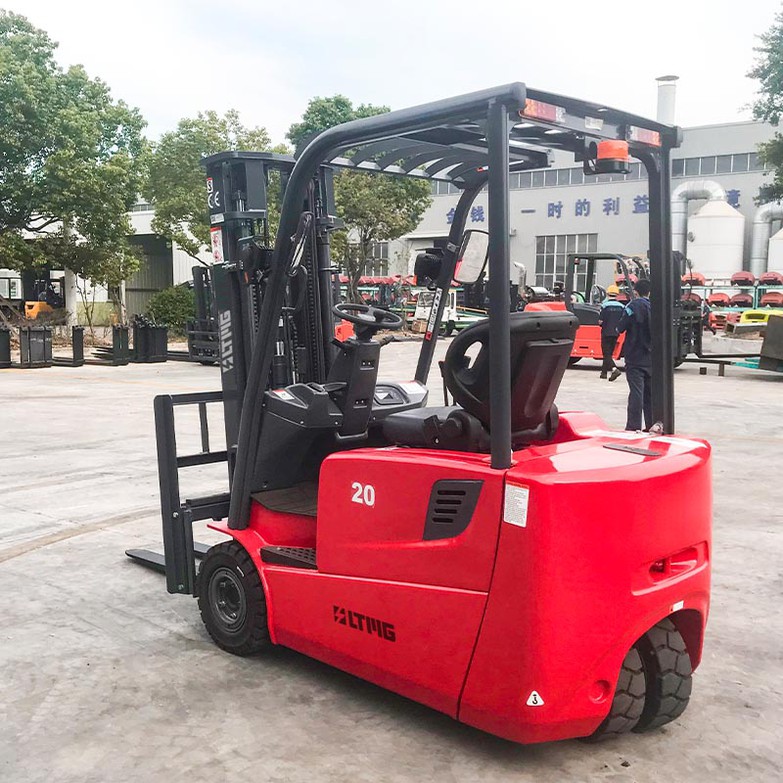

Products images
Products attachments
shipping plan
FAQ
Q: How can I extend the battery life of my 3 Wheel Small Electric Powered Forklift?
Q: What should I do if the motor of my forklift stops working?
Q: What should I do if the hydraulic system of my forklift is leaking?
