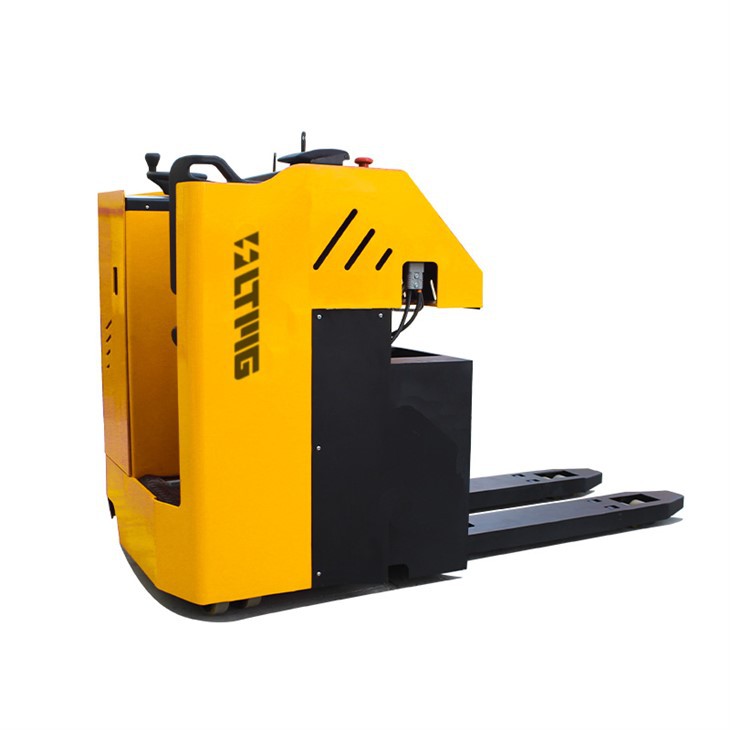

With its maintenance-free high-power AC drive system, the 6 ton stand-on electric pallet truck can help you save time and energy.
Side-station type: it is easy and comfortable to operate for extended periods of time. Additionally, the electric power steering and reasonable layout of the joystick offer flexible and ergonomic handling, while the solid mechanical structure ensures safety and reliability.
The big capacity battery also offers prolonged usage time, so you can get more work done without needing to recharge frequently. With this powerful pallet truck, you can confidently move up to 6 tons of goods, even on rough surfaces.
Labor-saving capabilities: With a robust electric motor, it can carry up to 6 tons of weight, reducing the need for manual labor and saving time and energy. The electric-powered pump also eliminates the need for manual pumping, enabling workers to focus on other critical tasks.
With a compact design, it can navigate through narrow aisles with ease. And, the adjustable forks can accommodate different pallet sizes, making it a versatile choice for any warehouse.
The electric power jack has a solid mechanical structure that ensures it can withstand the rigors of regular use in a demanding industrial environment. The frame is made of high-quality steel and comes with a robust suspension system for a smooth ride and minimized vibrations.
Not only is this pallet truck effective in a warehouse, it can be used in many different industries, such as logistics, manufacturing, and construction. It can help you speed up your workflow, saving you time and boosting your business's productivity.
Technical parameters
|
Features |
1.1 | Model | FEP60 | ||
| 1.2 | Power Type | Electric | |||
| 1.3 | Operation type | Side Standing Type | |||
| 1.4 | Steering type | Electric | |||
| 1.5 | Capacity | Q(kg) | 6000 | ||
| 1.6 | Load center | C(mm) | 600 | ||
| 1.7 | Wheelbase | Y(mm) | 1940 | ||
| Weight | 2.1 | Total weight including the battery | 1586 | ||
|
Wheel, chassis |
3.1 | Wheel type | Polyurethane solid tires | ||
| 3.2 | Front wheel | Ø x w(mm) | 80*110 | ||
| 3.3 | Rear wheel | Ø x w(mm) | 382*142 | ||
| 3.4 | Balance wheel | Ø x w(mm) | 180*76 | ||
|
Size |
4.1 | Max Lifting Height | H (mm) | 240 | |
| 4.2 | Fork lowered height | 120 | |||
| 4.3 | Fork spread | S1 (mm) | 720 | ||
| 4.4 | Overall length | L (mm) | 2370 | ||
| 4.5 | Overall width | S(mm) | 1090 | ||
| 4.6 | Fork dimension | s/e/l(mm) | 70/215/1200 | ||
| 4.7 | Min.stacking.aisle.1000*1200pall | Ast(mm) | 2990 | ||
| 4.8 | Turning radius | Wa(mm) | 2190 | ||
|
Performance |
5.1 | Max travel speed(No load /Full) | km/h | 5/4 | |
| 5.2 | Lifting speed (No load /Full) | m/s | 0.050/0.048 | ||
| 5.3 | Lowered speed (No load /Full) | m/s | 0.035/0.050 | ||
| 5.4 | Max.Grade ability No load /Full) | % | 8/5 | ||
| 5.5 | Brake form | electric | |||
|
Motor |
6.1 | Driving motor | kw | 4.5 | |
| 6.2 | Lifting motor | kw | 6. 3DC | ||
| 6.3 | Battery type | lead acid | |||
| 6.4 | Battery capacity | V/Ah | 48/300 | ||
| 6.5 | Charger-Intelligent | V/A | 48/40 | ||
|
Other |
7.1 | Drive control mode | AC | ||
| 7.2 | EN12053 | dB(A) | 75 | ||
advantages
