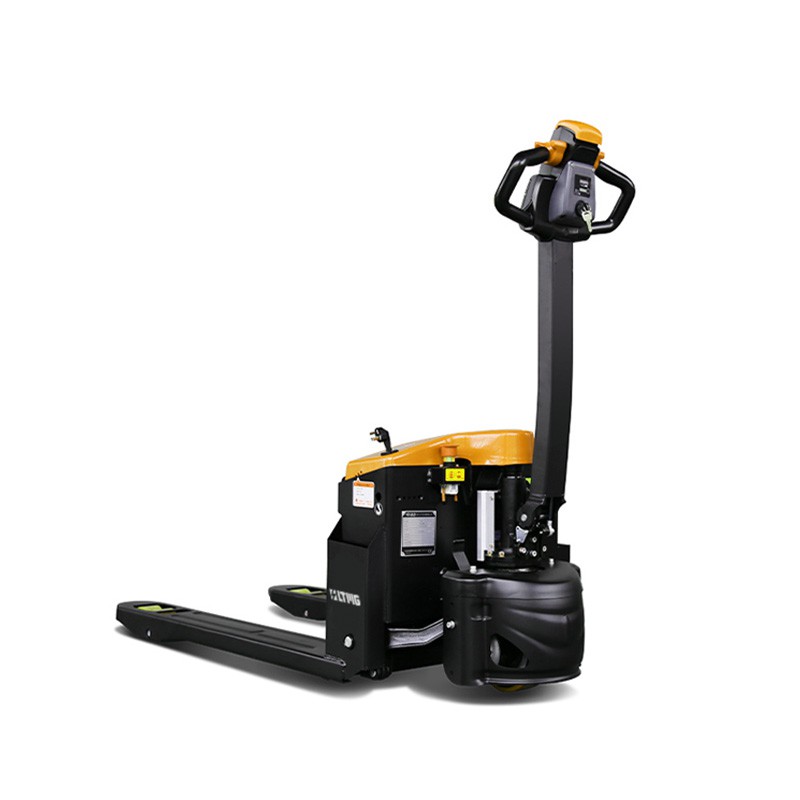

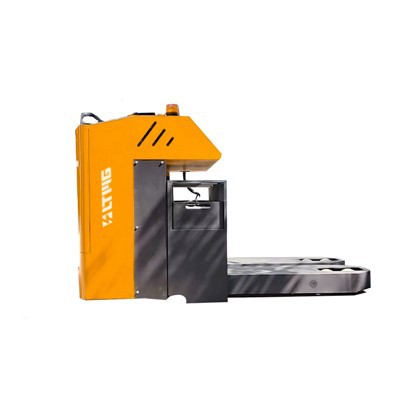

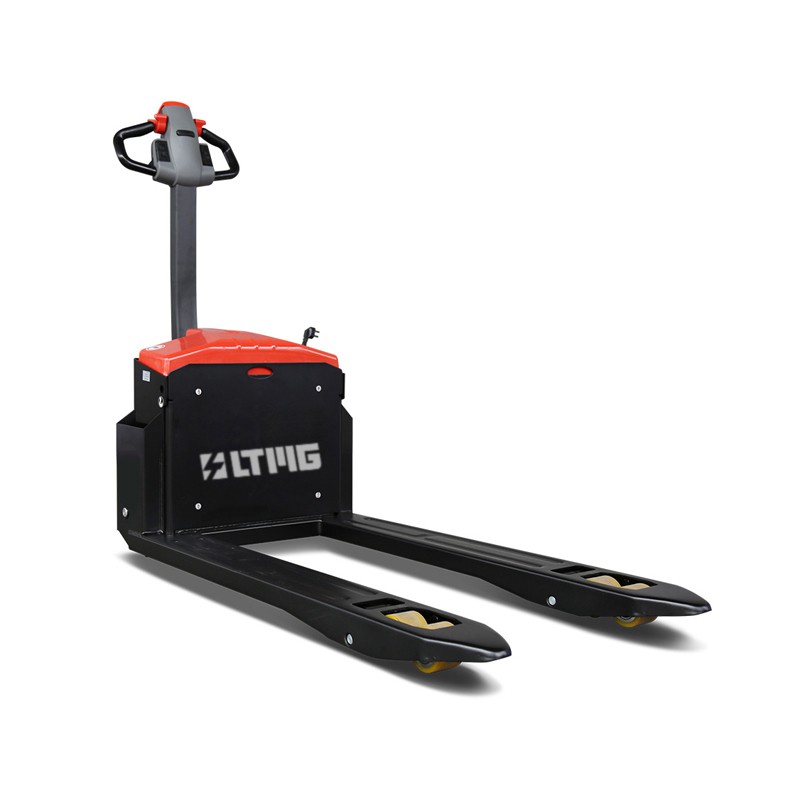

The electric power pallet jack is a material handling product that offers superior performance, ease of use, and durability. This versatile machine is designed to meet the demands of the most challenging warehouse environments, providing unbeatable value for its users.
Features an integrated hydraulic pump, which provides smooth and efficient lifting and lowering operations. It also comes equipped with a built-in scale, allowing users to weigh loads as they are transported, ensuring accurate weighing and streamlined productivity.
Fitted with shock absorption system on the driving wheels, which improves handling, protects delicate loads from damage, and reduces stress on the operator's body. This feature makes it ideal for use in busy and demanding workplaces where safety, comfort, and speed are critical.
The electric pump truck is also built with a compact and flexible design, which makes it ideal for use in small spaces. The compact design also means that the machine can easily maneuver in narrow aisles and tight corners, thus minimizing the risk of damage to goods and equipment.
It is easy to operate with simple, intuitive controls, ensuring that even inexperienced operators can use it safely and efficiently. It also boasts an energy-efficient motor, which allows for longer run times and lower running costs, making it a cost-effective and sustainable investment for any business.
The electric pallet jack is a reliable, high-performance, and user-friendly material handling product that meets the demands of even the most intensive work environments. It offers superior value for users in terms of performance, efficiency, and safety.
Technical parameters
Model | SHF20 | |
Feature | ||
Loading capacity | kg | 2000 |
Load center | mm | 600 |
Wheel base | mm | 1301 |
Operating type | mm | Walkie |
Wheels | ||
Wheels type | PU | |
Wheel quantity driving | mm | 1/0/4 |
Driving wheel size | mm | 252*67 |
Bearing wheel size | mm | 84*70 |
Balane wheel size | mm | |
Dimension | ||
Min.fork lifting height | mm | 85 |
Max.fork lifting height | mm | 205 |
Max.lifting height | 120 | |
Overall fork width | mm | 550/685 |
Inside width between forks | mm | 230/365 |
Fork length | mm | 1150/1200 |
Fork width | mm | 160 |
Fork thickness | mm | 75 |
Overall length | mm | 1707 |
Overall width | mm | 697 |
Overall height(with handle) | mm | 1181 |
Overall height(without handle) | mm | 714 |
Min.turning radius | mm | 1547 |
Min.Aisle with for pullets 800*1200 | mm | 1920 |
Min.Aisle with for pullets 1000*1200 | mm | 1953 |
Performance | ||
Travel speed,laden/unlades | km/h | 3/3.5 |
Lift speed,laden/unlades | mm/s | 35/40 |
Lowering speed,laden/unlades | mm/s | 45/40 |
Gradeability,laden/unladed | % | 5/7 |
Electrical configuration | ||
Drive motor | kW | DC 0.63 |
Lift motor | kW | DC 0.8 |
Battery voltage/capacity | V/aH | 24/85 |
Brake | Electromagnetic | |
Controller | CURTIS | |
Weight | ||
Battery weight | kg | 52 |
Service weight with battery | kg | 245 |

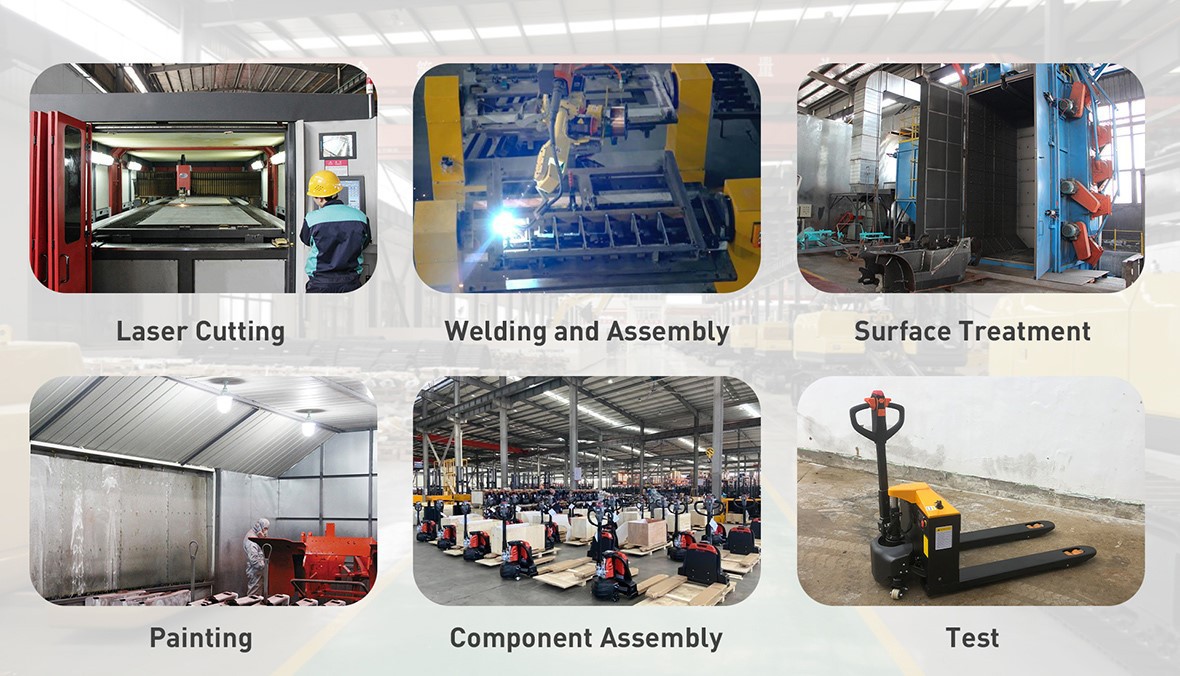

Factory

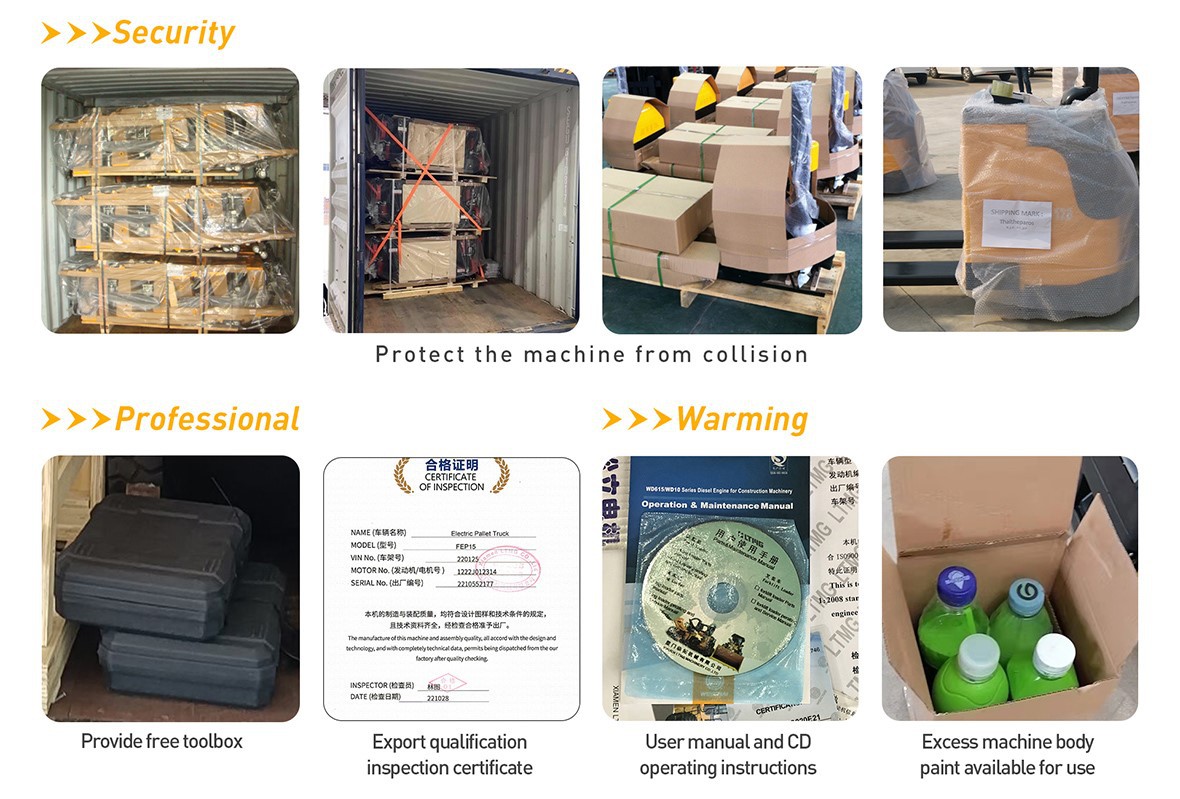

Shipping

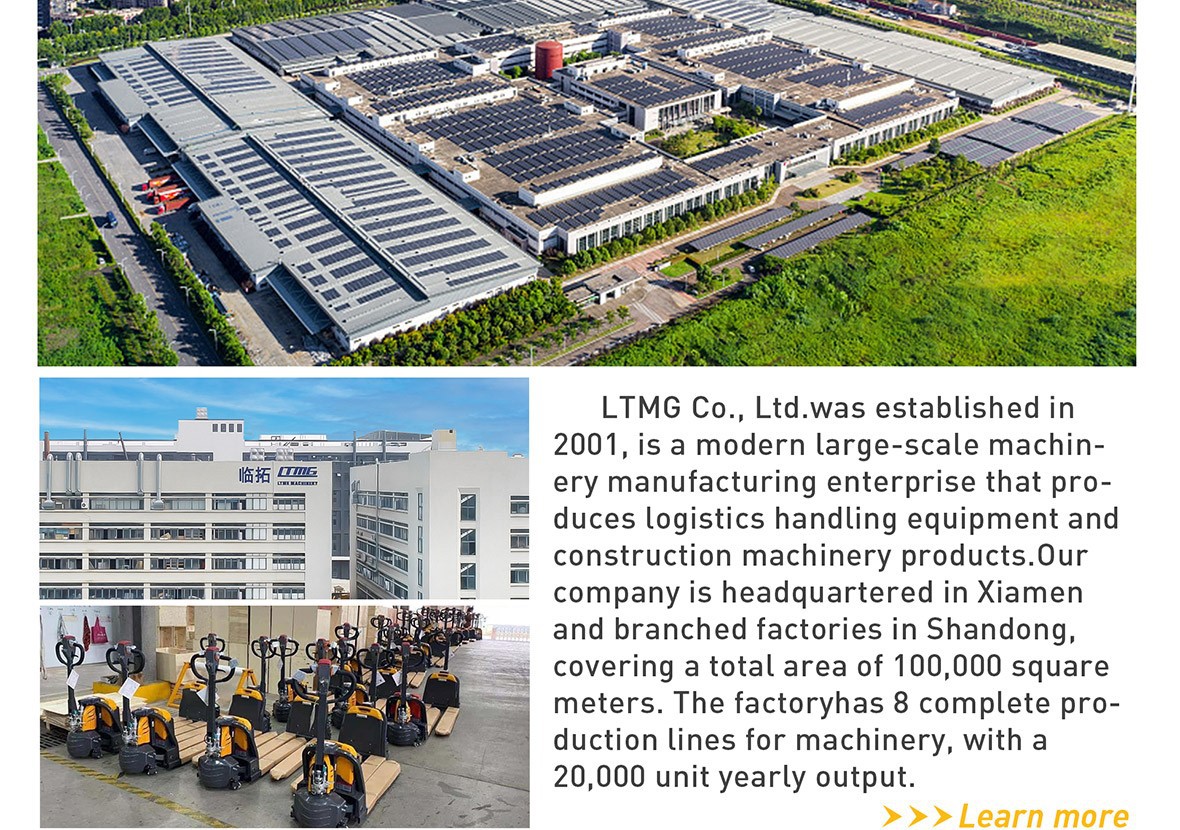

About LTMG
LTMG Machinery ensures the safe transportation of electronic pallet trucks to customers. We understand the importance of delivering cargo securely and efficiently, prioritizing the satisfaction and trust of our valued clients. Our commitment to safety, efficiency, and customer satisfaction sets us as a trusted partner.
FAQ
Q: What types of products does LTMG specialize in?
Q: What is LTMG's policy for responding to customer questions and concerns?
Q: Does LTMG offer technical advice?
