Products Detail
The 3.5 ton lpg powered forklift boasts a robust and reliable power system with the utilization of an imported IMPCO converter from the United States, ensuring optimal performance and maintaining environmental friendliness. The all-aluminum radiator core facilitates efficient heat dissipation, effectively controlling engine coolant temperature. The specially designed radiator of the lpg lift, which combines the cooling systems for engine coolant and transmission oil, maximizes airflow through the counterweight.
Additionally, the lpg forklift is equipped with high-quality hydraulic components including hoses, fittings, and pipes, which are essential for secure load handling and operator safety. Premium seals are employed in all hydraulic cylinders to prevent leakage and pressure loss, safer for the whole operation.
To further enhance safety, the main lifting cylinder is equipped with a speed valve that prevents sudden descent in the event of a pressure drop in the lifting system. Moreover, the 3.5 ton lpg powered forklift features dual air filters that extend the use duration of the engine. The seat is equipped with a sophisticated sensing system that detects when the operator leaves the seat, mitigating risks associated with improper operation or other potential hazards. Additionally, the lpg powered forklift's LED lights ensure enhanced visibility and improved safety for personnel, even in challenging weather conditions.



Products parameter
Model | FG35 | |
Rated lifting load | kg | 3500 |
Load center distance | mm | 500 |
Free lifting height | mm | 160 |
overall length (Withfork/Withoutfork) | mm | 3763/2693 |
Width | mm | 1225 |
Overhead guard height | mm | 2090 |
Wheelbase | mm | 1700 |
Minimum ground clearance | mm | 135 |
Minimum turning radius (outer side) | mm | 2420 |
Minimum right angle aisle width | mm | 4260 |
Fork size | mm | 1220*125*50 |
maximum working speed(Full-load/No-load) | km/h | 19/19 |
maximum lifting speed(Full-load/No-load) | mm/s | 330/370 |
maximum gradeability(Full-load/No-load) | % | 15/20 |
Forklift weight | kg | 4520 |
Engine model | chinese engine |
company introduction

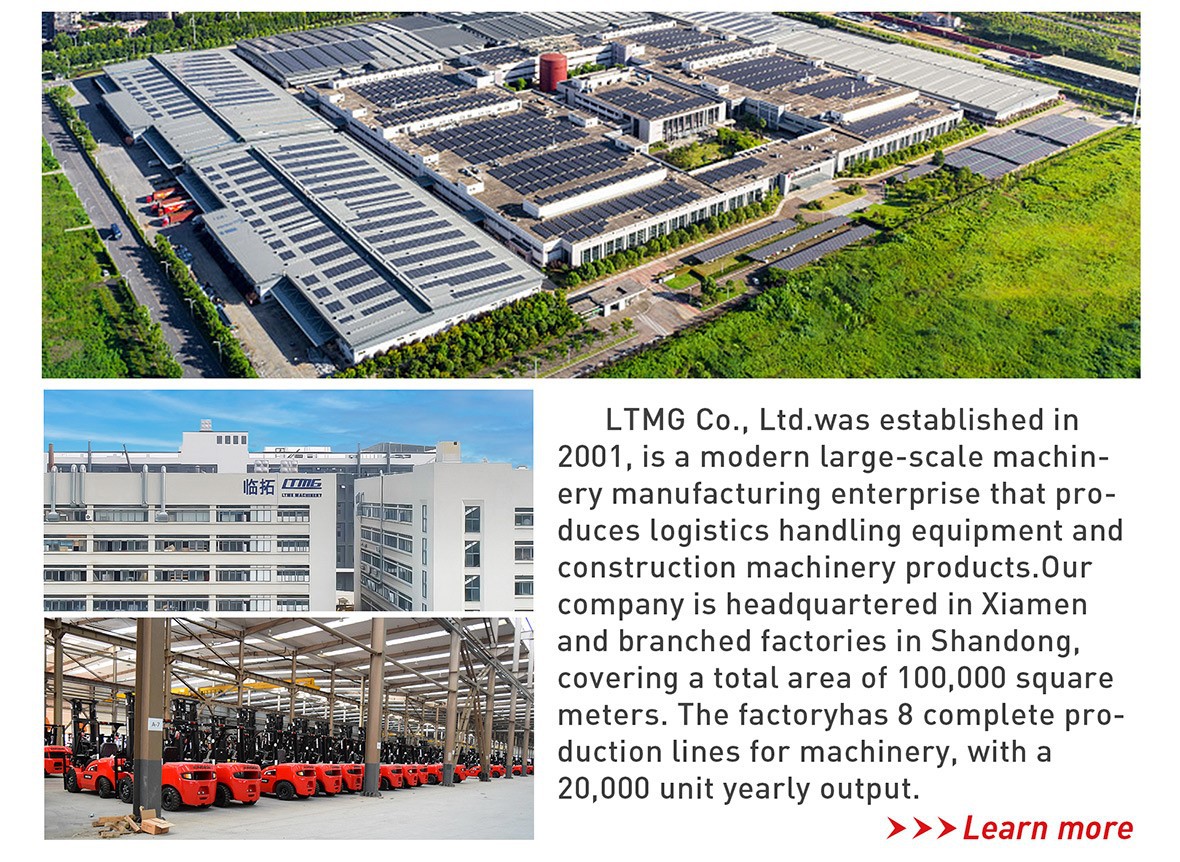

With a two-decade-long history in machinery manufacturing, LTMG boasts extensive expertise and a robust infrastructure comprising nearly 100 cutting-edge equipment, including OTC welding robots, TRUMPF laser cutting machines, ZEISS coordinate measuring machines, and specialized test benches. This comprehensive setup enables LTMG to oversee the production process and adhere to the highest standards.
customer feedback
LTMG is committed to delivering top-notch customized services to comply with various national policies and fulfill our customers' specific demands, which has garnered positive feedback from our satisfied clients. Moreover, we proactively engage in international visits to support our customers, addressing any queries or concerns they may have and ensuring seamless and optimal utilization of our products.
optional configuration

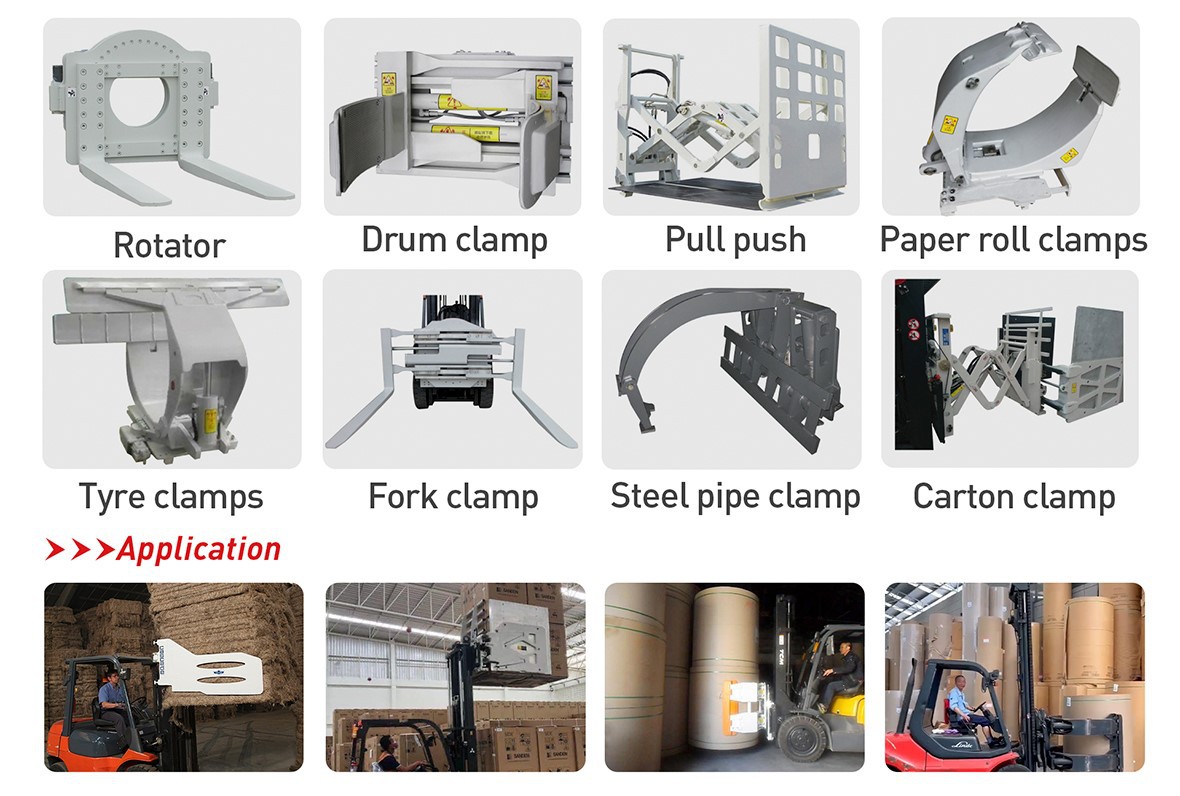

LTMG offers a wide selection of clamps that can be installed on various electric forklifts to provide maximum convenience when completing tasks. These clamps are highly functional, enabling operators to complete tasks. The versatility and adaptability of LTMG's forklifts are further emphasized through the availability of a diverse range of clamps, which cater to specific requirements such as lifting, transporting, stacking, and specialized applications.
FAQ
Q: Will LTMG provide a customization service?
Q: If I have any equipment troubles during use, who can solve the problem for me?
Q: What can I do if I don’t know which product I need?
Q: What will be contained in the shipping container?
