Products Description

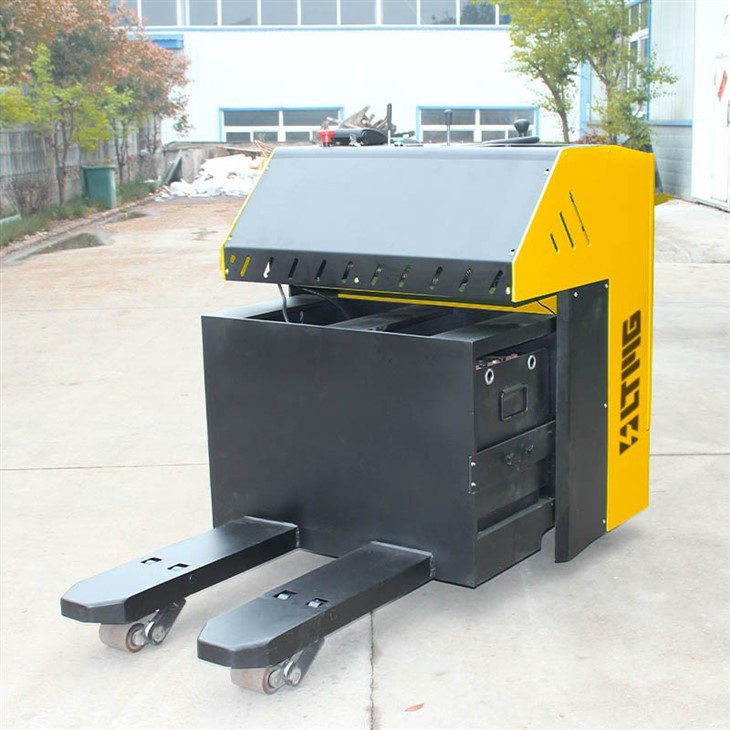

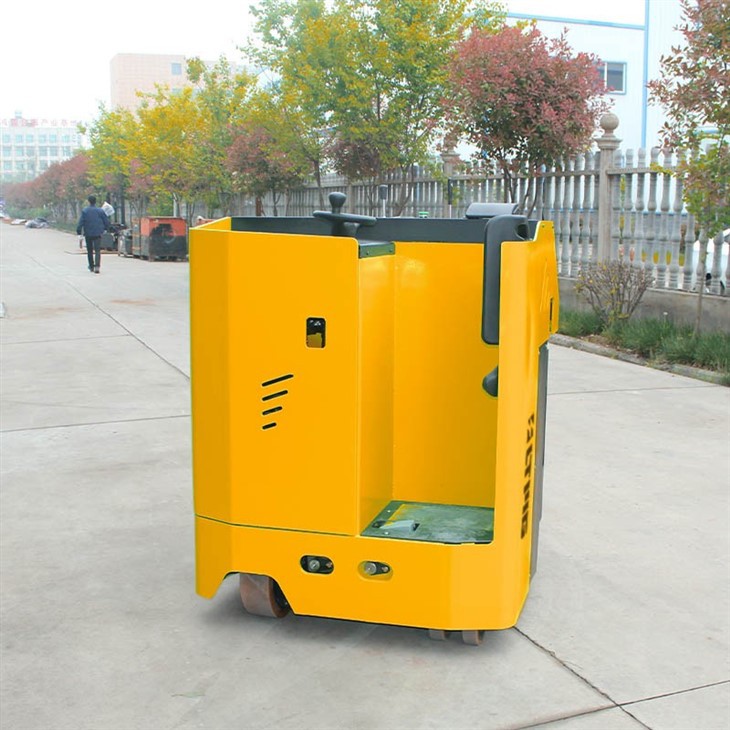

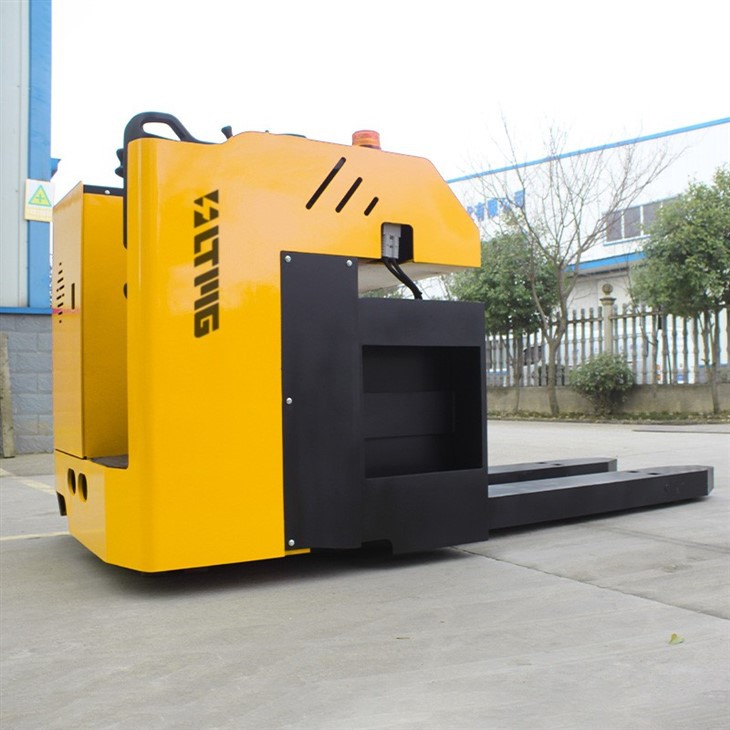

The 5 ton electric pallet jack stand on type is a perfect choice for handling heavy loads in warehouses, factories, and other industrial settings. In addition, its compact structure allows it to fit into tight spaces, making it ideal for navigating around obstacles and confined areas.
Equipped with CURTIS electric control system: enhancing driver experience, reducing fatigue and ensuring smooth operation. It is both reliable and sensitive, featuring a multi-level automatic protection system for added security.
The electric pump truck is furnished with an electromagnetic brake to ensure automatic braking in the event of power loss, thereby preventing any slipping while parked.
With full AC drive system, this electric pallet truck offers flexible and smooth operation that is designed to maximize productivity. The intuitive controls allow you to easily maneuver the pallet truck with precision and control, while the powerful motor ensures efficient and reliable performance.
The electric pallet truck has a big capacity battery, which provides long-lasting power to keep you working even during the longest shifts. And with its intelligent charging system, the battery is quick and easy to recharge, ensuring that you're always ready to go.
The electric drive pallet truck is a versatile and reliable solution for any material handling task. Whether you're working in a warehouse, factory, or other industrial setting, you can count on this electric pallet truck to get the job done quickly and efficiently.
Products parameter
| Features | Model | FEP50 | |
| Power Type | Electric | ||
| Operation type | Side Standing Type | ||
| Steering type | Electric steering | ||
| Capacity | Q(kg) | 5000 | |
| Load center | C(mm) | 600 | |
| wheelbase | Y(mm) | 1785 | |
| weight | Total weight including the battery | 1530 | |
| Wheel, chassis | Wheel type | Polyurethane solid tires | |
| front wheel | Ø x w(mm) | 80*110 | |
| Rear wheel | Ø x w(mm) | 254*102 | |
| Balance wheel | Ø x w(mm) | 150*50 | |
| size | Max Lifting Height | H (mm) | 225 |
| Fork spread | S1 (mm) | 720 | |
| Overall length | L (mm) | 2215 | |
| Overall width | S(mm) | 1090 | |
| Fork dimension | s/e/l(mm) | 70/215/1200 | |
| Min.stacking.aisle.1000*1200 pall | Ast(mm) | 2765 | |
| Turning radius | Wa(mm) | 2020 | |
| performance | Max travel speed(No load /Full) | km/h | 5/4 |
| Lifting speed (No load /Full) | m/s | 0.042/0.04 | |
| Lowered speed (No load /Full) | m/s | 0.35/0.045 | |
| Max.Grade ability No load /Full | % | 8/5 | |
| Brake form | Electromagnetic braking | ||
| motor | Driving motor | kw | 3 |
| Lifting motor | kw | 3DC | |
| Battery type | Lead acid | ||
| Battery capacity | V/Ah | 24/300 | |
| Charger-Intelligent | V/A | 24/40 | |
| other | Drive control mode | AC |
Products feedback
LTMG Machinery provides a variety of material handling equipment to improve the working efficiency in your warehouse, such as electric pallet trucks, electric stackers etc, have received high praise from customers and are trusted for their reliability.
Products customization
LTMG's warehouse equipment offers various customized solutions, catering to each client's unique requirements and ensuring maximum efficiency and productivity. From tailored designs to personalized configurations, LTMG goes the extra mile to deliver exceptional equipment that optimizes warehouse operations, setting new standards in customization.
fAQ
Q: Will LTMG provide a customization service?
Q: What is the product range of our factory?
Q: What is the global reach of LTMG's products?
Q: Why Choose Us?
Q: Is it possible to customize the machine to meet our specific requirements, including adding our logo?
Hot Tags: 5 ton electric pallet jack stand on, China 5 ton electric pallet jack stand on manufacturers, Electric Pallet Truck, Electric Pedestrian Pallet Truck
