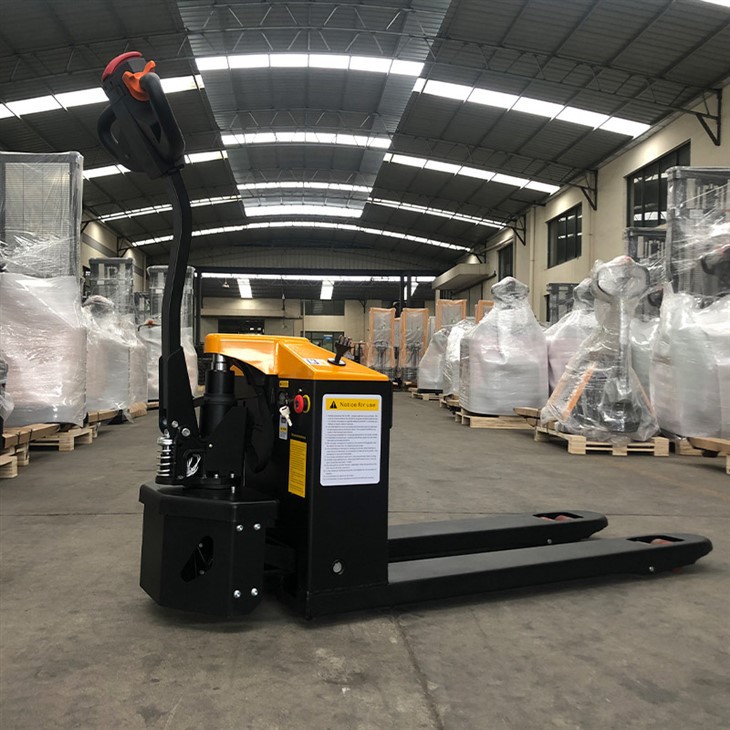

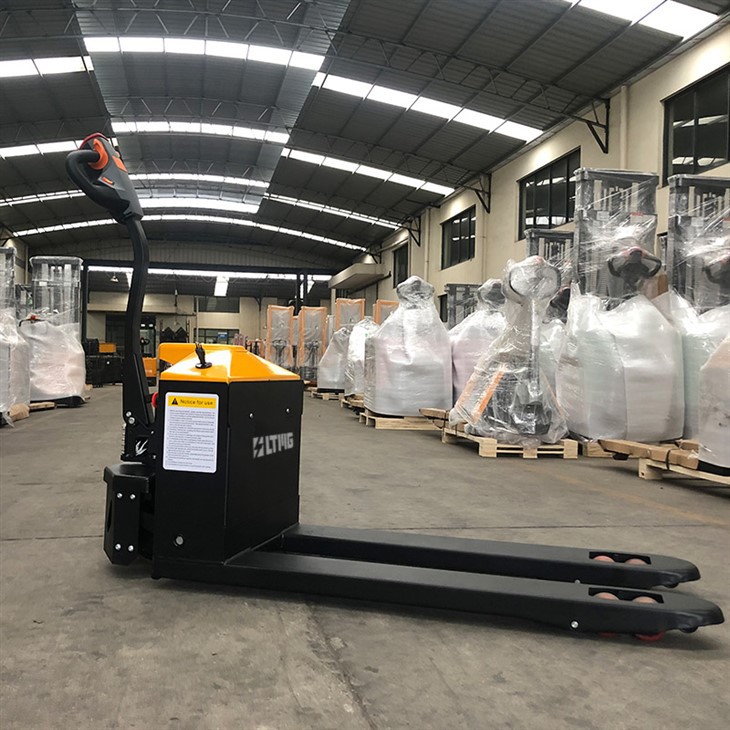

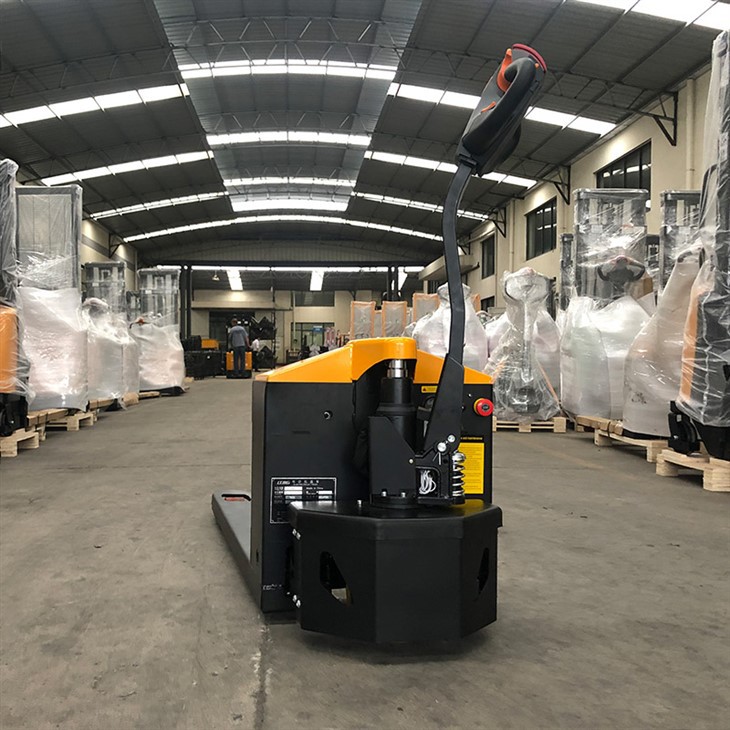

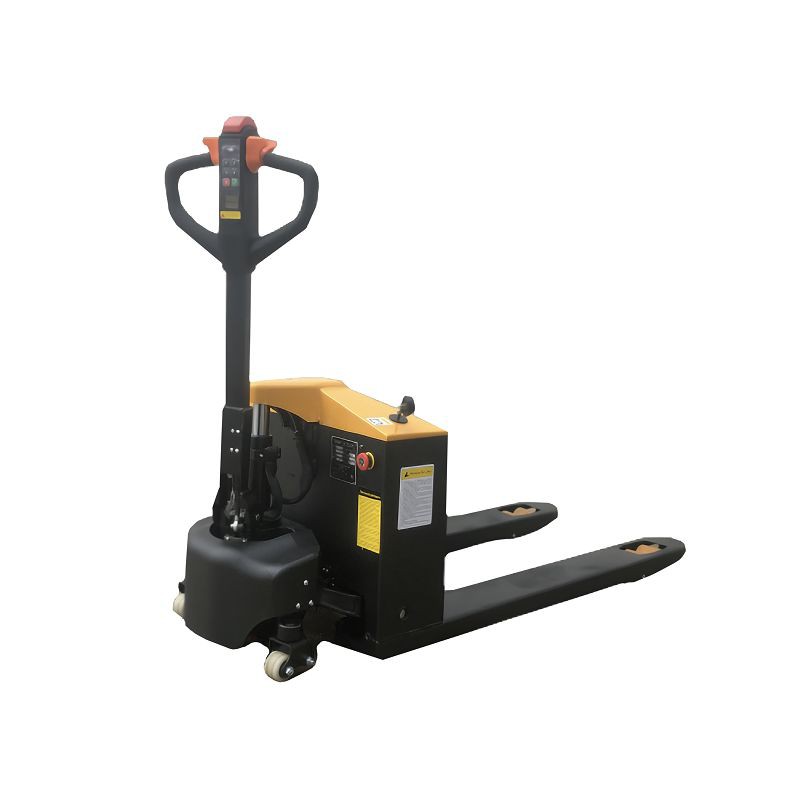

Electric pedestrian pallet truck are typically more expensive to purchase upfront than their ICE counterparts due to including a battery and charger. However, electric trucks also offer numerous long-term benefits. Compared to ICE forklifts, electric trucks offer lower energy consumption, reducing fuel costs. Electric forklifts produce lower CO2 emissions, making them perfect for businesses looking to reduce their carbon footprint. Electric trucks are quieter than diesel-powered forklifts, facilitating a safer and more productive operating environment. Electric trucks are easier to operate than engine trucks, and with fewer moving parts, they're less likely to break down
Electric pedestrian pallet truck enables easy access to controls and power steering during long shifts. Ergonomic, natural standing position provides operator protection and all-round visibility in either direction. Stand-on version facilitates an ergonomic operator position. Compact design makes the LLR/LLS ideal for confined spaces. Able to manage almost any conceivable load in heavy-duty applications with ease. Cost-effective, optimised performance thanks to the powerful AC motor. Easy battery changes — perfect for multi-shift operations. Driver-tailored settings to ensure a safe and efficient operation
Specification
|
Features |
Model |
FEP15 |
|||
|
Power type |
All electric |
||||
|
Rated load |
Q(kg) |
1500 |
|||
|
Load center distance |
c（mm） |
600 |
|||
|
Overhang (FR) |
x（mm） |
950 |
|||
|
Wheelbase |
Y（mm） |
1295 |
|||
|
Tires |
Wheel size |
Driving wheel |
mm |
Φ160×70 |
|
|
Fork wheel |
mm |
Φ80×70 |
Φ74×70 |
||
|
Wheel layout |
|
Three pivots |
|||
|
Dimensions |
Height |
h3（mm） |
195 |
||
|
Low height |
h13（mm） |
85/75 |
|||
|
Overall length |
l1（mm） |
1660 |
|||
|
Body width |
b1（mm） |
550/680 |
|||
|
Fork size |
s/e/l（mm） |
53/160/1150（1220） |
|||
|
Turning radius |
Wa（mm） |
1465 |
|||
|
The highest joystick |
h14（mm） |
1300 |
|||
|
Aisle width 800×1200 placed along the fork (200 safety distance) |
Ast（mm） |
2130 |
|||
|
Performance |
Driving speed, fully loaded/unloaded |
Km/h |
3.5/4 |
||
|
Lift times |
Times |
12 |
|||
|
Climbing ability, fully loaded/unloaded |
% |
6/16 |
|||
|
Service brake |
|
Electromagnetic brake |
|||
|
Motor |
Drive motor power |
w |
600W |
||
|
Increase motor power |
/ |
/ |
|||
|
Battery weight |
Kg |
|
|||
|
Battery voltage/rated capacity |
V/Ah |
24V/20Ah / 24V/26Ah |
|||
Certifications
Our company
Standing tall since its inception in 2001, Xiamen LTMG Co., Ltd. has flourished into a sophisticated and expansive machinery manufacturing enterprise. Primarily engaged in the production of logistics handling equipment and construction machinery products, the company's headquarters proudly resides in Xiamen, while its branch factory thrives in Shandong, encompassing a sprawling area of 100,000 square meters. With its 8 complete machinery production lines, it efficiently churns out an annual output of 20,000 units, making an indelible mark in the industry.
At present, LTMG Machinery Group (LTMG) has established business connections with over 180 countries, attaining remarkable success in terms of market dominance, brand influence, trade volume growth rate, service excellence, and customer base expansion. LTMG's global presence is further strengthened by its collaboration with more than 50 exclusive distributors, with its products gaining immense praise and recognition from customers both domestically and internationally.
FAQ
1. I am interested in learning more about the products manufactured by LTMG Industries. Can you please give me an overview of what your company specializes in?
At LTMG, our focus is on producing dependable material handling and construction machinery equipment, such as forklifts, storage equipment, loaders, excavators, and airport ground equipment.
2. I was just wondering what modes of payment you accept and how long it'll take to receive my order?
We have T/T, L/C, and D/P payment modes and expect the goods to be delivered within 20-30 days post deposit.
3. What are the payment terms for your order?
We require a 30% deposit upon confirmation and the remaining 70% prior to dispatch. We are also open to accepting 100% Irrevocable Demand Letters of Credit, as long as they adhere to our mutually agreed terms. We strive to make the payment process as smooth and convenient as possible for our valued customers.
4. What is your typical delivery time?
Our usual delivery time ranges from 20 to 30 days upon receiving your deposit. But for standard products, we keep them in stock and can ship them out immediately. However, for customized products, the timeline may vary based on the complexity and specific requirements of your order.
5. Are you interested in partnering with agents?
Indeed! We are enthusiastic about cooperating with agents from every corner of the world. If you would like to partner with us, please contact us through email, WhatsApp, or other channels that you prefer.
Hot Tags: electric pedestrian pallet truck, China electric pedestrian pallet truck manufacturers, Electric Pallet Truck, Electric Pedestrian Pallet Truck
