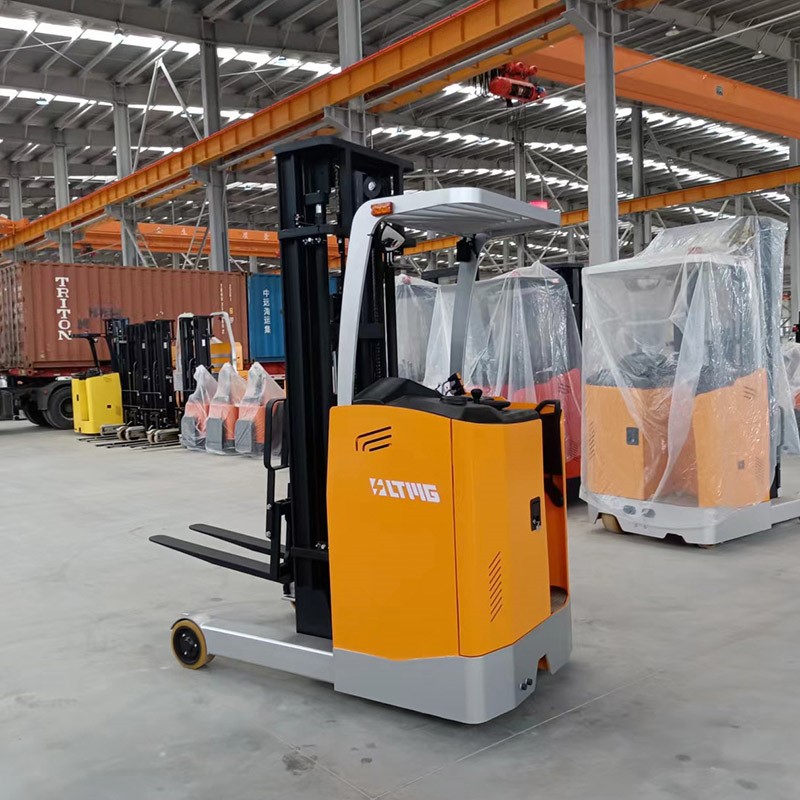

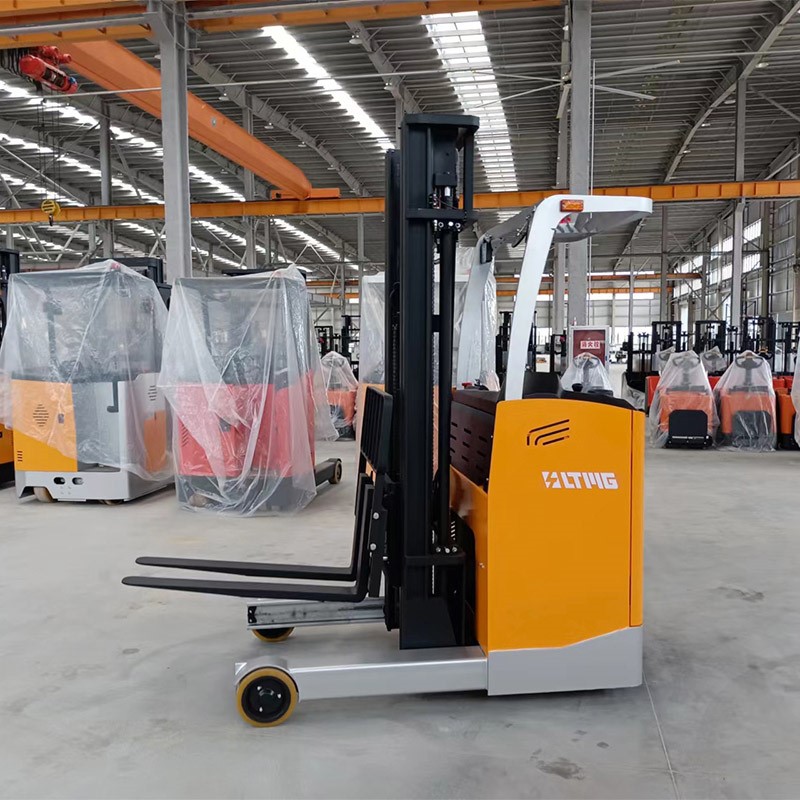

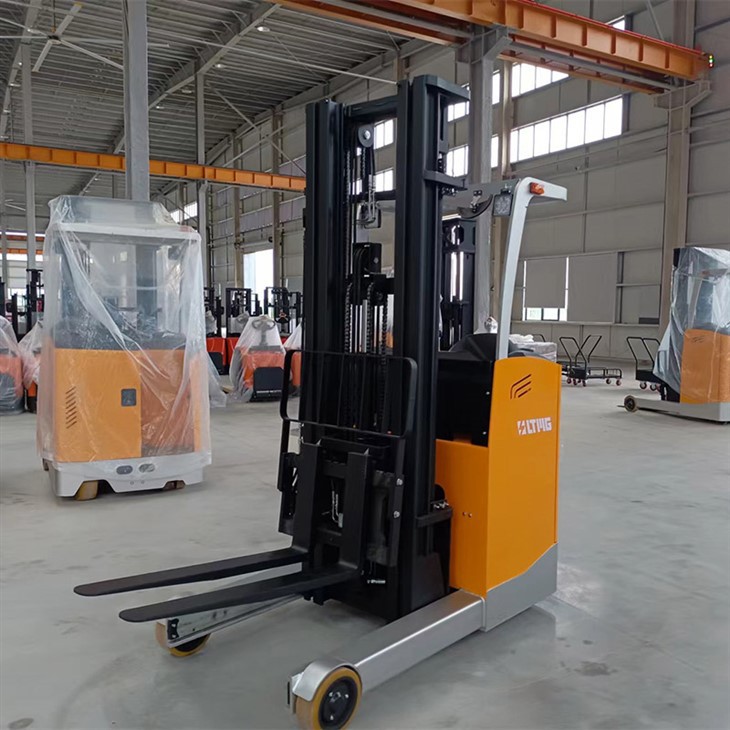

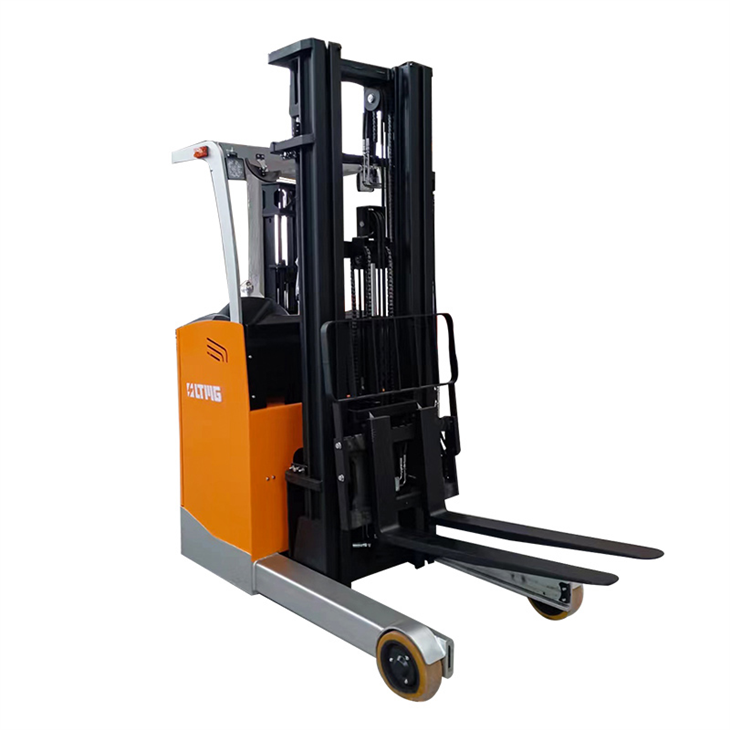

Electric reach truck is designed to improve handling efficiency because it can freely change direction in confined areas. This makes it easy to move goods in crowded warehouses or production plants.
The electric reach truck are designed and evenly distributed so that they are very stable when handling loads. It can support different sizes and weights of loads, reducing the possibility of collision or tipping of loads during handling.
The design of the reach truck is very flexible and can be adapted to various working scenarios. For example, it can be used to handle goods of different sizes and shapes, can rotate in narrow aisles, can operate in confined areas, and enter and exit shelves very easily.
Overall, the electric reach truck is a very convenient, efficient, safe and stable logistics equipment with obvious benefits.
Specification
|
Model |
|
FRB20 |
|
Power Type |
|
Electric |
|
Operation type |
|
Stand type |
|
Capacity |
Q(kg) |
2000 |
|
Load center |
C(mm) |
500 |
|
Front overhang |
X(mm) |
173 |
|
Wheelbase |
Y(mm) |
1585 |
|
Reach distance |
I4(mm) |
730 |
|
weight |
kg |
2050 |
|
Wheel type |
|
PU solid tire |
|
Driving Wheel |
Ø x w(mm) |
230*75 |
|
front wheel |
Ø x w(mm) |
210*85 |
|
Rear wheel |
Ø x w(mm) |
150*50 |
|
Wheel tread:Front |
b10(mm) |
735 |
|
Wheel tread:Rear |
b11(mm) |
955 |
|
fork lowering |
|
1840 |
|
Max Lifting Height |
h3(mm) |
2500 |
|
Max.height |
h4(mm) |
3416 |
|
Fork height when gantry retracted |
h13(mm) |
40 |
|
Mast/carriage tilt angle(front/rear) |
0 |
3/5 |
|
Overall height（with forks) Overall length (without fork) |
I2(mm) |
1984/2346 |
|
Overall width |
b1(mm) |
1034 |
|
Fork dimension |
s/e/l(mm) |
40/122/1070 |
|
Fork spread |
b5(mm) |
245-705 |
|
Min ground clearance |
m2(mm) |
70 |
|
Min.stacking.aisle.1000*1200pall |
Ast(mm) |
2910 |
|
Min.stacking.aisle.1000*1200pall |
Ast(mm) |
3311 |
|
Turning radius |
Wa(mm) |
1902/2303 |
|
Max travel speed)(No load /Full) |
km/h |
5/4 |
|
Lifting speed (No load /Full) |
m/s |
0.112/0.085 |
|
Lowered speed (No load /Full) |
m/s |
0.096/0.123 |
|
Max.Grade ability No load /Full |
% |
6/4 |
|
Brake form |
|
Electromagnetic braking |
|
Driving motor |
kw |
2.5 |
|
Lifting motor |
kw |
2.2DC |
|
Battery type |
|
Lead acid battery |
|
Battery capacity |
V/Ah |
24/210 |
|
Charger-Intelligent |
V/A |
24/30 |
|
Drive control mode |
|
AC |
|
Driver's ear noise level according to EN12053 |
dB(A) |
75 |

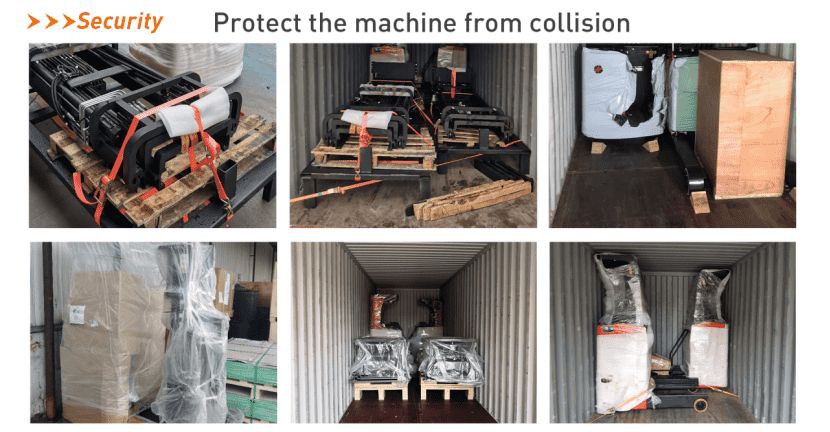

Shipping plan

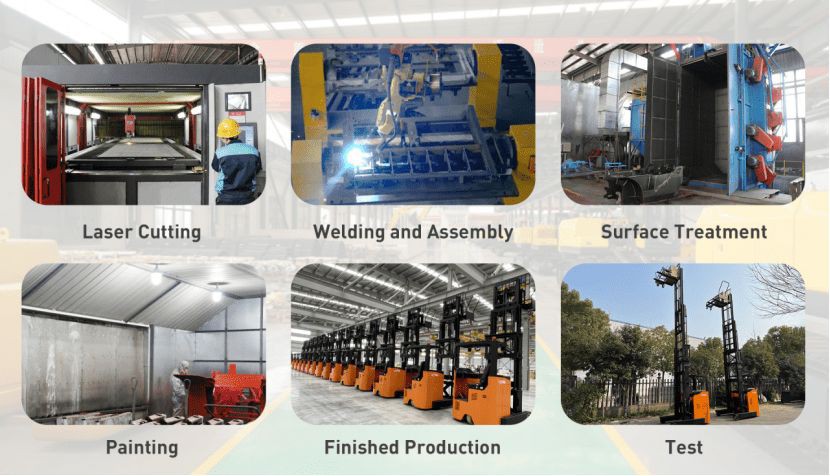

Factory process
FAQ
1. How does your factory do regarding quality control?
Certificates. One Year Warranty and Life-time Technical Support.
2. What's the delivery time?
The exact delivery time might be different for different orders or at different time.
3. Can I mix different models in one container?
Yes, different models can be mixed in one container.
4. Can your products be customized?
Yes, we'll try our best to satisfy your requirement.
